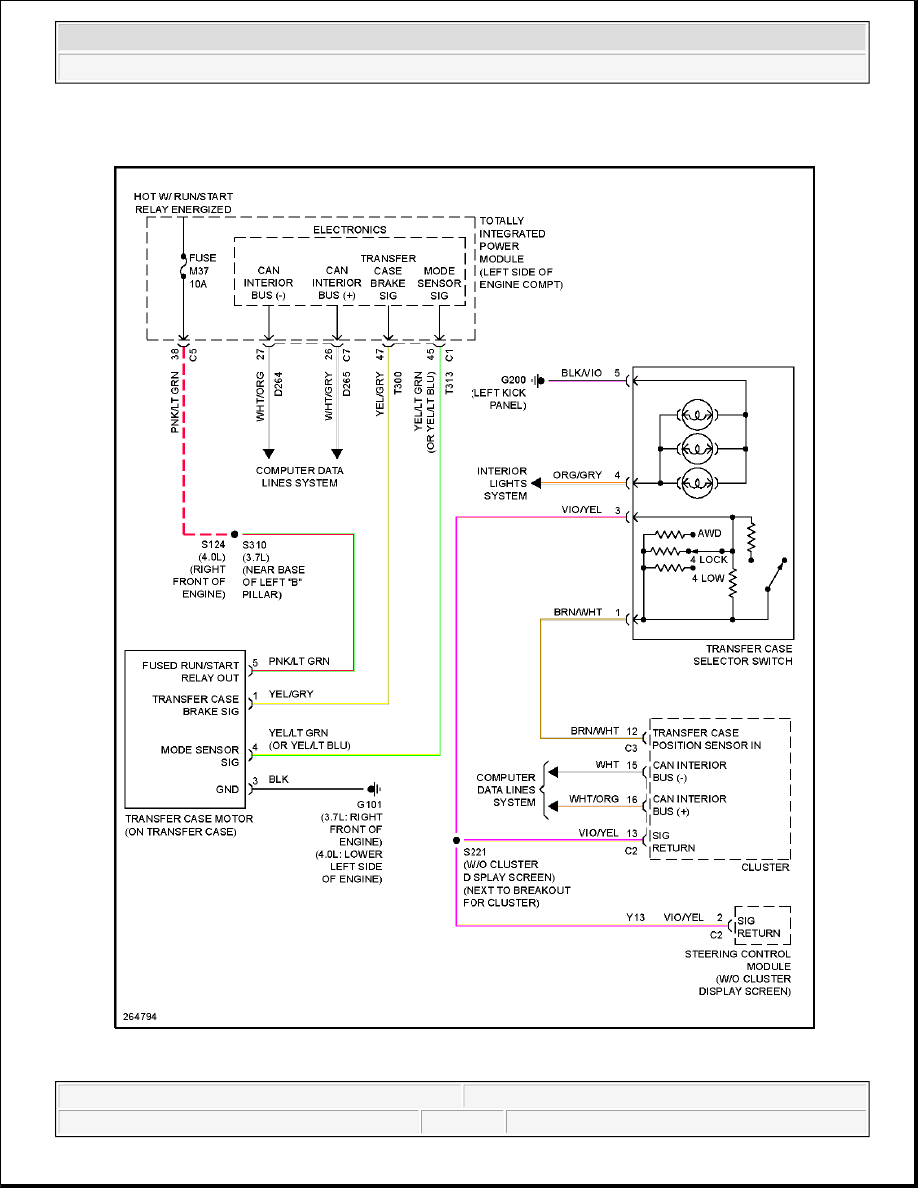

Fig. 57: Transfer Case Circuit, 4WD

3.7L

2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro

2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro

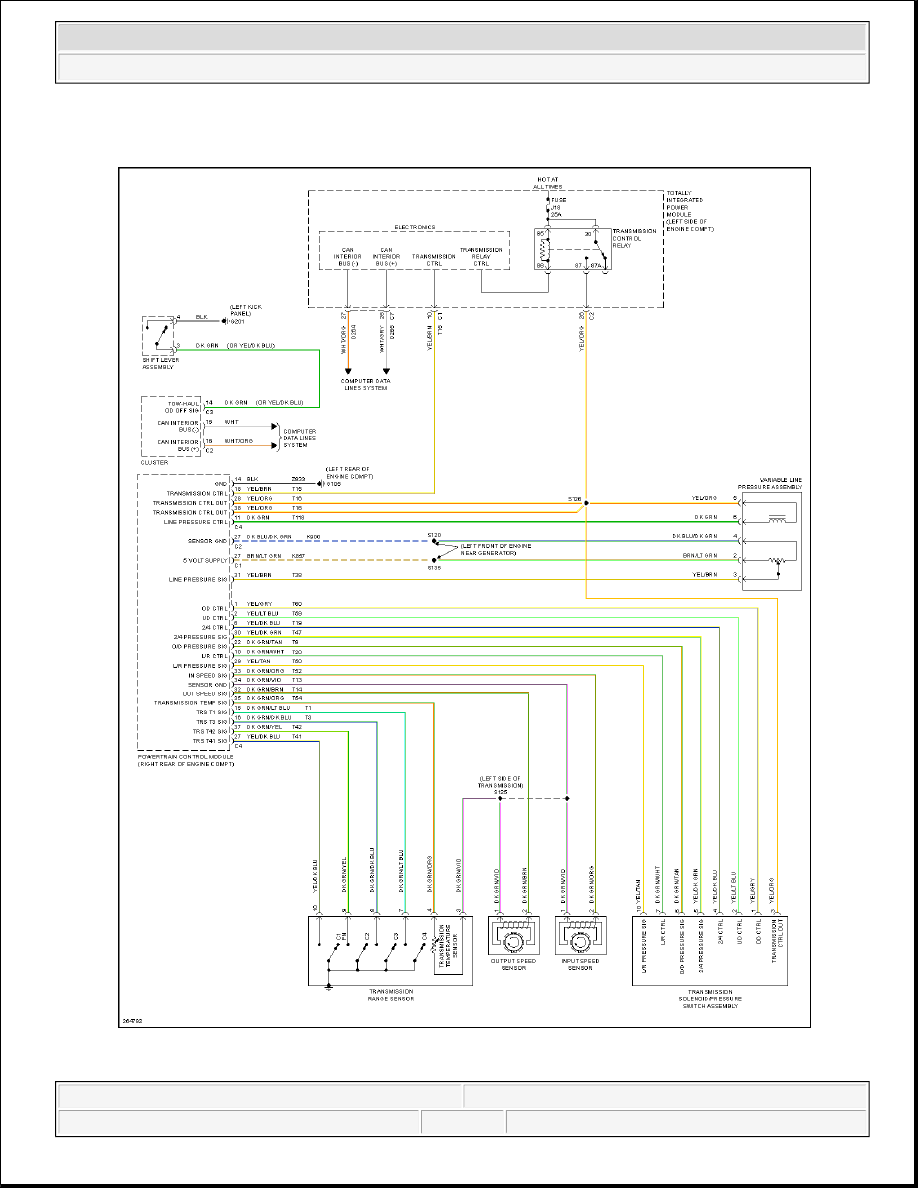

Fig. 58: 3.7L, A/T Circuit

4.0L

2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro
