Dodge Nitro. Manual - part 1003

2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro

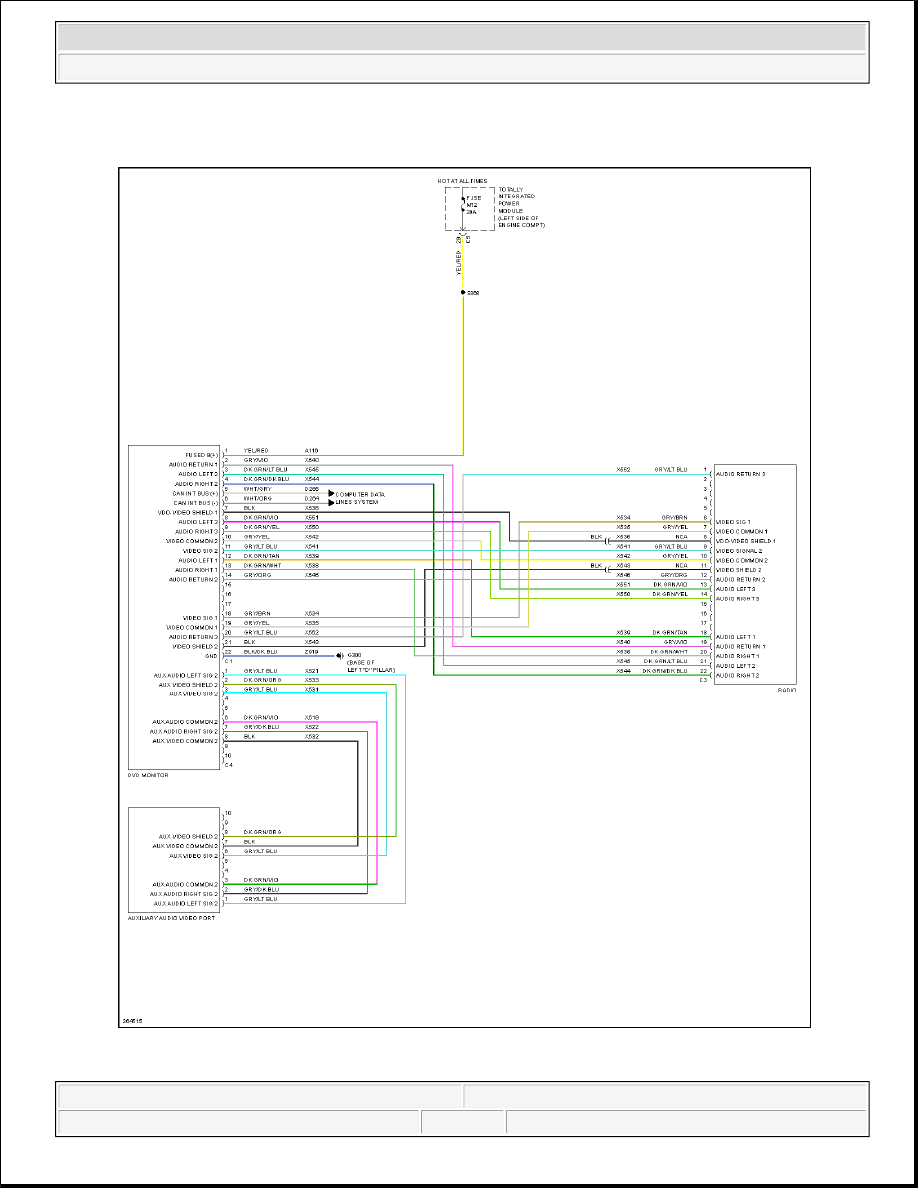

Fig. 47: DVD Player Circuit

2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro

2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro

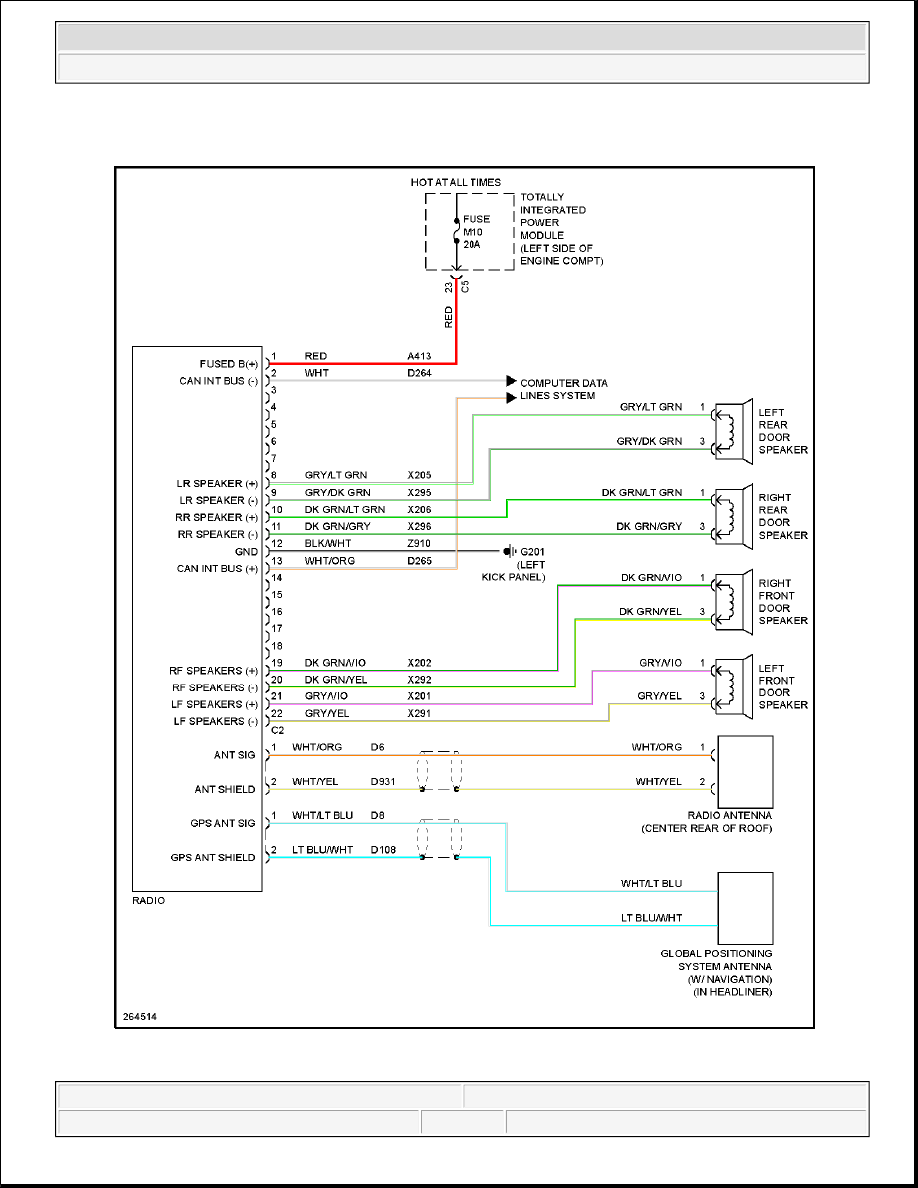

Fig. 48: Radio Circuit, Base

2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro
