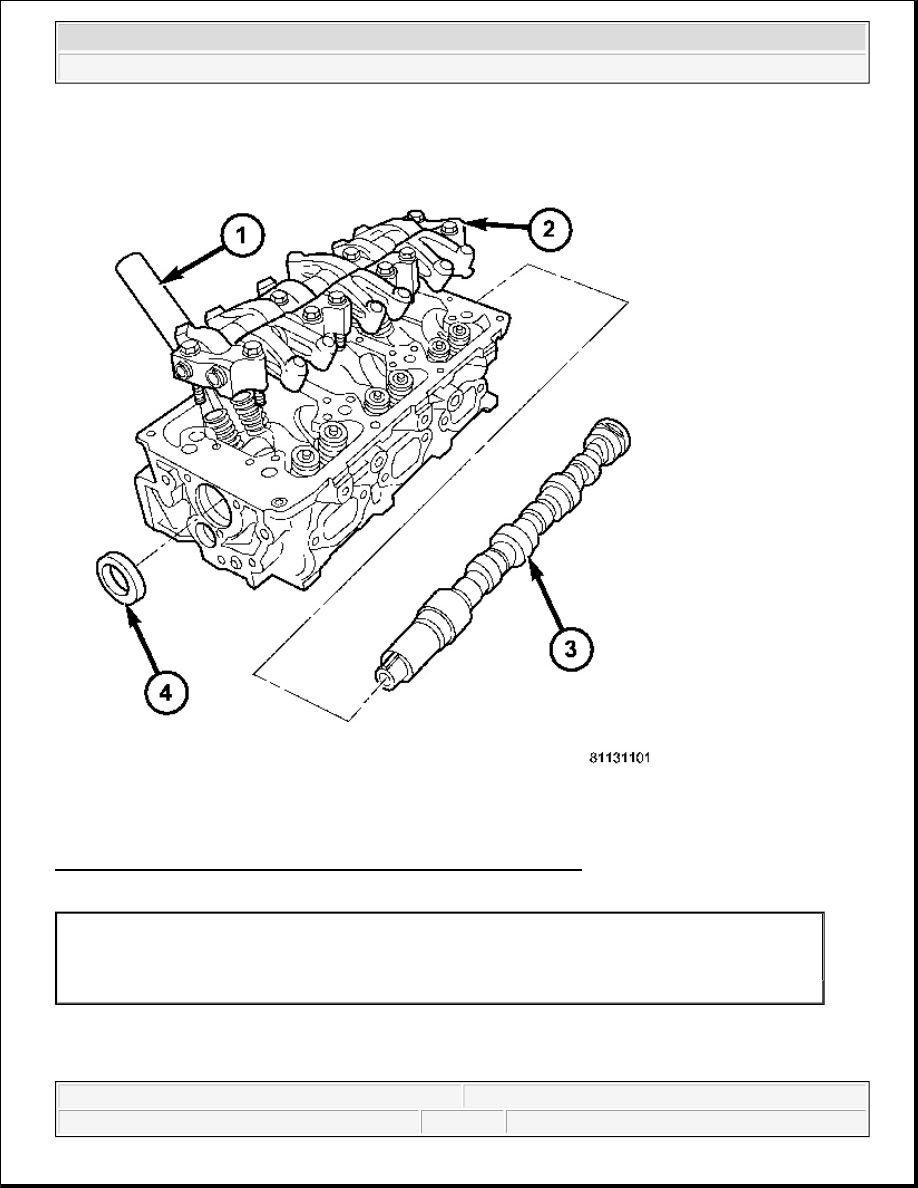

Fig. 137: Spark Plug Tube, Rocker Arm Assembly, Camshaft & Seal
Courtesy of CHRYSLER LLC

1 - SPARK PLUG TUBE
2 - ROCKER ARM ASSEMBLY
3 - CAMSHAFT
4 - SEAL

NOTE:

Care must be taken not to scrape or nick the camshaft journals when installing
the camshaft into position.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



1. Lubricate camshaft (3) bearing journals, camshaft lobes and camshaft seal (4) with clean engine oil and

install camshaft (3) into cylinder head. See Fig. 137.

2. Install the cylinder head. See INSTALLATION.

COVER CYLINDER HEAD - LEFT

REMOVAL

CYLINDER HEAD COVER - LEFT

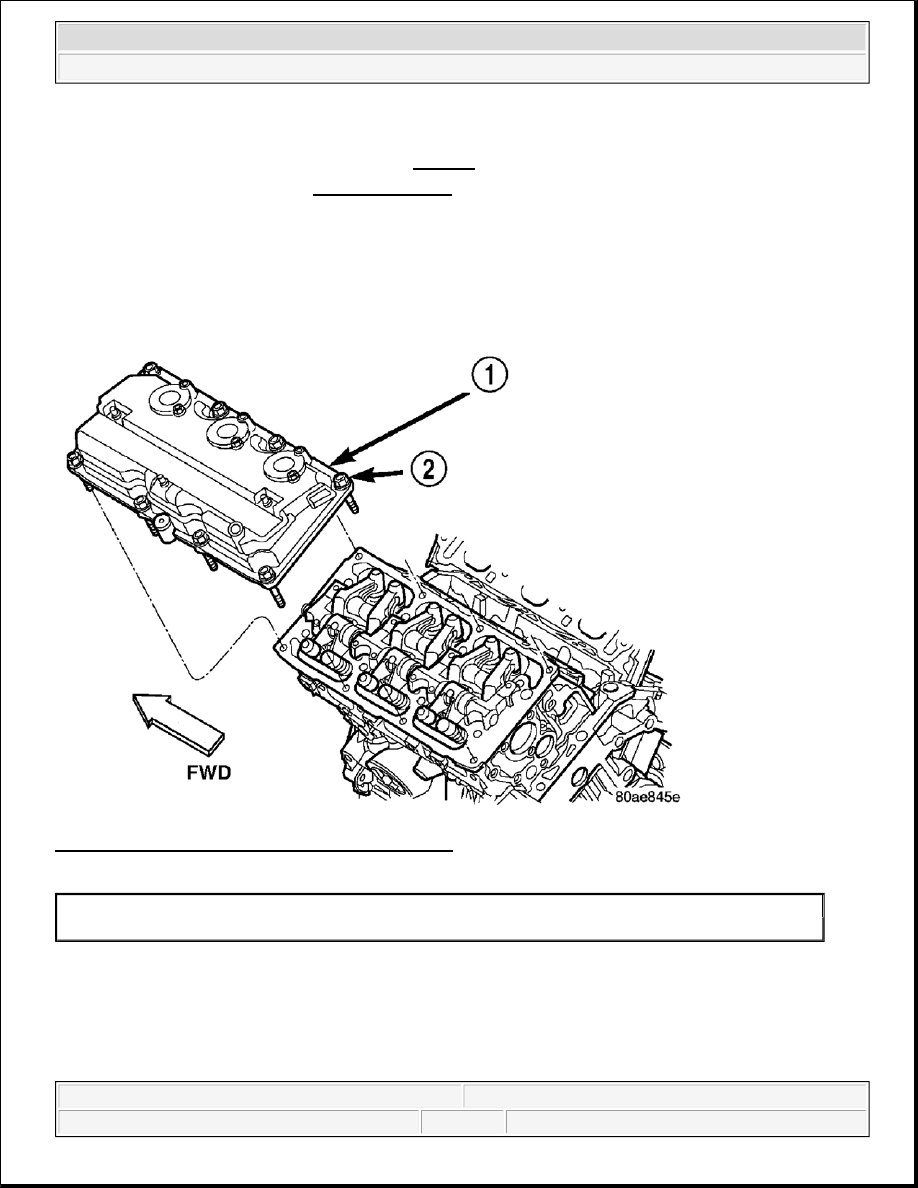

Fig. 138: Removing/Installing Cylinder Head Cover
Courtesy of CHRYSLER LLC

1. Disconnect and isolate the negative battery cable.

1 - CYLINDER HEAD COVER-LEFT SIDE
2 - BOLTS (8)

WARNING:

DO NOT START OR RUN ENGINE WITH CYLINDER HEAD COVER
REMOVED FROM THE ENGINE. DAMAGE OR PERSONAL INJURY MAY
OCCUR.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



2. Remove the upper intake manifold from the engine. See REMOVAL.

3. Cover lower intake manifold with a suitable cover during service.

4. Disconnect and remove the three ignition coils.

5. Remove the ground strap/resistor retaining bolt from the cylinder head cover.

6. Lift up on the wire harness track retaining tabs.

7. Completely loosen the cylinder head cover retaining bolts and remove the cylinder head cover. See Fig.

138.

INSTALLATION

CYLINDER HEAD COVER - LEFT

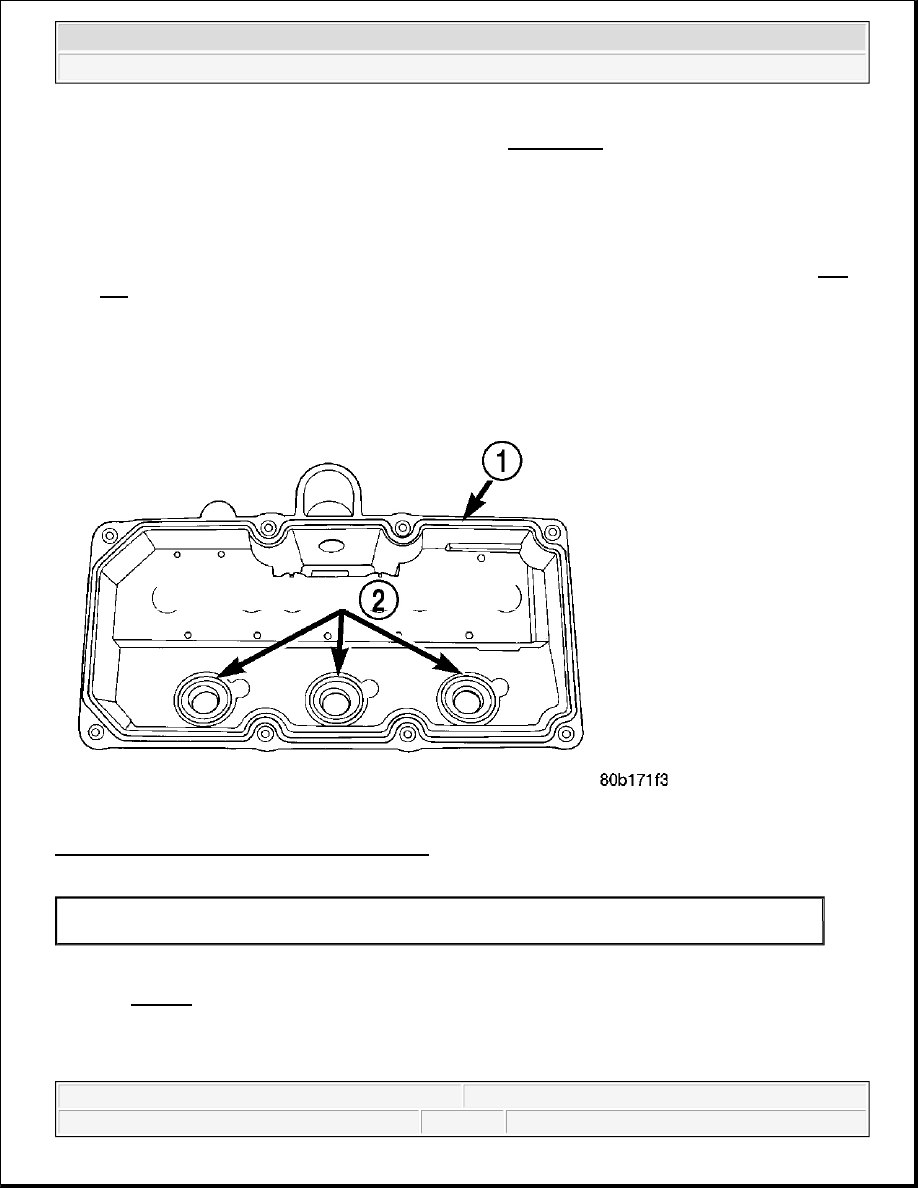

Fig. 139: Inspecting/Replacing Gasket And Seals
Courtesy of CHRYSLER LLC

1. Clean cylinder head and cover mating surfaces. Inspect and replace gasket (1) and seals (2) as necessary.

See Fig. 139.

1 - CYLINDER HEAD COVER GASKET
2 - SPARK PLUG TUBE SEALS



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



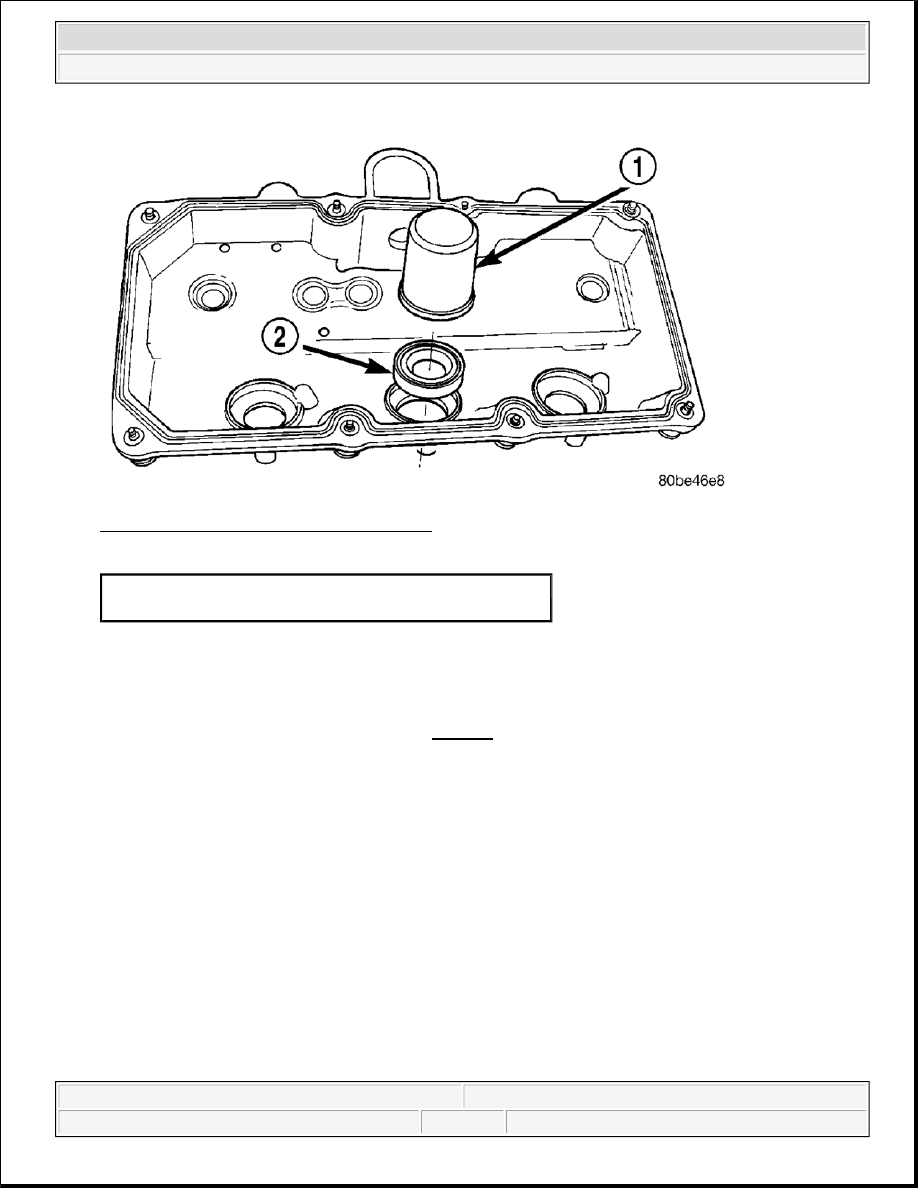

Fig. 140: Installing Seals Using MD-998306
Courtesy of CHRYSLER LLC

2. To replace spark plug tube seals (2):



Using a suitable pry tool, carefully remove tube seals (2).



Position new seal (2) with the part number on seal facing cylinder head cover.



Install seals using MD-998306 (1). See Fig. 140.

1 - SPECIAL TOOL MD-998306
2 - SPARK PLUG TUBE SEAL
