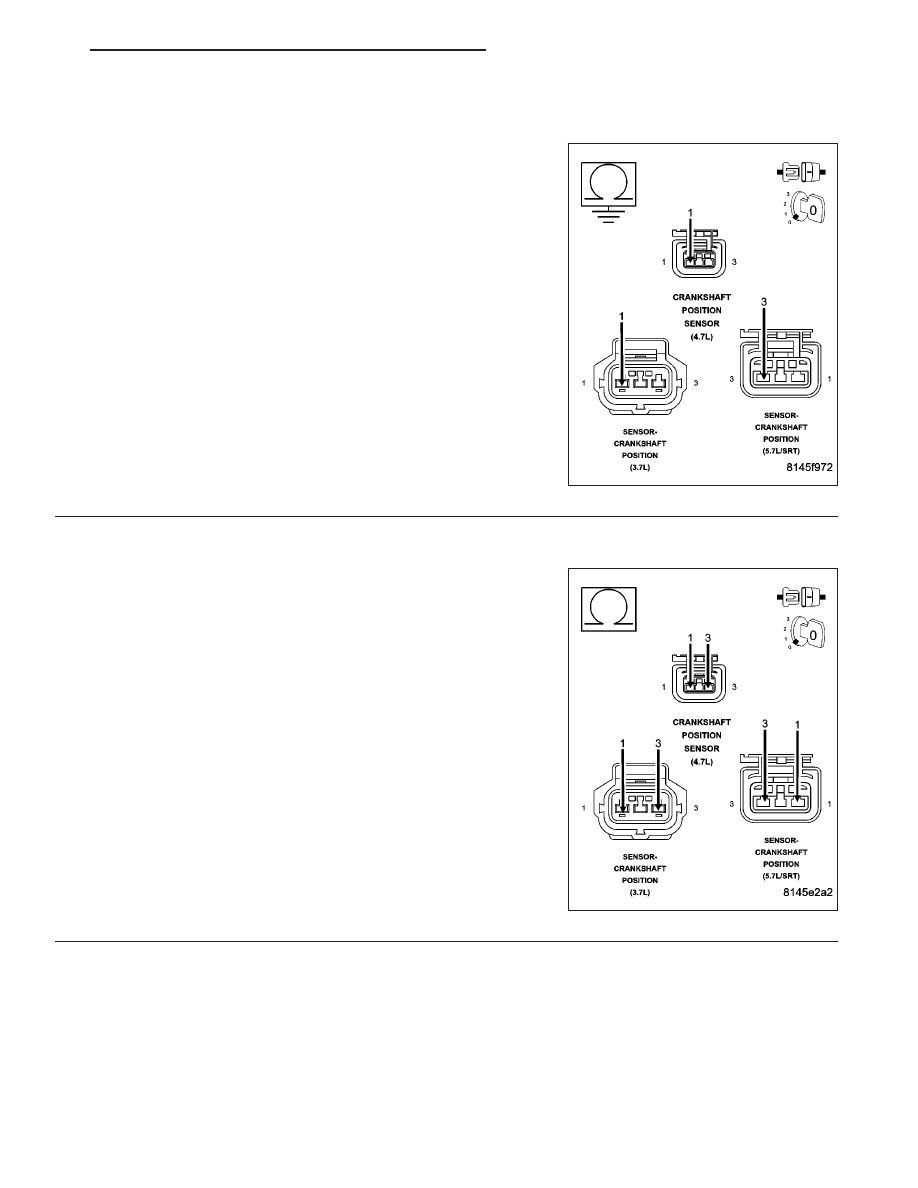

P0339-CRANKSHAFT POSITION SENSOR INTERMITTENT (CONTINUED) 10. (K24) CKP SIGNAL CIRCUIT SHORTED TO GROUND Measure the resistance between ground and the (K24) CKP Signal cir- Wiggle the related wire harness while monitoring the resistance value. Does the resistance ever go below 100 ohms? Yes >> Repair the short to ground in the (K24) Signal circuit. Perform the POWERTRAIN VERIFICATION TEST. (Refer No >> Go To 11 11. (K24) CKP SIGNAL CIRCUIT SHORTED TO THE (F855) 5-VOLT SUPPLY CIRCUIT Measure the resistance between the (F855) 5-volt Supply circuit and Wiggle the related wire harness while taking this measurement. Is the resistance below 5.0 ohms? Yes >> Repair the short between the (F855) 5-volt Supply circuit and the (K24) CKP Signal circuit. Perform the POWERTRAIN VERIFICATION TEST. (Refer No >> Go To 12 HB ENGINE ELECTRICAL DIAGNOSTICS 9 - 419 |
