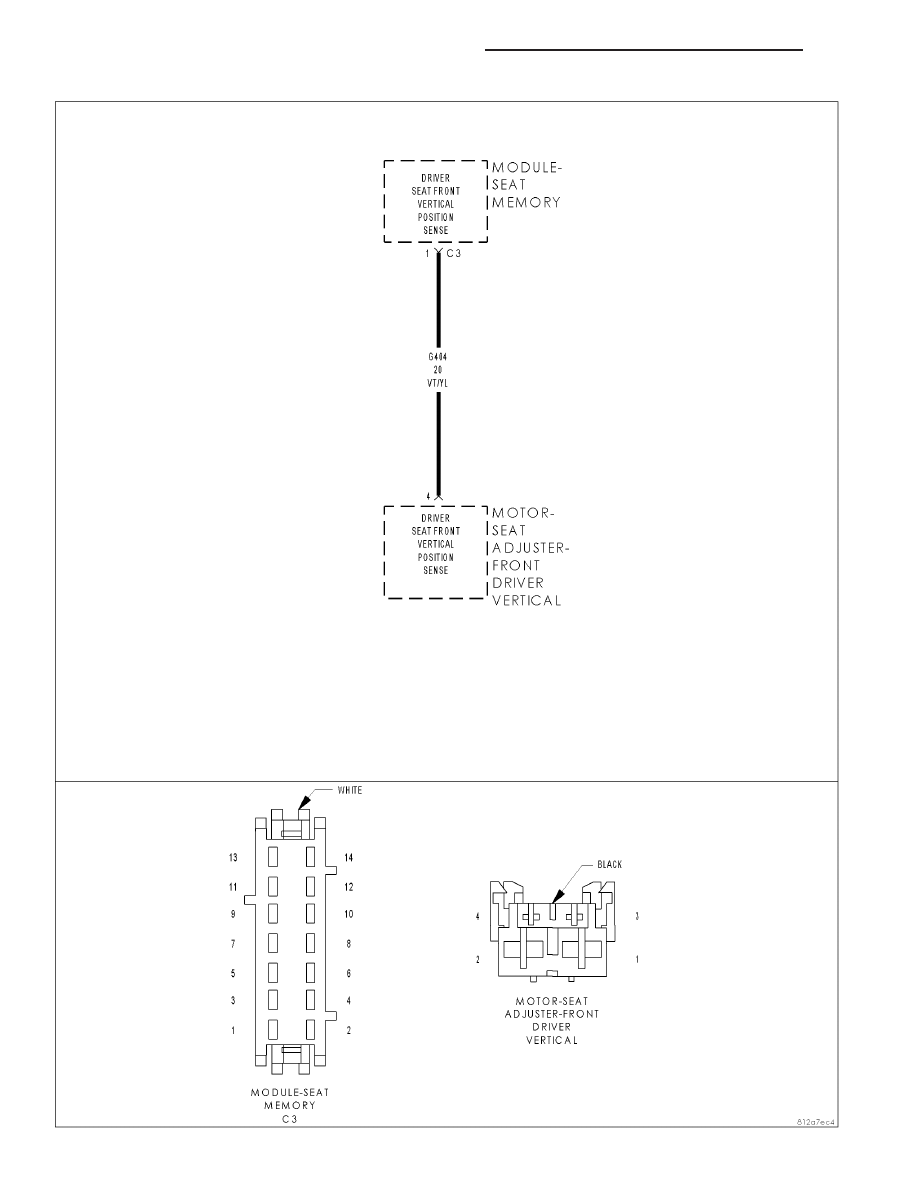

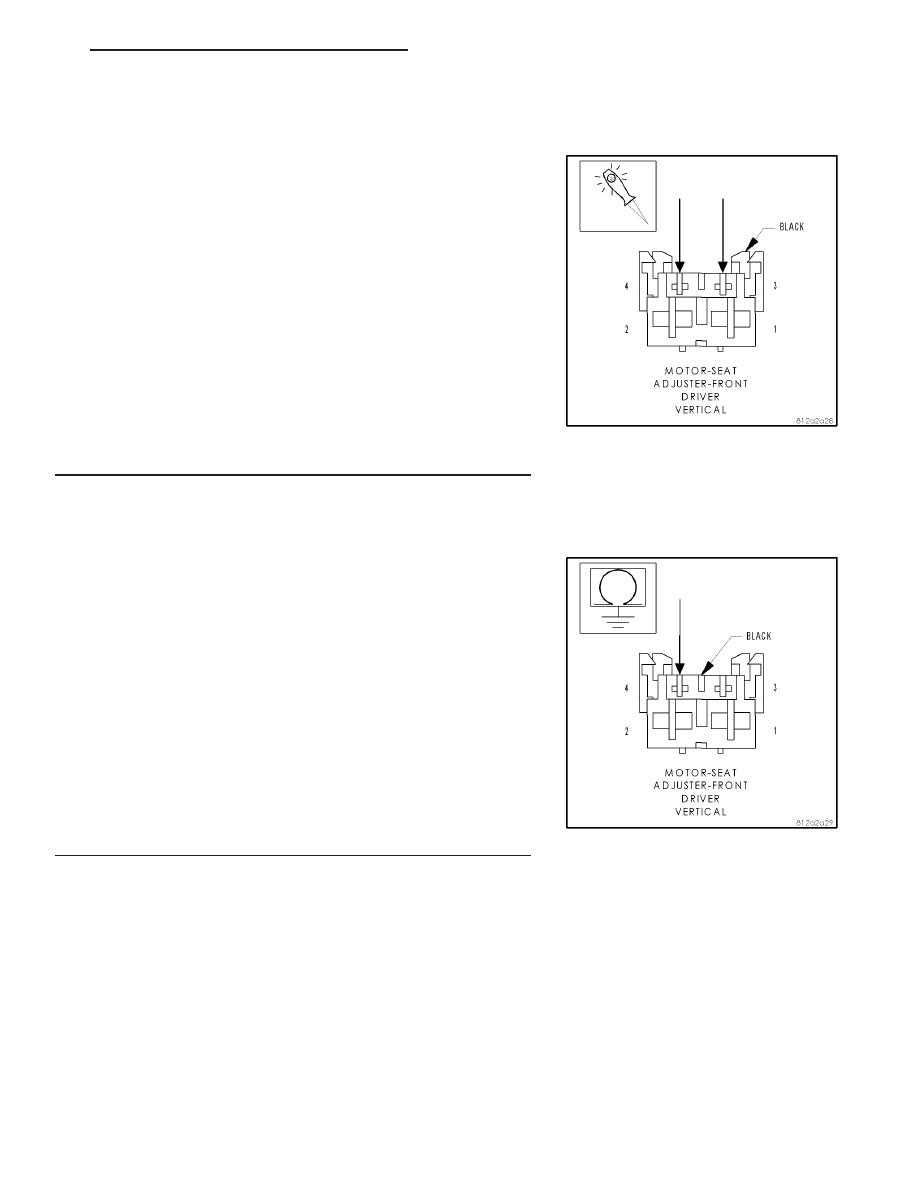

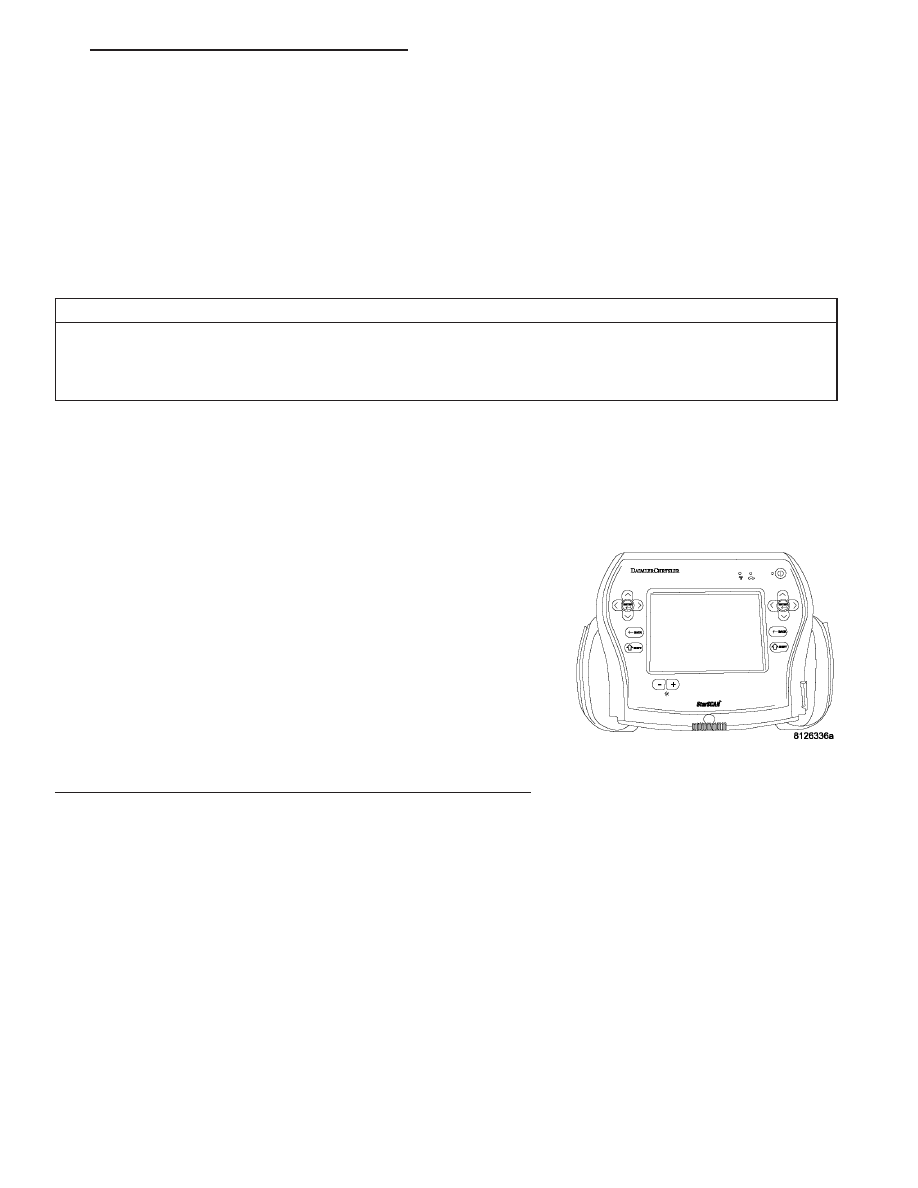

2. CHECK THE (G404) DRIVER SEAT FRONT VERTICAL Disconnect the Front Driver Vertical Seat Adjuster Motor. Note: Check connectors – Clean and repair as necessary. Using a 12-volt test light connect one lead to the (G404) Driver Seat Does the test light illuminate for approximately 2 seconds then turn off with the seat switch engaged? Yes >> Replace the Front Driver Seat Adjuster Motor assembly. Perform POWER SEAT SYSTEM VERIFICATION TEST – No >> Go To 3 3. CHECK THE (G404) DRIVER SEAT FRONT VERTICAL Disconnect the Seat Memory Module C3 connector. Note: Check connectors – Clean and repair as necessary. Is the resistance below 1000.0 ohm? Yes >> Repair the (G404) Driver Seat Front Vertical Position Sense circuit for a short to ground. Perform POWER SEAT SYSTEM VERIFICATION TEST – No >> Replace the Seat Memory Module. Perform POWER SEAT SYSTEM VERIFICATION TEST – HB POWER SEATS - ELECTRICAL DIAGNOSTICS 8N - 161 B1D71–SEAT FRONT VERTICAL POSITION SENSOR CIRCUIT LOW — (CONTINUED) |
