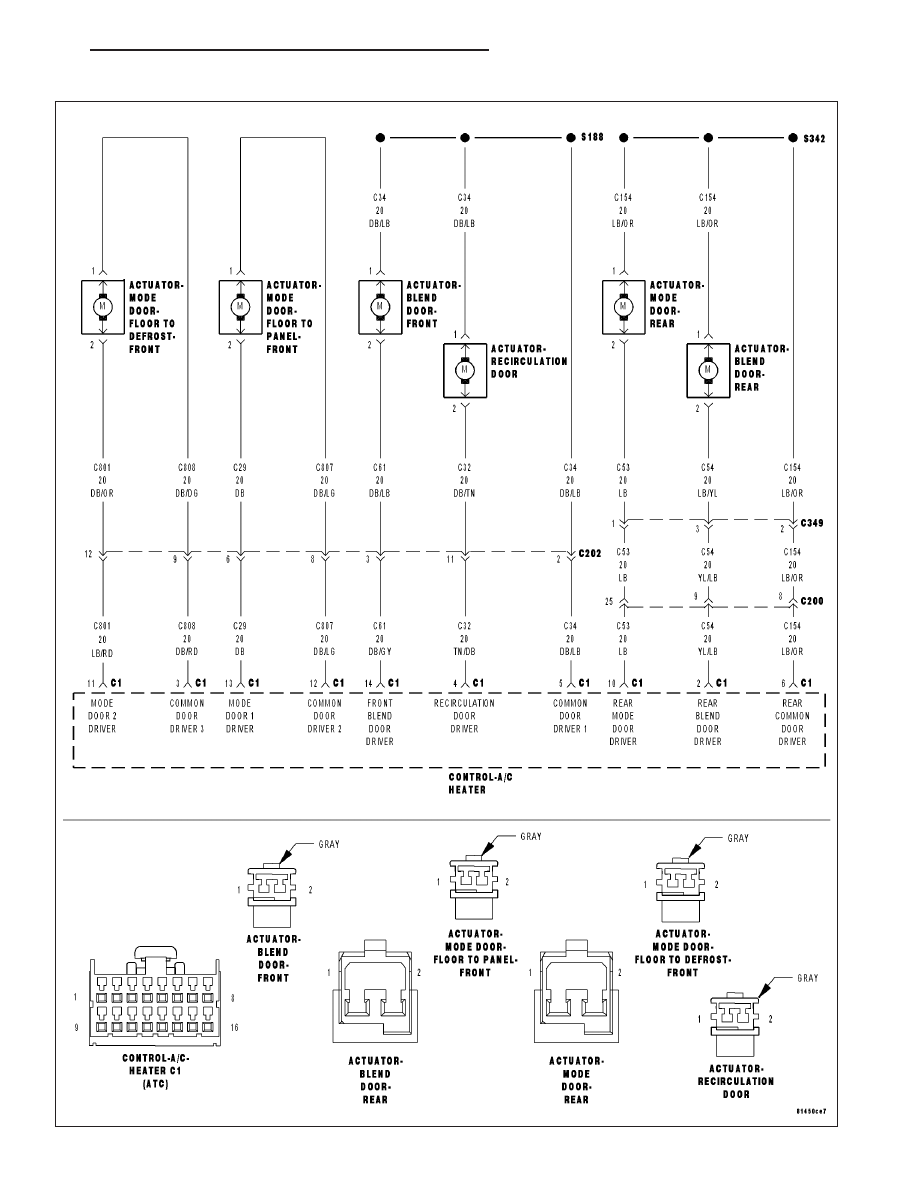

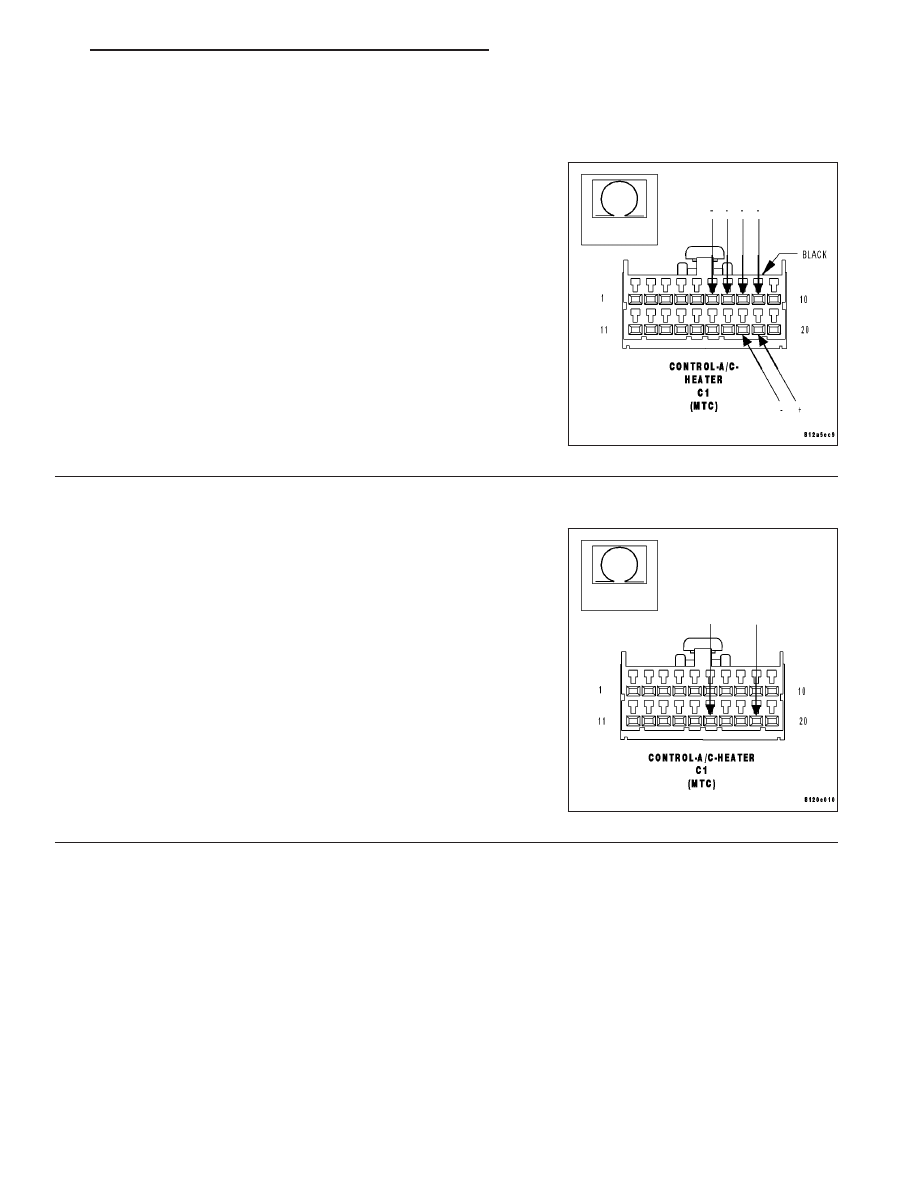

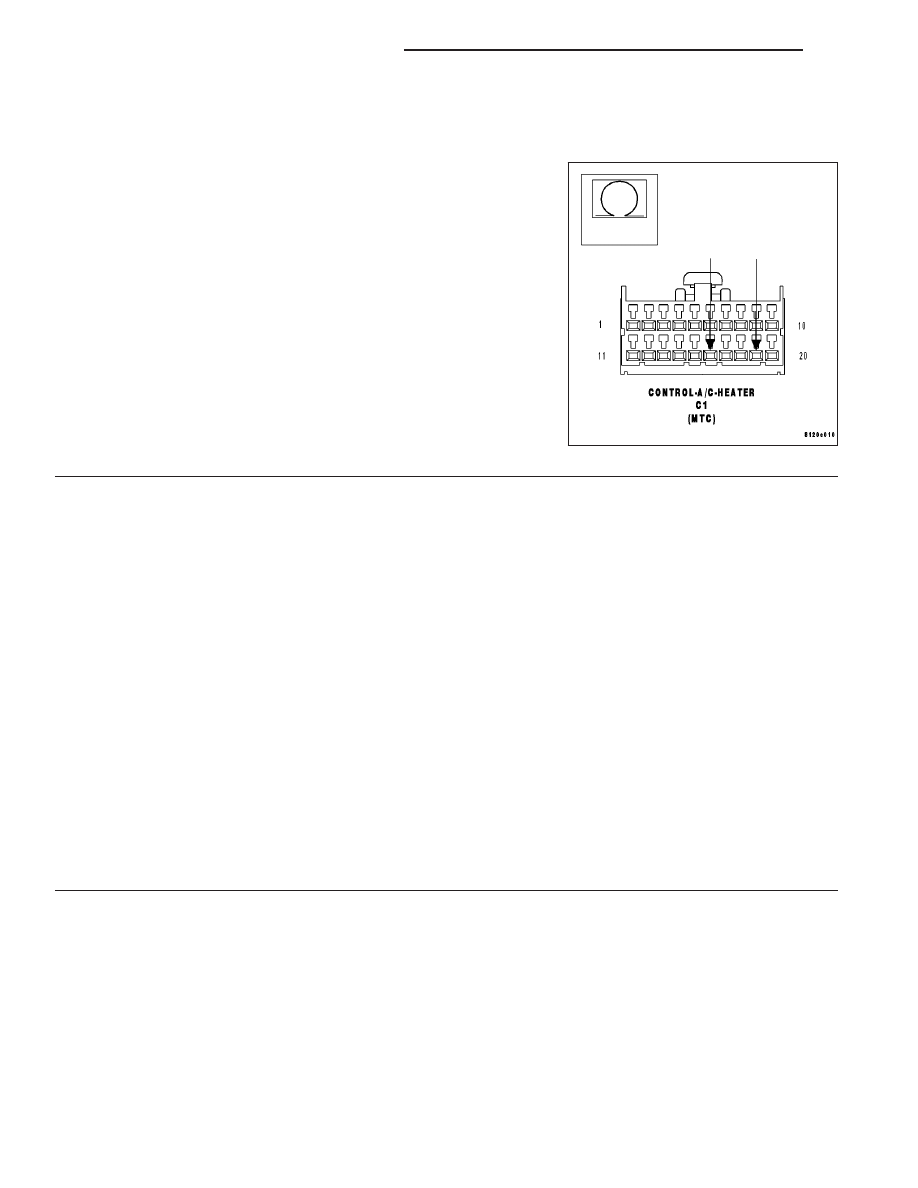

B103B–REAR MODE DOOR CONTROL CIRCUIT LOW (MTC) (CONTINUED) 4. CHECK (C154) REAR COMMON DOOR DRIVER CIRCUIT FOR A SHORT TO OTHER DOOR DRIVER Measure the resistance between the (C154) Rear Common Door Is the resistance below 10k ohms between the (C154) Rear Yes >> Repair the circuit(s) with a resistance below 10k ohms for a short to the (C154) Rear Common Door Driver circuit. Perform BODY VERIFICATION TEST - VER 1. No >> Go To 5 5. CHECK REAR MODE DOOR ACTUATOR CIRCUIT RESISTANCE Measure the resistance between the (C53) Rear Mode Door Driver cir- Is the resistance below 30 ohms? Yes >> Go To 6 No >> Go To 7 HB HVAC - ELECTRICAL DIAGNOSTICS 24 - 41 |
