8W-95 SPLICE LOCATIONS
DESCRIPTION AND OPERATION
INTRODUCTION
This section provides illustrations identifying the
general location of the splices in this vehicle. A splice
index is provided. Use the wiring diagrams in each
section for splice number identification. Refer to the
index for proper splice number.

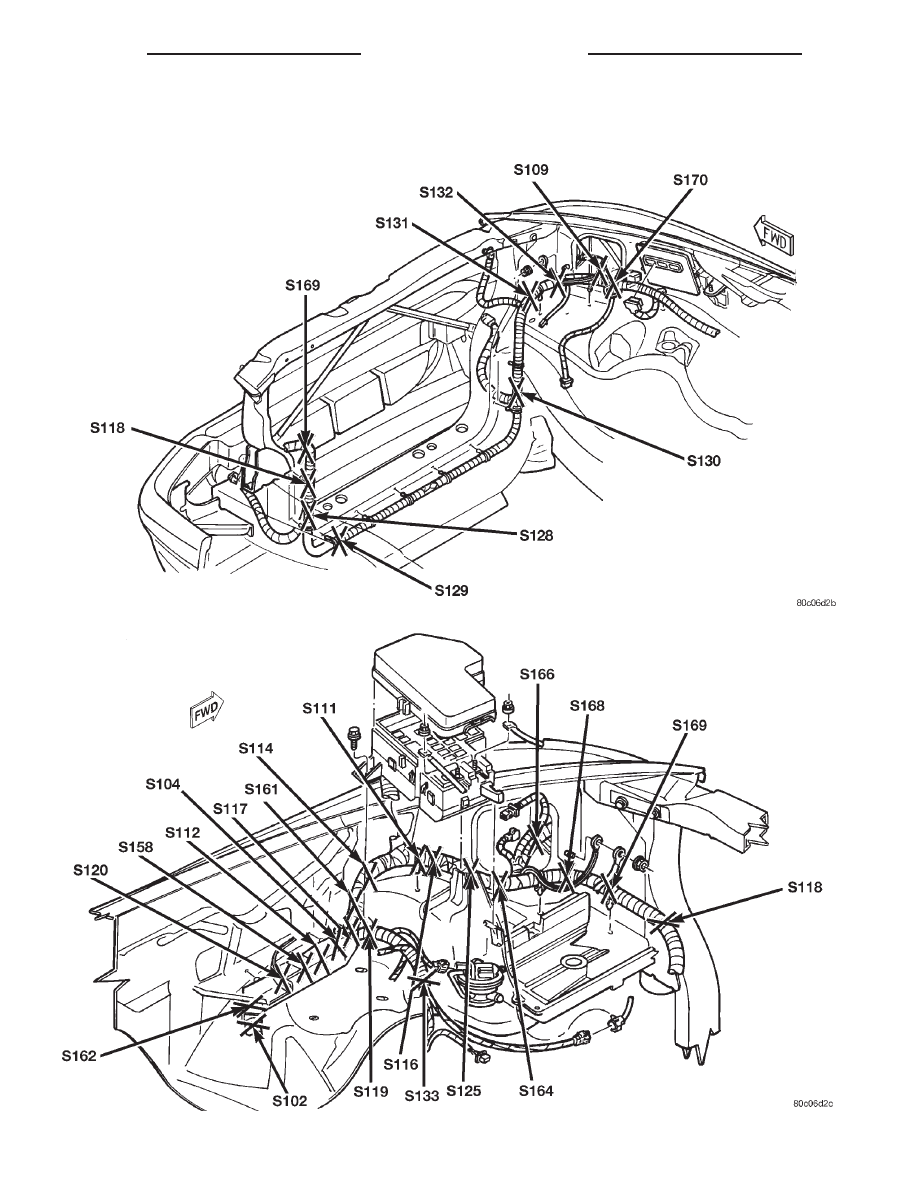

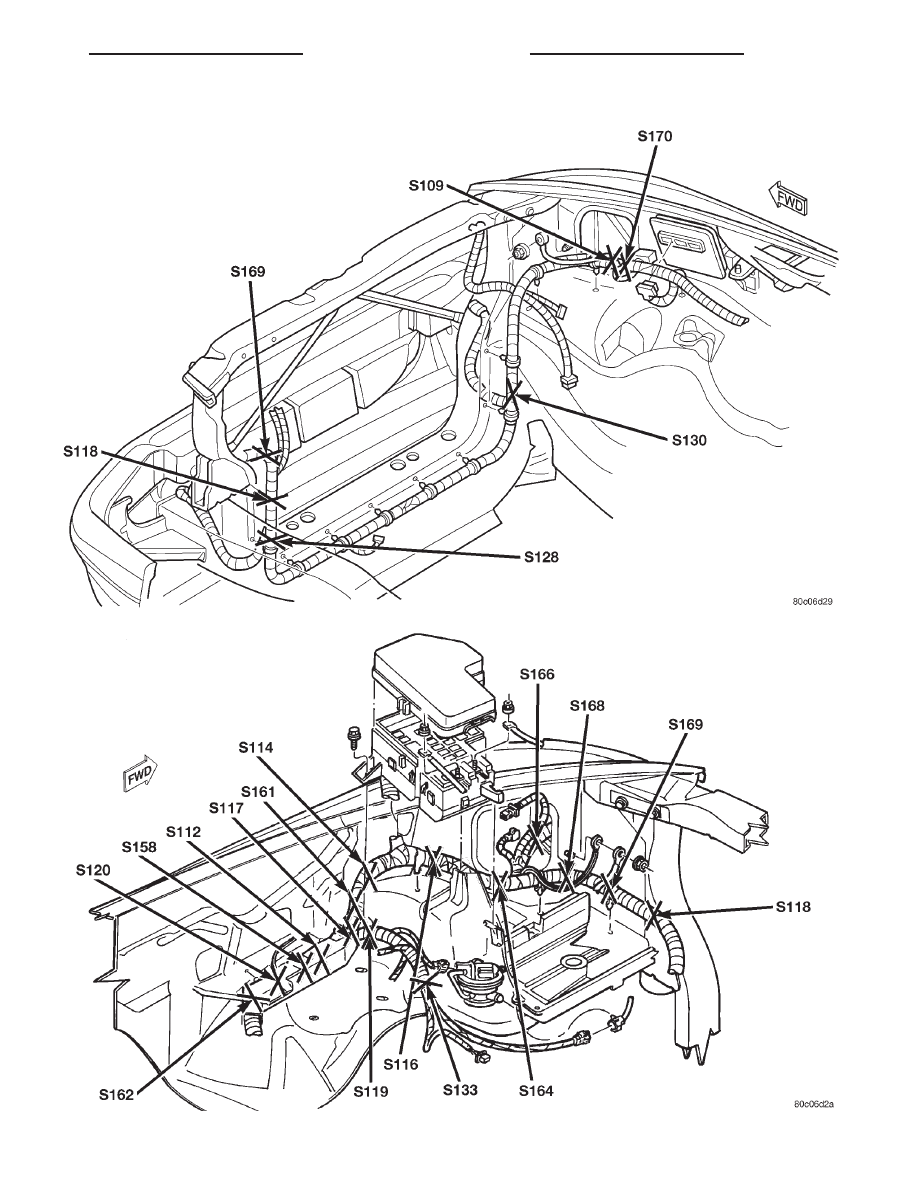

SPLICE LOCATIONS
For splices not shown in this section a N/S is
placed in the Fig. column.
Splice
No.
Location
Fig.
S101
Near Fuel Injector NO. 6 or
NO. 8
N/S
S102
In Wiring Trough
4
S103
Rear of Engine
5, 6
S103
(4.7L)
Near Fuel Injector NO. 5 T/O
10
S104
In Wiring Trough
4
S105
Near Fuel Injector NO. 8
N/S
S105
(4.7L)
Near Powertrain Control
Module T/O
N/S
S106
Near Fuel Injector NO. 6
7
S107
Rear of Engine
5, 6, 8,
12, 13
S108
Near Distributor T/O
8, 9, 11
S109
Near Right Headlamp T/O
1, 3
S110
Near Fuel Injector NO. 5 T/O
5, 6
S111
Near Power Distribution Center
T/O
4
S112
In Wiring Trough
2, 4
S113
In T/O for Connector C352
N/S
S114
Near Power Distribution Center
T/O
2, 4
S115
Rear of Engine
8
S116
Near Power Distribution Center
T/O
2, 4
S117
In Wiring Trough
2, 4
S118
Near Left Headlamp T/O
1, 2, 3,
4
S119
Near T/O for Brake Pressure
Switch
2, 4
S120
In Wiring Trough
2, 4
S122
Top of Transmission
11
S122
(4.7L)
Near Powertrain Control
Module T/O
N/S
Splice
No.
Location
Fig.
S123
Right Rear of Engine
N/S
S123
(4.7L)
Near Fuel Injector NO. 3 T/O
10
S125
Near Left Headlamp T/O
4
S128
Near Left Headlamp T/O
1, 3
S129
Near Horn T/O
3
S130
Near Right Headlamp T/O
1, 3
S131
Near Right Headlamp T/O
3
S132
Near Right Headlamp T/O
3
S133
Near T/O for Battery Positive
Connector
2, 4
S158
In Wiring Trough
2, 4
S161
Left Fender Side Shield
2, 4
S162
In Wiring Trough
2, 4
S164
Near Left Headlamp T/O
2, 4
S166
In Left Headlamp T/O
2, 4
S168
Near Battery
2, 4
S169
Near Battery
1, 2, 3,
4
S170
Near Powertrain Control
Module - C3 T/O
1, 3
S173
Near Fuel Injector NO. 6 or
NO. 8
N/S
S174
Near Transmission Control
Module
N/S
S175
Near Transmission Control
Module
N/S
S176
Near Transmission Control
Module
N/S
S177
Near A/C Low Pressure Switch
T/O
N/S
S178
Near Transmission Control
Module
14
S179
Near A/C Low Pressure Switch
T/O
N/S
