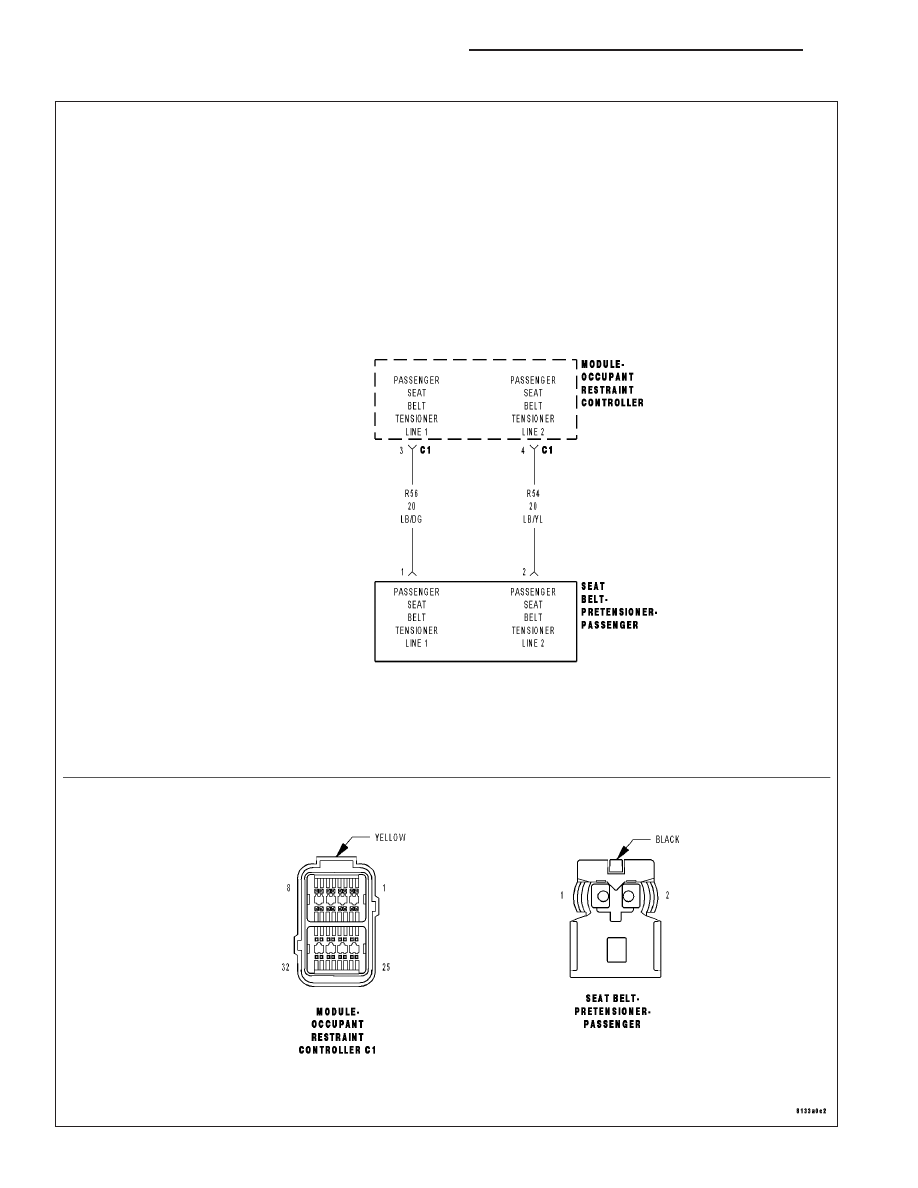

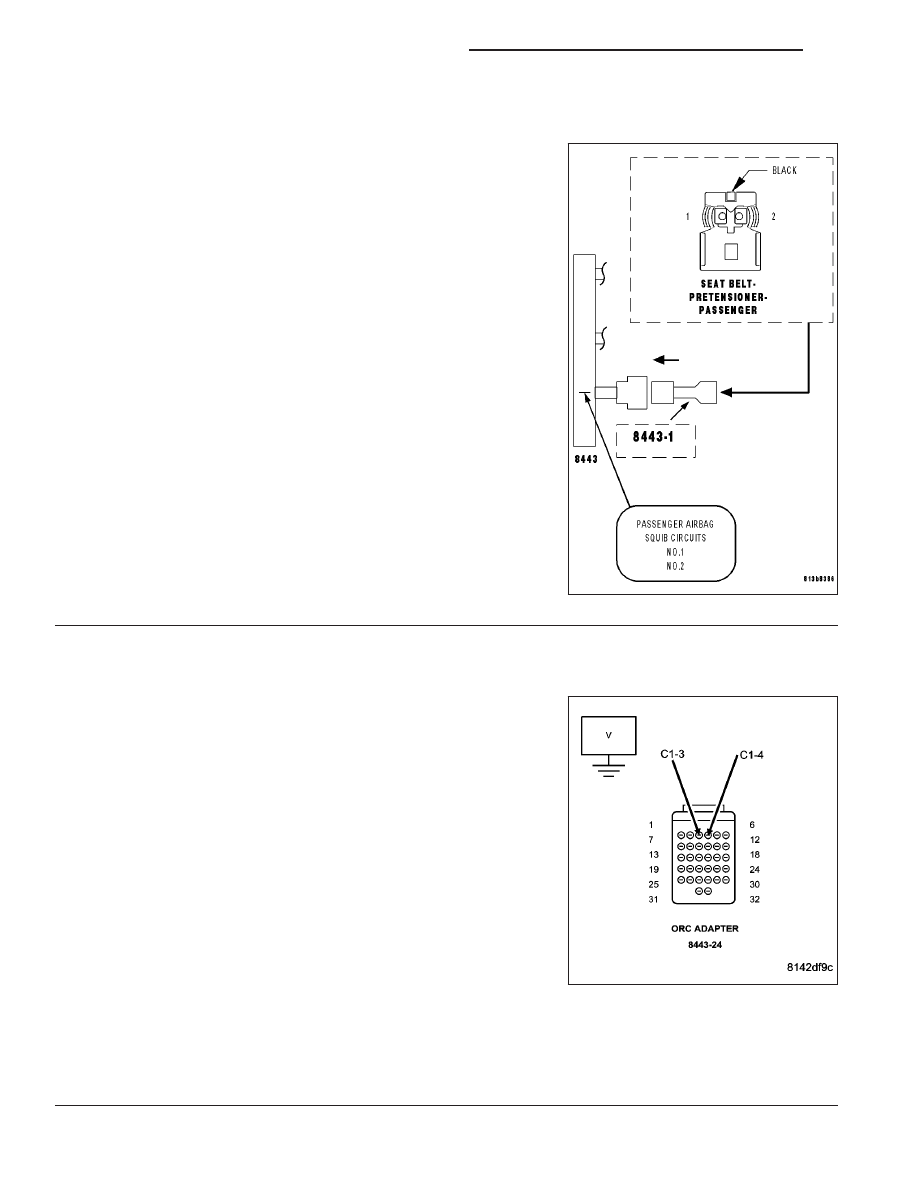

B1B2D-1st ROW PASSENGER SEAT BELT PRETENSIONER CIRCUIT HIGH (CONTINUED) 2. CHECK FOR SHORTED PASSENGER SEAT BELT PRETENSIONER WARNING: To avoid personal injury or death, turn the ignition off, NOTE: Check connectors - Clean and repair as necessary. WARNING: To avoid personal injury or death, turn the ignition on, Does the scan tool display: B1B2D 1st ROW PASSENGER SEAT Yes >> Go To 3 No >> Replace the Passenger Seat Belt Pretensioner in accor- dance with the Service Information. Perform ORC VERIFICATION TEST - VER 1 3. CHECK (R56) PASSENGER SEAT BELT TENSIONER LINE 1 CIRCUIT AND (R54) PASSENGER SEAT WARNING: To avoid personal injury or death, turn the ignition off, Disconnect the ORC connectors. NOTE: Check connectors - Clean and repair as necessary. WARNING: To avoid personal injury or death, turn the ignition on, Measure the voltage of the (R54) Passenger Seat Belt Tensioner Line Is there any voltage present on either circuit? Yes >> Repair the Passenger Seat Belt Tensioner circuits with voltage present for a short to battery. Perform ORC VERIFICATION TEST - VER 1 No >> Go To 4 8O - 152 RESTRAINTS - ELECTRICAL DIAGNOSTICS ND |
