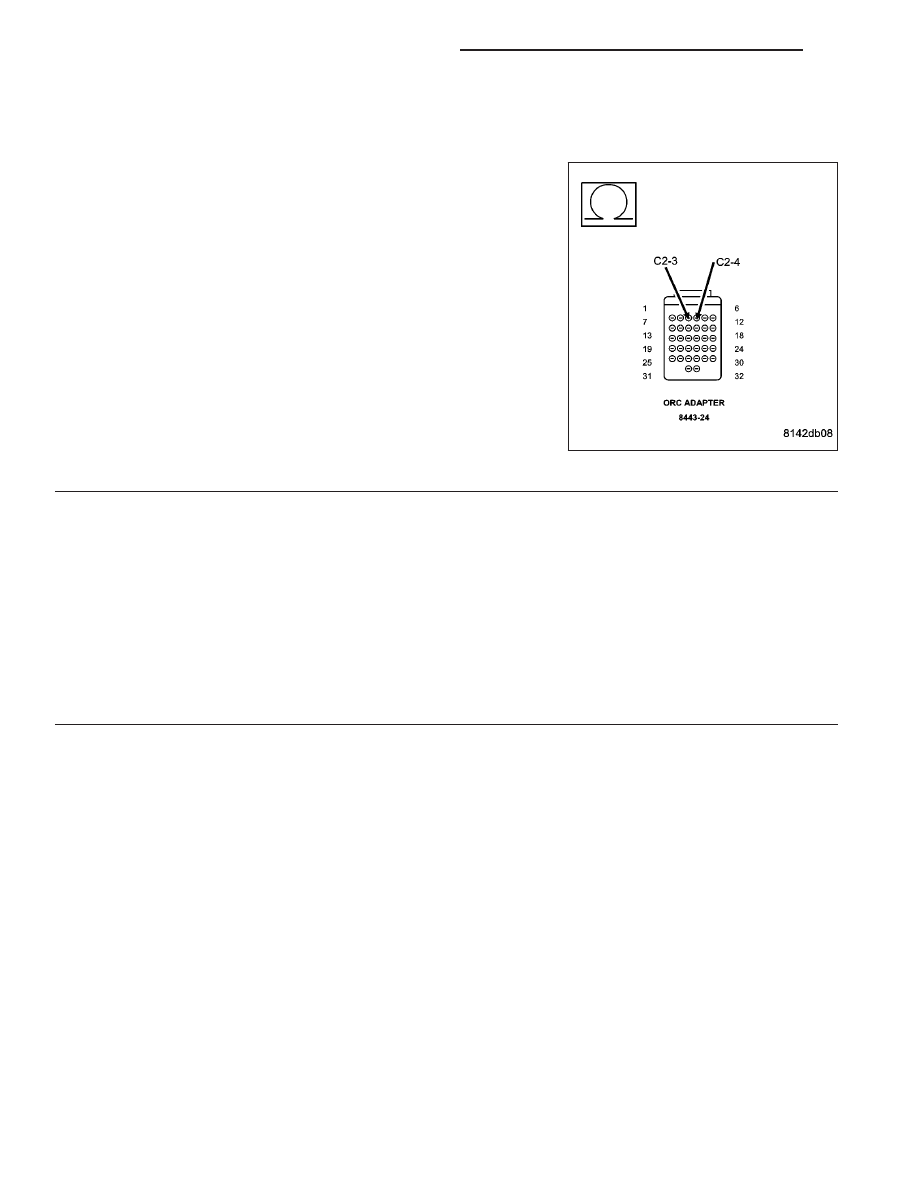

B1B07-DRIVER AIRBAG SQUIB 2 CIRCUIT SHORTED TOGETHER (CONTINUED) 4. CHECK (R63) DRIVER SQUIB 2 LINE 1 CIRCUIT FOR A SHORT TO (R61) DRIVER SQUIB 2 LINE 2 WARNING: To avoid personal injury or death, turn the ignition off, Disconnect the ORC connectors. NOTE: Check connectors - Clean and repair as necessary. Measure the resistance between the (R63) Driver Squib 2 Line 1 cir- Is the resistance below 10K ohms? Yes >> Repair the (R63) Driver Squib 2 Line 1 circuit for a short to the (R61) Driver Squib 2 Line 2 circuit. Perform ORC VERIFICATION TEST - VER 1 No >> Go To 5 5. REPLACE THE ORC WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must Repair Replace the ORC in accordance with the Service Information. Perform ORC VERIFICATION TEST - VER 1 8O - 60 RESTRAINTS - ELECTRICAL DIAGNOSTICS ND |
