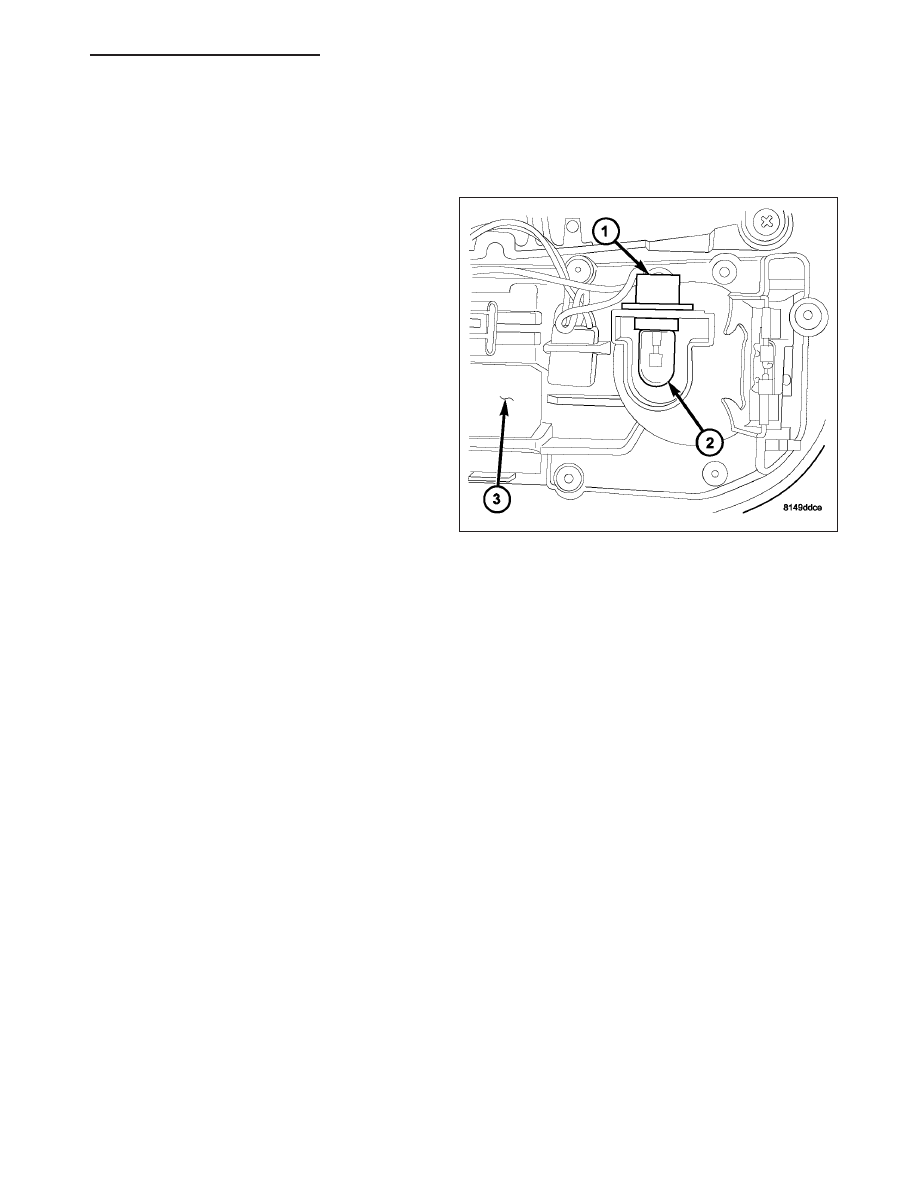

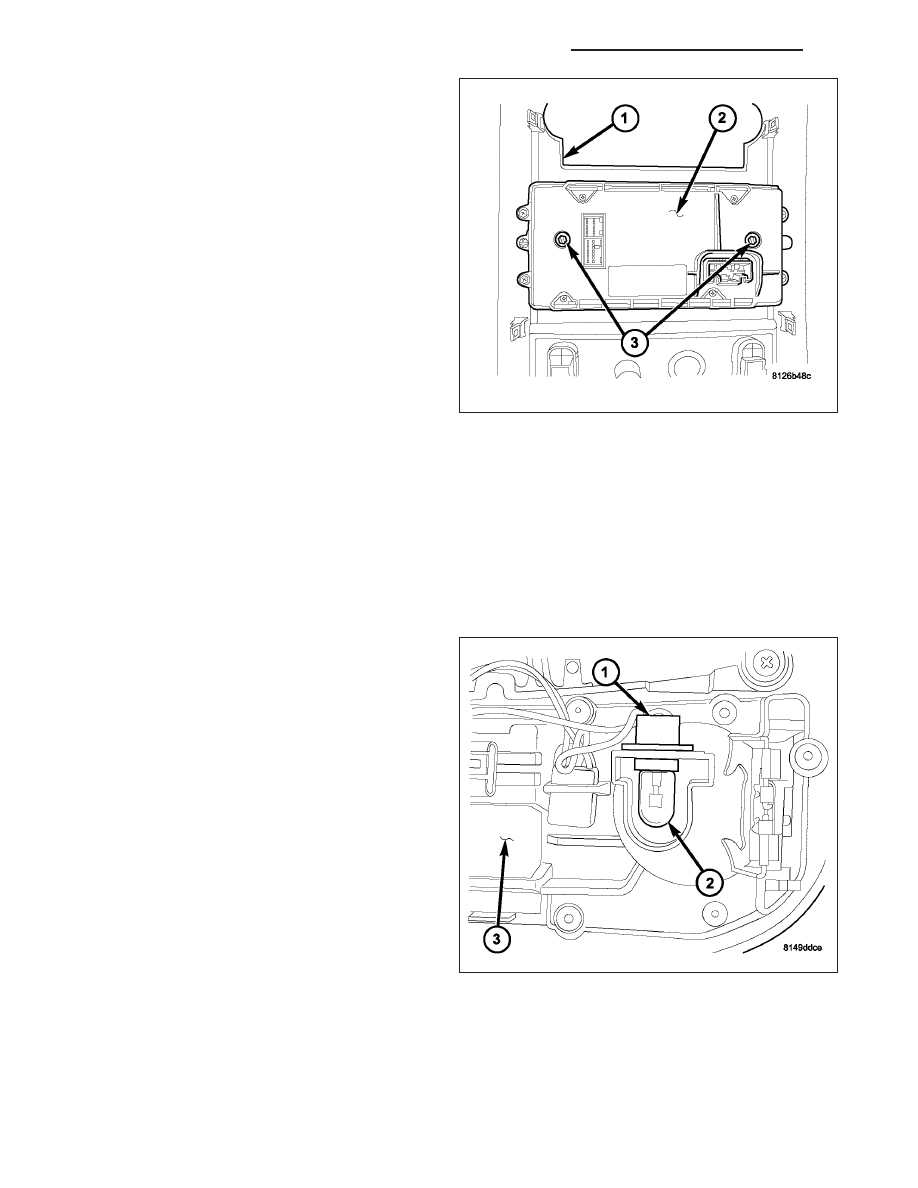

1. Align the bulb holder and bulb (3) with the keyed opening in the circuit board of the front A/C-heater 2. Insert the bulb holder and bulb straight into the cir- cuit board until the bulb holder is firmly seated. 3. Using a small thin-bladed screwdriver, rotate the bulb holder clockwise about 30 degrees on the cir- 4. Reinstall the center bezel (1) onto the instrument panel. (Refer to 23 - BODY/INSTRUMENT PANEL/ 5. Reconnect the battery negative cable. READING LAMP REMOVAL - BULB NOTE: On vehicles equipped with an optional overhead console the standard front dome lamp is replaced 1. Disconnect and isolate the battery negative cable. 2. Remove the overhead console (3) from the head- liner. (Refer to 8 - ELECTRICAL/OVERHEAD 3. Firmly grasp the back of the reading lamp bulb socket (1) and unsnap it from the overhead con- 4. Pull the socket and bulb (2) straight out from the keyed opening in the lamp housing. 5. Pull the base of the bulb straight out of the socket. INSTALLATION - BULB CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may 8L - 154 LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION ND |
