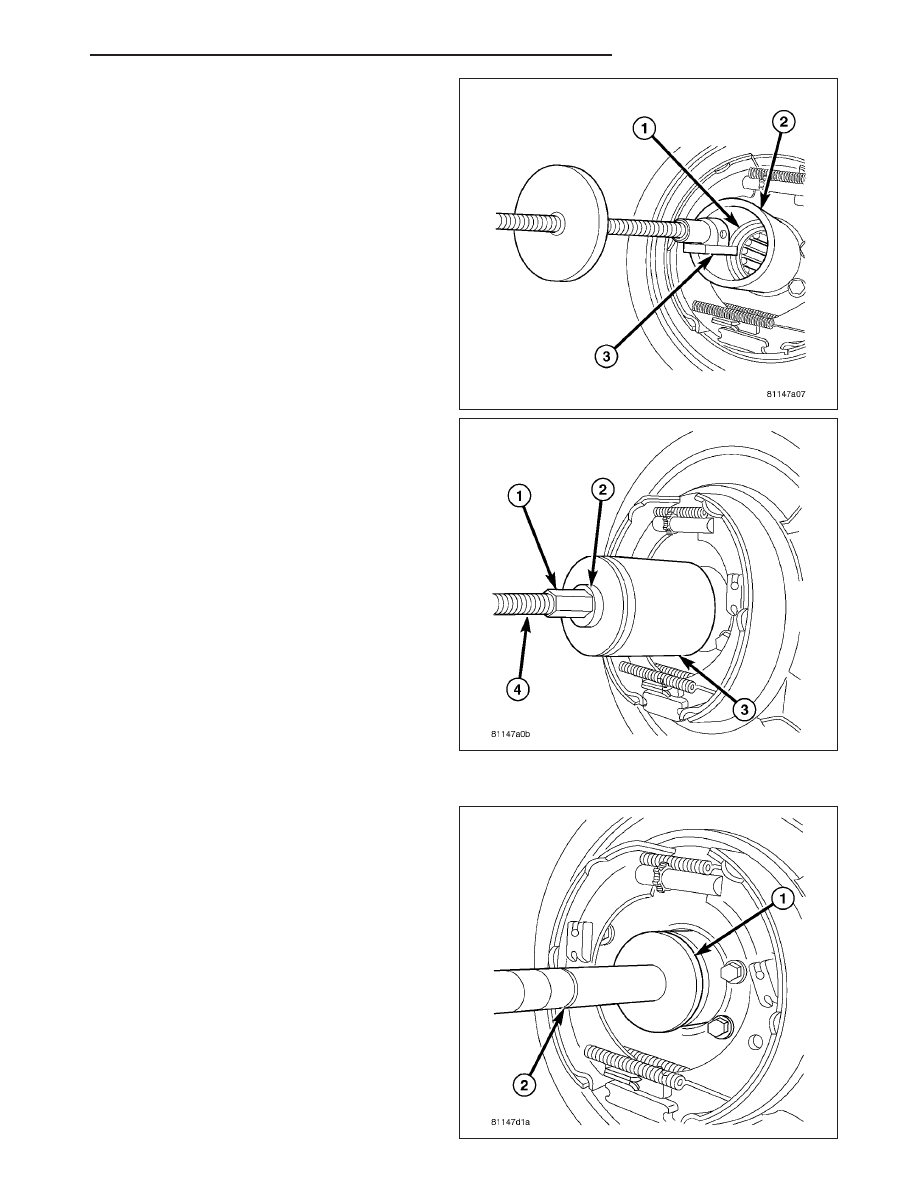

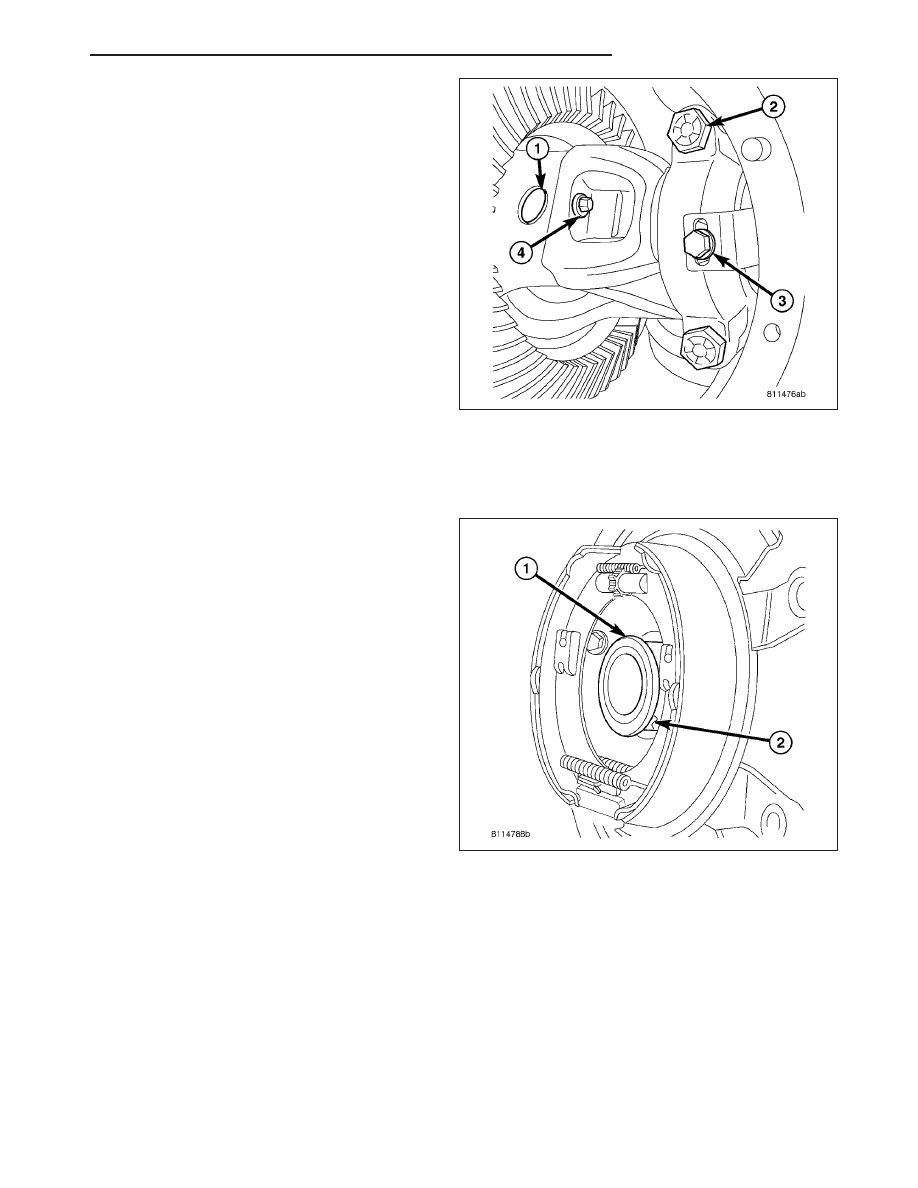

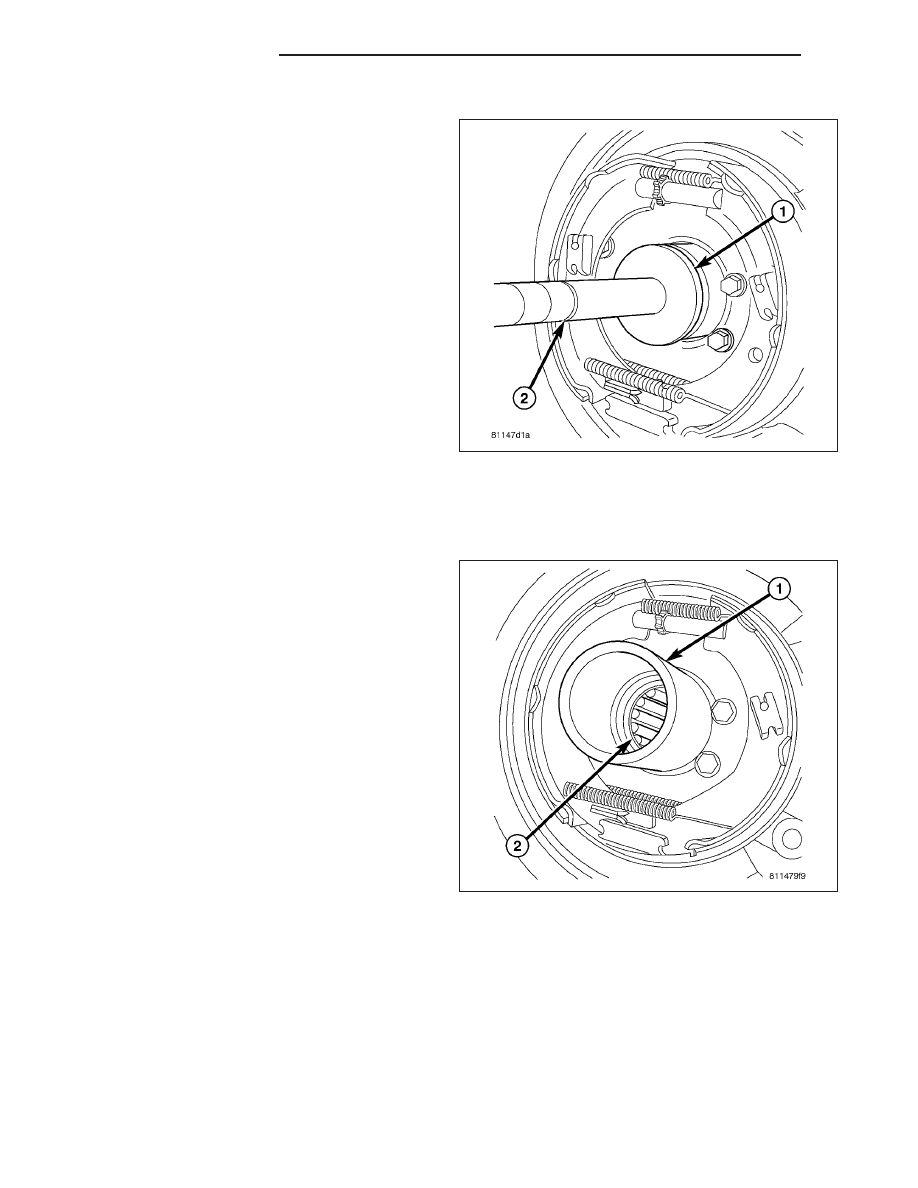

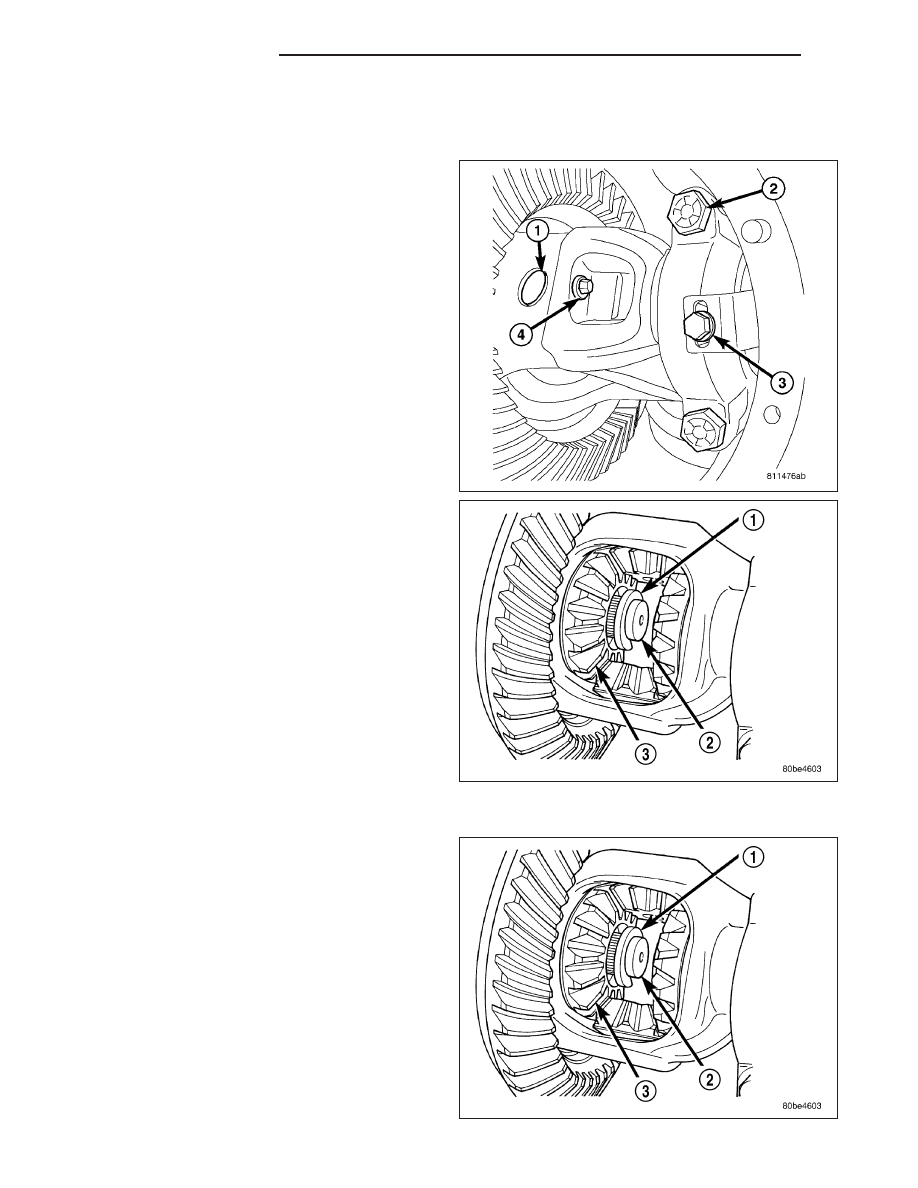

SHAFT-AXLE REMOVAL 1. With vehicle in neutral, position on hoist. 2. Remove rear brake componants. 3. Remove differential housing cover and drain lubri- cant. 4. Rotate differential case so pinion mate shaft (1) lock screw (4) is accessible. Remove lock screw 5. Push axle shaft inward and remove C-lock (1) from the axle shaft (2). 6. Remove axle shaft. INSTALLATION 1. Lubricate bearing bore and seal lip with gear lubri- cant. 2. Install axle shaft through seal, bearing and engage into side gear (3) splines. NOTE: Do not damaging axle shaft seal during 3. Install C-lock (1) in axle shaft (2), then push axle shaft outward to seat C-lock in side gear. 4. Install pinion shaft into differential case and through thrust washers and differential pinions. 3 - 88 REAR AXLE - 8 1/4 ND |
