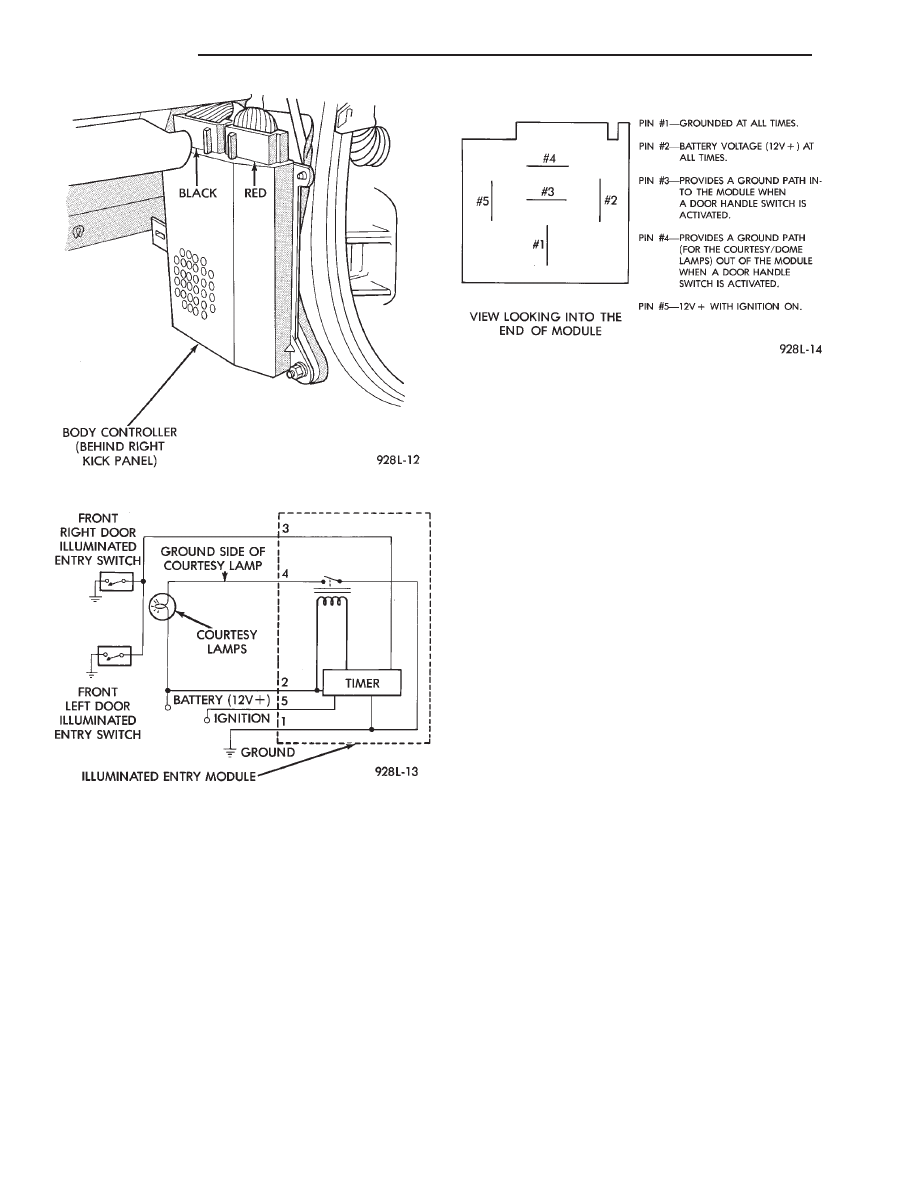

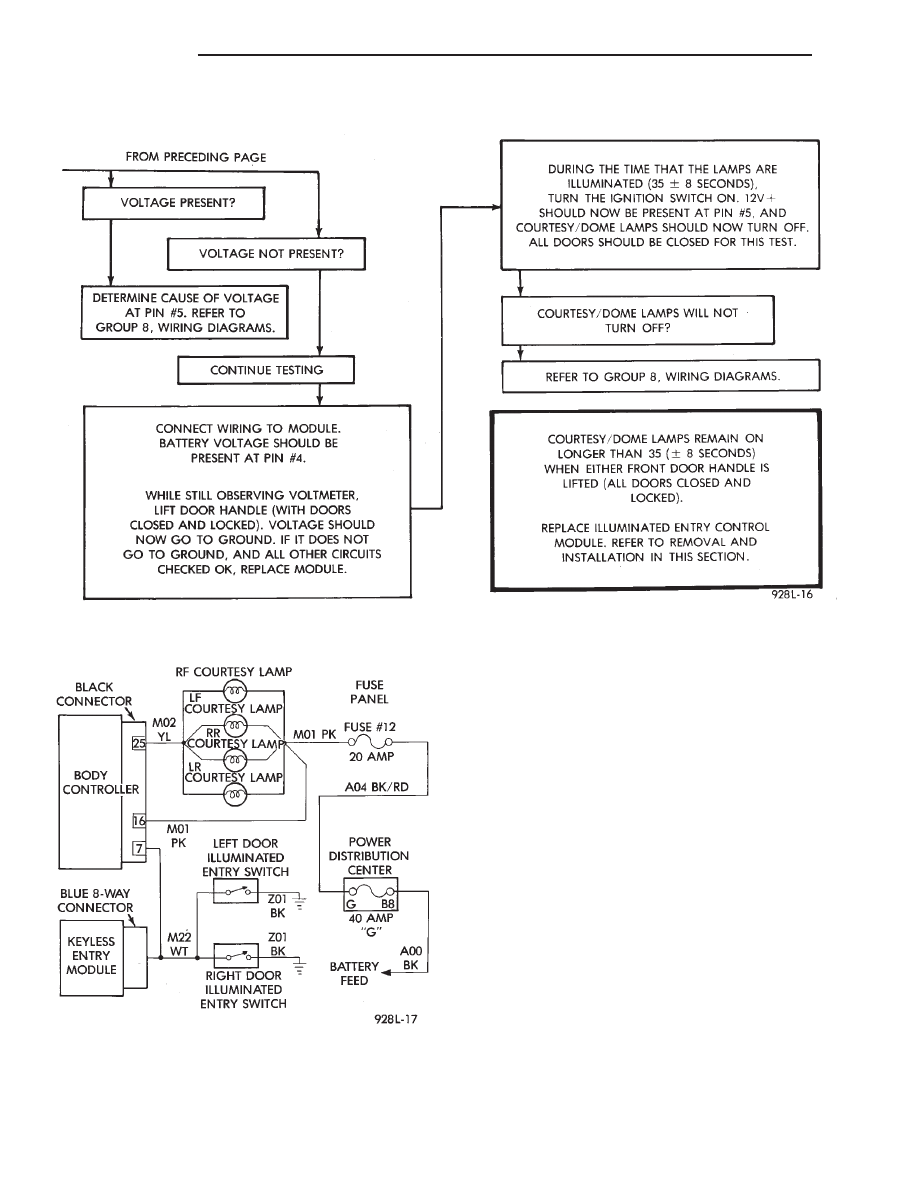

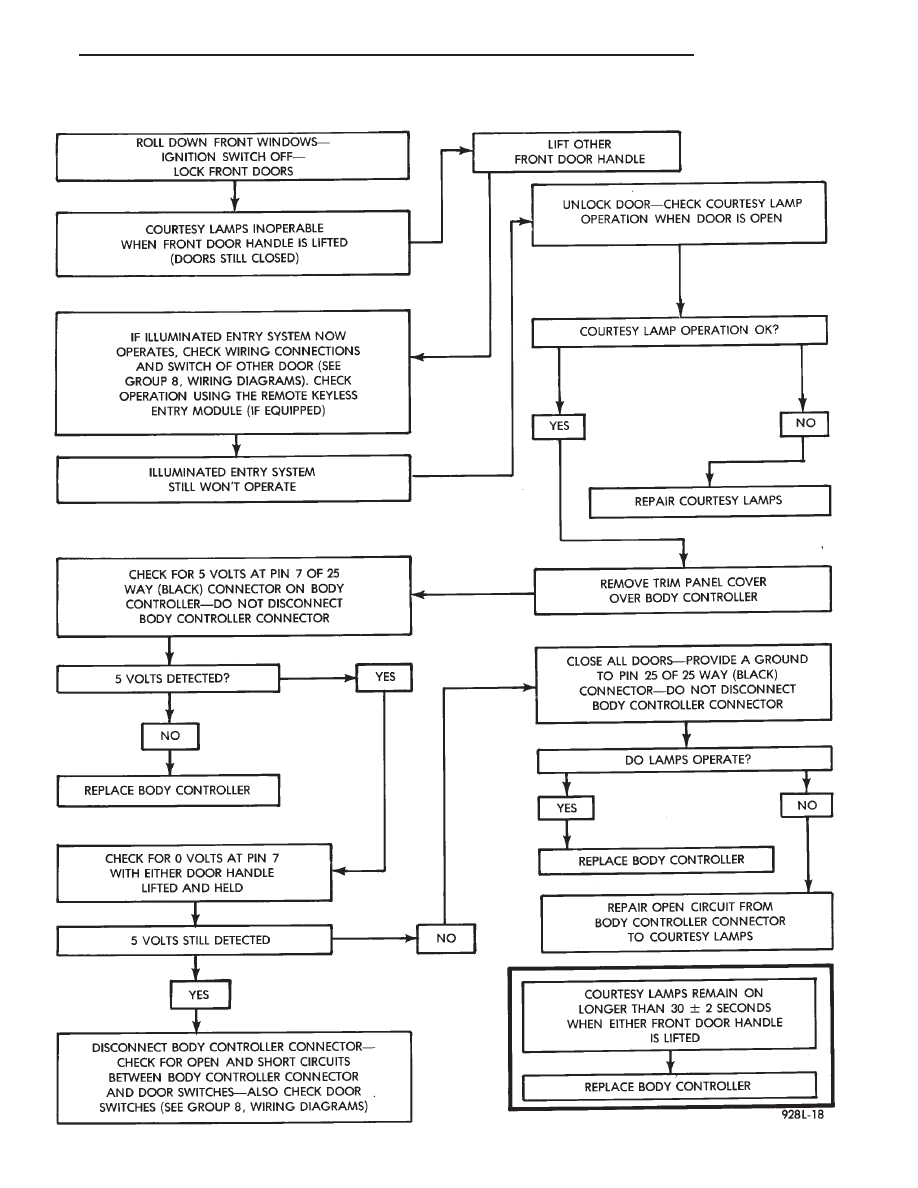

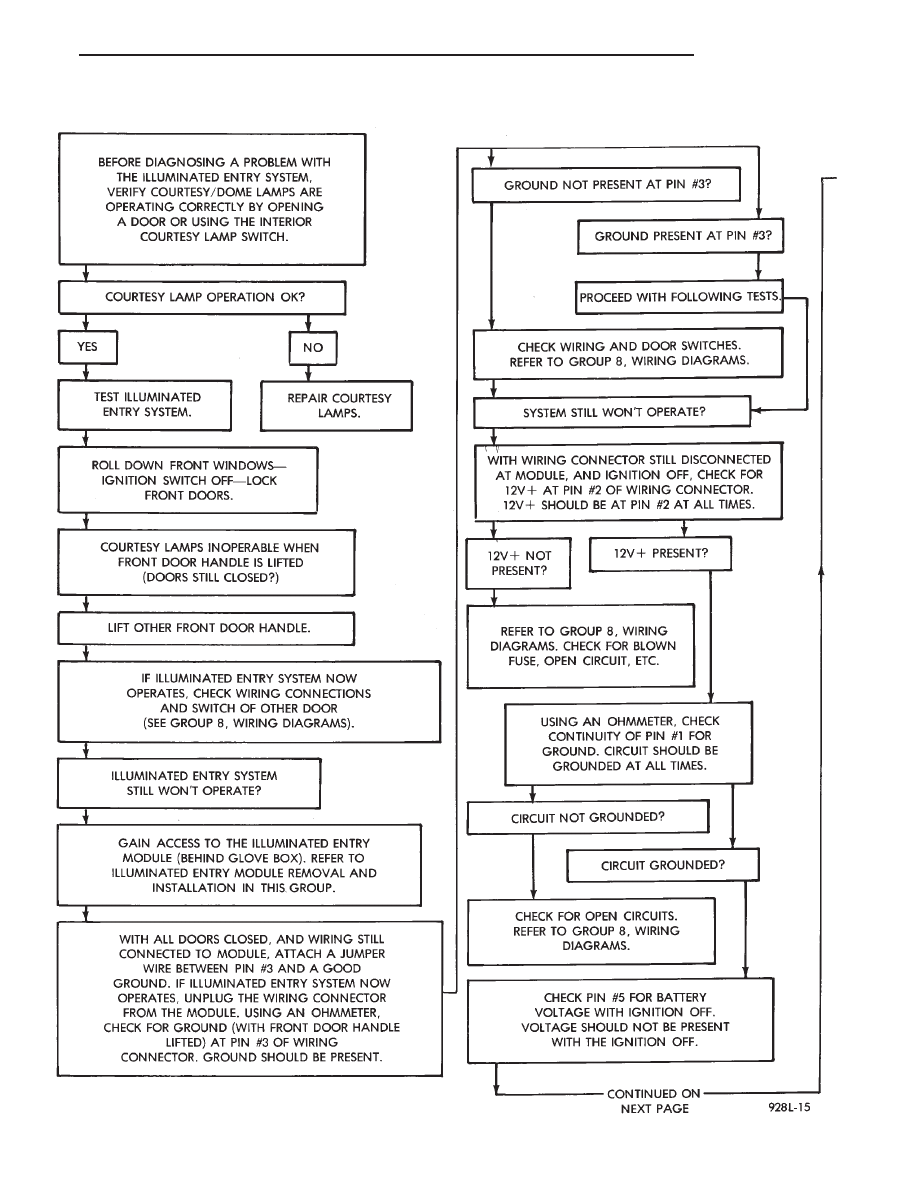

• The Illuminated Entry Diagnosis—AC, AG, AJ ILLUMINATED ENTRY MODULE—AA-BODY REMOVAL (1) Disconnect the battery negative cable. module (Fig. 2). Refer to Group 8E, Instrument Panel (3) Working through the glove box opening, discon- nect the wiring connector at the module. (4) Remove the module bracket mounting screw. INSTALLATION Reverse the preceding operation. BODY CONTROLLER COMPUTER—AC, AG, AJ and REMOVAL The Body Controller Computer is located at the right front door opening behind the cowl trim panel (1) Remove the battery negative cable before re- moving the Body Controller. (2) Remove screws holding cowl trim and door opening scuff plate to cowl panel. (3) Disconnect wire connectors from body control- ler. (4) Remove nuts holding body controller to cowl panel. (5) Separate body controller from vehicle. INSTALLATION Reverse the preceding operation. Fig. 3 Body Controller Fig. 4 Illuminated Entry Circuit Wiring—AA-Body Fig. 5 Module Pin Outs—AA-Body 8L - 34 LAMPS Ä |
