GENERAL INFORMATION

Throughout this group, references may be made to

a particular vehicle by letter or number designation.
A chart showing the break down of these designa-
tions is included in the Introduction Section at the
front of this service manual.

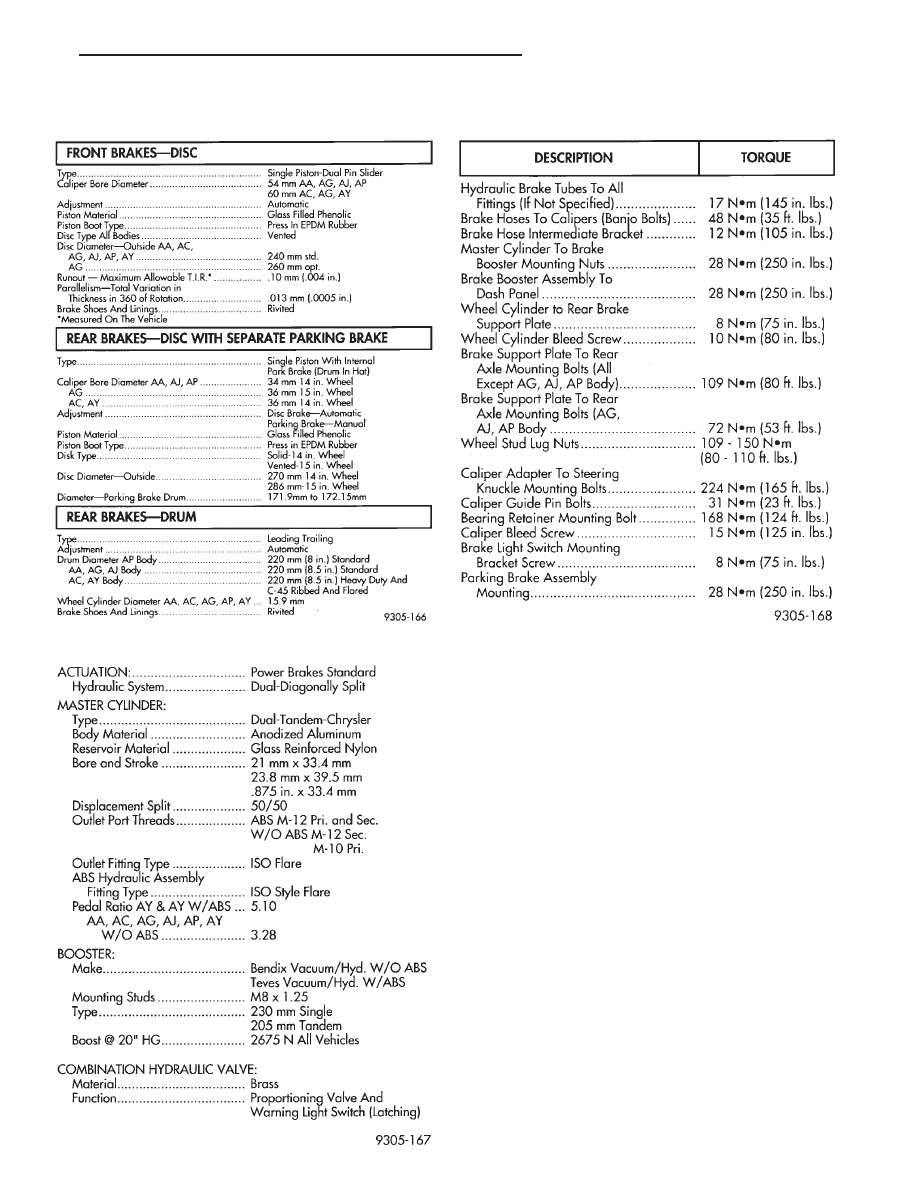

Standard brake equipment consists of:

• Double pin floating caliper disc front brakes.

• Rear automatic adjusting drum brakes.

• Differential valve with a brake warning switch.

• Master cylinder.

• Vacuum power booster.

• Double pin floating caliper rear disc brakes are
available on some models.

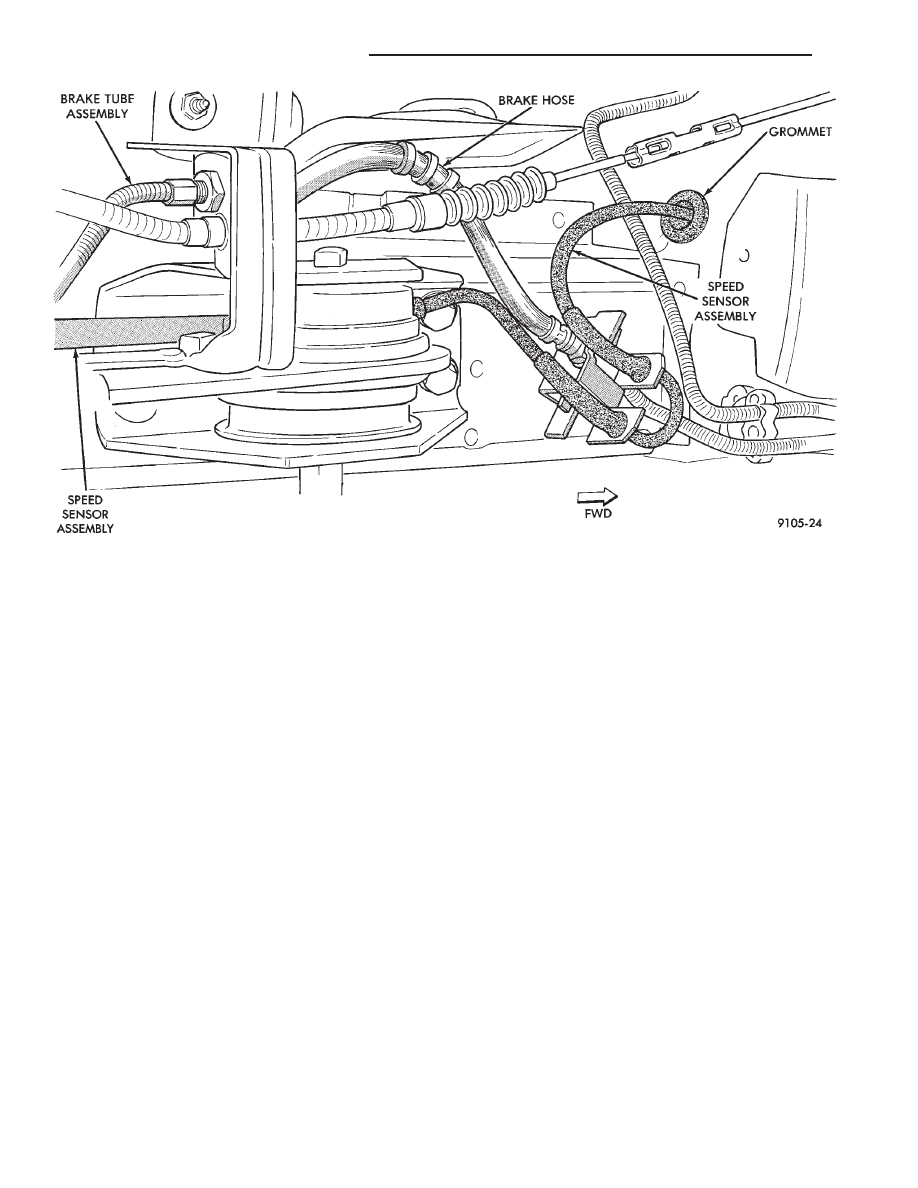

The Bendix Antilock 4 Brake System, uses the fol-

lowing standard brake system components. Master
cylinder, power booster, caliper assemblies, braking
discs, pedal assembly, brake lines and hoses. The
unique parts of the Bendix Antilock 4 Brake System
consists of the following components, modulator as-
sembly, unique proportioning valves, unique junction
block, wheel speed sensors, tone wheels, and elec-
tronic control unit. These components will be de-
scribed in detail in the Bendix Antilock 4 Brake
System section in this service manual supplement.

The hydraulic system, (Fig. 1) on the Bendix Anti-

lock 4 brake system is diagonally split. Diagonally
split hydraulic brake systems, have the left front and
right rear brakes on one hydraulic system and the
right front and left rear on the other. A diagonally
split hydraulic brake system, will maintain half of
the vehicles braking capability if there is a failure in
either half of the hydraulic system.

The Bendix Antilock 4 Brake System uses two

types of brake line fittings and tubing flares on the
modulator assembly (Fig. 1). The different types are
the ISO style and double wall style with their corre-
sponding fittings at different joint locations. See (Fig.
2) for specific joint locations and type of tubing
flares.

CAUTION: When servicing a vehicle, sheet metal
screws, bolts or other metal fastener cannot be in-
stalled in a shock tower to take the place of any
original plastic clip. Also, NO holes can be drilled
into the front shock tower in the area shown in (Fig.
3), for installation of any metal fasteners into the
shock tower.

Because of minimum clearance in this area, (Fig.

3) installation of metal fasteners could damage the
coil spring coating and lead to a corrosion failure of
the spring. If a plastic clip is missing, lost or broken
during servicing a vehicle, replace only with the
equivalent part listed in the Mopar parts catalog.

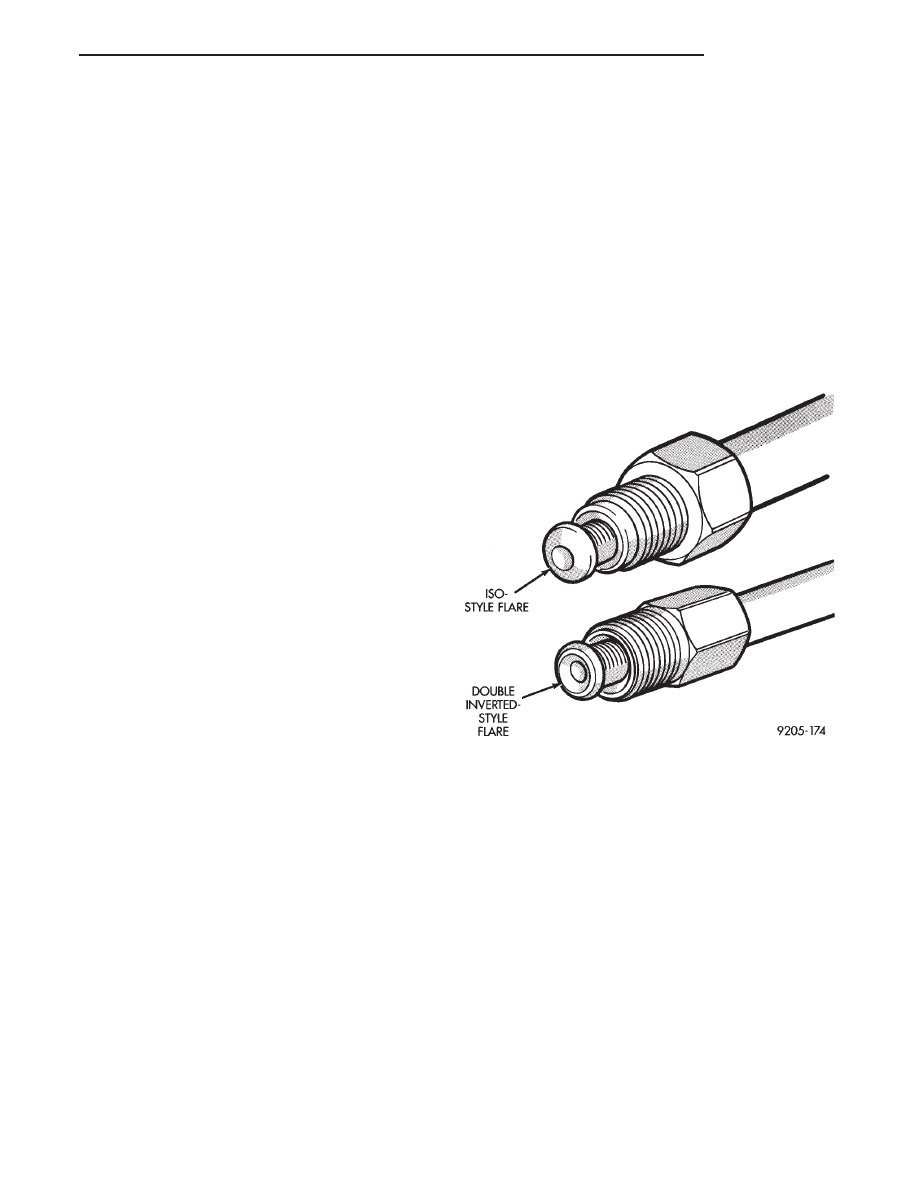

Fig. 1 Identifying Hydraulic Brake Tubing Flares

BRAKES

5 - 1
