REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM  9T-7

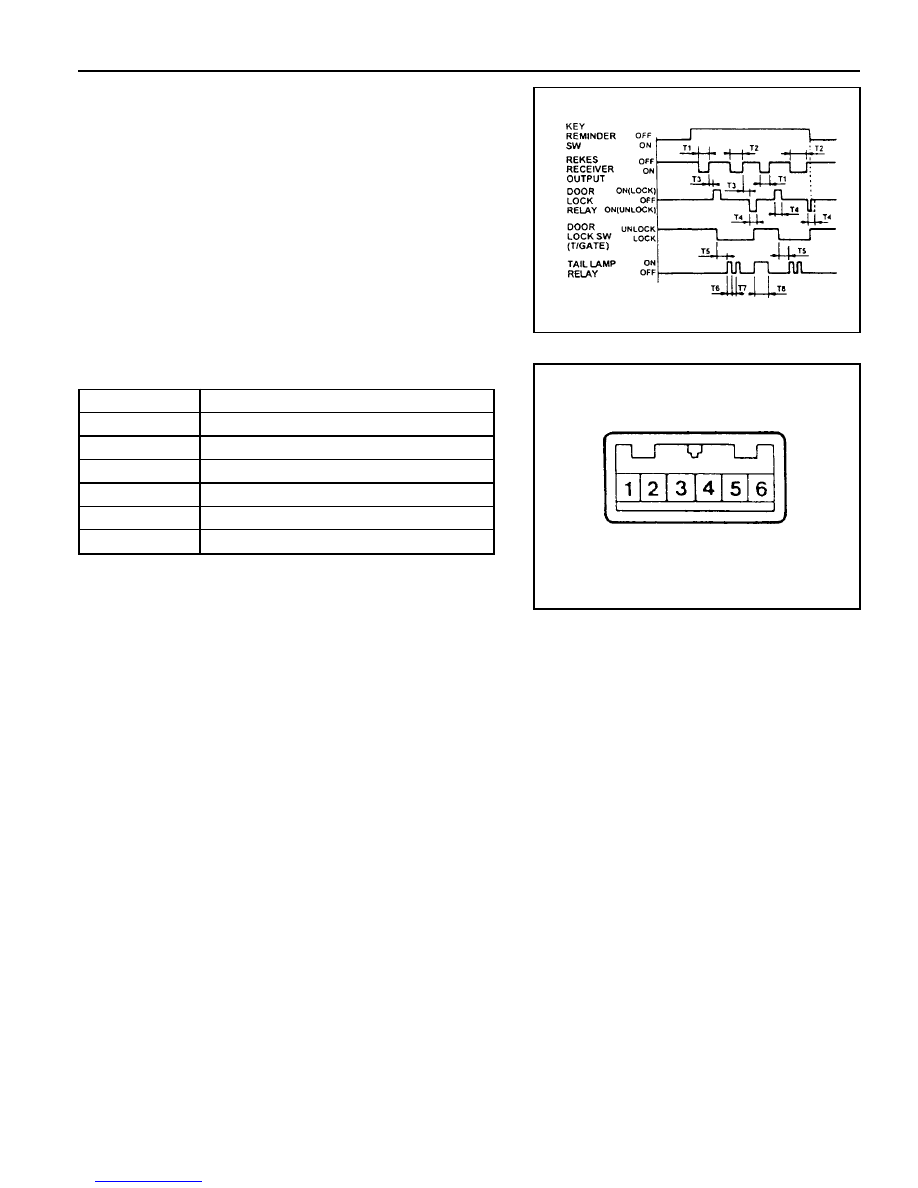

Characteristic Signal

1. Lock or unlock all doors according to the REKES signal

when the key is removed from the key hole.

2. Characteristic Signal : Right Picture

3. Time Interval

T1 : 0.05 ± 0.02sec.(lock signal)

T2 : 0.1 ± 0.02sec.(unlock signal)

T3 : within 0.25sec.

T4 : 0.5 ± 0.1sec.

T5 : within 0.35sec.

T6,T7 : 0.5 ± 0.1sec.

T8 : 1 ± 0.25sec.

Connector Appearance and Connecting Circuit

Pin No.

1

2

3

4

5

6

Connecting Circuit

B+

Memory Terminal

Key Reminder Switch

STICS

Ground

Memory Terminal

SECTION 9U

CONTROL  UNITS  AND  SYSTEM

Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise
noted.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . .  9U-1

STICS Specifications . . . . . . . . . . . . . . . . . . .  9U-1

Schematic and Routing Diagrams . . . . . . . .  9U-2

STICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  9U-2

Function Description . . . . . . . . . . . . . . . . . .  9U-3

SPECIFICATIONS

STICS SPECIFICATIONS

Description

DC 12V

Dc 9V - 16V

Less than 1mA(key is removed and all doors locked)

-30

°

C - +80

°

C

Between terminal No.5 and 3,4,8,12,18,25

Between terminal No. 5 and 2,6,7,16,17

Between terminal No.5 and 11, 27

Application

Voltage Rating

Voltage Rating

Current Consumption

Operating Temperature

Voltage Drop

(at DC 12V)

Max. 1.2V

Max. 1.8V

Max. 2.0V

STICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  9U-3

Maintenance and Repair . . . . . . . . . . . . . .  9U-10

On-Vehicle Service . . . . . . . . . . . . . . . . . . . . .  9U-10

STICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  9U-10

9U-2  CONTROL UNITS AND SYSTEM

STICS

SCHEMATIC AND ROUTING DIAGRAMS

CONTROL UNITS AND SYSTEM  9U-3

FUNCTION DESCRIPTION

STICS

Operating Functions

NO.

Application

Deseription

1

Wiper INT sensing vehicle speed

l

By operating INT time control volume, variable time will be

changed within 1.5 - 20 seconds.

2

Washer relating wiper

l

Wiper begins to operate within 0.6 - 1 sec  when the washer

switch is ON and it operates 3 times after the washer switch is

OFF while the IGN2 switch in ON.

3

Dimming room lamp

l

When room lamp is coupled with door, it turns on if door is

opened. After closing the door it maintains 2 seconds of lighting

and dims off whithin 3 seconds.

4

Time delayed power window control

l

Power window can be operated within 30 seconds after turning

the IGN1 switch from ON to OFF. If driver’s/passenger’s door is

opened within the 30 seconds, time will be prolonged for more

30 seconds from that moment.

5

Rear defogger timer

l

The rear defogger will be operated for 12 min. by turning ON the

defogger switch while engine is running.

l

Defogger will be stopped by pushing the switch again.

l

The defogger will be operated 6 min, if push ON the switch within

10 min. after 12 min. of operation.

6

Seat belt warning

l

The warning lamp will be turned on for about 6 sec. with an

intermittent chime bell  when the IGN. switch is ON unless

fastening the seat belt.

7

Parking brake warning

l

The indicator lamp will flash if drive while the parking brake is

applied.

8

Tail lamp lighting warning

l

When the driver’s door is opened while the tail lamp is still ON,

the buzzer operates intermittently. In this condition, the door will

be automatically unlocked when it locked.

9

Door ajar warning

l

The indicator lamp will be blinking when the door is not closed

completely and driving.

10

IGN key reminder

l

The chime will be operated intermittently if the driver’s door is

opened while the IGN key is still remaining in the ignition switch.

In this condition, the door will be automatically unlocked when it

locked.

11

Central door lock

l

All doors will be locked/unlocked by locking/unlocking the

driver’s or passenger’s door.
