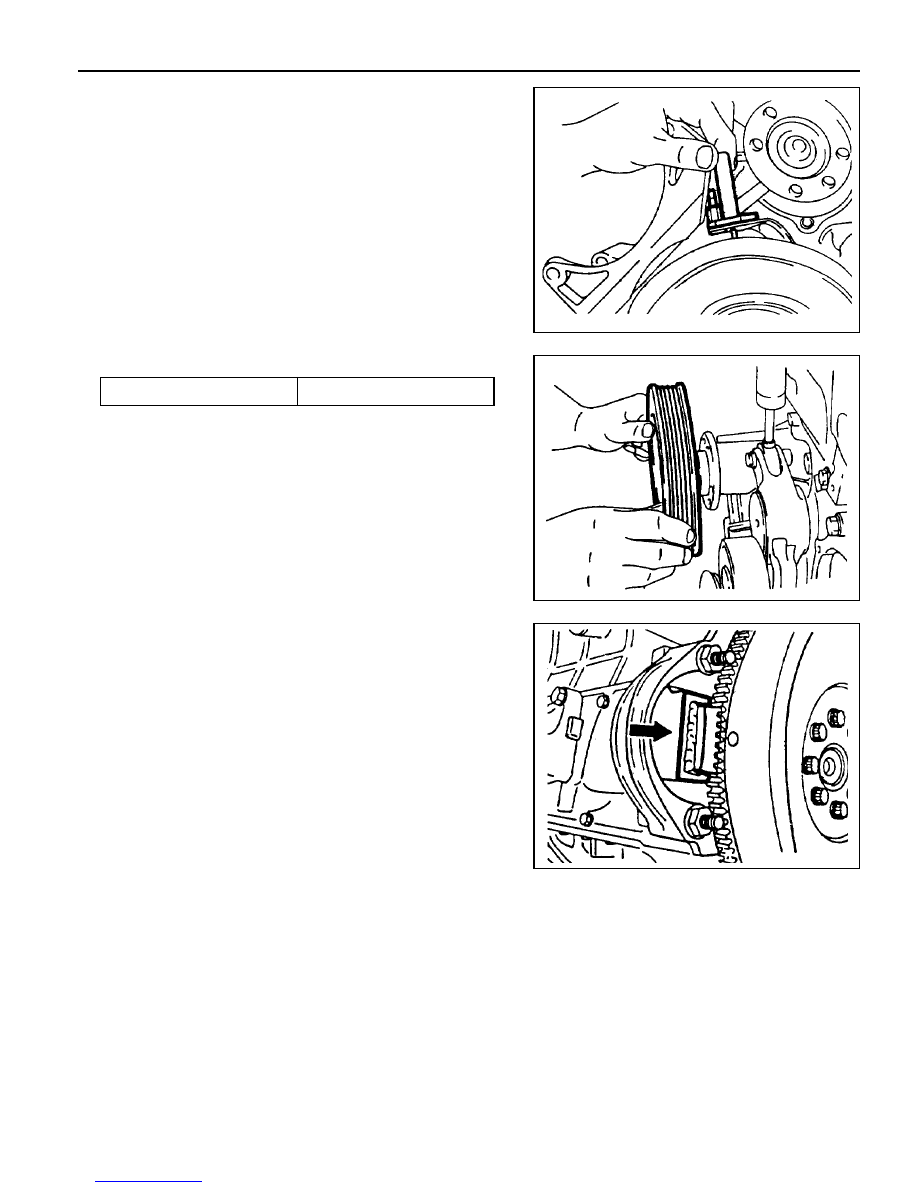

OM600 ENGINE MECHANICAL  1B3-79

5. Install the timing sensor bracket.

Notice

See the ‘TDC setting’.

6. Install the cooling fan pulley.

Tightening Torque

10 Nm

7. Install the cooling fan.

8. Install the fan belt.

9. Remove the engine lock.

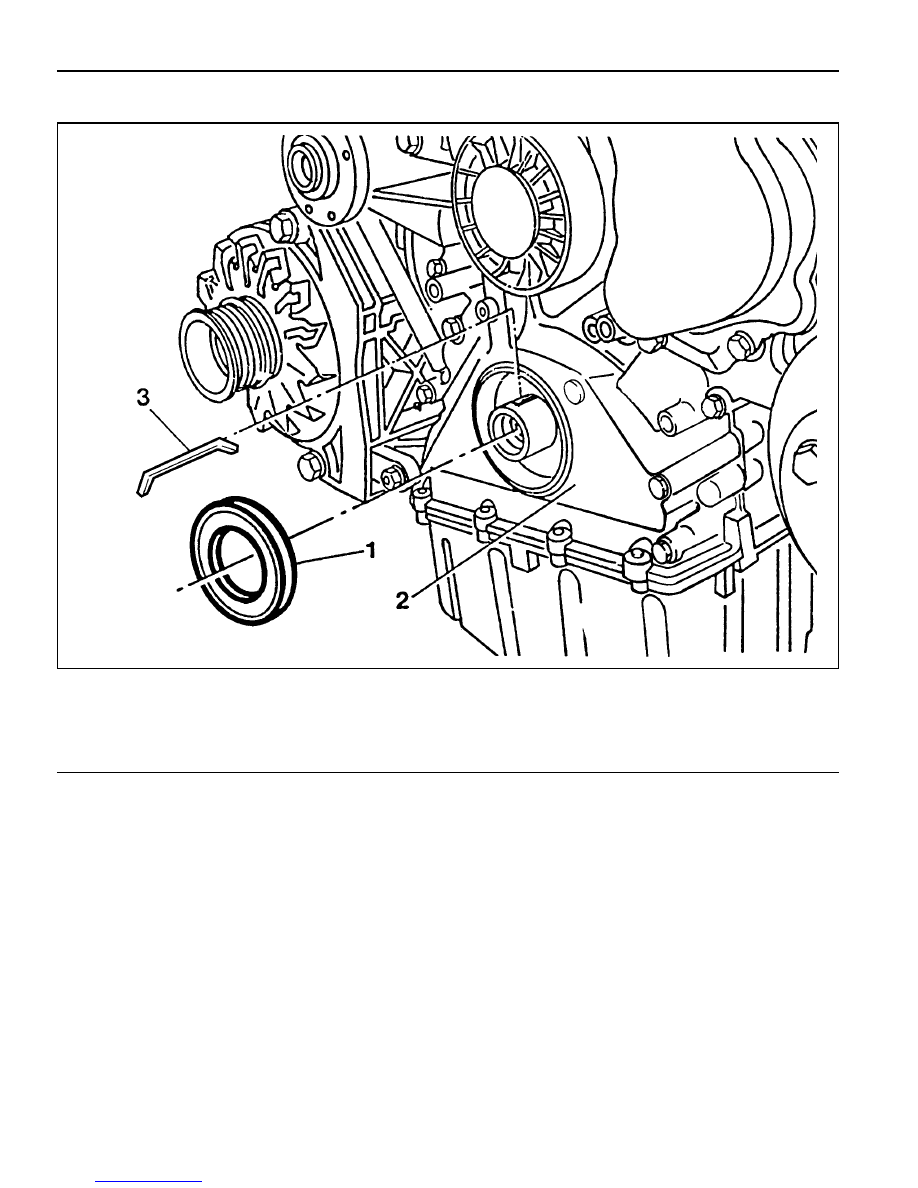

1B3-80  OM600 ENGINE MECHANICAL

CRANKSHAFT FRONT RADIAL SEAL

1 Radial Seal
2 Timing Case Cover

Tools Required

601 589 03 14 00  Sleeve

3 Woodruff Key

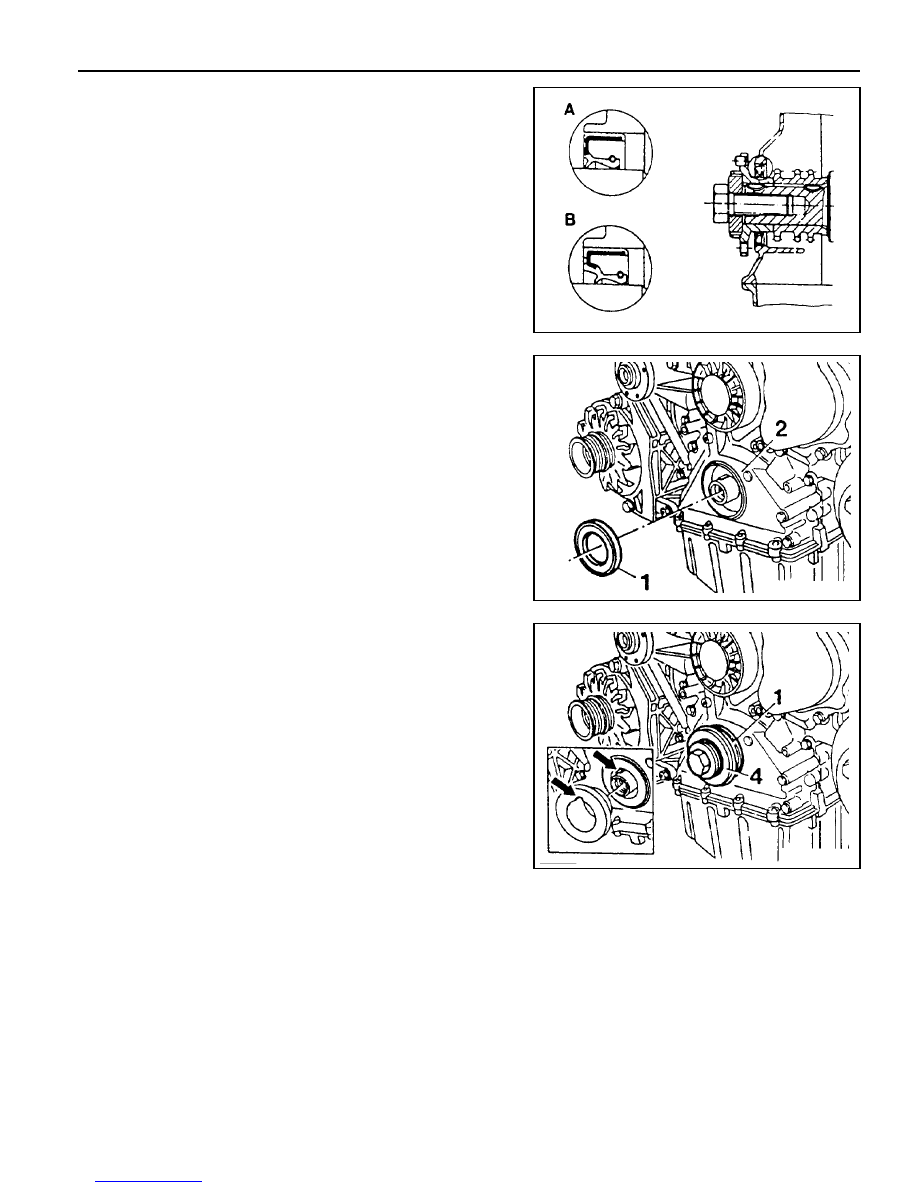

OM600 ENGINE MECHANICAL  1B3-81

Notice

The sealing lip of the repair radial seal is offset to the inside
by 2mm to ensure that is does not run in any groove which
the standard radial seal may have left on the crankshaft
flange.

A  Standard Radial Seal

B  Repair Radial Seal

Replacement Procedure

1. Pull out the radial seal (1) and be careful not to damage the

sealing surface of timing case cover.

2. Thoroughly clean the mounting bore of the radial seal.

3. Coat a little oil on the sealing lip of new radial (1) and contact

surface.

Notice

Don’t use grease.

4. Install the radial seal (1) by using a sleeve (4).

Notice

Align the groove of sleeve and woodruff key(arrow).

Sleeve 601 589 03 14

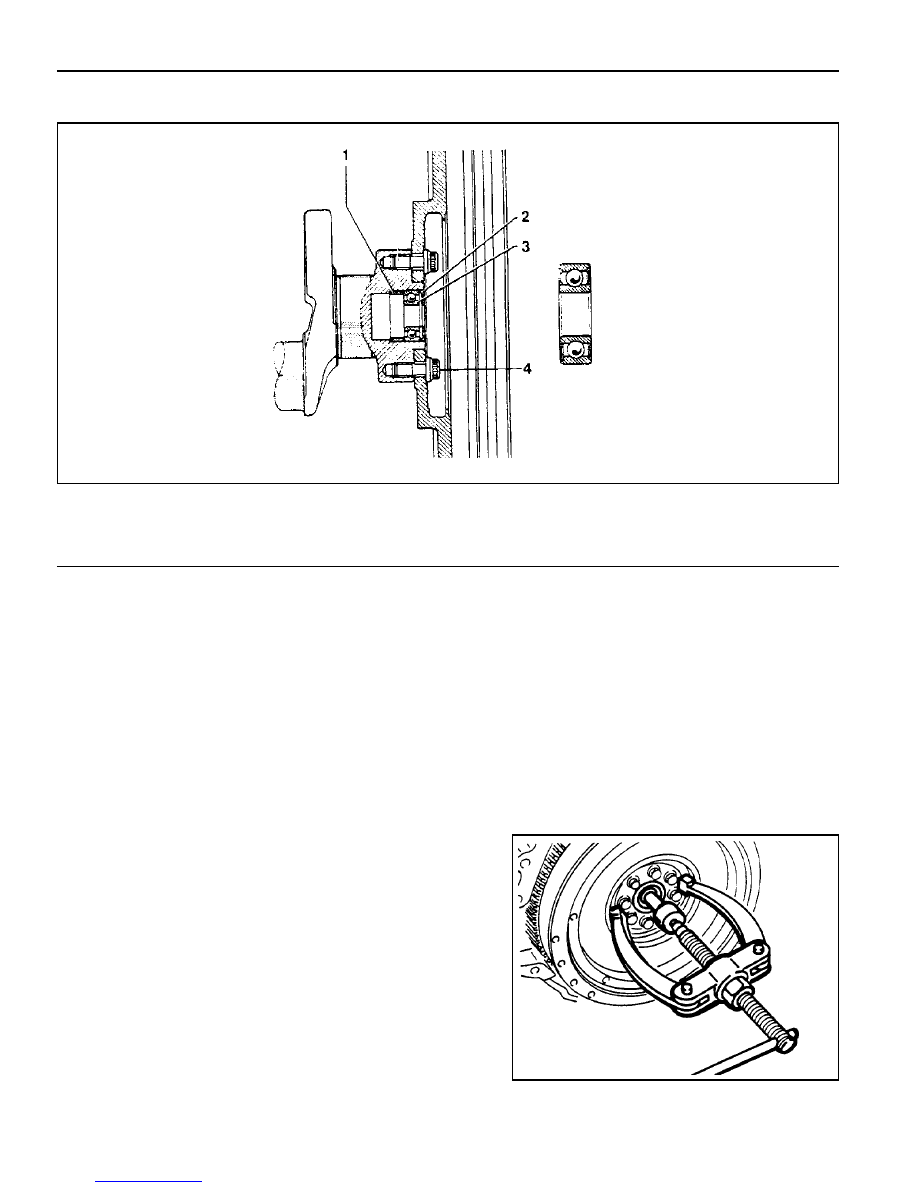

1B3-82  OM600 ENGINE MECHANICAL

CRANKSHAFT BALL BEARING

1 Spacer
2 Cover ......................................... Replace

Notice

Manual transmission only.

Tools Required

000 589 33 33 00  Counter Support

000 589 25 33 00  Internal Extractor

Removal & Installation Procedure

1. Remove the manual transmission.

2. Using a puller, pull out the locking ring and ball bearing

together.

Counter Support 000 589 33 33 00

Internal Extractor 000 589 25 33 00

3. Apply Loctite 241 on the new ball bearing and then insert

the ball bearing to be stopped at the spacer ring by using a
proper mandrel.

3 Ball Bearing
4 Bolt ....................................... 45Nm + 90°
