Daewoo Musso. Manual - part 63
1B2-72 M161 ENGINE MECHANICAL
VALVE SPRING
Preceding Work : Removal of camshaft
Removal of spark plug

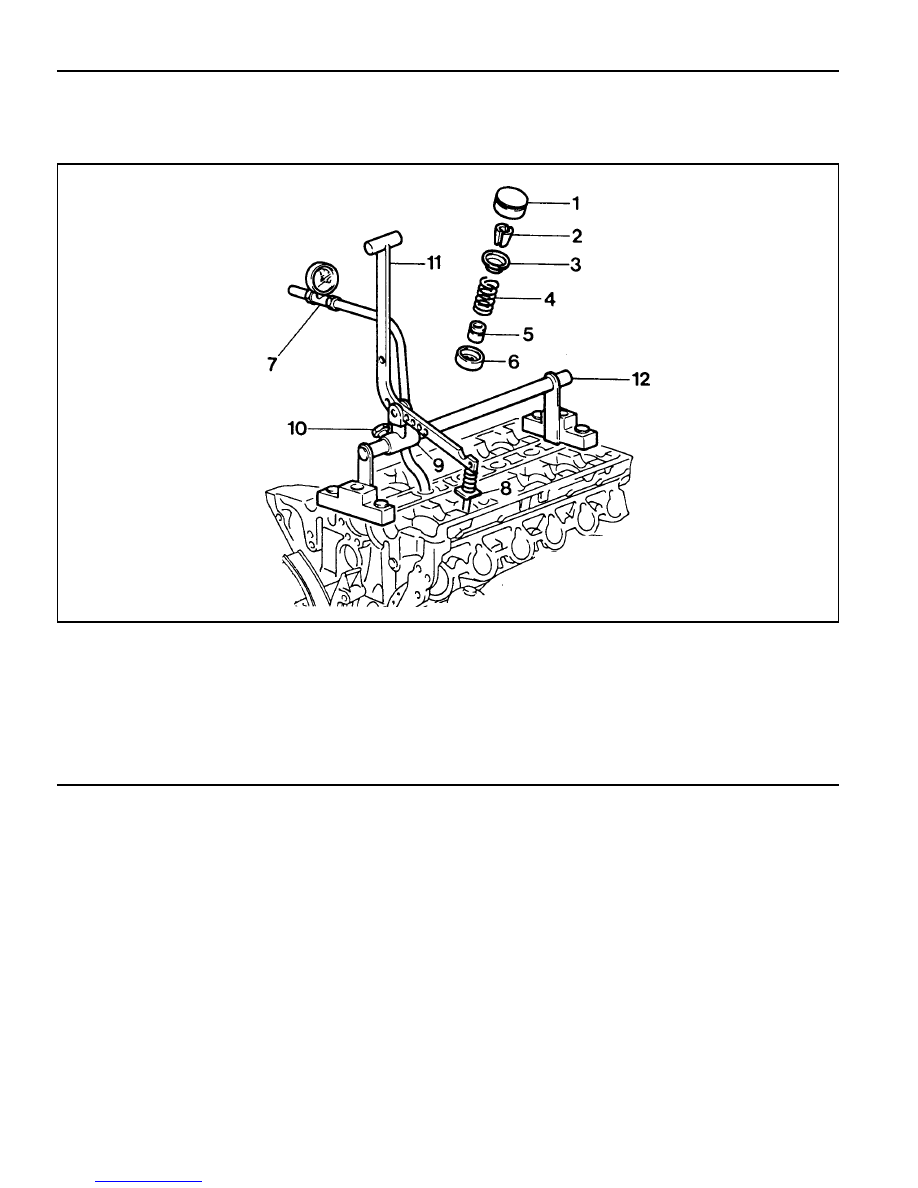

1 Valve Tappet Assembly2 Valve Cotter3 Upper Retainer4 Valve Spring .......... Check, Replace if necessary5 Valve Stem Seal6 Lower Retainer
7 Connecting Hose8 Thrust Piece9 Slide
10 Adjust Bolt
11 Lever Pusher
12 Supporting Bar
