BODY DIMENSION  8–21

Fig. 20

3.  GAP CHART

Description

Location

Gap (mm)

Tail Lamp x

Rear Bumper

Hood x

Head Lamp

Hood x

Front Bumper

Hood x

Fender

Fender x

Head Lamp

Head Lamp x

Front Bumper

Side Outer x

Trunk Lid

Side Outer x

Tail lamp

Trunk Lid x

Tail Lamp

Trunk Lid x

Rear Bumper

AB

C

D

E

F

G

H

I

J

5

+2

5

+2

3 ± 1

2

 ± 1

3

 ± 1

3

+1

1

.9

3.5 ± 1

5

+2

4 ± 1

•

Check proper installation

•

Check clearance and level differences of main body, exterior panels, lamps and bumper

•

Check for water leaks in the passenger and trunk compartment

8–22   BODY DIMENSION

Fig. 21

Description

Rear Door x

Roof

Fender x

Front Door

Rear Door x

C Pillar

A pillar x

Front Door

Fender x

Head Lamp

Hood x

Fender

Location

Gap (mm)

A

B

CDEF

Description

Rear Door x

Side Outer

Side Outer x

Tail Lamp

Trunk Lid x

Side Outer

Location

Gap (mm)

GH

I

J

K

L

Front Door x Rear Door

Rocker Panel x

Door

5 ± 1

4

+1

4

+1

3.5

+1

3

+1

1.9

3 ± 1

2

 ± 1

5

 ± 1

5

 ± 1

5

 ± 1

3.5

+1

 SEALING, CAULKING AND DEADNER   9–1

SECTION 9

SEALING,  CAULKING  AND DEADNER

CONTENTS

1.  SEALING & CAULKING ................................................................................................................. 9-2

Sealing............................................................................................................................................... 9-2

•  Engine room .................................................................................................................................. 9-2

•  Roof ................................................................................................................................................ 9-5

•  Inside Room .................................................................................................................................. 9-6

•  Floor & Trunk Room ..................................................................................................................... 9-7

•  Hood ............................................................................................................................................... 9-8

•  Trunk Lid ........................................................................................................................................ 9-9

•  Front/Rear  Door ......................................................................................................................... 9-10

Caulking .......................................................................................................................................... 9-11

•  Engine room ................................................................................................................................ 9-11

•  Under Body .................................................................................................................................. 9-12

•  Back Panel .................................................................................................................................. 9-13

2.  DEADER ......................................................................................................................................... 9-14

•  General description ...................................................................................................................... 9-14

•  Repair procedure ......................................................................................................................... 9-14

•  Under Body .................................................................................................................................. 9-16

•  Roof, Door ................................................................................................................................... 9-17

9–2   SEALING, CAULKING AND DEADNER

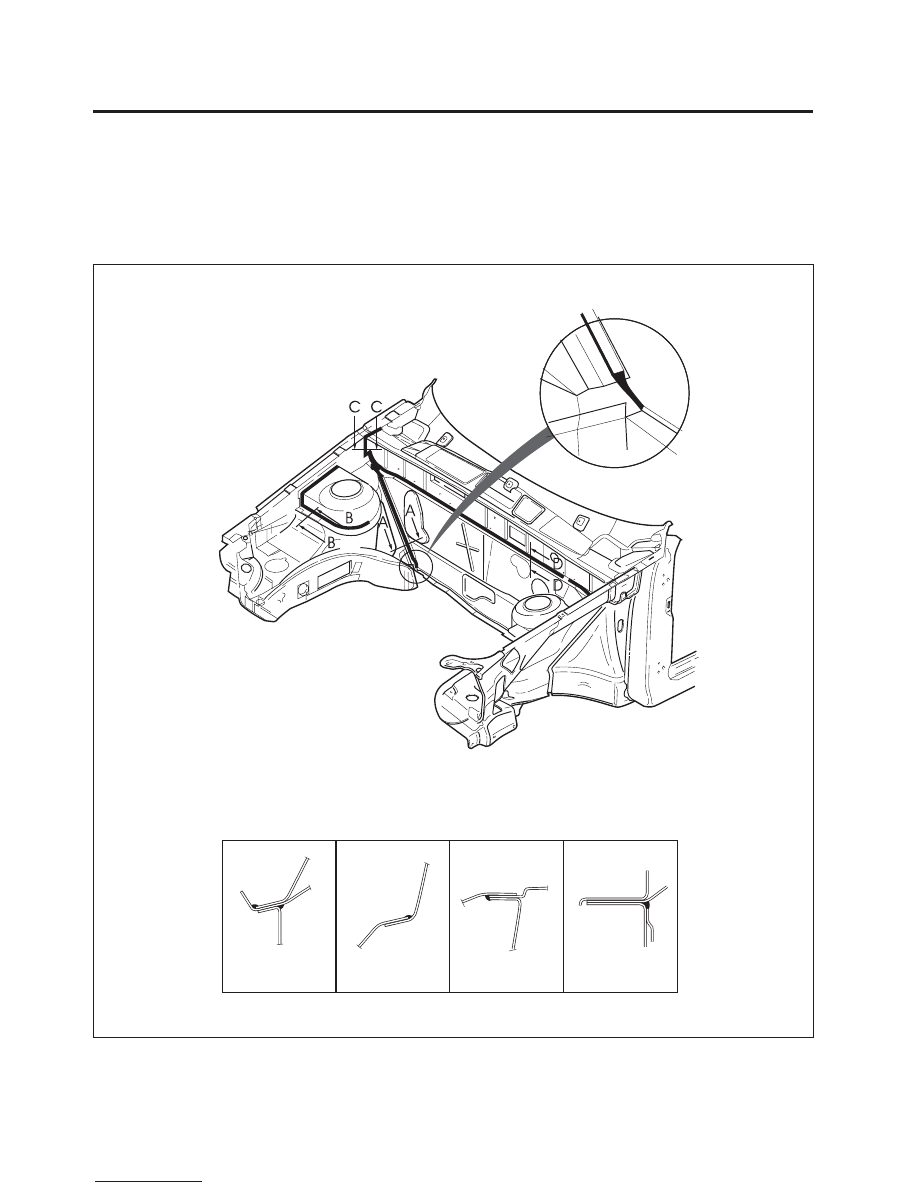

Fig. 1  Engine Room

1. SEALING & CAULKING

NOTE: Seal the following areas to prevent air leaks water leaks, and rust.

1.1. SEALING

ENGINE ROOM

SECT  A–A

SECT  B–B

SECT  D–D

SECT  C–C
