1F – 318  ENGINE CONTROLS

MAA1F520

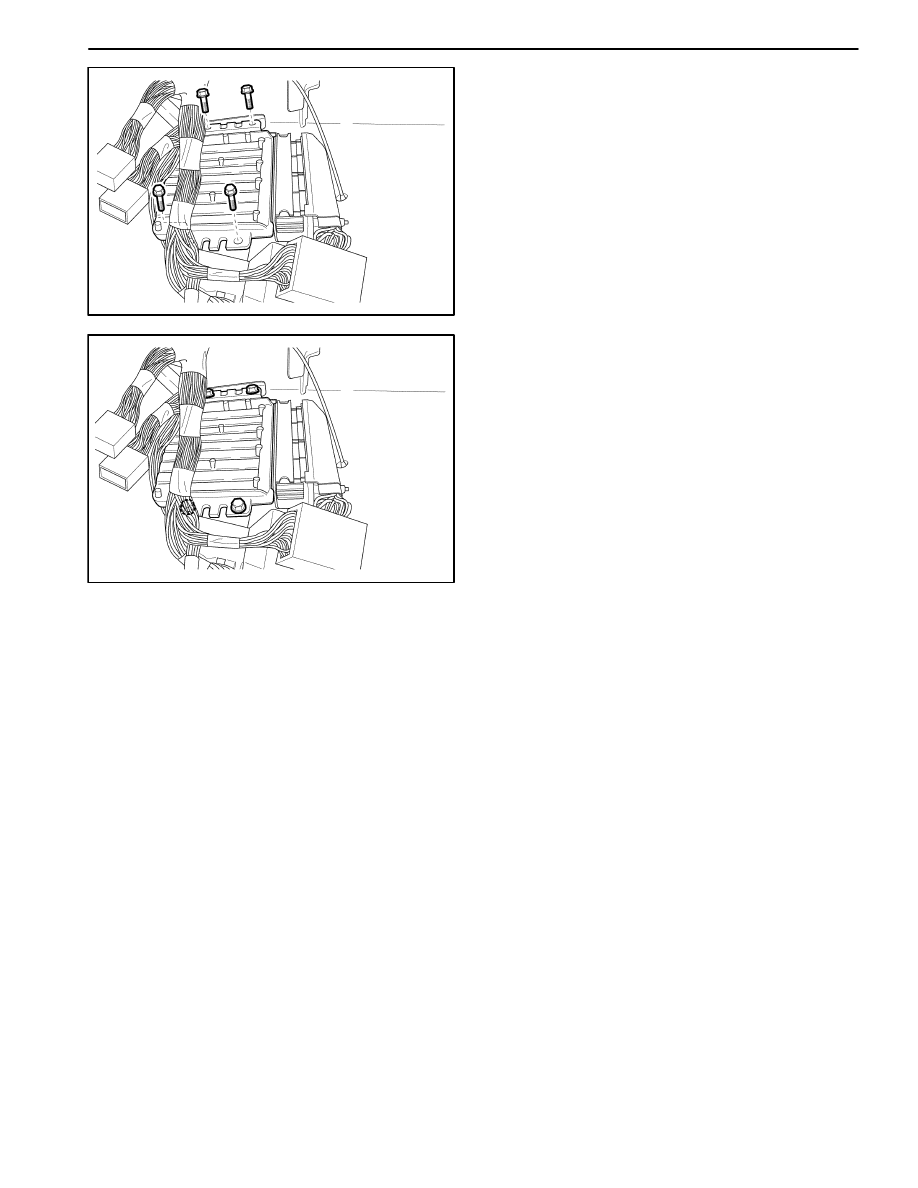

2. Remove the ECM.

D

Remove the bolts.

D

Remove the ECM.

MAA1F530

Installation Procedure

1. Install in the reverse order of removal.

Notice: If disconnecting the battery cable to the ECM,
the IAC valve resetting should be proceeded.

2. install the ECM with the bolts.

Tighten

Tighten the ECM mounting bolts to 6–8 N

S

m (53–71

lb-in).

ENGINE CONTROLS  1F – 319

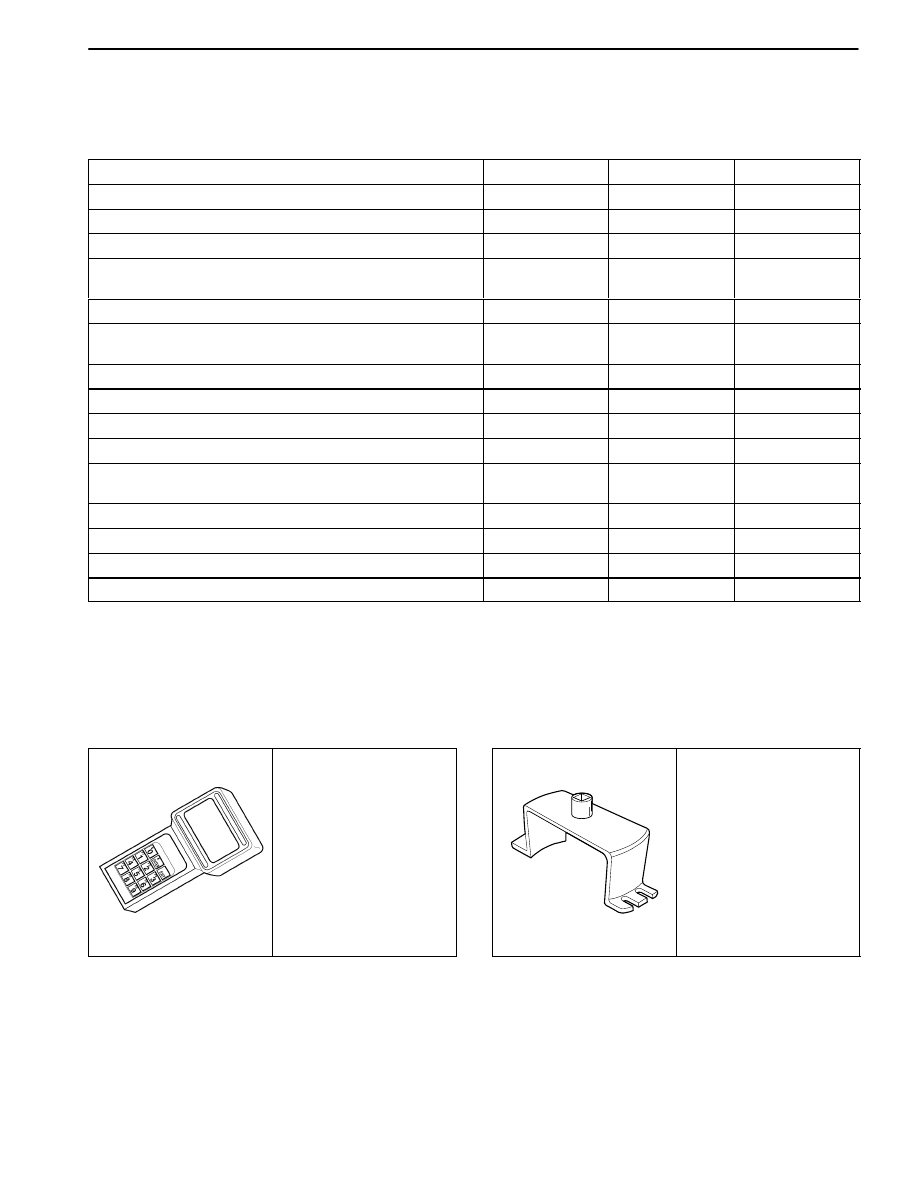

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

N

S

m

Lb-Ft

Lb-In

Camshaft Position Sensor Bolts

10–14

–

89–124

Engine Coolant Temperature (ECT) Sensor

8–12

–

71–106

Crankshaft Position (CKP) Sensor Retaining Bolt

5–8

–

44–71

Electronic Ignition (EI) System Ignition Coil Retaining
Bolts

8–12

–

71–106

Evaporative Emission Canister Protective Cover

8

–

71

Electric Exhaust Gas Recirculation (EEGR) Valve
Retaining Bolts

20–30

15–22

–

Fuel Rail Retaining Bolts

18–22

13–16

–

Fuel Tank Strap Retaining Nuts

18–22

13–16

–

Knock Sensor Bolt

15–25

11–18

–

Intake Air Temperature (IAT) Sensor

20–30

15–22

–

Manifold Absolute Pressure (MAP) Sensor Retaining
Bolt

8–12

–

71–106

Oxygen Sensor

35–44

26–33

–

Heated Oxygen Sensor

35–44

26–33

–

Throttle Body Retaining Bolt

9–12

–

80–106

ECM Mounting Bolts

6–8

–

53–71

SPECIAL TOOLS

SPECIAL TOOLS TABLE

D102F101

Scan Tool

D12F102A

DW–140–010A

Fuel Pump Lock Ring

Remover/Installer

1F
–

320

  ENGINE CONTROLS

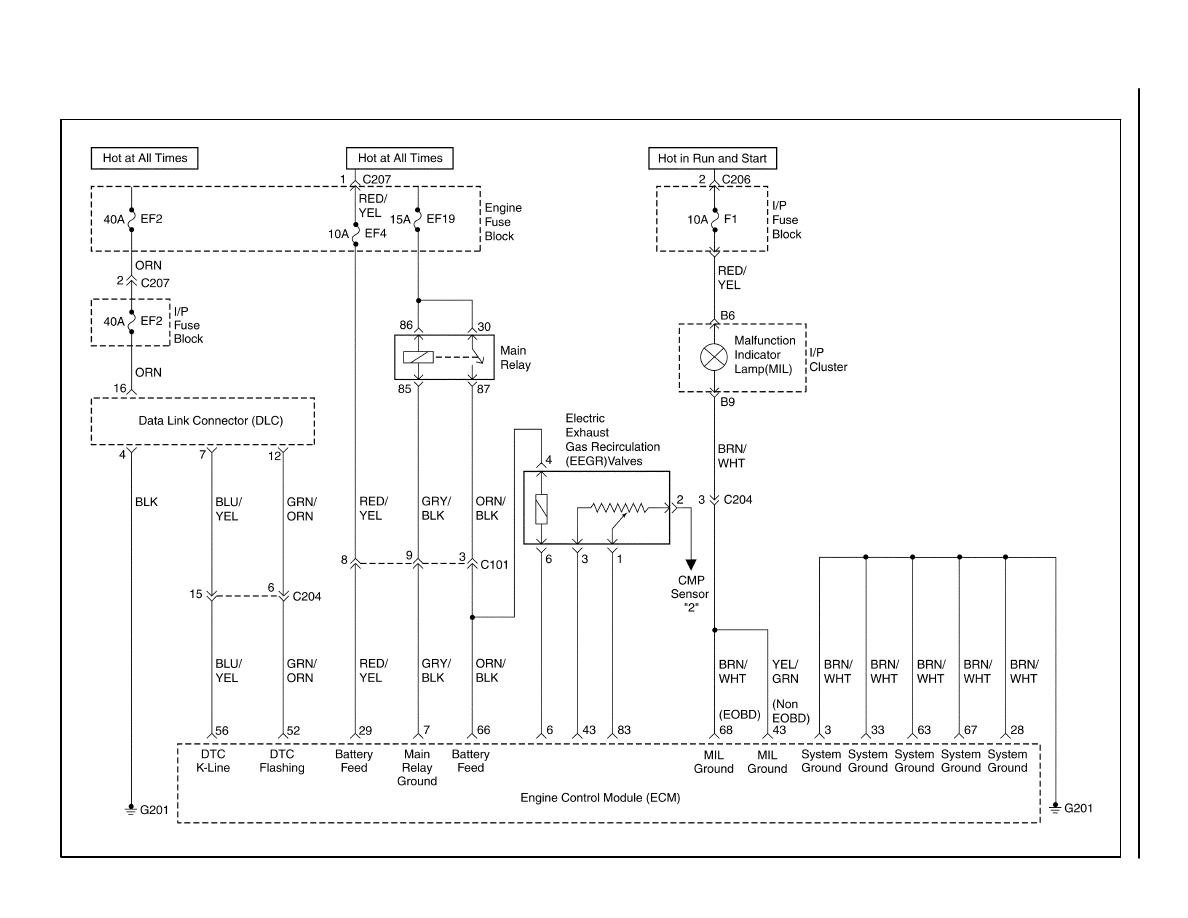

ECM WIRING DIAGRAM (SIRIUS D3 – 1 OF 5)

MAA1F610

ENGINE

 CONTROLS  1F

–

321

ECM WIRING DIAGRAM (SIRIUS D3 – 2 OF 5)

MAA1F620
