CLUTCH  5C-11

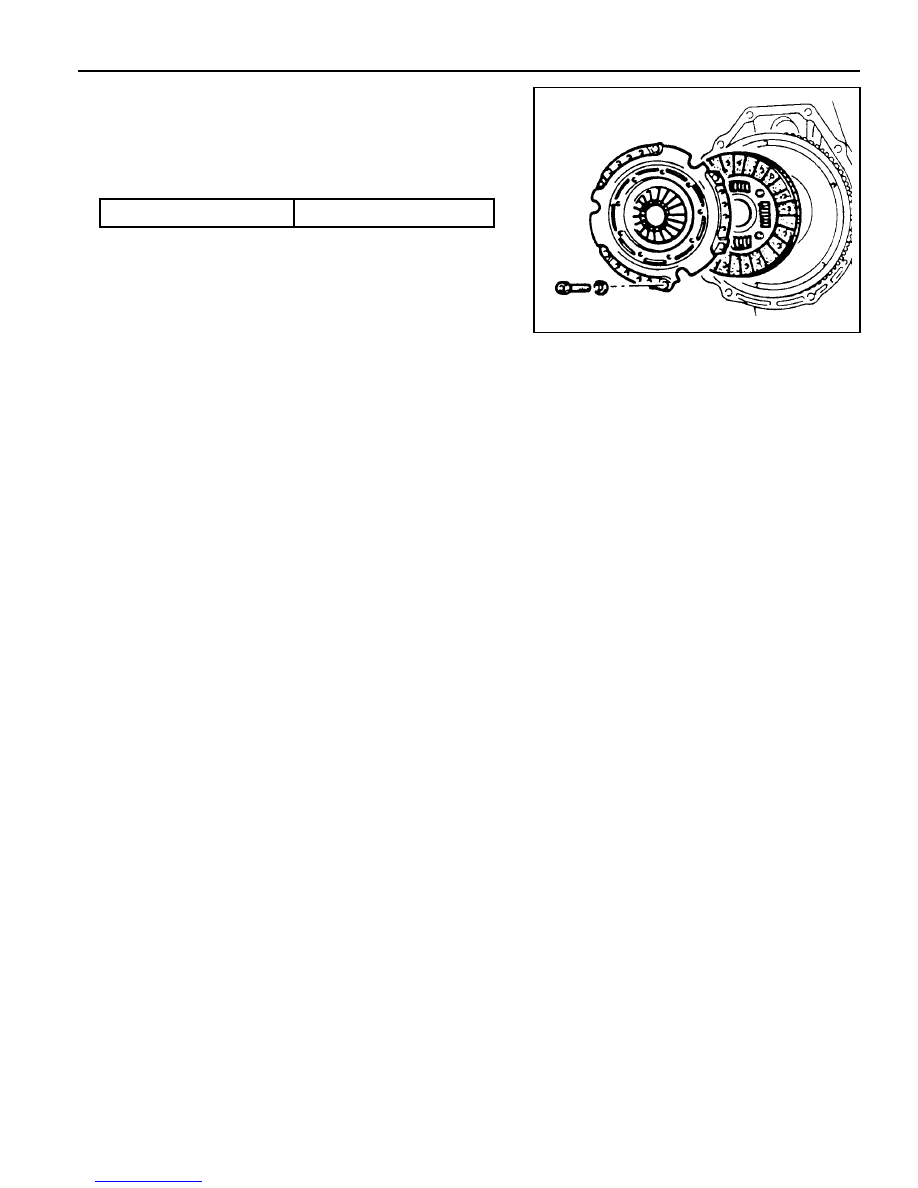

5. Unscrew the bolts and remove the clutch cover, pressure

plate and clutch disc.

Notice

Be careful not to drop the pressure plate and clutch disc.

Installation Notice

Tightening Torque

23 Nm

6. Installation should follow the removal procedure in the

reverse order.

Notice

l

Before installation, clean oil and grease on the
flywheel surface.

l

Do not clean the clutch disc and release bearing in
solvent.

5C-12  CLUTCH

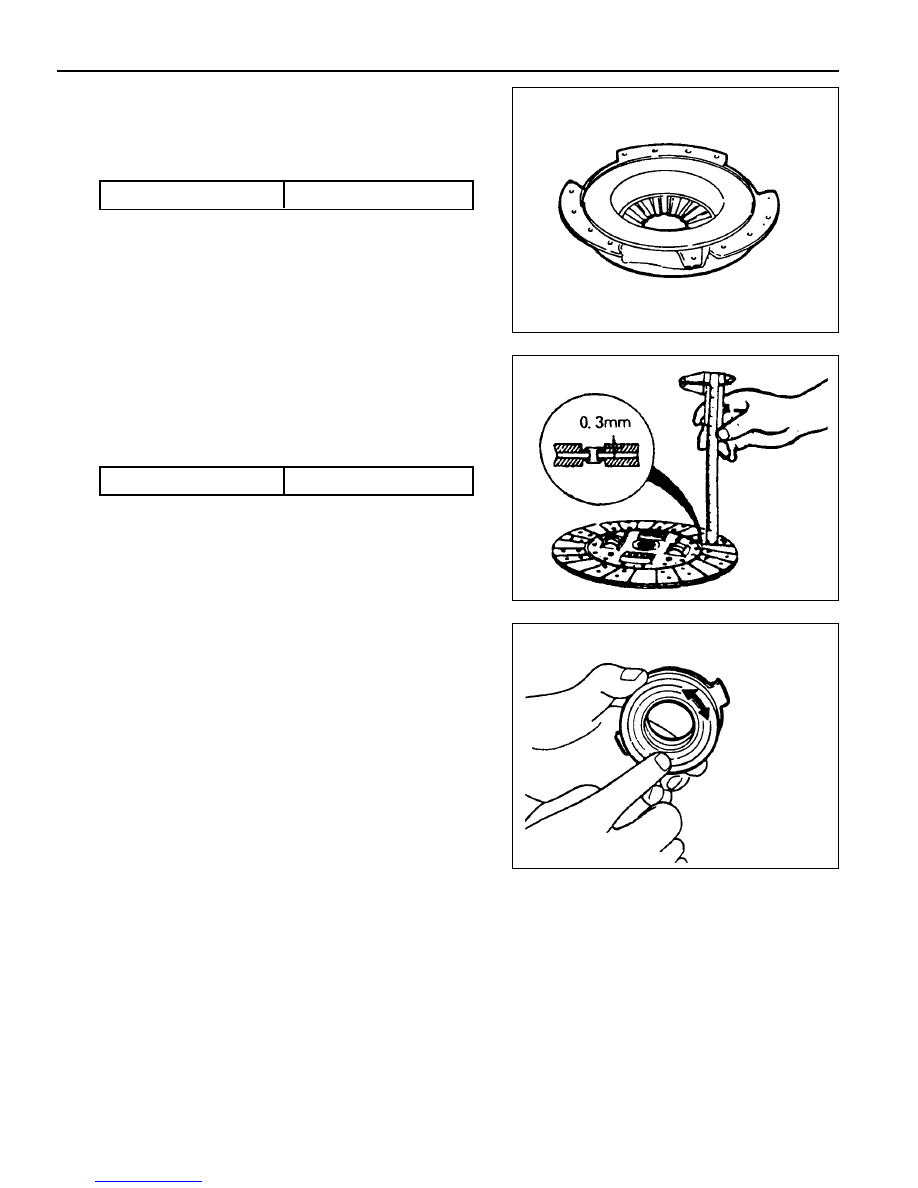

Inspection Procedure

1. Clutch Cover

l

Check the diaphragm spring tip for wear and height

unevenness.

l

Check the pressure plate surface for wear, crack and

discoloration.

l

Check the strap plate rivet for looseness and replace

the clutch cover if loosened.

Unevenness Limit

0.8 mm

2. Clutch Disc

l

Check the facing for rivet looseness, excessive runout,

sticks, oil and grease.

l

Measure the rivet head depth.

If out limit, replace the disc.

3. Clutch Release Bearing

l

The release bearing is permanently lubricated and

requires no cleaning.

l

Check the bearing for sticks, damage, abnormal noise,

turning drag and wear.

4. Release Fork

l

If there is abnormal wear in contact point with bearing,

replace the release fork.

Wear Limit

0.3 mm

CLUTCH  5C-13

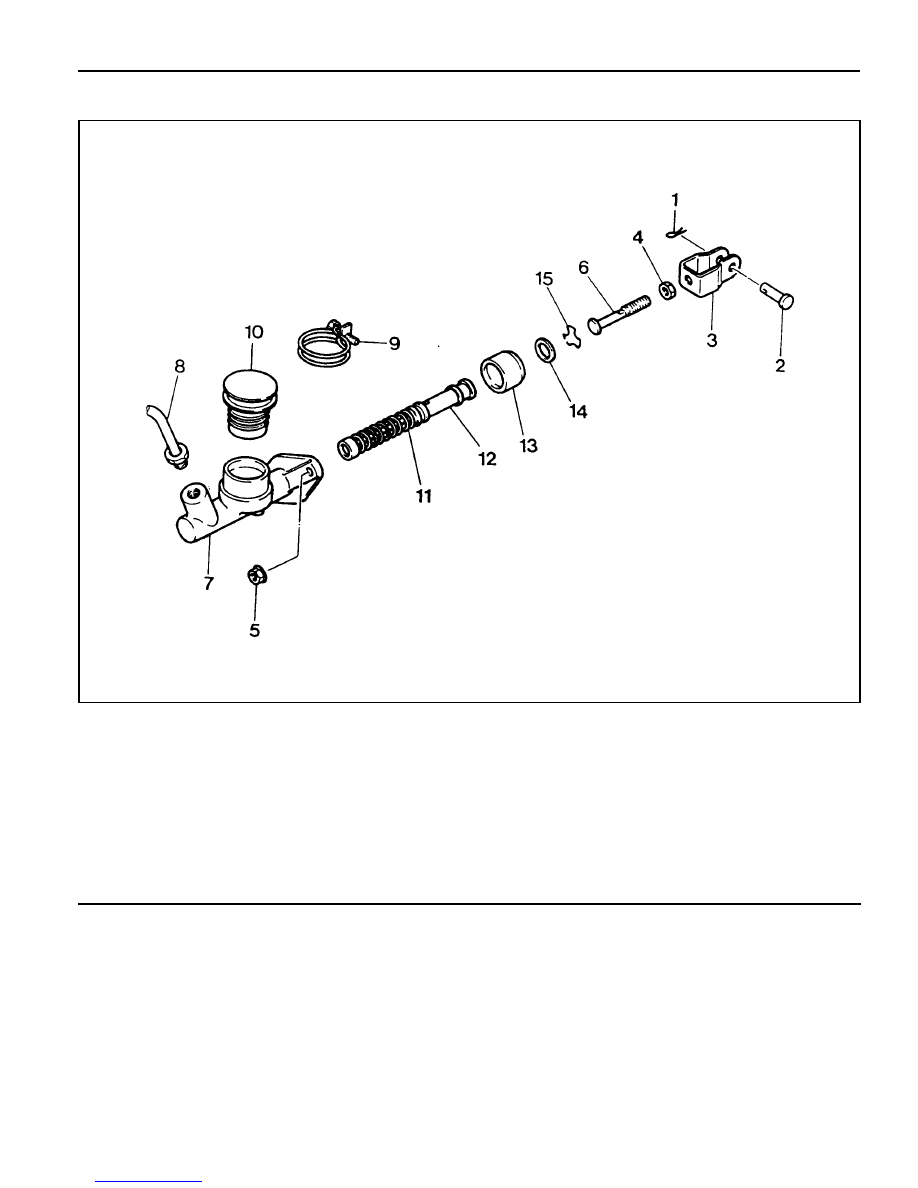

MASTER CYLINDER

1 Snap Pin
2 Clevis Pin
3 Clevis
4 Lock Nut
5 Flange Nut ........................................... 30-40 Nm
6 Push Rod
7 Cylinder Body
8 Oil Pipe ................................................ 15-18 Nm

9 Clamp

10 Reservoir

11 Spring

12 Piston Assembly
13 Boot
14 Plate
15 Snap Ring

Notice

Do not disassemble the No.12.

5C-14  CLUTCH

Removal & Installation Procedure

1. Draw out the fluid.

2. Pull out the snap pin and clevis pin from the clutch pedal

connection.

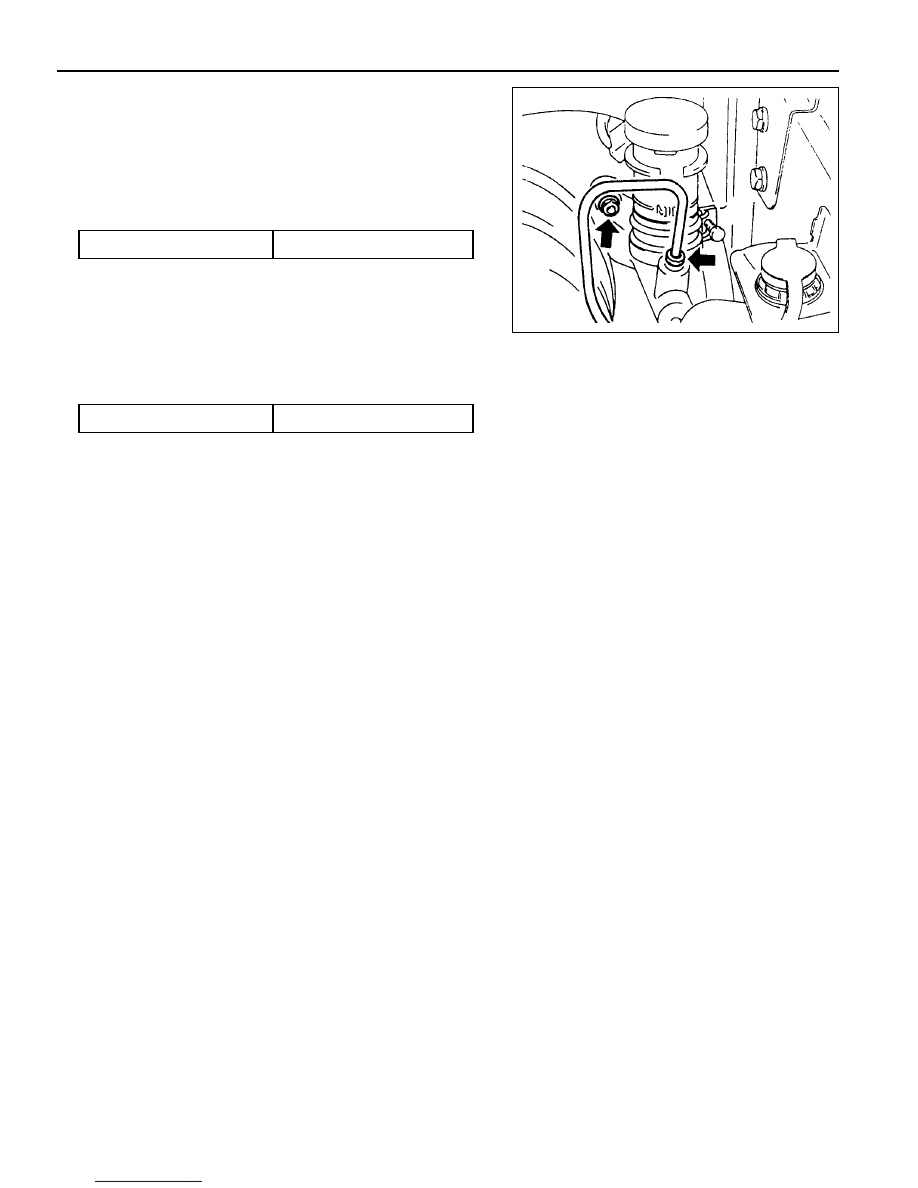

3. Remove the oil pipe.

Installation Notice

Tightening  Torque

15 - 18 Nm

Notice

Be careful not the fluid contact a painted surface.

4. Remove the master cylinder mounting nuts and pull off the

master cylinder.

Installation Notice

Tightening Torque

8 - 18 Nm

5. Installation should follow the removal procedure in the

reverse order.

6. Check the clutch pedal operation.

7. Bleed the clutch system.
