ANTILOCK BRAKE SYSTEM  4F-17

HYDRAULIC CIRCUIT

ABS 5.3

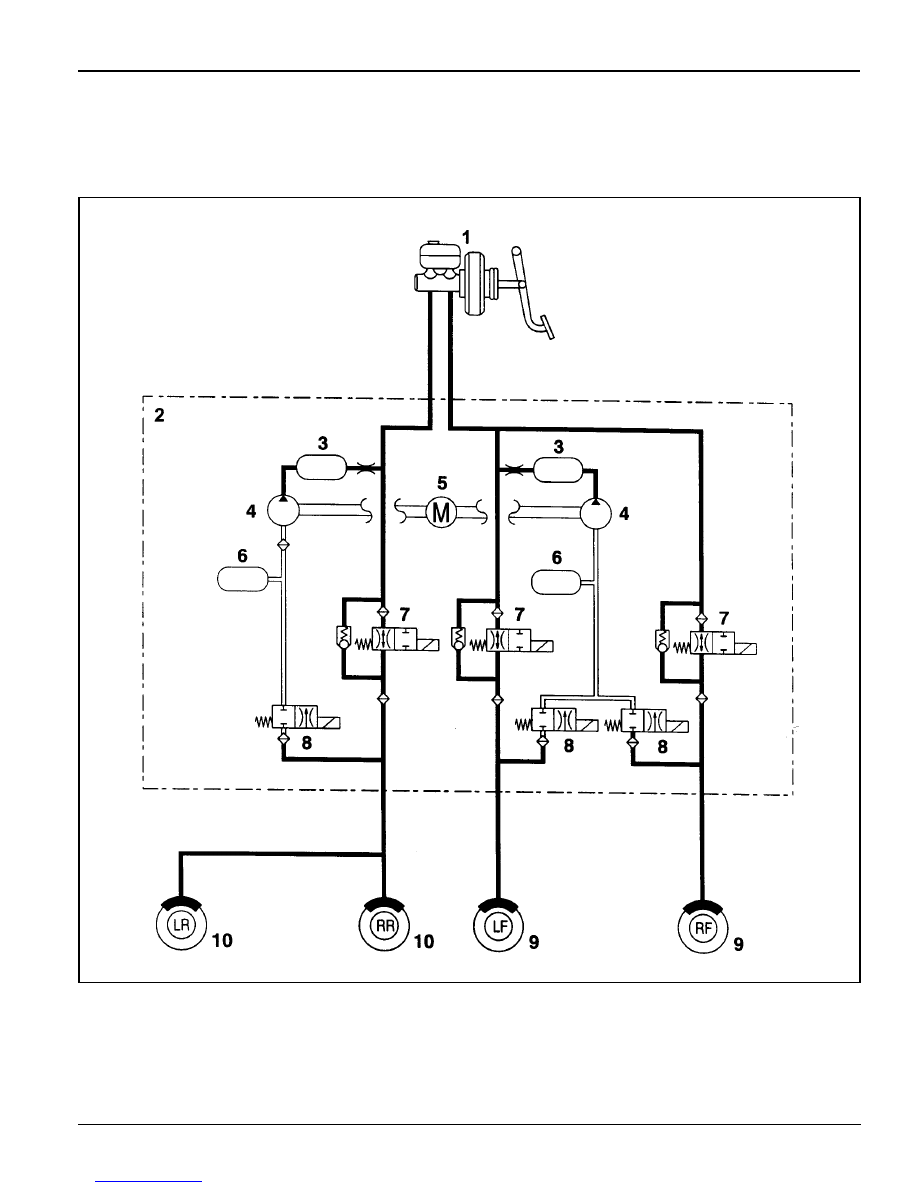

Pressure Increased

1 Master Cylinder
2 Hydraulic Unit
3 Damping Chamber
4 Return Pump
5 Return Pump Motor

6 Accumulator Chamber
7 Inlet Valve for Each Wheel
8 Outlet Valve for Each Wheel
9 Front Wheel

10 Rear Wheel

4F-18  ANTILOCK BRAKE SYSTEM

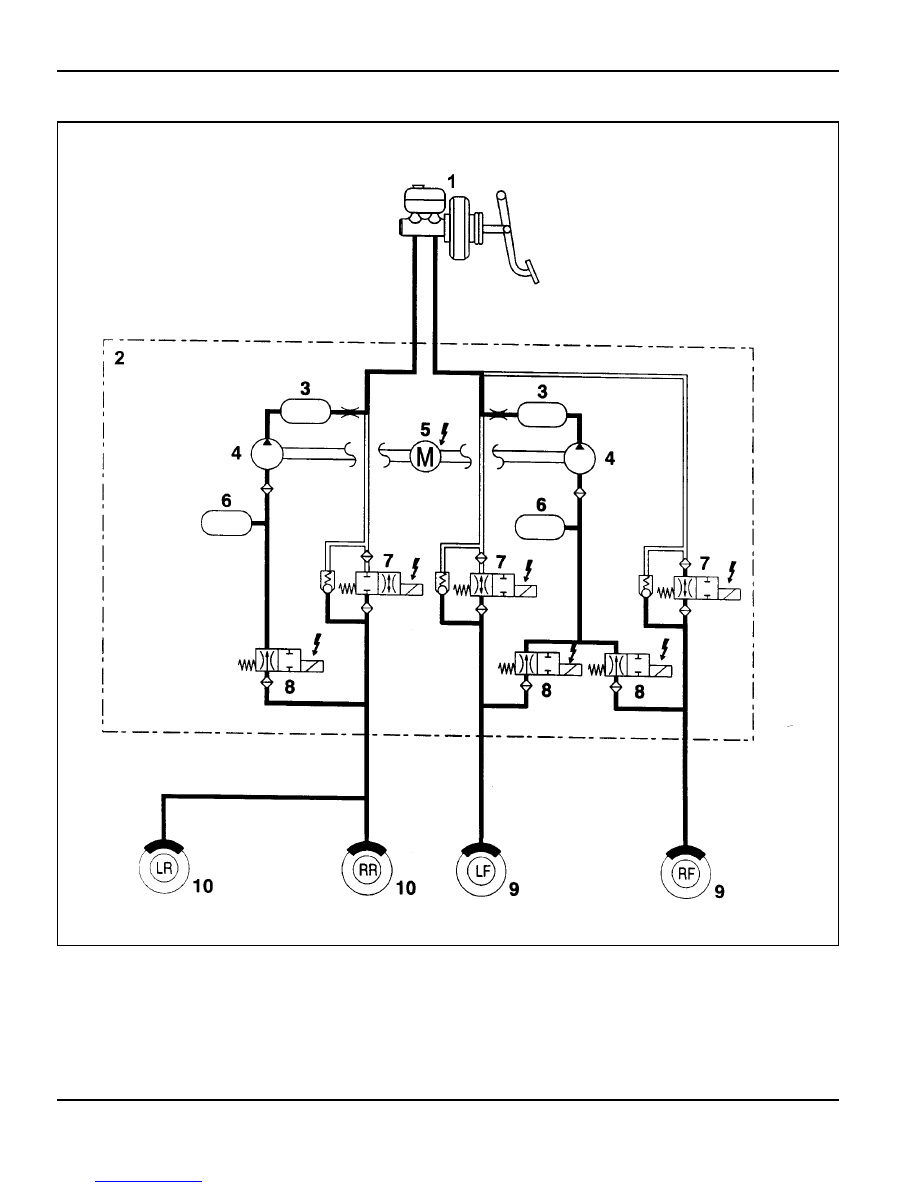

Pressure Decreased

1 Master Cylinder
2 Hydraulic Unit
3 Damping Chamber
4 Return Pump
5 Return Pump Motor

6 Accumulator Chamber
7 Inlet Valve for Each Wheel
8 Outlet Valve for Each Wheel
9 Front Wheel

10 Rear Wheel

ANTILOCK BRAKE SYSTEM  4F-19

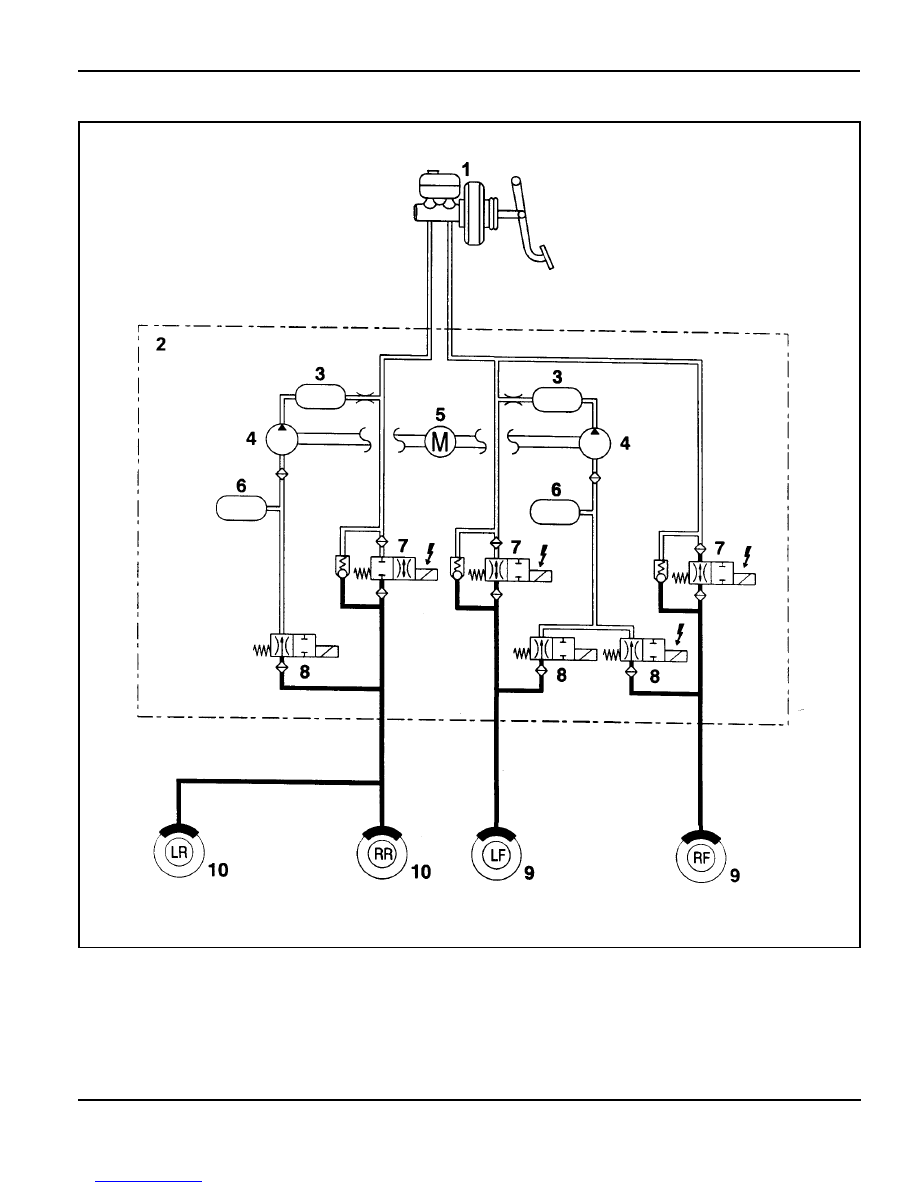

Pressure Maintained

1 Master Cylinder
2 Hydraulic Unit
3 Damping Chamber
4 Return Pump
5 Return Pump Motor

6 Accumulator Chamber
7 Inlet Valve for Each Wheel
8 Outlet Valve for Each Wheel
9 Front Wheel

10 Rear Wheel

4F-20  ANTILOCK BRAKE SYSTEM

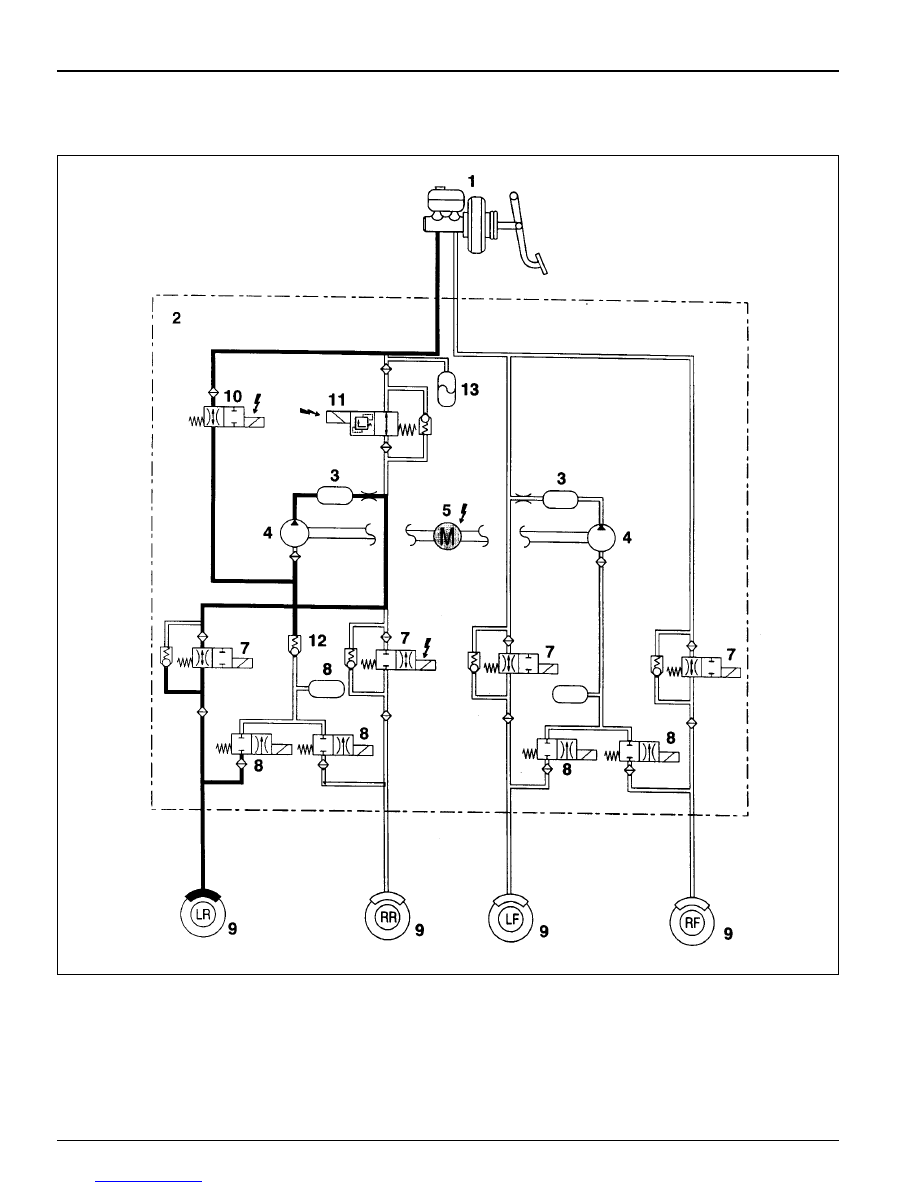

ABS/ABD 5.3

Pressure Increased

1 Master Cylinder
2 Hydraulic Unit
3 Damping Chamber
4 Return Pump
5 Return Pump Motor
6 Accumulator Chamber

7 Inlet Valve for Each Wheel
8 Outlet Valve for Each Wheel
9 Wheel

10 Prime Valve (ASV)

11 Pilot Valve (USV)

12 Check Valve
13 ISD (Integrated Suction Damper)
