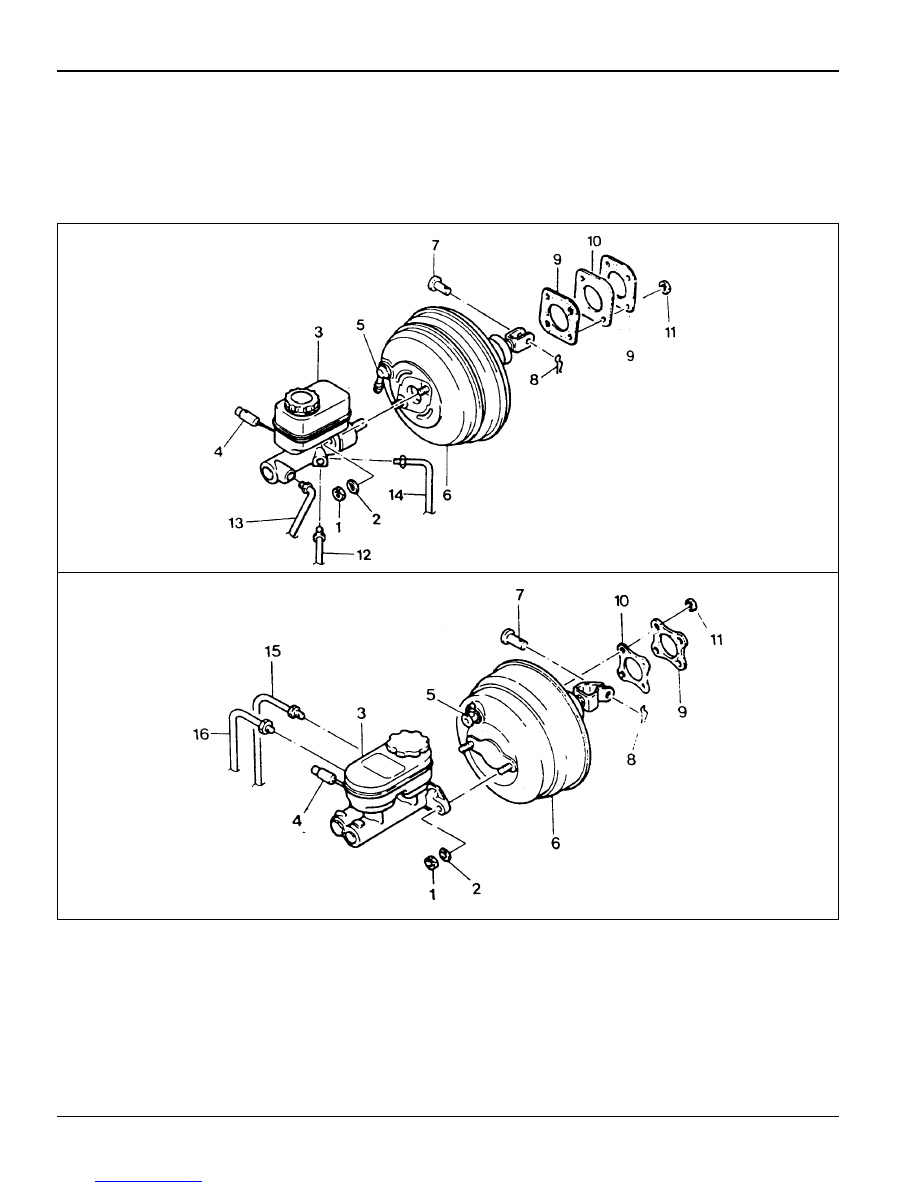

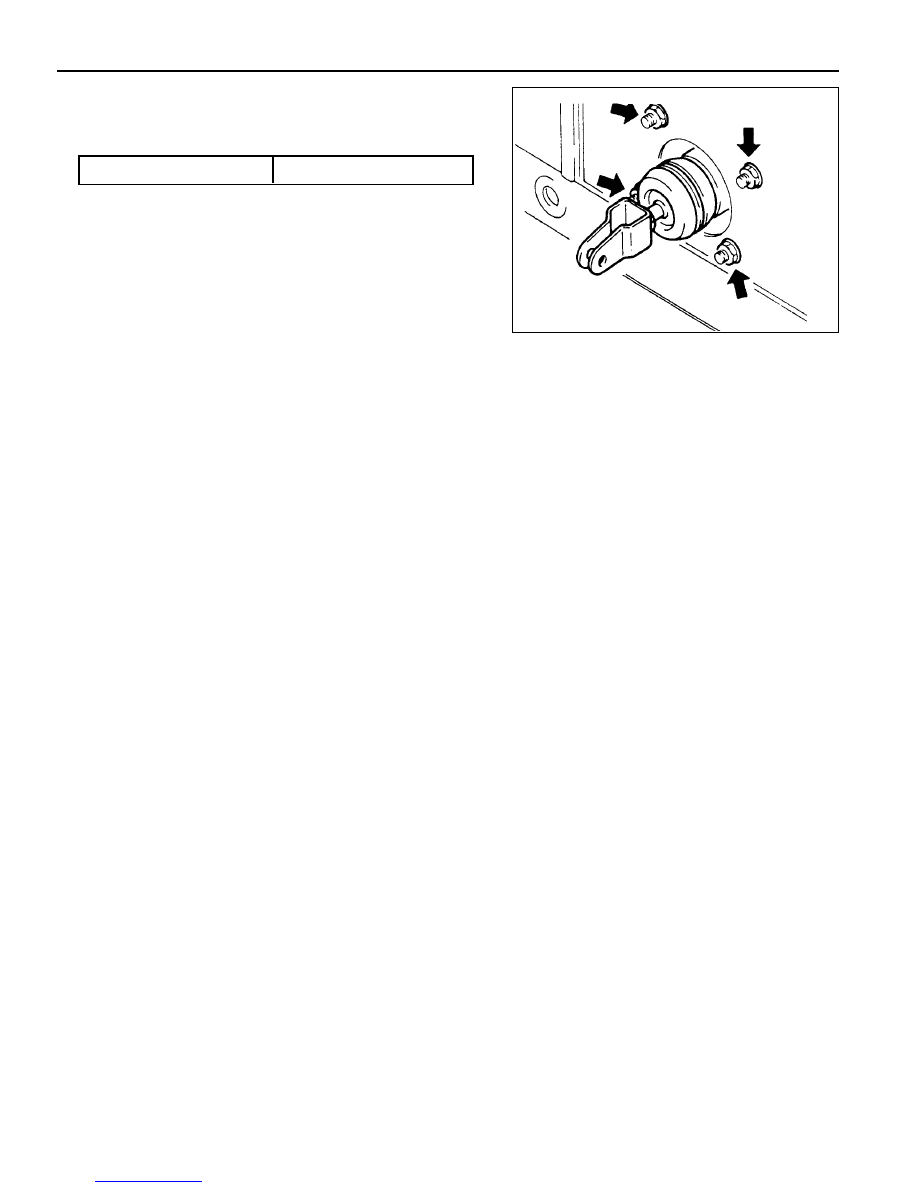

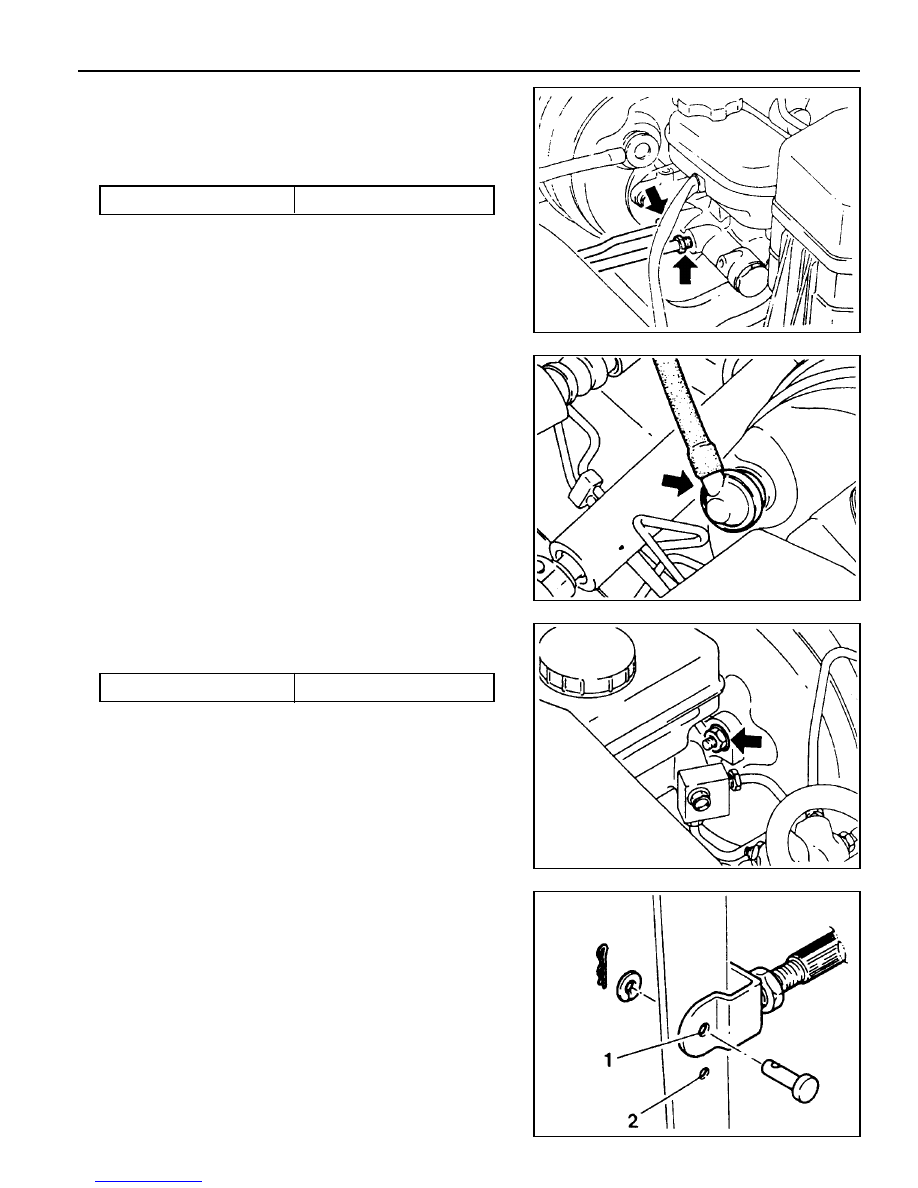

MASTER CYLINDER 4B-3 Removal & Installation Procedure 1. Remove the oil level sensor connector. 2. Remove the tube from the master cylinder. Installatione Notice Notice l Be careful not to drop the oil when removing the tube. l If the oil is dropped, promptly sweep up. 3. Remove the booster vacuum hose. Notice l Connect fully to the end of vacuum hose when installing. 4. Loosen the nut of master cylinder. Installatione Notice 5. Remove the clevis pin and disconnect the pedal and brake booster push rod. Notice l Install in the upper hole when PBR brake. l Connect the snap pin in the hole of clevis pin fully. l Apply the grease around the hole of clevis pin. Tightening Torque 14 - 22 Nm Tightening Torque 15 - 19 Nm |
