FRONT DRIVE AXLE  3A-7

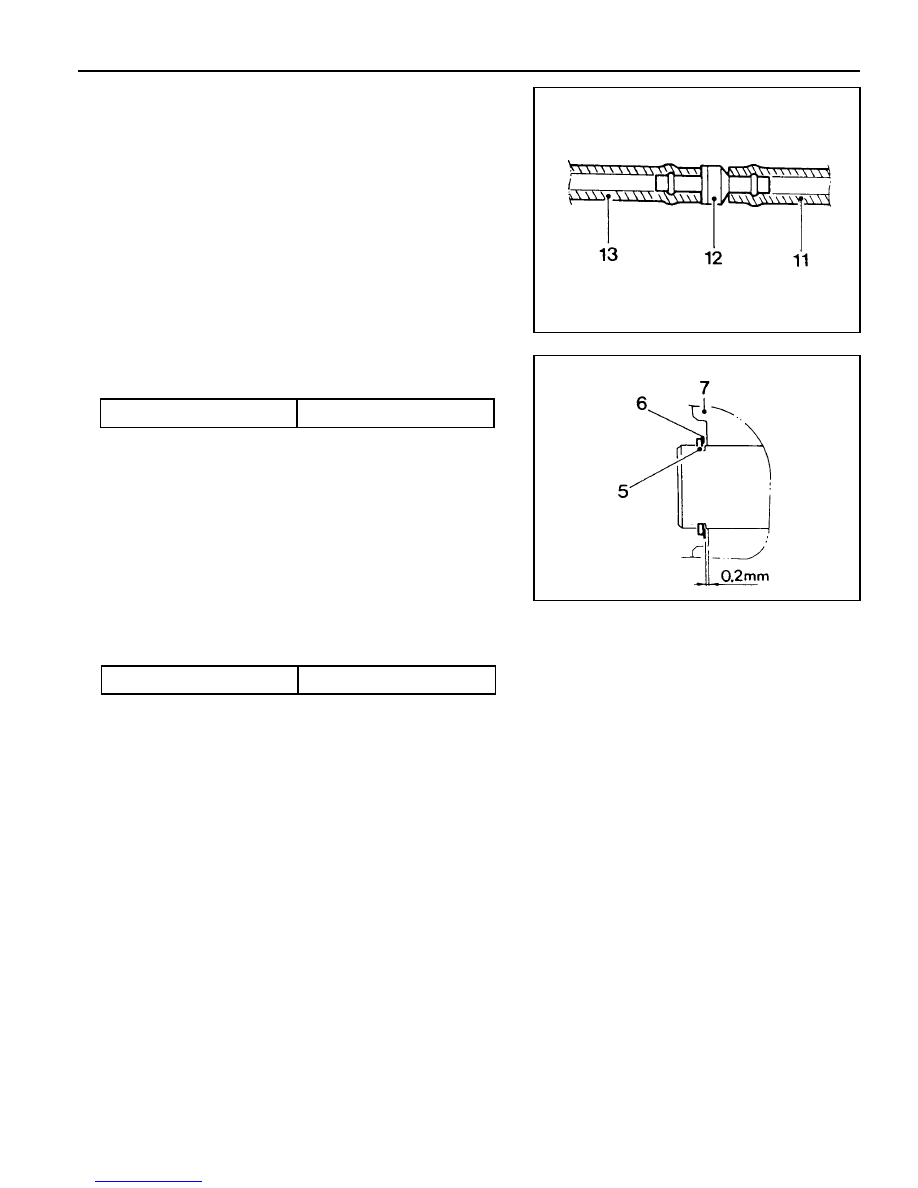

Removal & Installation Procedure

1. Be careful not to change the valve when connecting the

check valve and each hose.

2. Adjust the clearance between the retainer ring (5) and

locking hub (7) using the shim(6).

Notice

Shim thickness : 0.1, 0.2, 0.3, 0.5, 1.0 mm

Normal

Max. 0.2 mm

3. Tighten the auto locking hub cap bolt to the specified torque

and order.

Tightening  Torque

50 - 60 Nm

3A-8  FRONT DRIVE AXLE

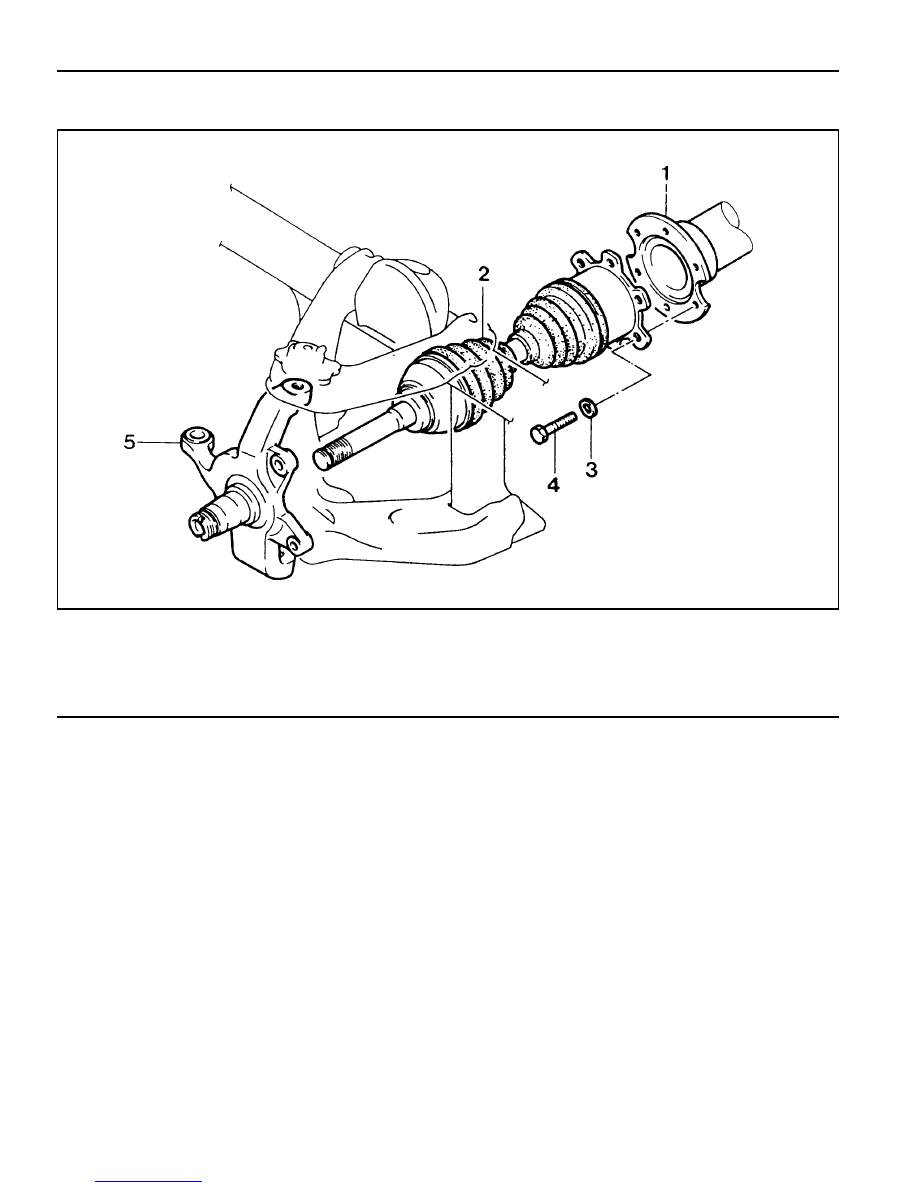

STEERING KNUCKLE AND DRIVE SHAFT

1 Front Axle Inner Shaft
2 Front Axle Drive Shaft
3 Spring Washer

4 Bolt ...................................................... 45-60 Nm
5 Steering Knuckle

FRONT DRIVE AXLE  3A-9

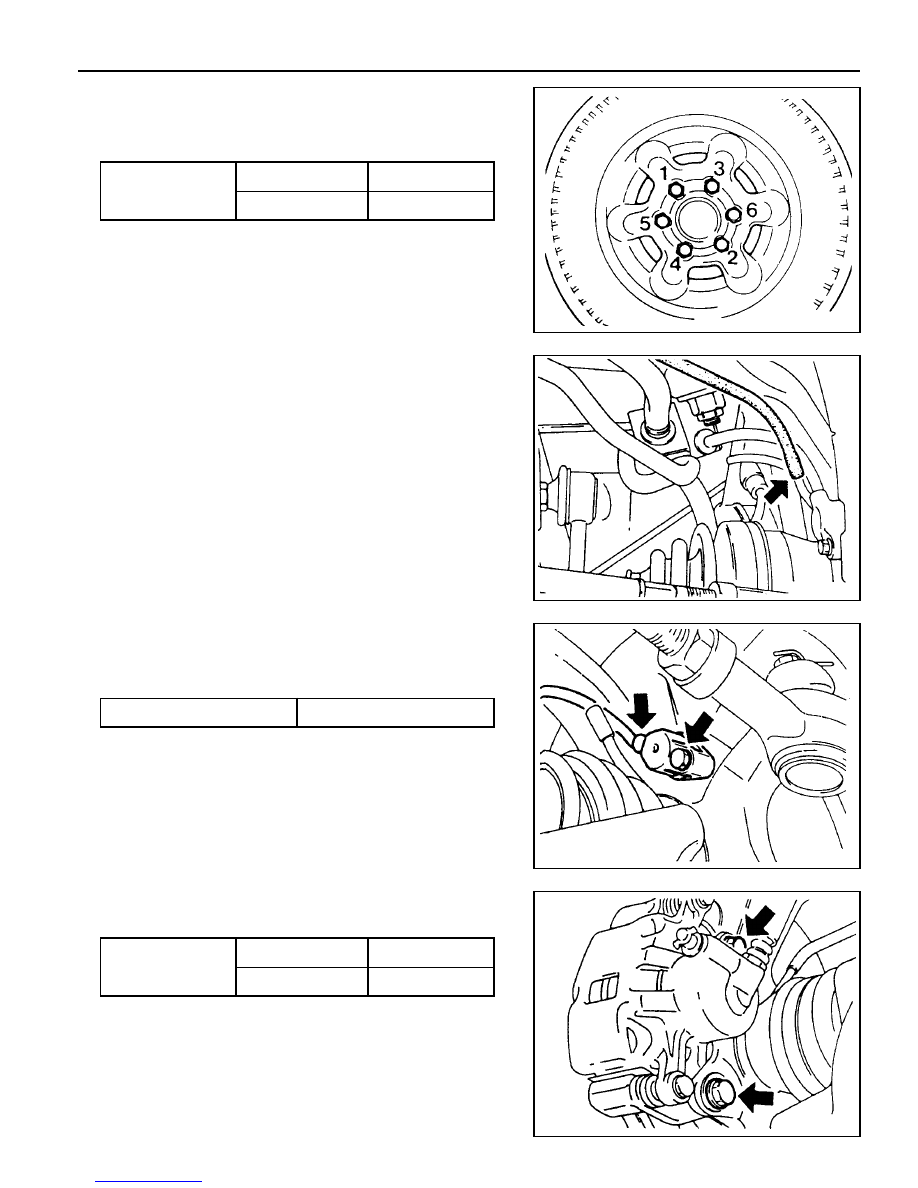

Removal & Installation Procedure

1. Remove the tire.

Installation Notice

Steel Wheel

Aluminum Wheel

Tightening Torque

80 - 120 Nm

110 - 130 Nm

2. Remove the autolocking hub vacuum hose.

3. With ABS

Remove the wheel speed sensor from the steering knuckle.

Installation Notice

4. Remove the mounting bolts and pull off the caliper assembly.

Installation Notice

Tightening  Torque

6 - 8 Nm

Hose Bolt

Mounting Bolt

Tightening Torque

25 - 35 Nm

85 - 105 Nm

Notice

Be careful not to damage the brake hose.

3A-10  FRONT DRIVE AXLE

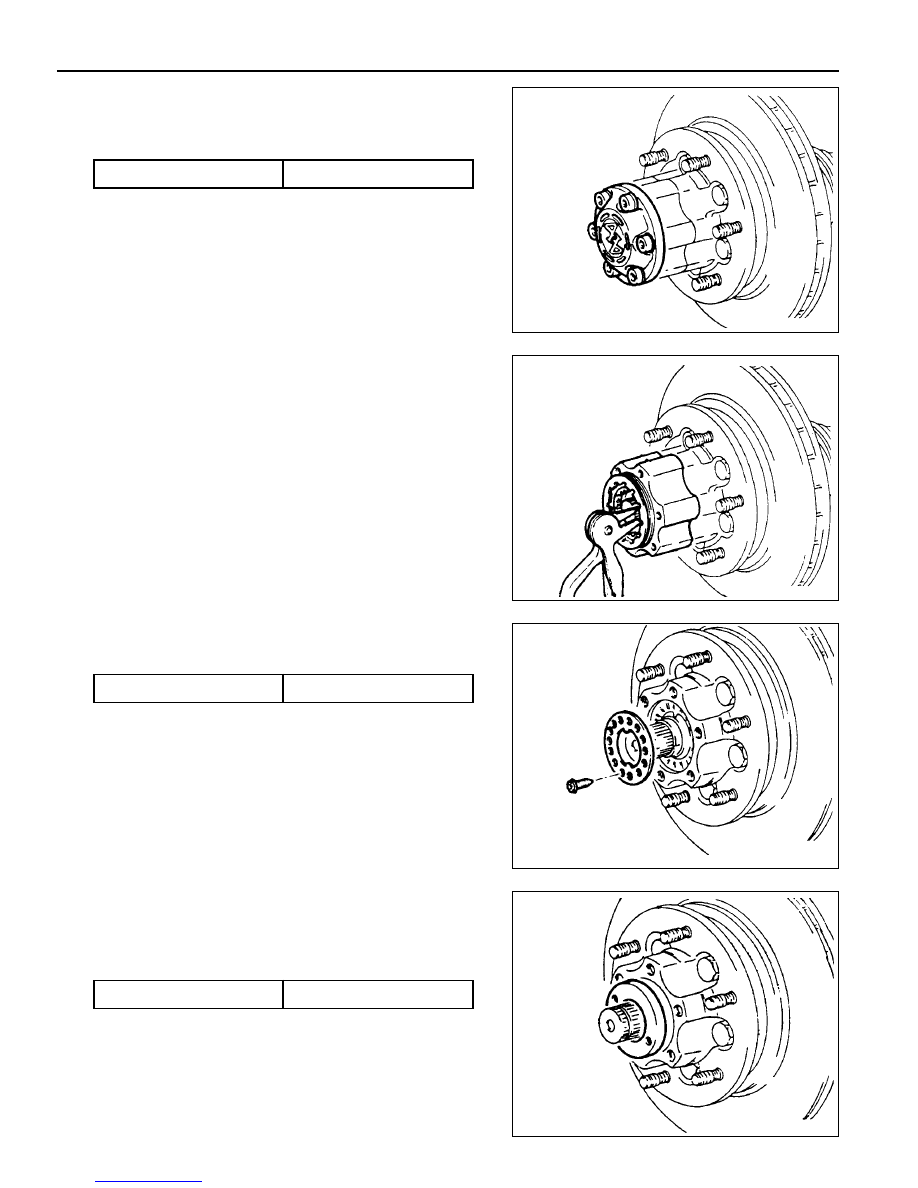

5.

With part time transfer case.

5-1. Remove the cover mounting bolts and pull off the cover.

Installation Notice

5-2. Remove the snap ring of the drive shaft and pull off the

hub body.

Notice

For assembly, adjust the clearance between the snap ring
and hub not to exceed 0.2 mm (Shim thickness : 0.1, 0.2,
0.3, 0.5, 1.0 mm).

Tightening  Torque

50 - 60 Nm

6.

With full time transfer case

6-1. Detach the hub cap with screw driver and remove the

snap ring on drive shaft.

Installation Notice

Tightening  Torque

2 - 4 Nm

5-3. Remove the screws and pull off the locking hub washer.

Installation Notice

Notice

For assembly, adjust the clearance between the snap ring
and hub not to exceed 0.2 mm (Shim thickness : 0.1, 0.2,
0.3, 0.5, 1.0 mm).

Tightening Torque

15 Nm
