OM600 ENGINE INTAKE & EXHAUST  1G3-7

1 Turbocharger Oil Inlet
2 Turbine Wheel
3 Waste Gate
4 Oil Outlet
5 Compressor Wheel

6 Air Inlet
7 Exhaust Gas Outlet
8 Compressed Air Flow
9 Intercooler

10 Cylinder

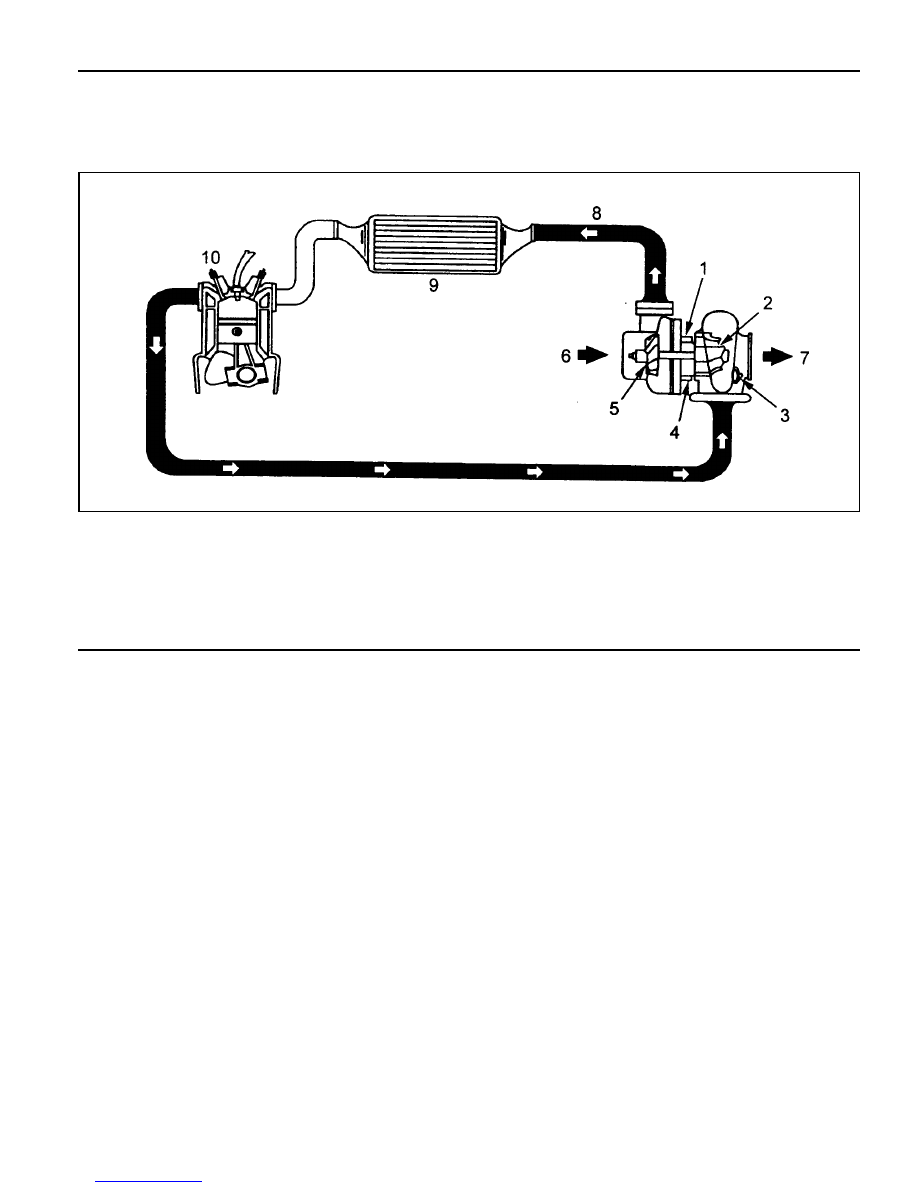

TURBOCHARGER

CHARGE AIR SYSTEM DIAGRAM

1G3-8  OM600 ENGINE INTAKE & EXHAUST

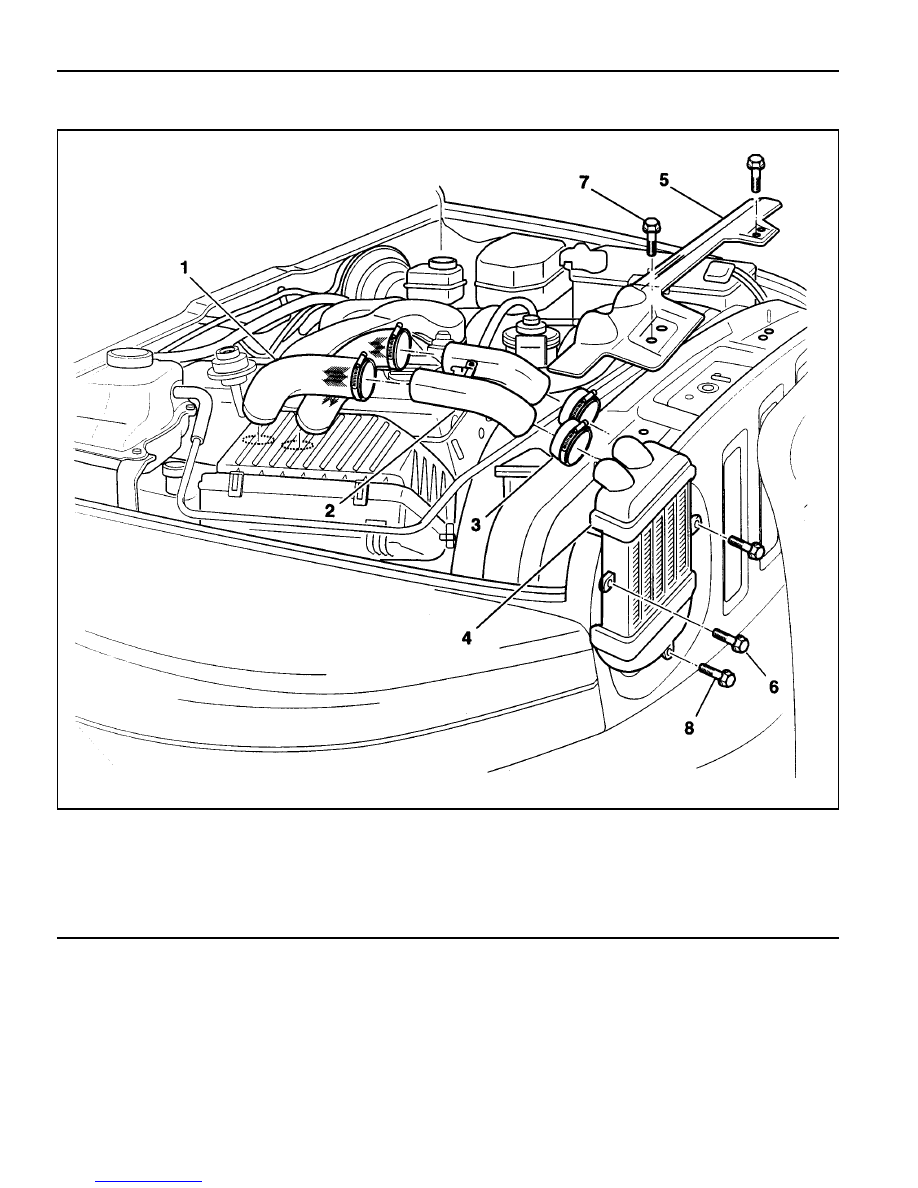

INTERCOOLER

1 Hoses
2 Pipes
3 Hoses
4 Intercooler

5 Cover
6 Bolts
7 Screws
8 Bolts

OM600 ENGINE INTAKE & EXHAUST  1G3-9

Removal & Installation Procedure

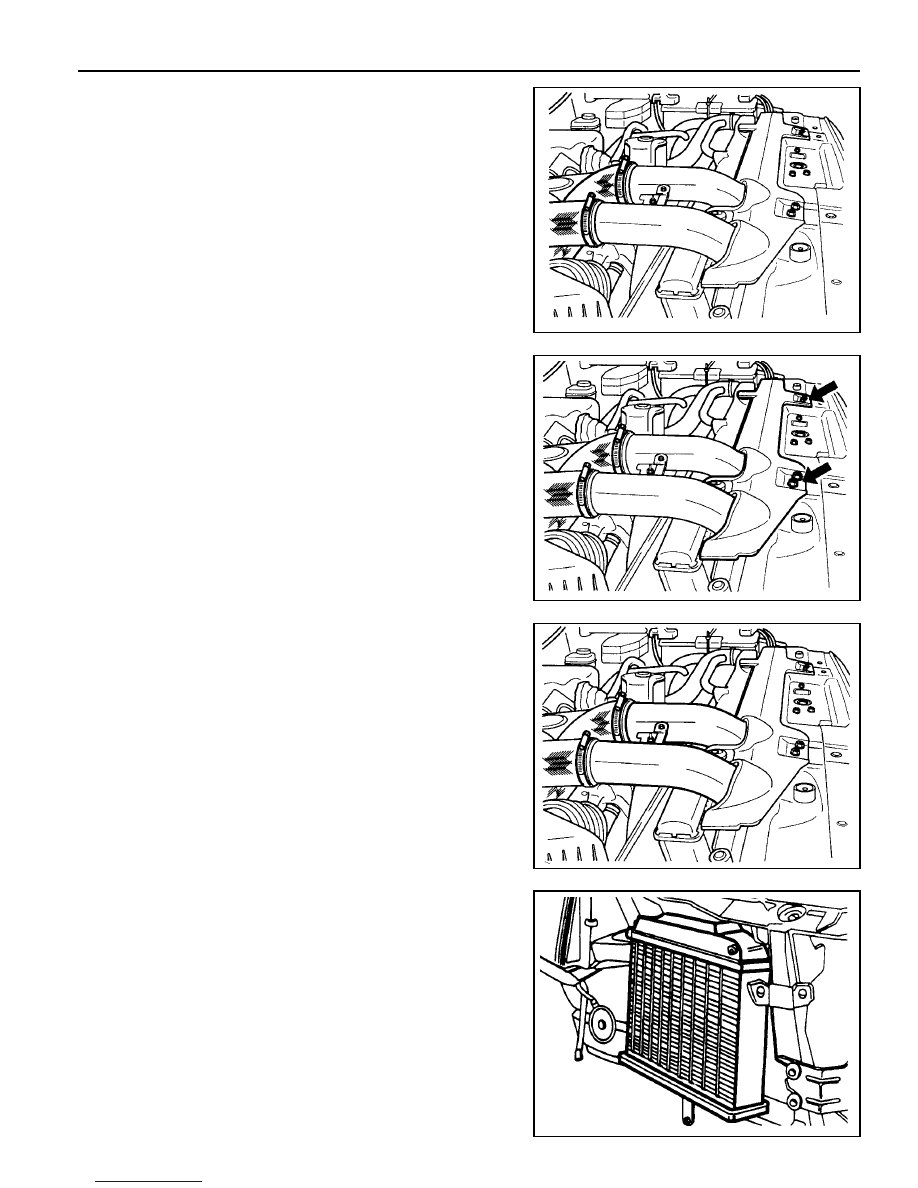

1. Remove the hose connected to turbocharger and intake

duct.

2. Remove the protective cover.

3. Loosen the clamps and remove the pipe and hose

connected to intercooler.

4. Unscrew the mounting bolts and remove the intercooler.

5. Installation should follow the removal procedure in the

reverse order.

1G3-10  OM600 ENGINE INTAKE & EXHAUST

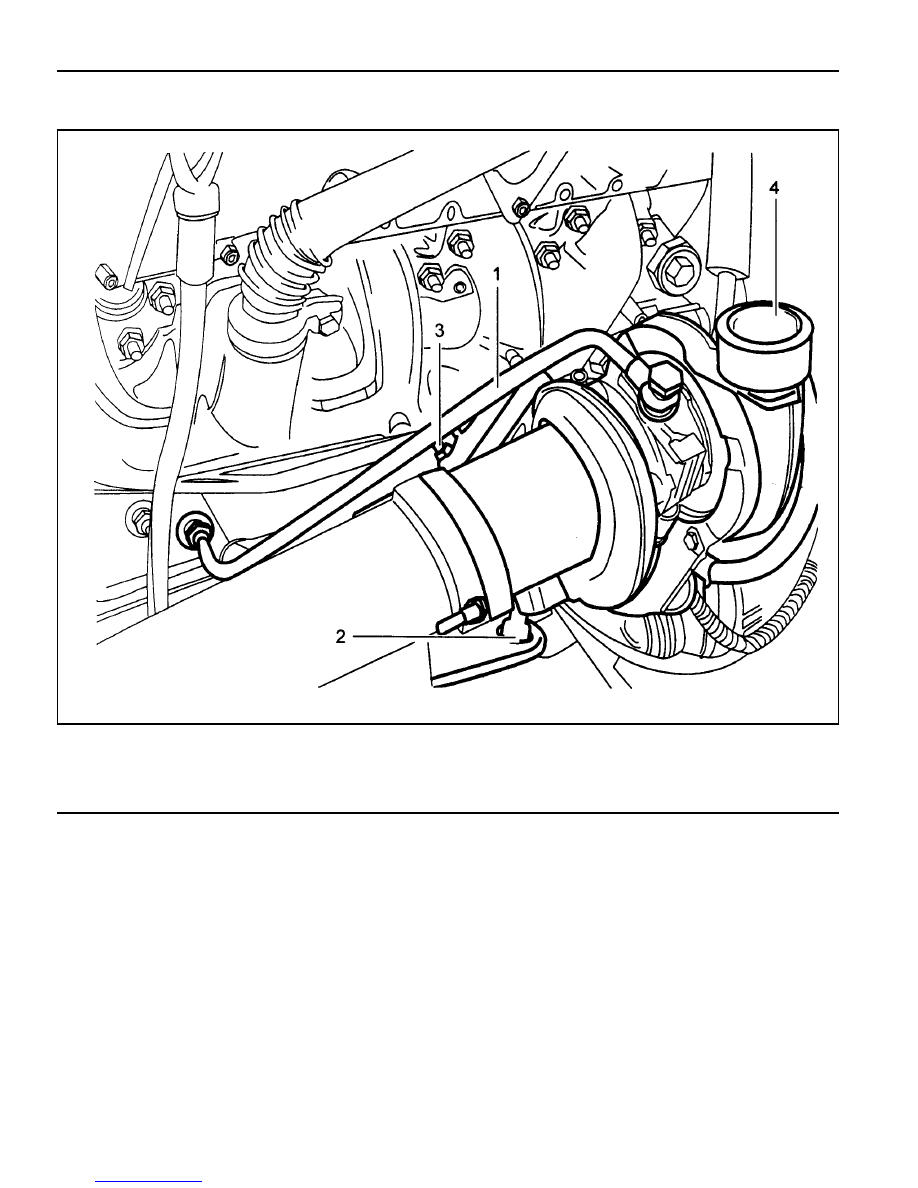

TURBOCHARGER ASSEMBLY

1 Oil Supply Line
2 Oil Return Line

3 Nuts
4 Turbocharger
