1B3-26 OM600 ENGINE MECHANICAL

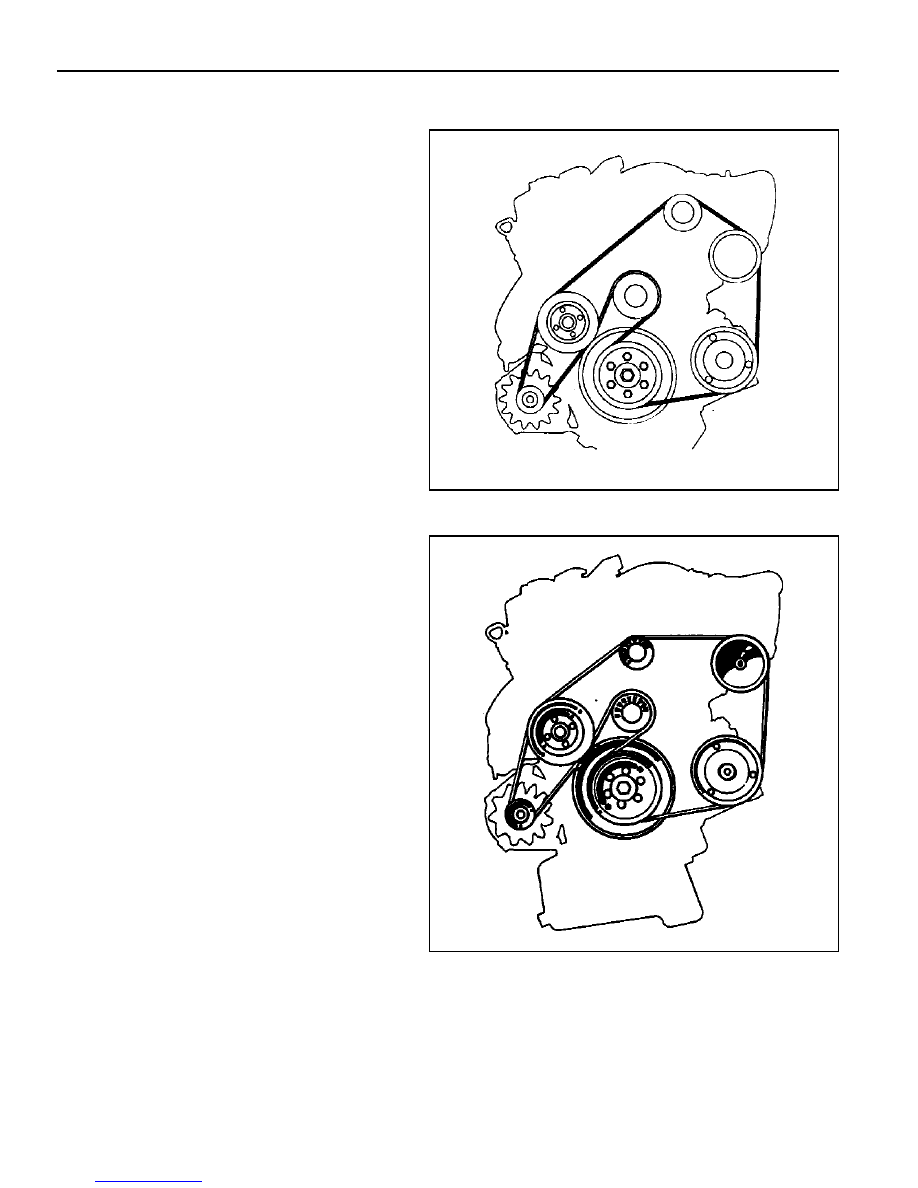

POLY V-BELT ALIGNMENT & INSPECTION

Without Air Conditioner

With Air Conditioner

OM600 ENGINE MECHANICAL 1B3-27

Inspection Procedure

Mark poly V-belt at a clearly visible point with chalk.

Rotate the engine and check the belt.

Notice

If one of the following types of damage is found, replace
the belt.

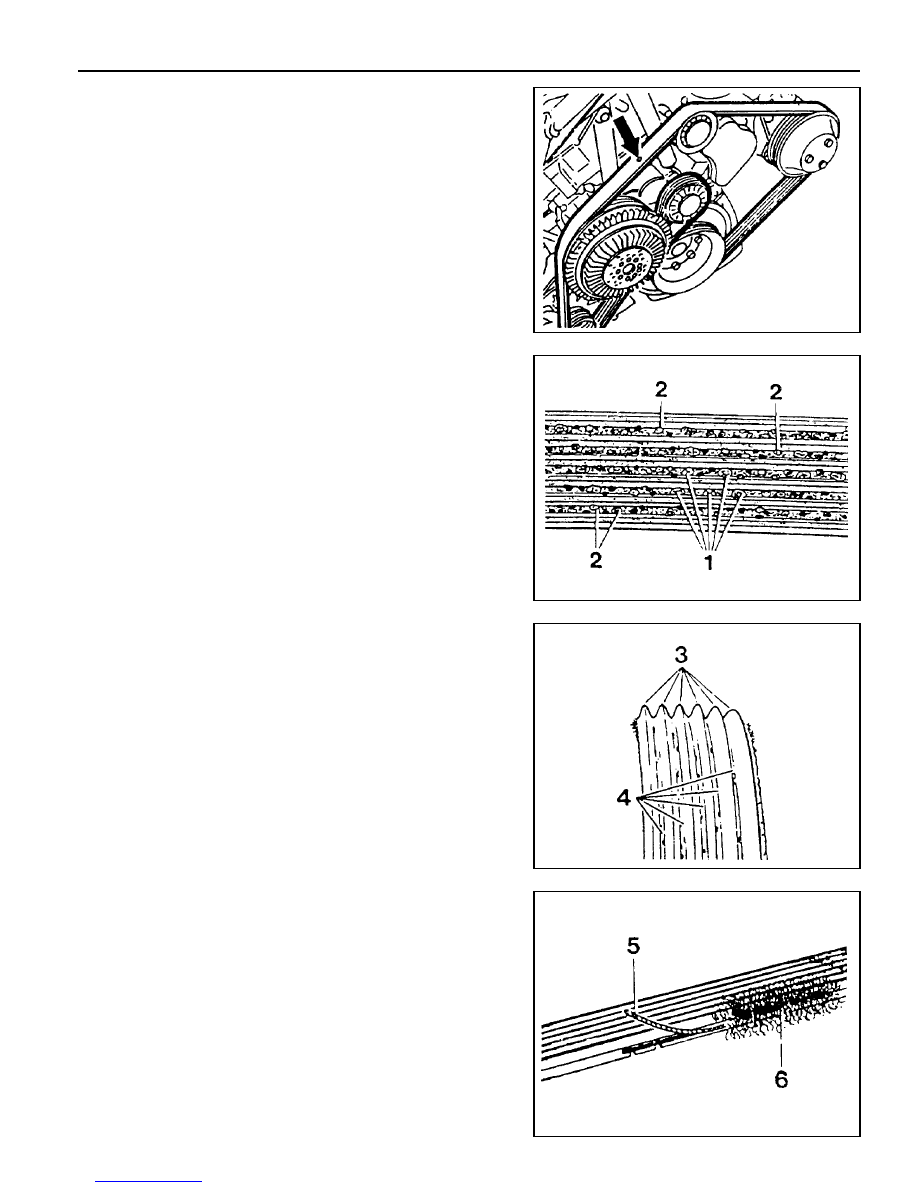

1. Rubber lumps in the base of rips.

2. Dirt or grit ingrained.

5. Cord torn out at the side.

6. Outer cords frayed.

3. Pointed rips.

4. Belt cord visible in the base of rips.

1B3-28 OM600 ENGINE MECHANICAL

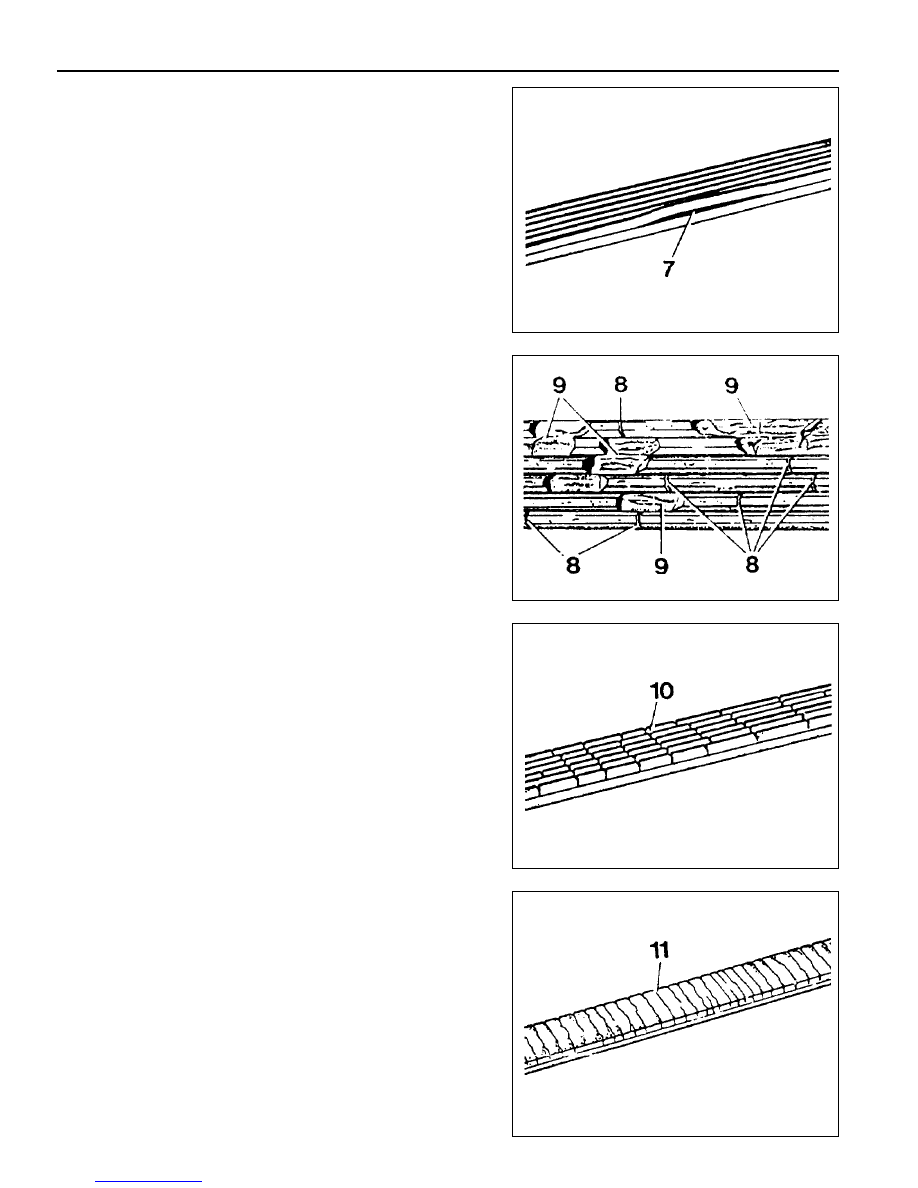

7. Belt detached from the base of rip.

8. Splits across the rips.

9. Sections of rip torn out.

10. Splits across several rips.

11. Splits across the back.

OM600 ENGINE MECHANICAL 1B3-29

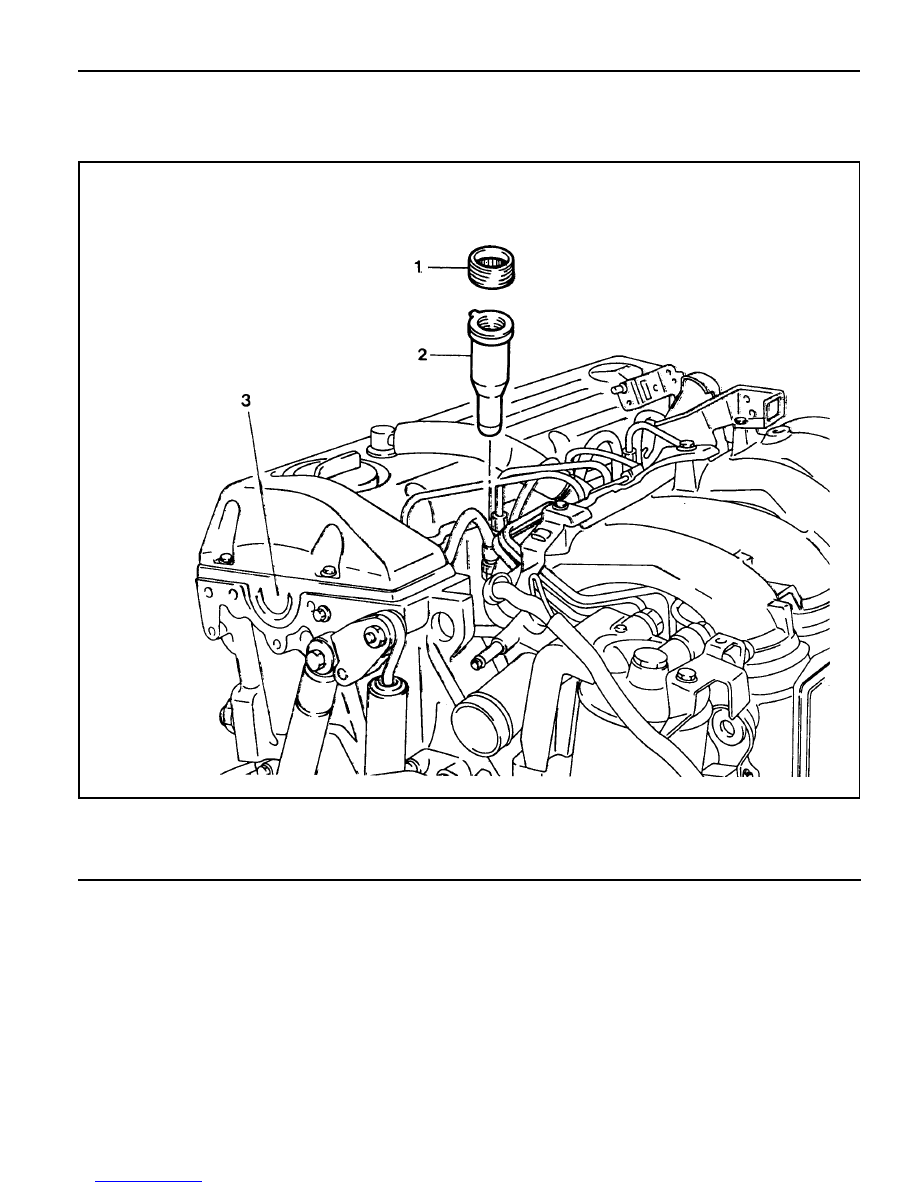

1 Threaded Ring ........................................ 130 Nm
2 Prechamber

PRECHAMBER

Preceding Work : Removal of glow plug

Removal of fuel injection nozzle

3 Cylinder Head
