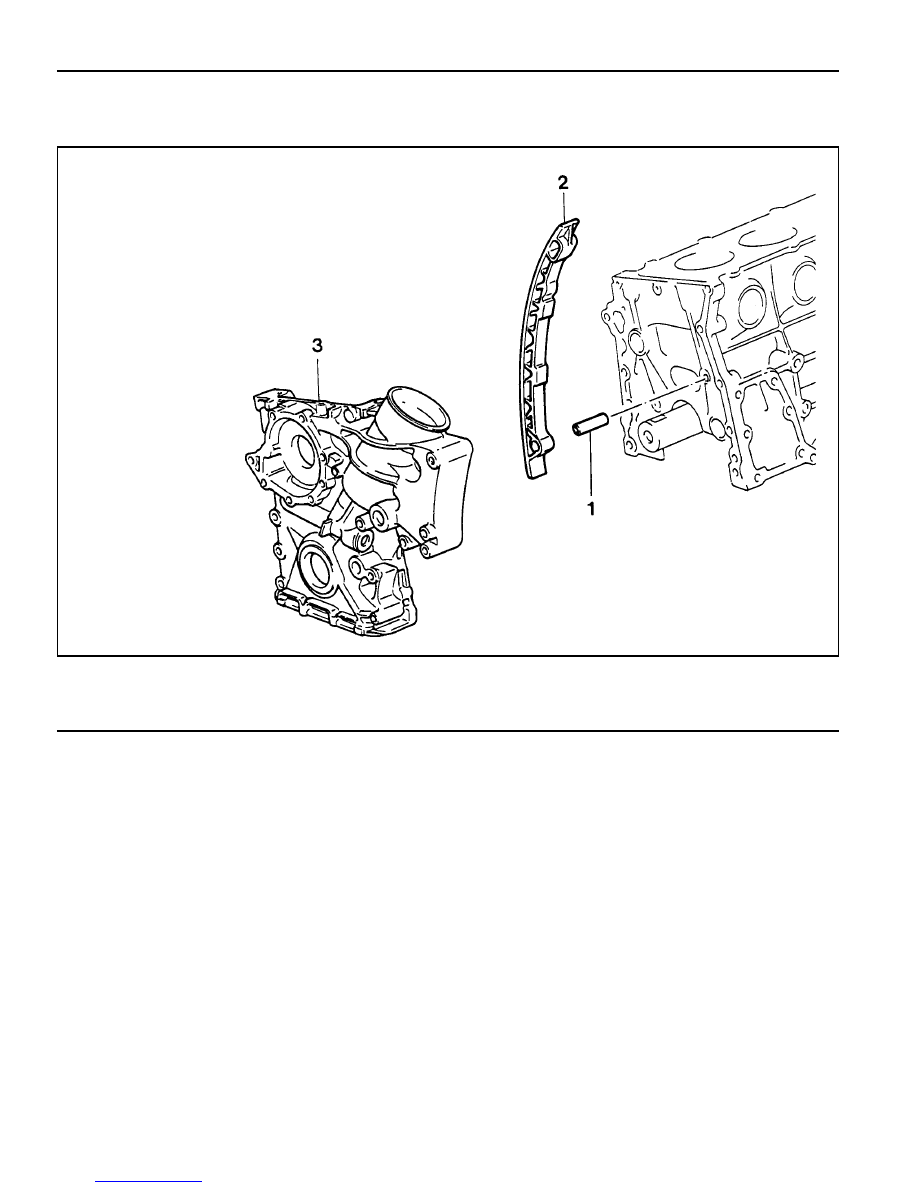

1B2-86 M161 ENGINE MECHANICAL CRANKCASE GUIDE RAIL Preceding Work : Removal of timing gear case cover Removal & Installation Procedure 1. Remove the timing gear case cover (3). Notice Be careful not to damage the gasket when removing/ 2. Remove the guide rail (2) from the guide rail pin(1). Notice l Replace the plastic guide (2) if damaged. l Connect the plastic guide (2) and the guide rail (1) by aligning them accurately when installing. 3. Installation should follow the removal procedure in the reverse order. 1 Guide Rail Pin 3 Timing Gear Case Cover |
