1B2-30  M161 ENGINE MECHANICAL

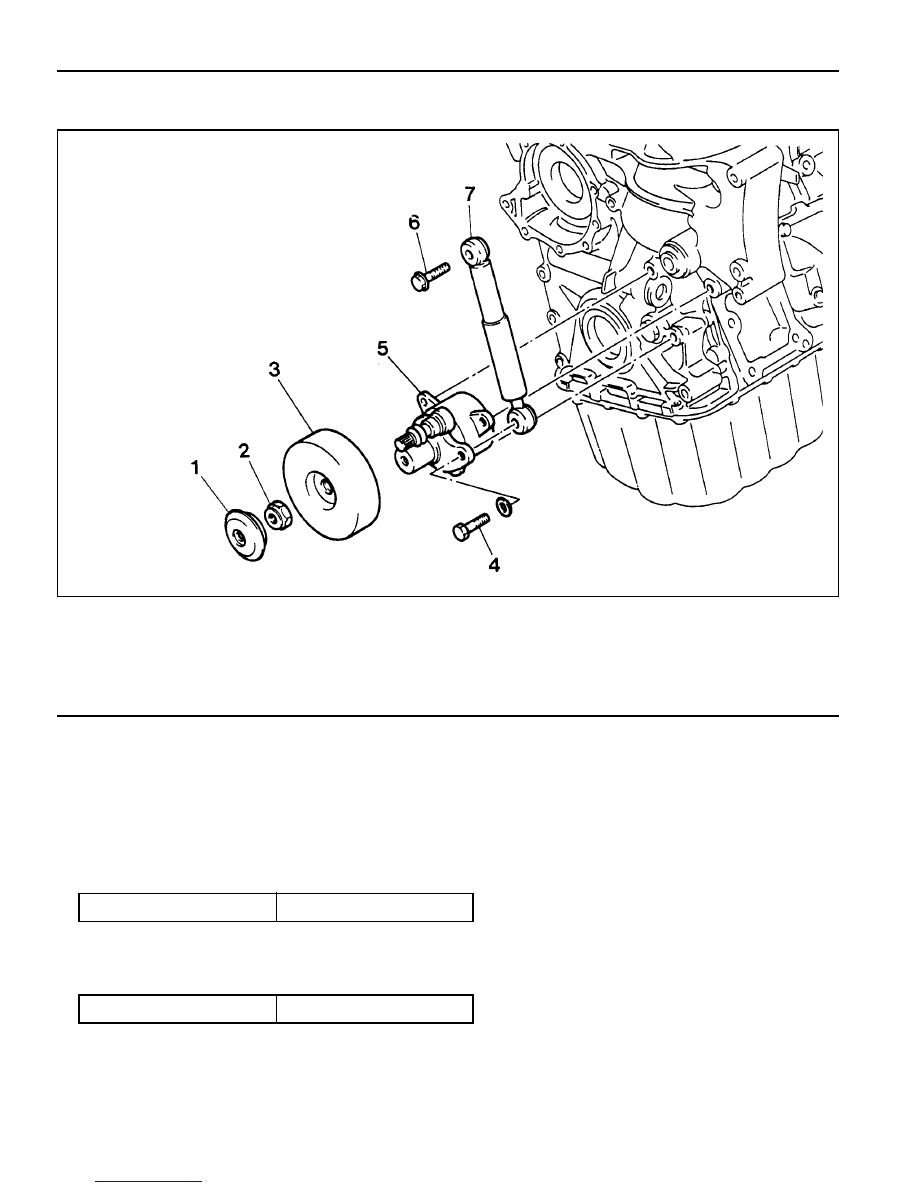

TENSIONING DEVICE SHOCK ABSORBER

1 End Cover
2 Nut ................................................. 40.5-49.5 Nm
3 Tensioning Pulley
4 Bolt (M8 X 25) + Washer ................ 22.5-27.5 Nm

Removal & Installation Procedure

1. Remove the end cover (1).

2. Remove the nut (2) and remove the tensioning pulley (3).

Installation Notice

5 Tensioning Device
6 Bolt (M8 X 35) + Washer ................ 22.5-27.5 Nm
7 Shock Absorber

Tightening  Torque

40.5 - 49.5 Nm

3. Unscrew the bolts (4,6) and remove the shock absorber

(7).

Installation Notice

Tightening  Torque

22.5 - 27.5 Nm

M161 ENGINE MECHANICAL  1B2-31

3. Pointed rib.

4. Belt cord visible in the base of rib.

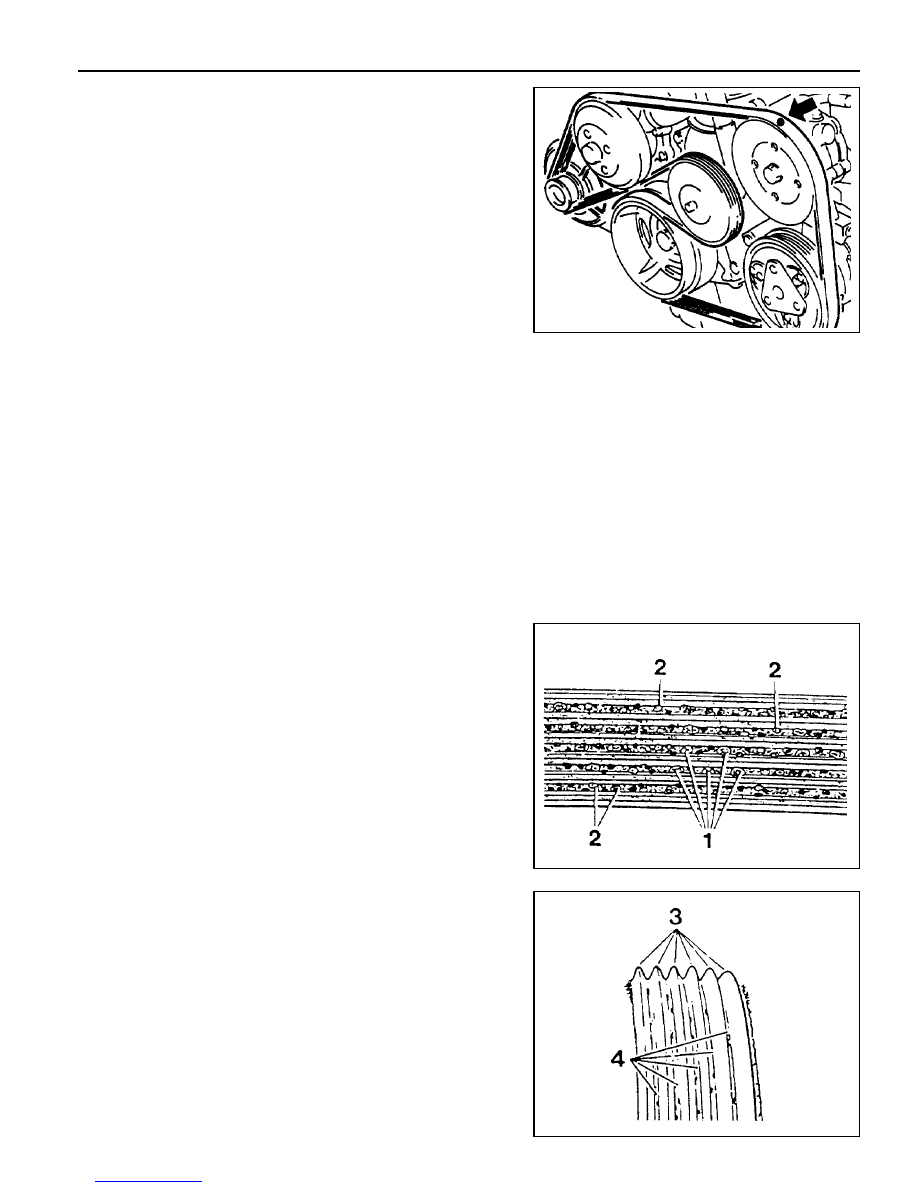

POLY V-BELT INSPECTION

l

Make marks on the belt with chalk.

l

Rotate the engine and check the belt for damage.

Notice

If one of the following types of damages is found, replace
the belt.

1. Rubber lumps in the base of rib.

2. Dirt or grit ingrained.

1B2-32  M161 ENGINE MECHANICAL

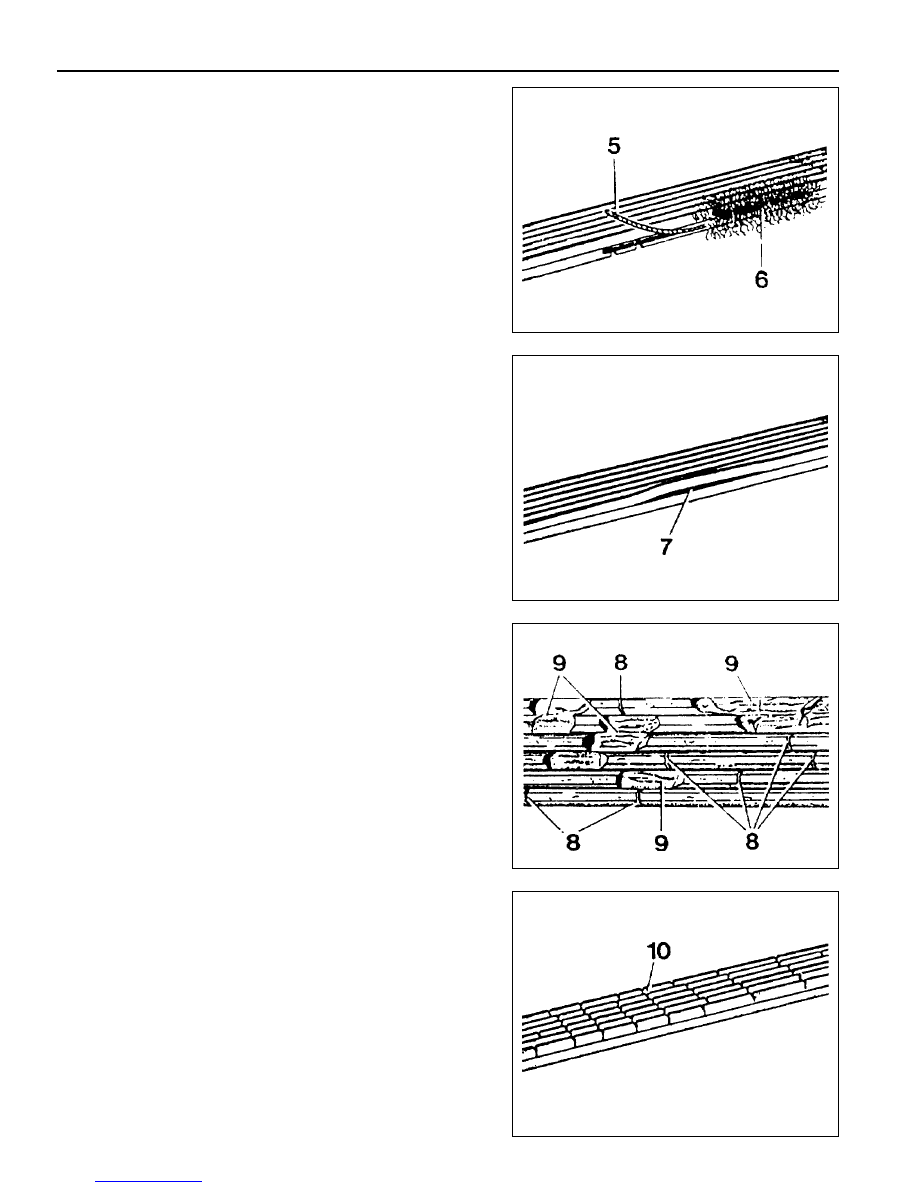

5. Cord torn out at the side.

6. Outer cords frayed.

7. Rib detached from the base of belt.

8. Splits across the rib.

9. Sections of rib torn out.

10. Splits across several ribs.

M161 ENGINE MECHANICAL  1B2-33

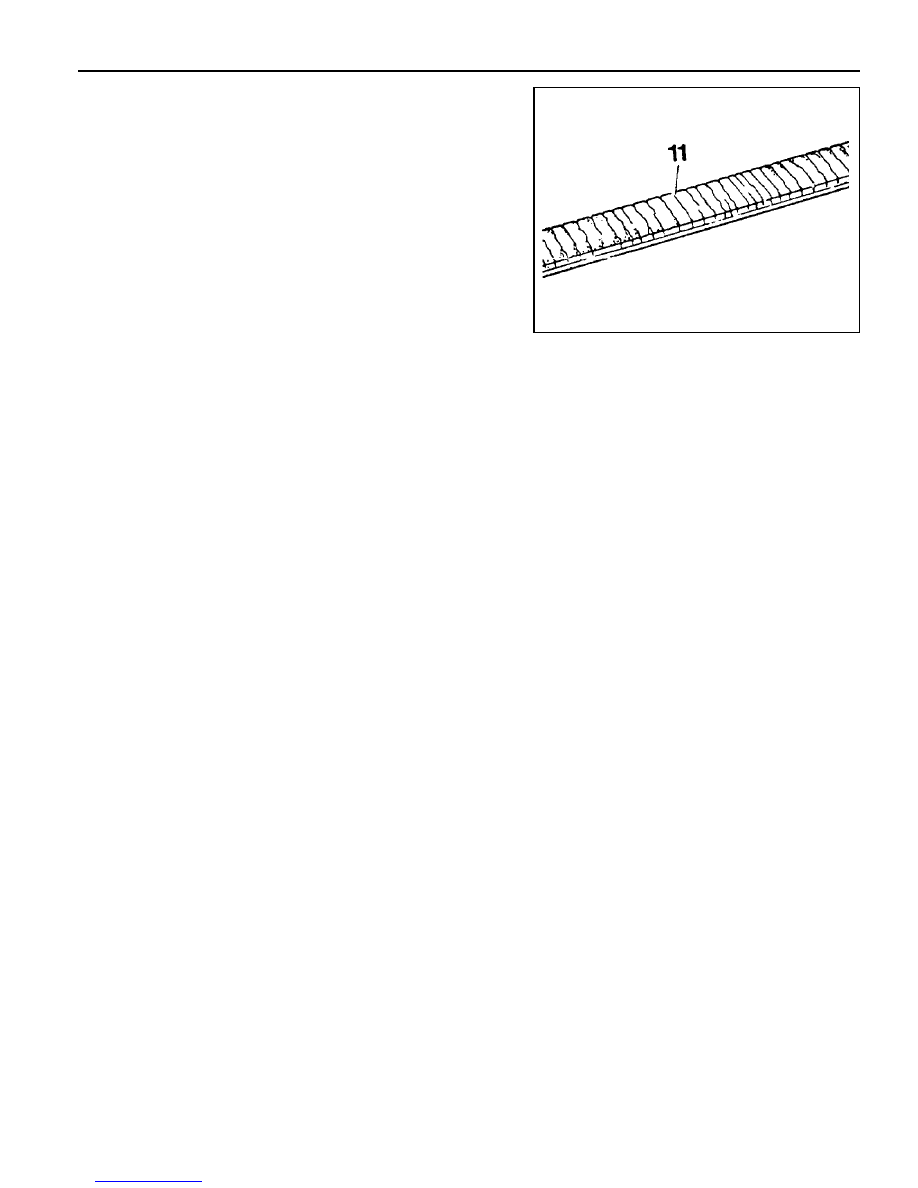

11. Splits across the back of the belt.
