1B1-28  M162 ENGINE MECHANICAL

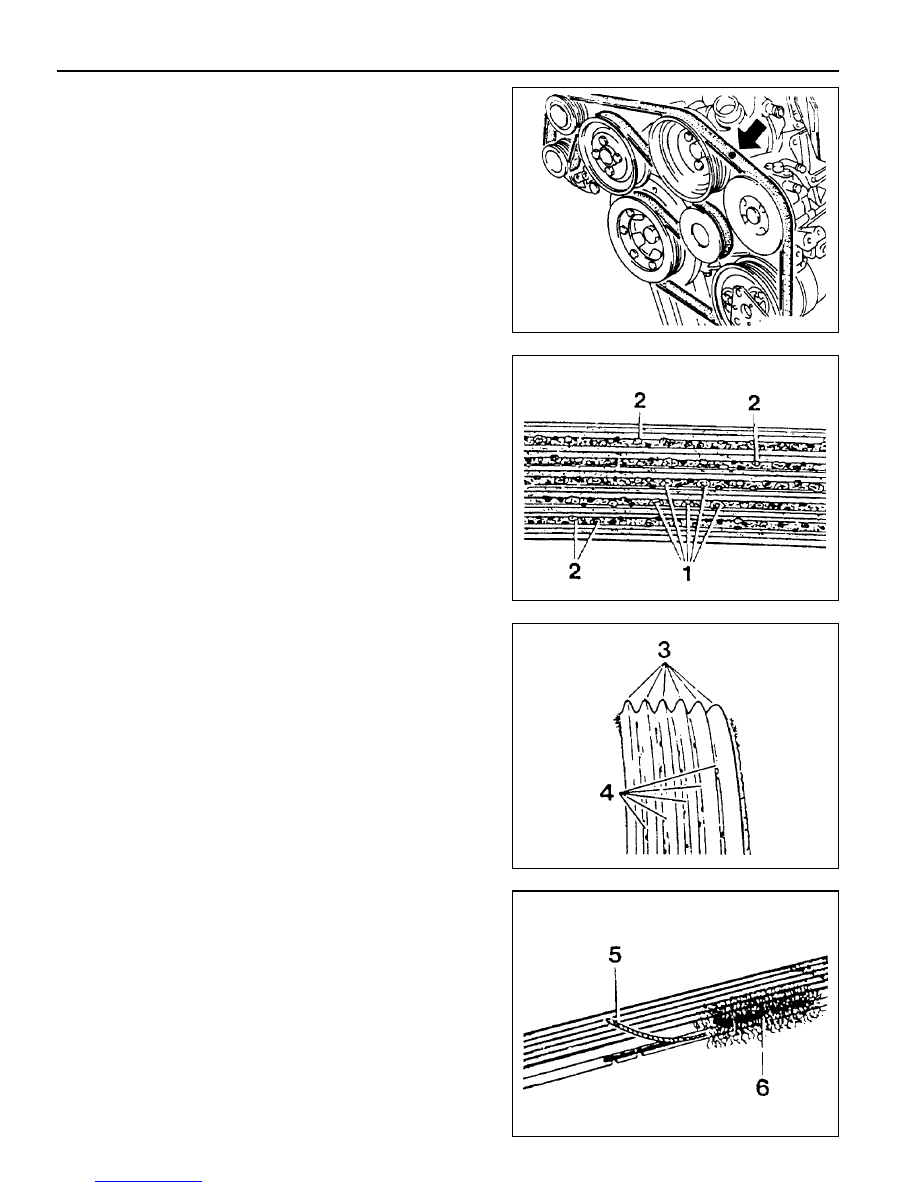

3. Pointed rib.

4. Belt cord visible in the base of rib.

POLY V-BELT INSPECTION

l

Make marks on the belt with chalk.

l

Rotate the engine and check the belt for damage.

Notice

If one of the following types of damages is found, replace
the belt.

1. Rubber lumps in the base of rib.

2. Dirt or grit ingrained.

5. Cord torn out at the side.

6. Outer cords frayed.

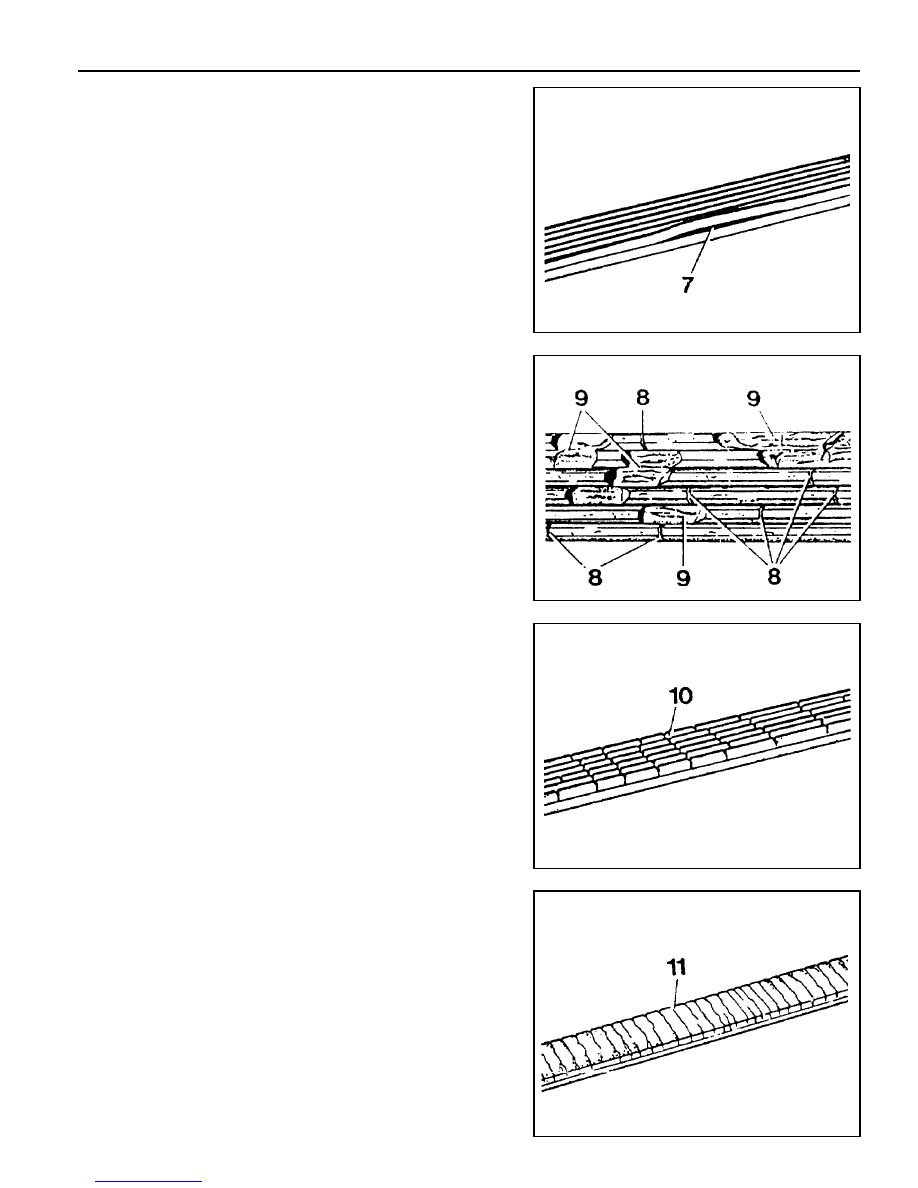

M162 ENGINE MECHANICAL  1B1-29

7. Rib detached from the base of belt.

8. Splits across the rib.

9. Sections of rib torn out.

10. Splits across several ribs.

11. Splits across the back of the belt.

1B1-30  M162 ENGINE MECHANICAL

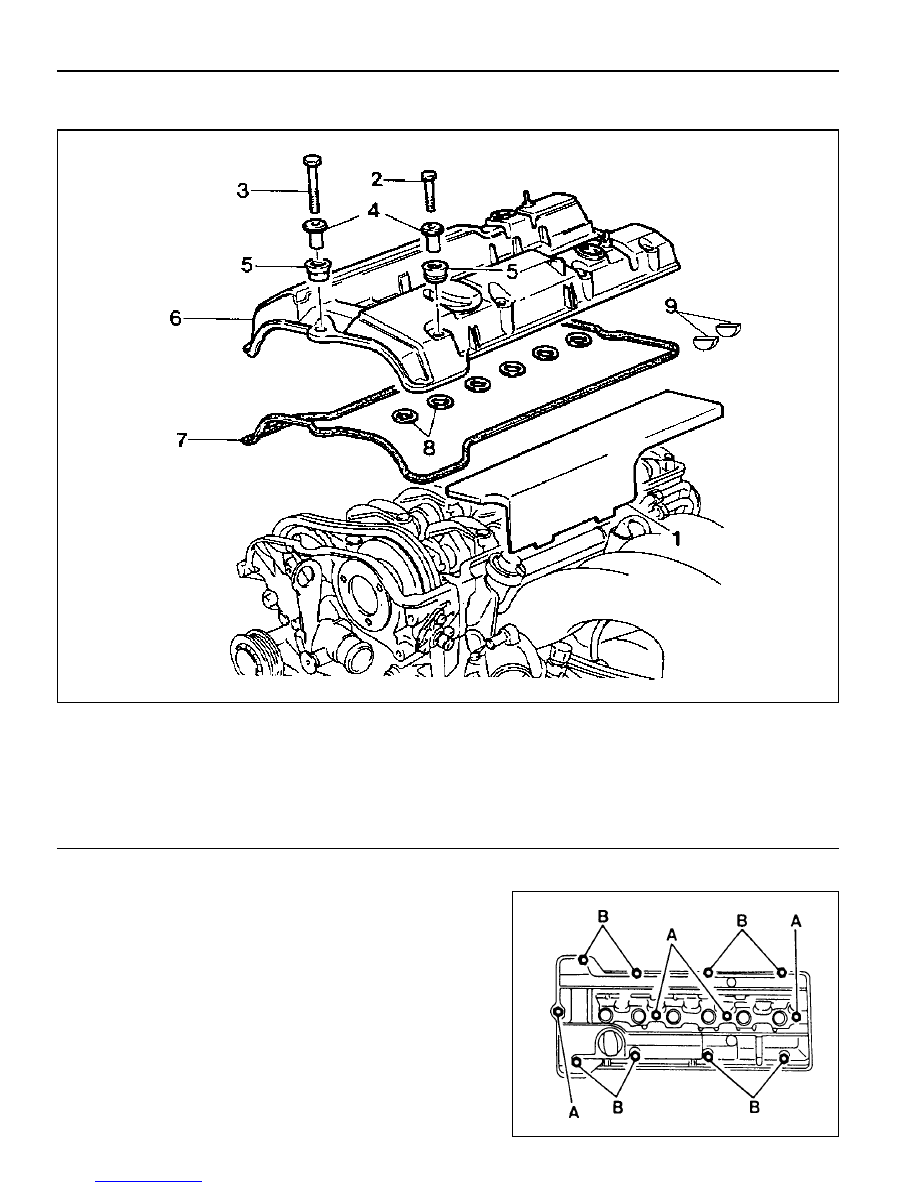

CYLINDER HEAD COVER

1 Ignition Cable Dust Cover
2 Bolt (M6 x 65, 8 pieces) ......................... 9-11 Nm
3 Bolt (M6 x 50, 4 pieces) ......................... 9-11 Nm
4 Spacer Sleeve
5 Thrust Piece

Composition of The Cylinder Head Cover Bolts

A. M6 x 50, 4 Pieces - Bolts + Washers
B. M6 x 65, 8 Pieces - Bolts + Washers

6 Cylinder Head Cover
7 Gasket ................................................... Replace
8 Spart Plug Hole Seal .............................. Replace
9 Camshaft Seal ....................................... Replace

M162 ENGINE MECHANICAL  1B1-31

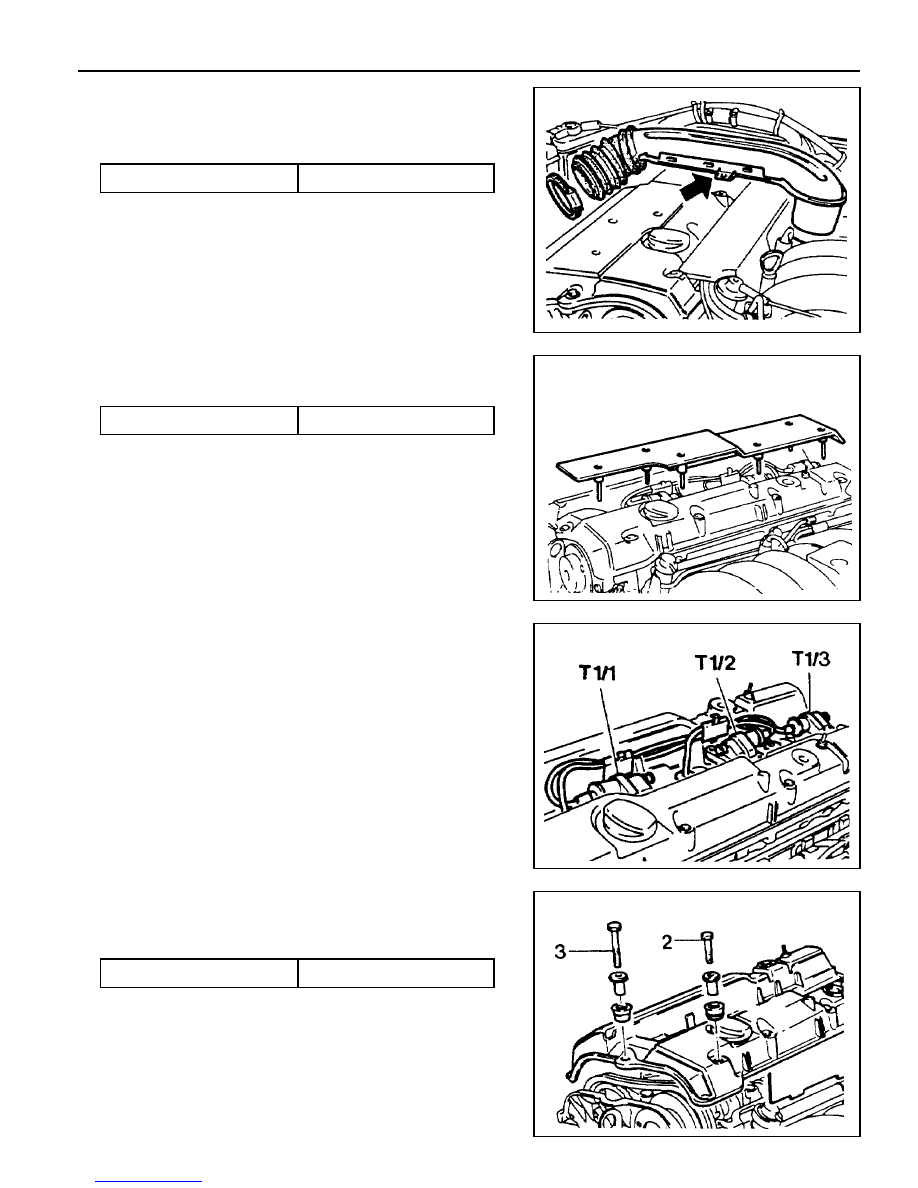

Removal & Installation Procedure

1. Remove the intake air duct.

Installation Notice

2. Remove the ignition cable cover.

Installation Notice

3. Remove the spark plug connector and ignition cable.

4. Unscrew all the bolts (2,3) and remove the head cover and

the gasket.

Installation Notice

Notice

Unscrew the seven (M6 x 60) bolts and remove the ignition
cable cover.

Notice
Replace the gasket with a new one if necessary.

5. Installation should follow the removal procedure in the

reverse order.

6. Check for oil leaks by operating the engine.

Tightening  Torque

8.4 ± 0.65  Nm

Tightening  Torque

9 - 10 Nm

Tightening  Torque

22.5 - 27.5 Nm
