1B1-16  M162 ENGINE MECHANICAL

Operation at Idling and Mid-Load

l

It show that the throttle valve (19) is closed or very partially
opened and the vacuum pressure in intake manifold is high.

The blowby gas in the crankcase in partial load flows into
the intake manifold through the vent line (20) after passing
the air conditioner bracket (6) and the filter (4). The air
reentered into the intake manifold will be dilluted on the flow
through the restriction hole (11) in the vent line (10).

The circulated engine oil is separated at the air conditioner
bracket (6) and then returns into the oil pan through the
drain pipe (7).

The vacuum pressure generated at the crankcase sucks
fresh air from intake air line(13) through the air admission
and vent connection (17,18).

The fresh air prevents engine oil from being contami-nated
and the air admission and vent connection (17,18) is
designed to control the rapid pressure changes in intake
air line (13).

Operation at Full-Load

l

The throttle valve (19) is fully opened.

All the blowby gases flow into the intake air duct (13) after
passing through the oil separator (15,16) of the cylinder
head cover (14) when fully loaded. This dilluted air will be
supplied to the combustion chamber through the intake
manifold (12).

M162 ENGINE MECHANICAL  1B1-17

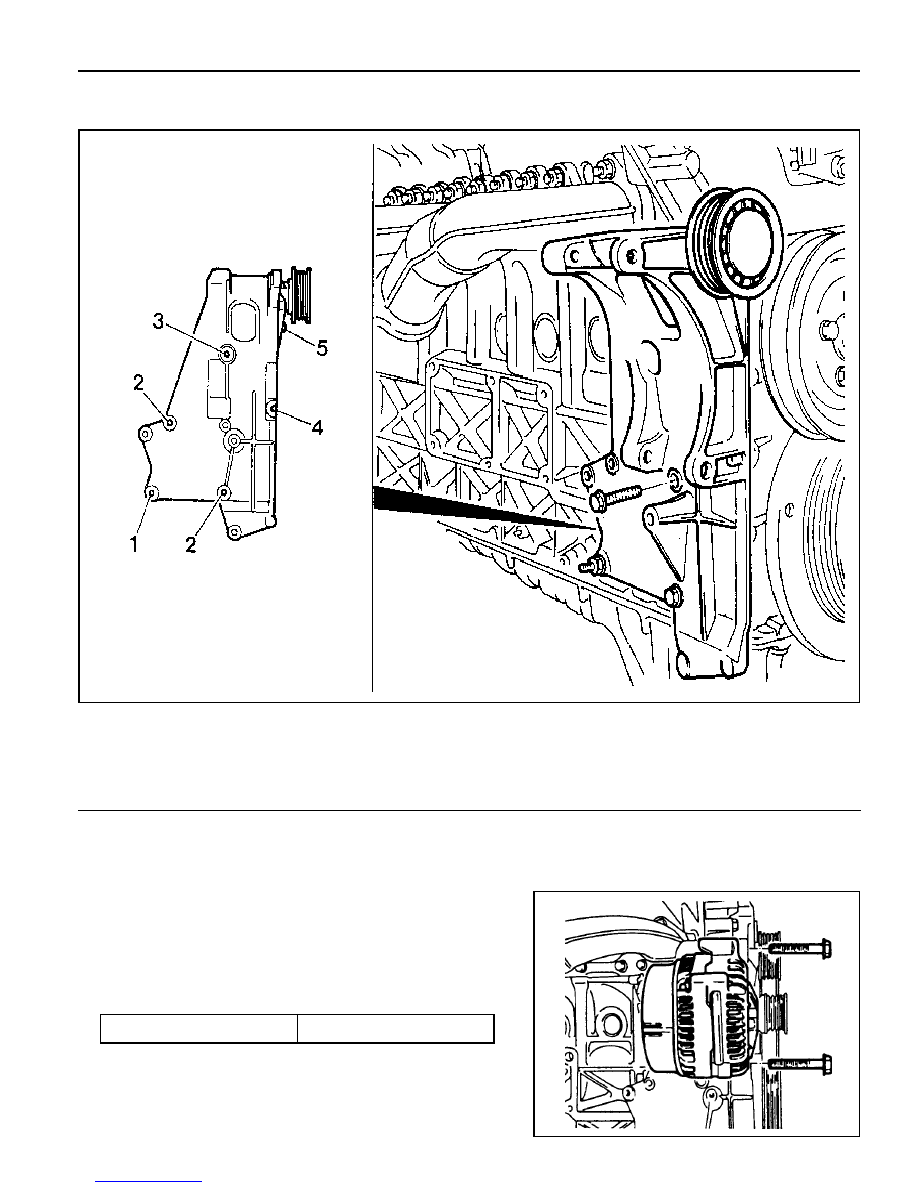

ALTERNATOR

1 Nut (M8) ......................................... 22.5-27.5 Nm
2 Bolt (M8 x 30, 3 pieces) ................. 22.5-27.5 Nm
3 Bolt (M8 x 40, 1 piece) ................... 22.5-27.5 Nm

Removal & Installation Procedure

1. Remove the drive belt.

2. Remove the alternator.

3. Unscrew the alternator carrier bolts and remove the carrier.

Installation Notice

4 Bolt (M8 x 70, 1 piece) ................... 22.5-27.5 Nm
5 Bolt (M8 x 75, 1 piece) ................... 22.5-27.5 Nm

Tightening  Torque

22.5 - 27.5 Nm

4. Installation should follow the removal procedure in the

reverse order.

1B1-18  M162 ENGINE MECHANICAL

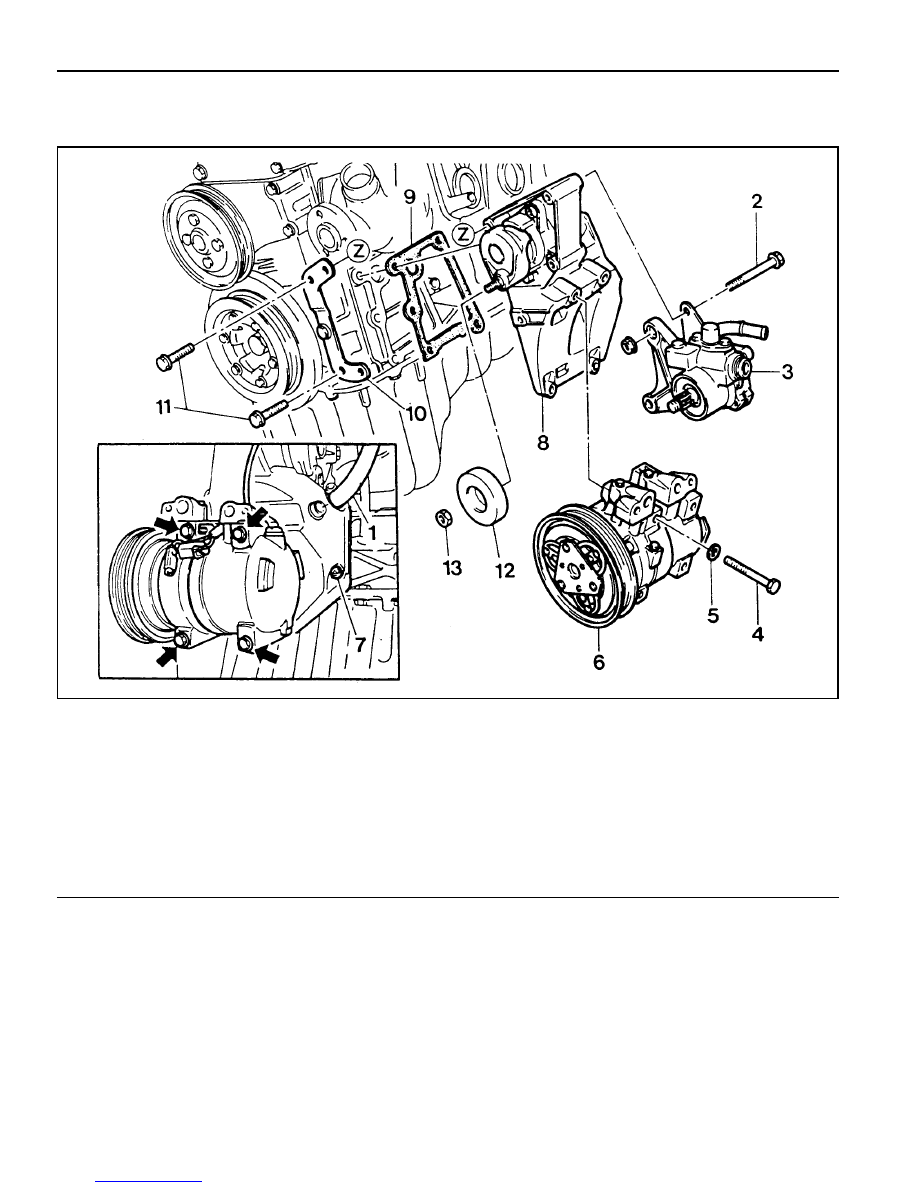

POWER STEERING PUMP AND A/C BRACKET

Preceding Work : Removal of cooling fan and shroud

1 Vent Hose
2 Bolt (M8 x 91, 2 pieces) ................. 22.5-27.5 Nm
3 Power Steering Pump
4 Bolt (M8 x 105, 4 pieces) ............... 22.5-27.5 Nm
5 Washer
6 A/C Compressor
7 Bolt (M8 x 40, 3 pieces,

M8 x 95, 2 pieces) .......................... 22.5-27.5 Nm

8 A/C Bracket
9 Gasket ................................................... Replace

10 Bracket

11 Bolt (M8 x 22, 2 pieces) ................. 22.5-27.5 Nm

12 Tensioning Pulley
13 Nut ................................................. 40.5-49.5 Nm

M162 ENGINE MECHANICAL  1B1-19

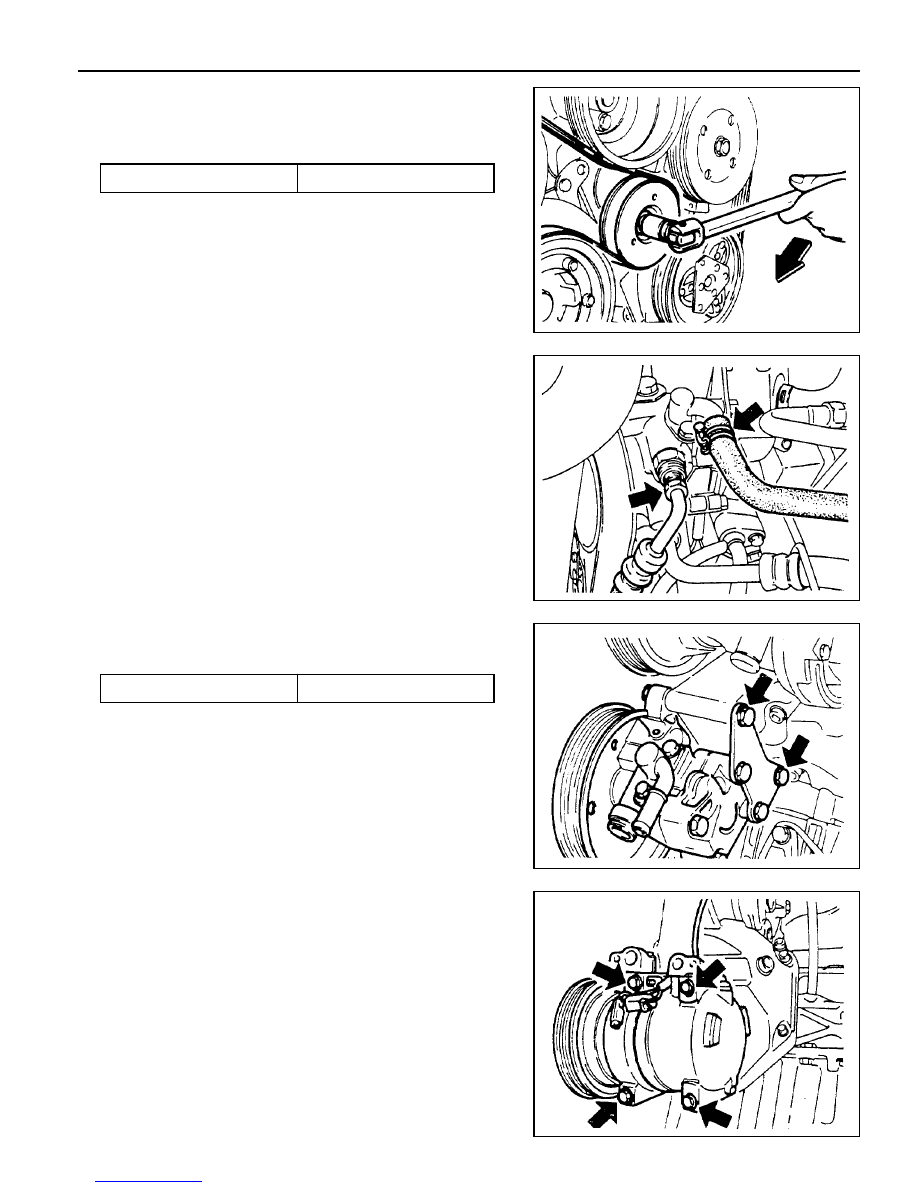

Removal & Installation Procedure

1. Remove the belt pulley.

Installation Notice

2. Disconnect the hydraulic pipe of the power steering pump

and drain the oil.

3. Unscrew the bolts (arrows) and remove the steering pump.

Installation Notice

Notice

Pull the tensioning pulley clockwise as shown in the figure.

4. Remove the compressor after disconnecting the wiring

connector and refrigerant pipe of A/C compressor.

Notice

Discharge all the refrigerant before removing the pipes.

Tightening  Torque

40.5 - 49.5 Nm

Tightening  Torque

22.5 - 27.5 Nm
