Steering box

TECHNICAL DATA

ΧΦ65/75/85 series

7

0

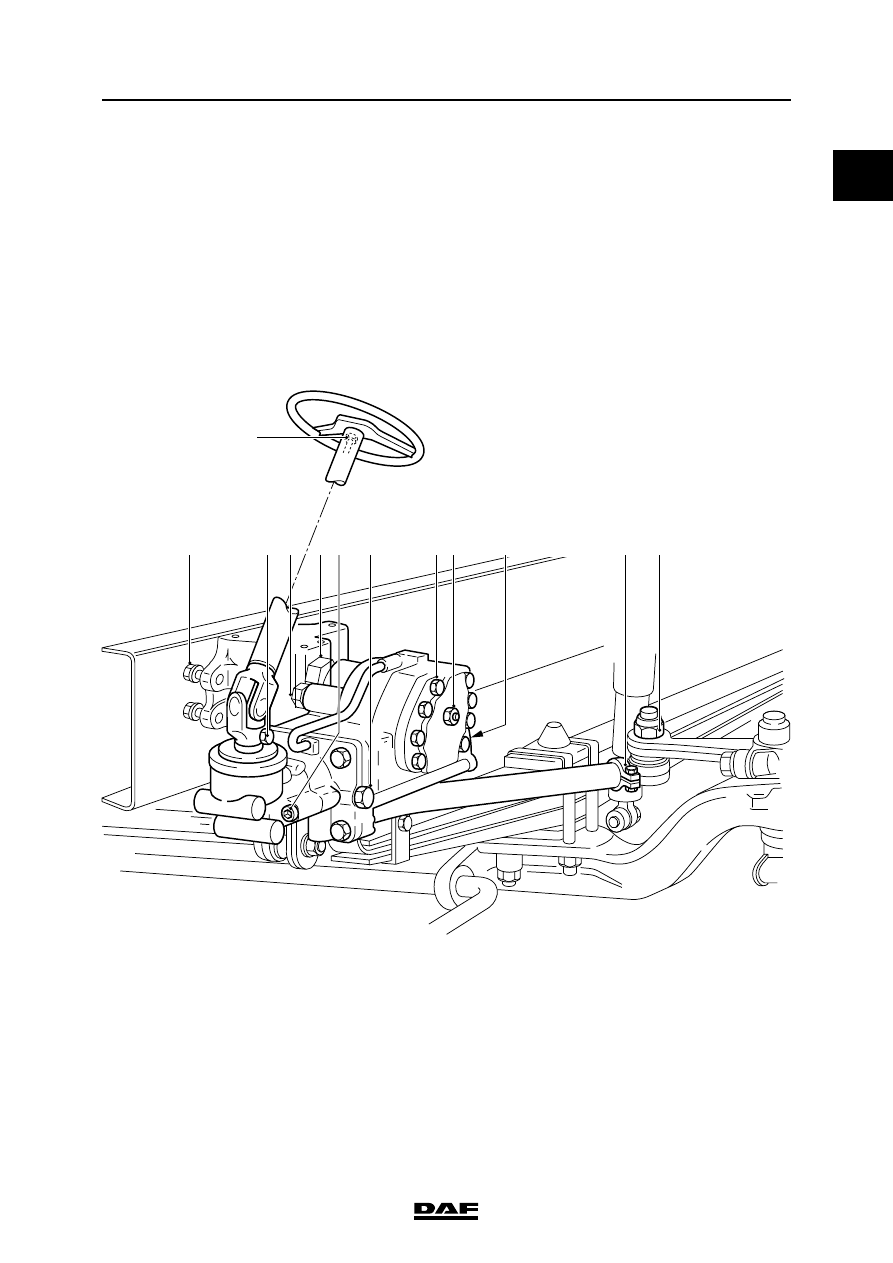

2.2 TIGHTENING TORQUES

The tightening torques stated in this section are

different from the standard tightening torques

stated in the overview of the standard tightening

torques. The other threaded connections not

specified must therefore be tightened to the

torque stated in the overview of standard

tightening torques.

When attachment bolts and nuts are replaced, it

is important that - unless stated otherwise - these

bolts and nuts are of exactly the same length and

property class as those removed.

A.

Steering wheel attachment nut

65 Nm

B.

Bolts for attaching the steering bracket to the

chassis

260 Nm + 60

 angular displacement

C.

Bolt, steering column universal joint

56 Nm

(1)

D.

Bolts for attaching the steering box to the

steering bracket

520 Nm + 90

 angular displacement

(2)

E.

Pitman arm attachment nut

900 Nm

F.

Right-angle transmission bolts

65 Nm

G.

Pressure-limiting valve plug

41 Nm

M

I

H

G

F

E

D

C

B

L

K

S7 00 716

A

TECHNICAL DATA

2-4

©

 200423

Steering box

0

ΧΦ65/75/85 series

7

(1) Fit new original locating bolt and self-locking nut.

(2) Only fit new attachment bolts.

(3) Fit new self-locking nut.

(4) Tighten until the split pin fits (max. 60

). It is not allowed to fit a self-locking nut instead of a castle nut.

(5) Check the ball end thread for damage before fitting a new self-locking nut.

To do so, hand-tighten a non-self-locking nut on the ball joint to be checked.

If the new nut cannot be fully hand-screwed onto the entire thread, the ball end must be replaced.

Fit new self-locking nut. Apply Loctite 243 to the nut.

Fitting a new self-locking nut to a

ball end with a damaged thread may

lead to dangerous situations.

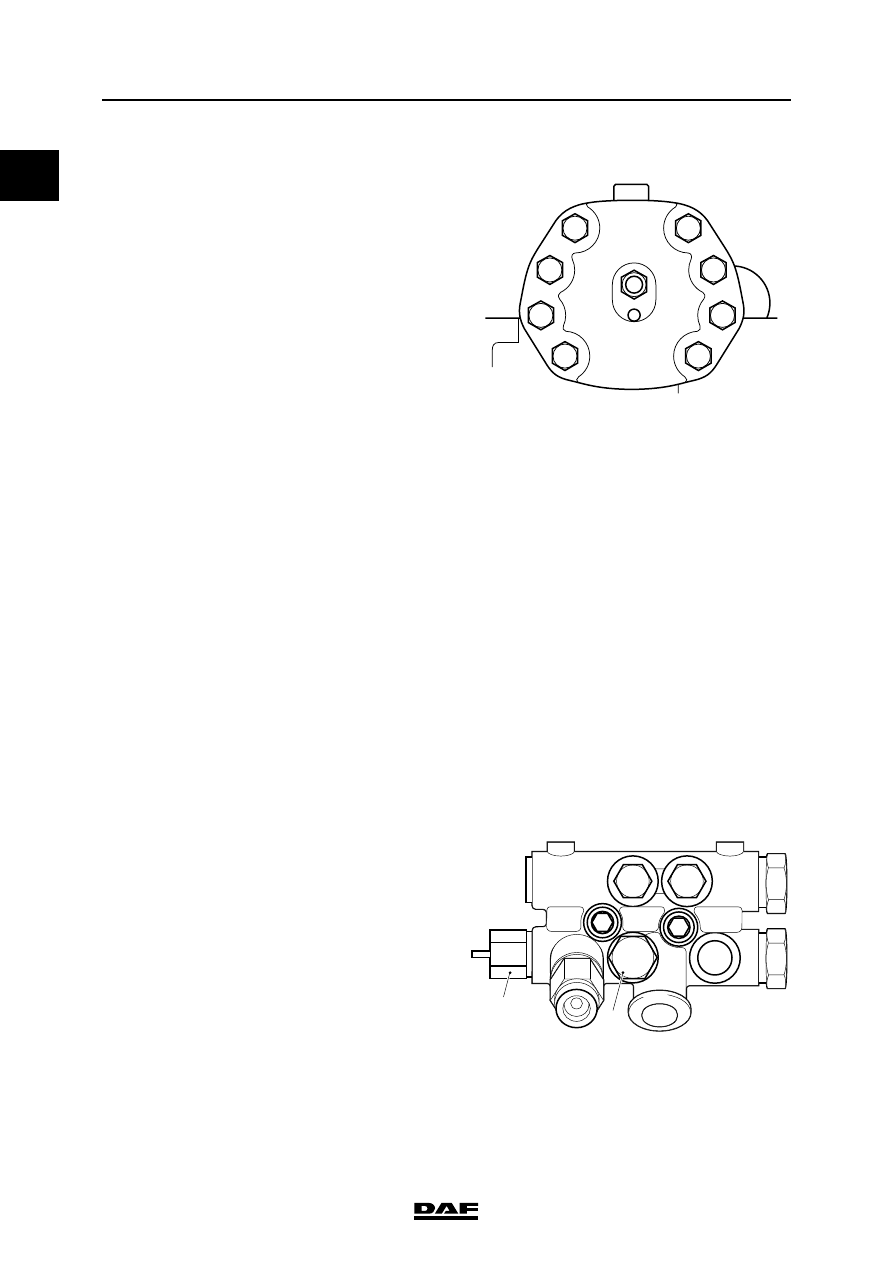

H.

Steering box side cover attachment bolts

240 Nm

Tightening sequence of attachment bolts on

the steering box side cover. See illustration.

I.

Lock nut for pressure point adjusting bolt

70 Nm

K.

Lock nut of wheel deflection limiting valve

adjusting bolt

55 Nm

L.

Attachment bolt, steering rod clamping

bracket
-

if  M10

47  Nm

(3)

-

if  M12

80  Nm

(3)

M.

Steering rod nut
-

if M20 castle nut

225 Nm

(4)

-

if M24 castle nut

285 Nm

(4)

-

if self-locking M20 nut

225 Nm

(5)

-

if self-locking M24 nut

285 Nm

(5)

1

8

6

4

2

3

5

7

S7 00 043

}

A

B

P2

P1

R2

R1

C1

C2

S7 00 409

A. Output indicator circuit 1

50 Nm

B. Output indicator circuit 2

(banjo bolt)

50 Nm

©

 200423

3-1

Steering pump

TECHNICAL DATA

ΧΦ65/75/85 series

7

0

3. STEERING PUMP

3.1 GENERAL

Main steering pump

Emergency steering pump

Type

vane pump

Maximum pressure

see steering box type plate

(Pump is not equipped with pressure limiting

valve.)
Type:
VT72A

85 series, FAX model

VT77

75 and 85 series

LF77

75 and 85 series FAN model

ZF 7685

65 series

Type

radial plunger pump

Type

ZF 8604

Maximum pressure

see steering box type plate

Setting of peak pressure limiting valve

200 bar

Output of emergency steering pump at a steering

oil temperature of 50

C and a pressure of 50 bar

16 l/min.

TECHNICAL DATA

3-2

©

 200423

Steering pump

0

ΧΦ65/75/85 series

7

3.2 TIGHTENING TORQUES

The tightening torques stated in this section are

different from the standard tightening torques

stated in the overview of the standard tightening

torques. The other threaded connections not

specified must therefore be tightened to the

torque stated in the overview of standard

tightening torques.

When attachment bolts and nuts are replaced, it

is important that - unless stated otherwise - these

bolts and nuts are of exactly the same length and

property class as those removed.

Steering pump LUK VT72A

Steering pump LUK VT77 and LF77

(1) Apply Loctite 243 to the nut.

Steering pump ZF 7685

Emergency steering pump

(1) Apply Loctite 243 to the nut.

Pipe connection in the pump, delivery side

50 Nm

Pipe connection in the pump, intake side

100 Nm

Flow control valve plug

80 Nm

Attachment bolts, steering pump

60 Nm

Drive sprocket attachment nut

80 Nm

(1)

Pipe connection in the pump, delivery side

40 Nm

Pipe connection in the pump, intake side

90 Nm

Flow control valve plug

80 Nm

Attachment bolts, steering pump

60 Nm

Pipe connection in the pump, delivery side

50 Nm

Pipe connection in the pump, intake side

75 Nm

Flow control valve plug

65 Nm

Attachment bolts, steering pump

60 Nm

Emergency steering pump attachment bolts

80 Nm

(1)

Drive sprocket attachment nut

60 Nm

(1)
