6

CF65/75/85 series

General

OPERATION OF BRAKE COMPONENTS

1-1

1. GENERAL

4

ᓻ 200324

6

OPERATION OF BRAKE COMPONENTS

General

CF65/75/85 series

1-2

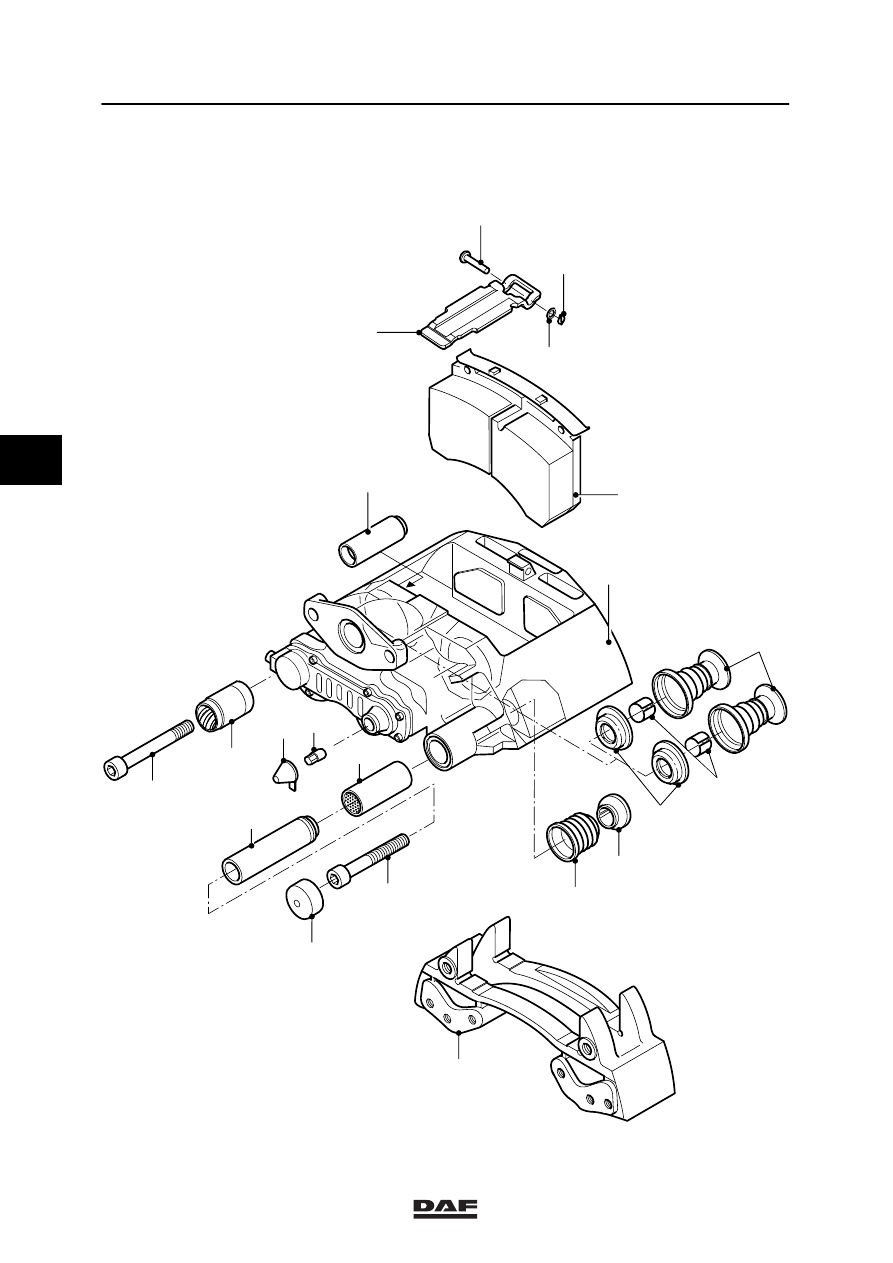

1.1 OVERVIEW DRAWING, KNORR SB7000 DISC BRAKE CONSTRUCTION

R600746

18

1

22

7

19

11

14

15

16

10

9

2

17

20

21

8

5

4

3

6

6a

4

ᓻ 200324

6

CF65/75/85 series

General

OPERATION OF BRAKE COMPONENTS

1-3

Legend
1

Brake saddle

2

Brake saddle carrier

3

Rubber bearing bush

4

Socket head screw

5

Guide sleeve

6

Cap

7

Copper bearing bush

8

Guide sleeve

9

Clamping strip

10

Bellows

11

Socket head screw

14

Bellows

15

Washer

16

Bearing bushes

17

Brake pad

18

Attachment bracket

19

Lock washer

20

Pin

21

Retainer clip

22

Thrust pieces with bellows

4

ᓻ 200324

6

OPERATION OF BRAKE COMPONENTS

General

CF65/75/85 series

1-4

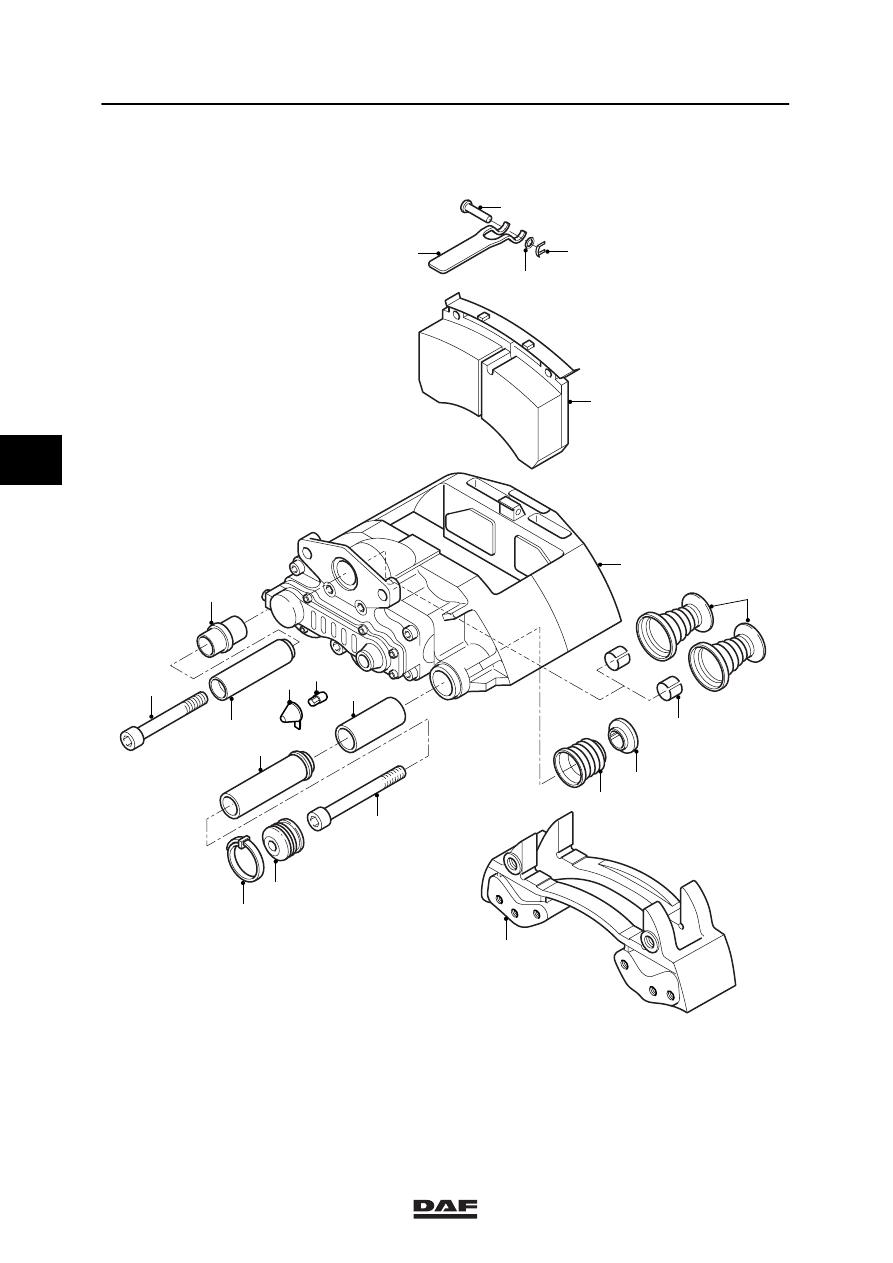

1.2 OVERVIEW DRAWING, KNORR SN7000 DISC BRAKE CONSTRUCTION

R600755

17

22

23

16

18

20

21

5

1

6 6a

7

8

19

15

14

2

11

10

4

3

4

ᓻ 200324
