5
CF65/75/85 series

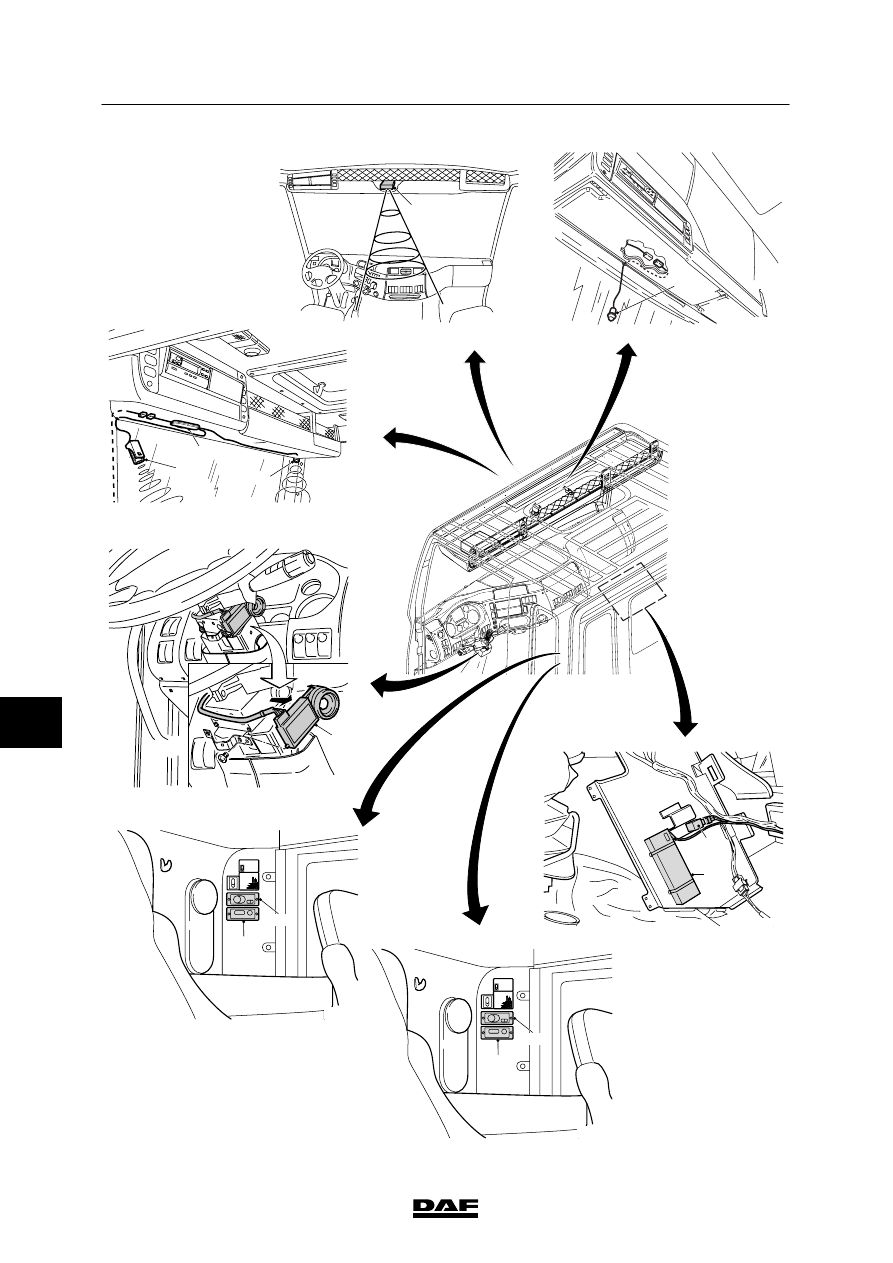

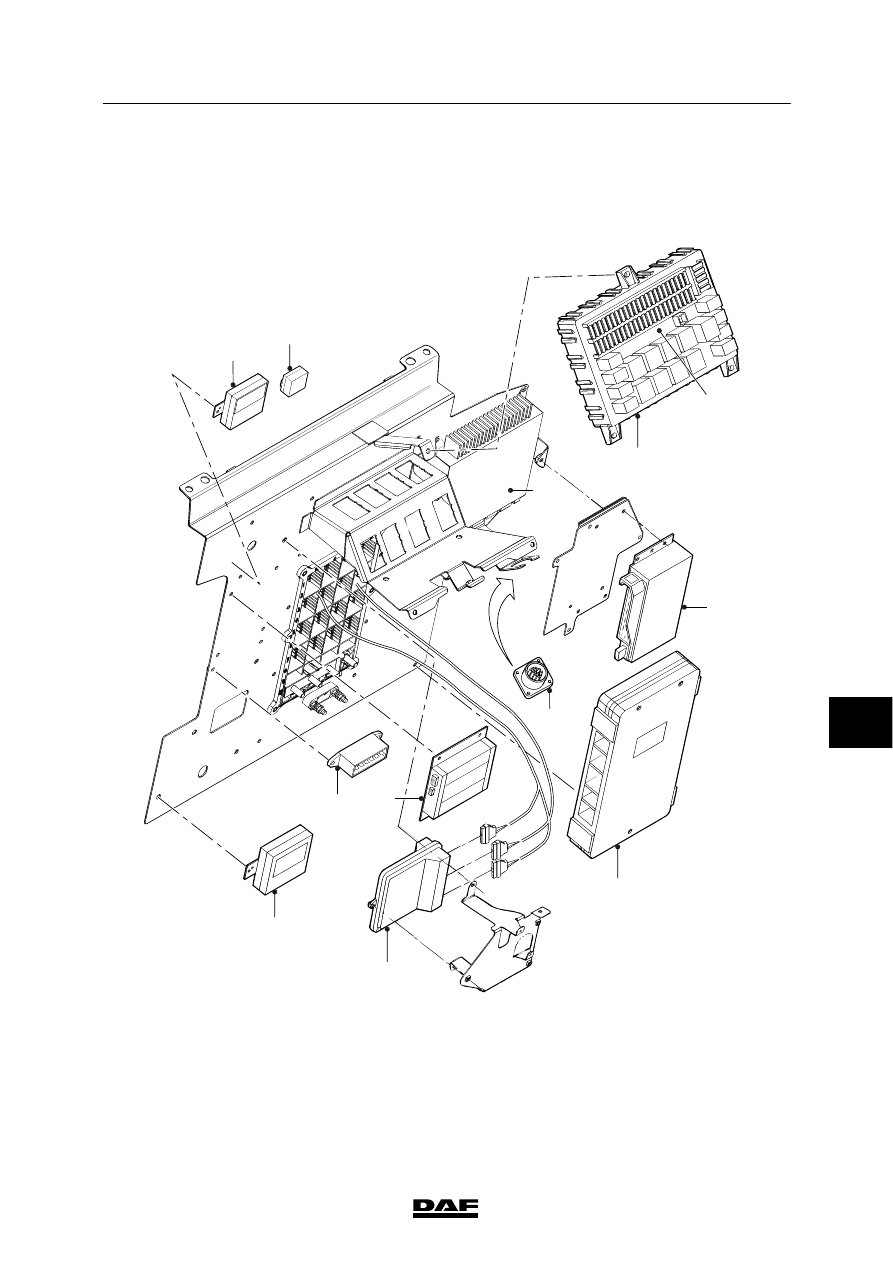

General location of components
LOCATION OF COMPONENTS
1-5
1
2
3
4
E501**
Operating switch, reversing light
(with N10 PTO)
Gearbox, driver’s side
3
E509
Operating switch, air conditioning,
low pressure
In evaporator pipe, on outside of
cab, co-driver’s side
8
E511
Stop light operating switch
Behind radio panel cover
4
E561
Gearbox gate protection operating
switch
Gearbox, driver’s side
3
E564
Operating switch, engine brake
On floor plate, driver’s side
6
E566
Operating switch, Eberspächer
Airtronic cab heater thermostat
In rear wall, driver’s side
2
E569*
Neutral position switch for RHD
Gearbox, driver’s side
3
E569**
Neutral position switch for LHD
Gearbox, driver’s side
3
E570
Pneumatic switch, clutch PTO N10
Above clutch pedal
4
E575
Proximity switch, clutch
To left of clutch pedal
4
E579
Thermostat control switch for
Eberspächer Hydronic cab heater
In rear wall, driver’s side
2
E580
Control switch, Eberspächer
Hydronic cab heater timer
In rear wall, driver’s side
2
E581
Control switch, Eberspächer
Airtronic cab heater timer
In rear wall, driver’s side
2
F000
Control switch for parking brake
Behind radio panel cover
4
F006
Differential lock control switch, 1
st
differential
In chassis side member, above rear
axle, co-driver’s side
3
F087
Control switch, gearbox PTO
Gearbox, driver’s side
3
F533
Speed sensor (4-pin, 1
st
)
Gearbox, driver’s side
3
F603
Transmitter, ultrasonic
Under roof console, driver’s side
2
8
