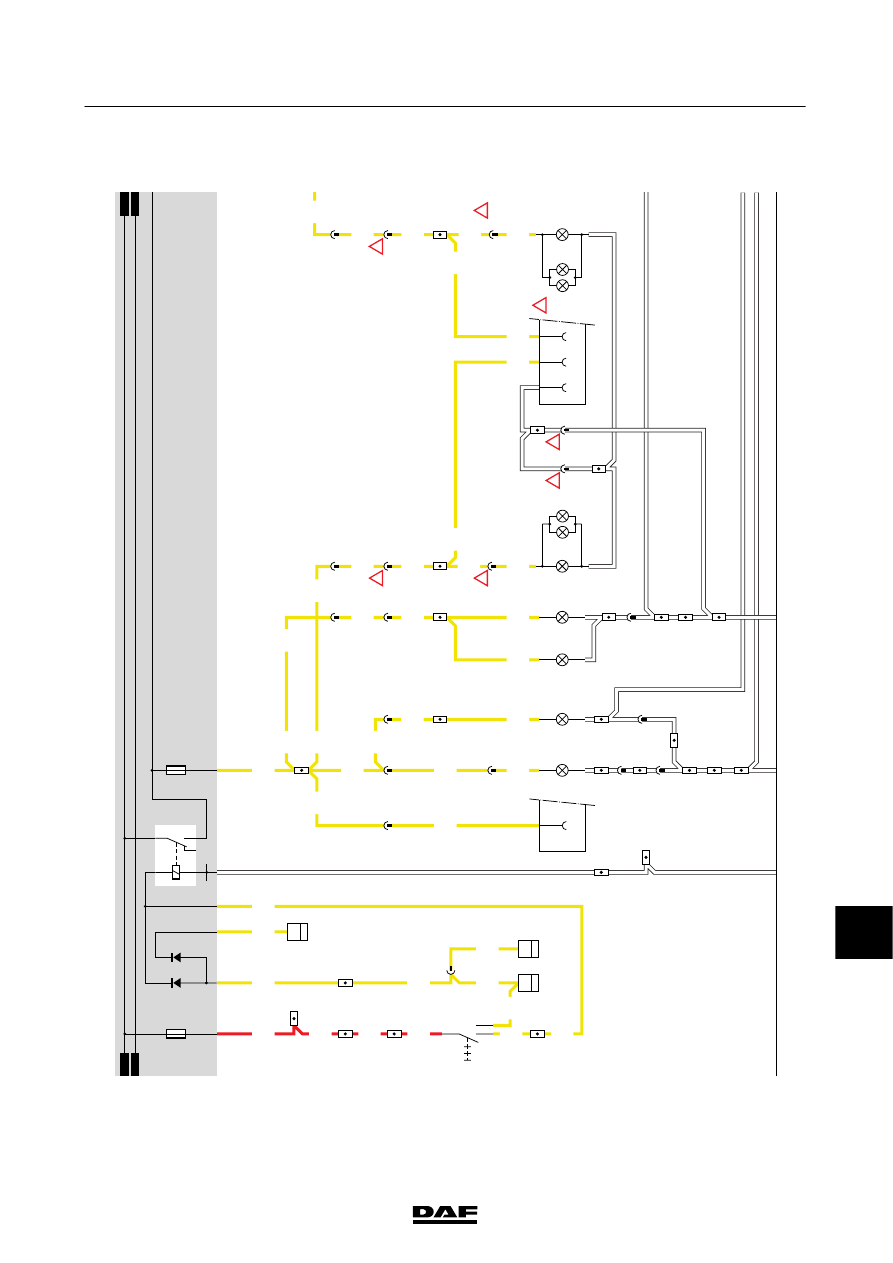

11 9 FA M ARKER AND PARKING LIGHTS Switching the light switch (C622) to the 1st position (connection between contacts 2 and 1) energises the tail light/width marker light relay (G000) through fuse E084, wire 1101, contacts 2-1 of switch C 622 and wire 2100. A voltage is applied to the left and right lights through the G 000 relay contacts (30-87) and fuses E 000 and E001 respectively . Linked to fuse E000 are: C010, C012, C156, C158, C074 and C022. There is also a connection in connector A 000 (pin 2) and connector A 098 (pin 14) (option). Linked to fuse E001 are: C01 1, C 013, C157, C159, C075 and C023. There is also a connection in connector A 000 (pin 6). VARIANTS Location 31, 36, 51: Connector 877: only if the vehicle has a buf fer beam as standard. 31, 39, 50: Connector 873: only on vehicle type FA. Not if AE = > 902 mm. 46 This may be either a 7-pin or a 15-pin connector .For m ore information: see section diagram 47. 200520 3-48 5 CHANGES IN THE ELECTRICAL SYSTEM Changes in the electrical system from chassis number 0E646818 CF65/75/85 Serie ≥0E621376 |
