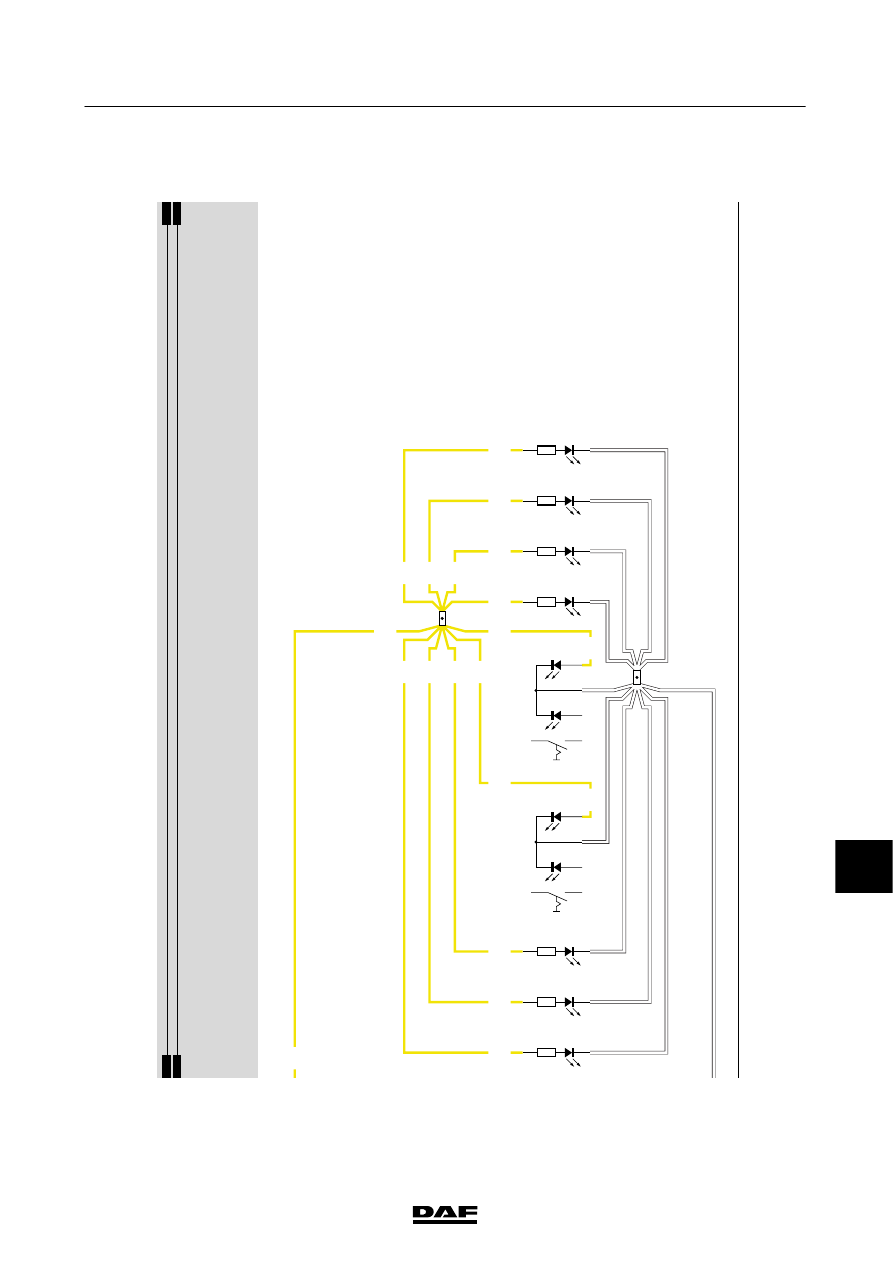

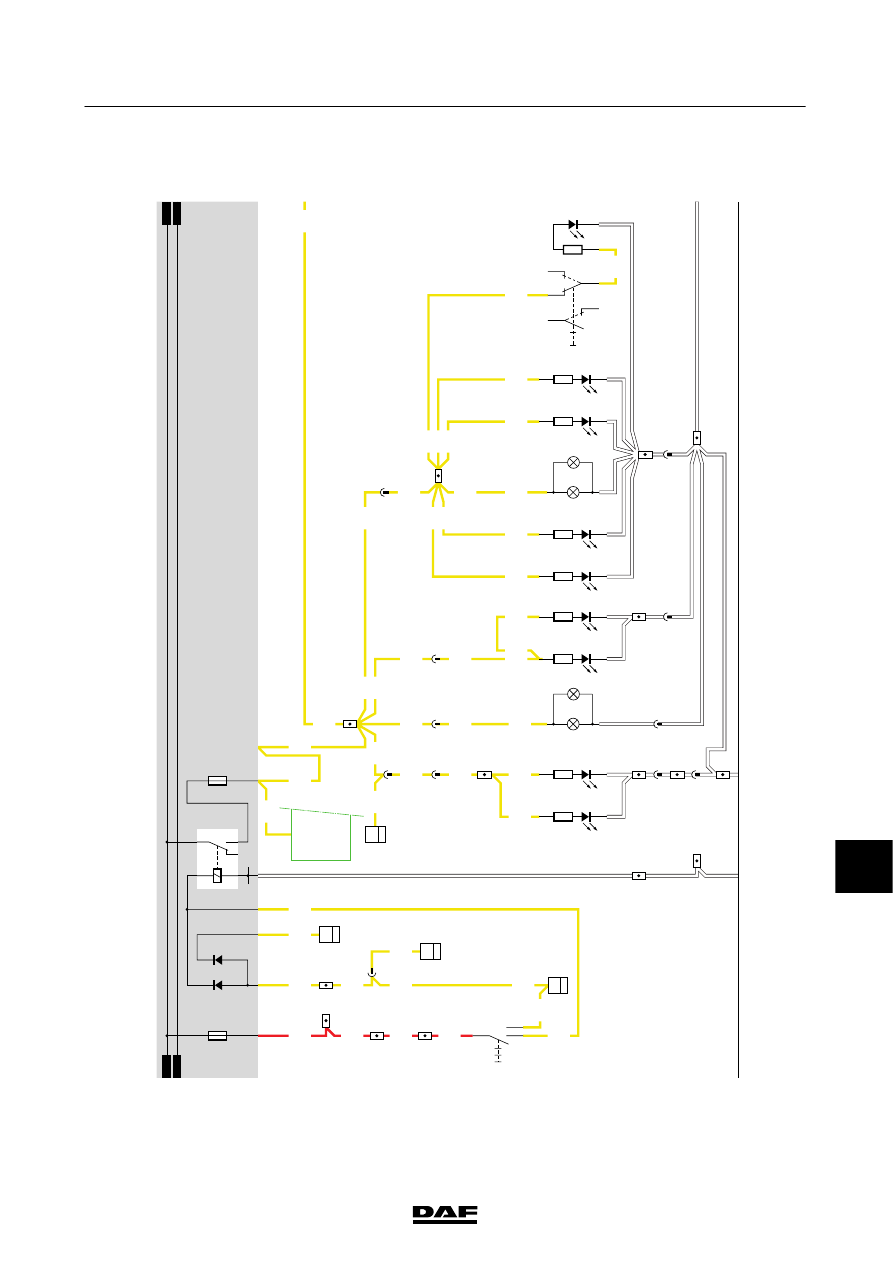

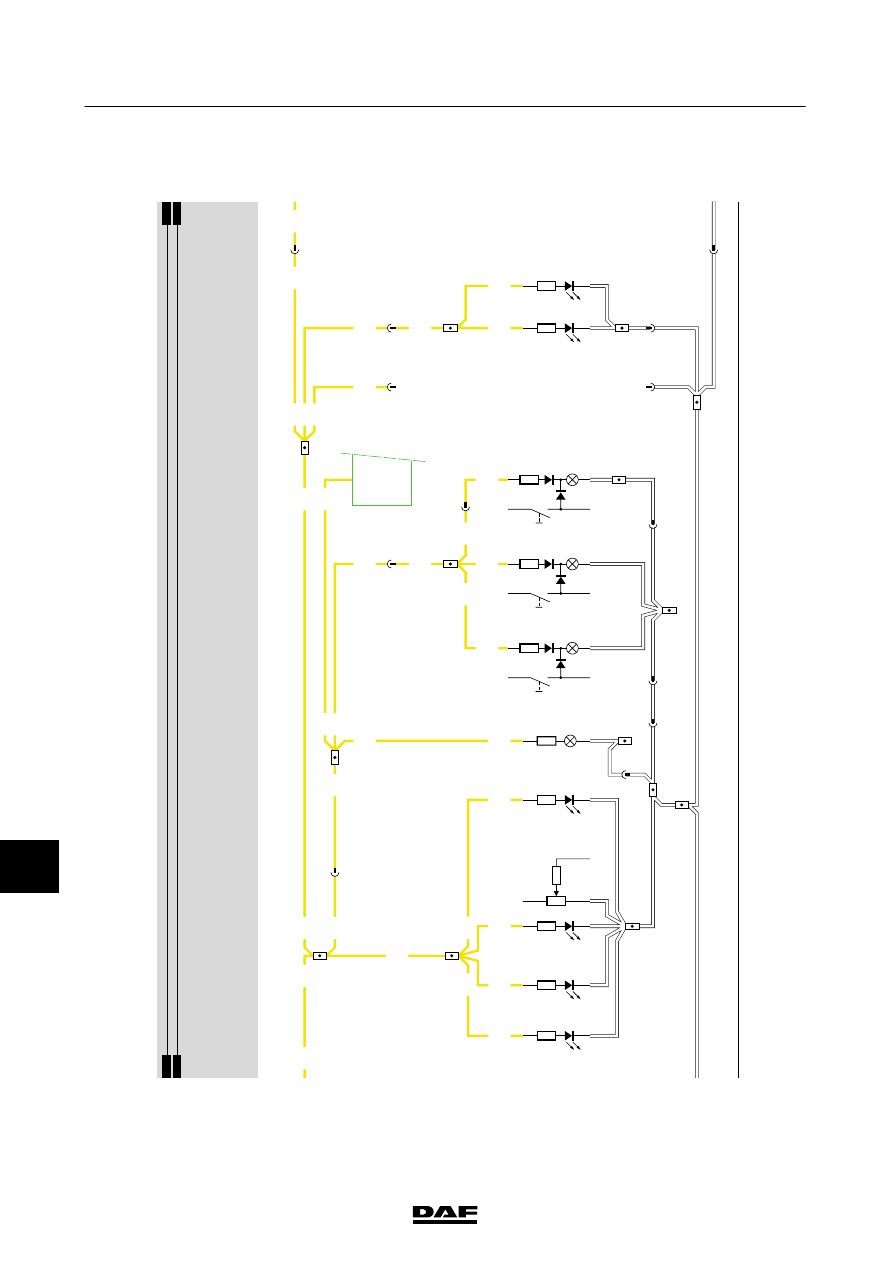

10 20 SEARCH LIGHTING SEARCH LIGHTING Search lighting refers to lights or LEDs in the various function switches. When the light switch (C622) is operated, a supply voltage is present on relay G 000 (connection point 85) through fuse E084 and the light switch (C622), contacts 2 - 1, wire 2100. Relay G 000 is energised (connection between connection points 30 and 87), P CB track 2101, fuse (E1 17) when there is a voltage on the search lighting (through wire 2630). A ll search lighting connected to this w ill come on. The following switches are illuminated by a light: B 030, C052, C053, C072, C073, C716, C813, C814 and C858. The following switches are illuminated by an LED: C725, C727, C735, C736, C737, C739, C740, C741, C742, C748, C749, C750, C751, C760, C763, C764, C765, C774, C778, C802, C835, C836, C837 and C853. LIGHT BUZZER When the lighting switch (C622) is operated, supply voltage will be applied to connection point 85 of relay G 000 through fuse E084, lighting switch (C622) and wire 2100. Relay G 000 is energised so that a voltage is applied to the search lighting (wire 2630) through fuse E1 17. This wire is also connected to the VIC (D900), pin C7, connector 594. If the pre-programmed condition in the V IC is met, the V IC sends a m essage to the D IP , w hi chi nt ur na ct iv at es th eb uz ze r( fit te di n the D IP). 200404 2-100 5 ELECTRICAL SYSTEM Electrical system CF65/75/85 series ≥0E621376 |
