CF65/75/85 series ≥0E621376

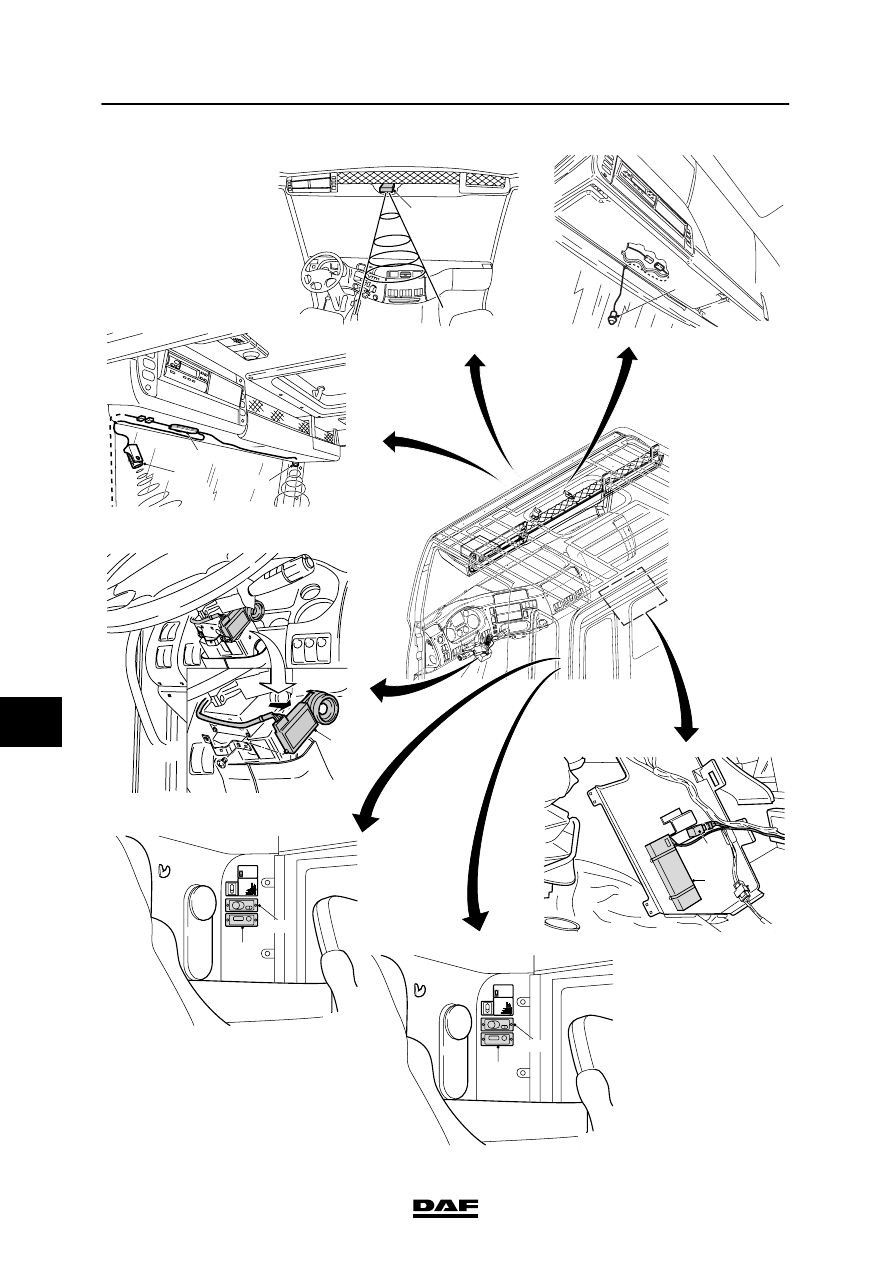

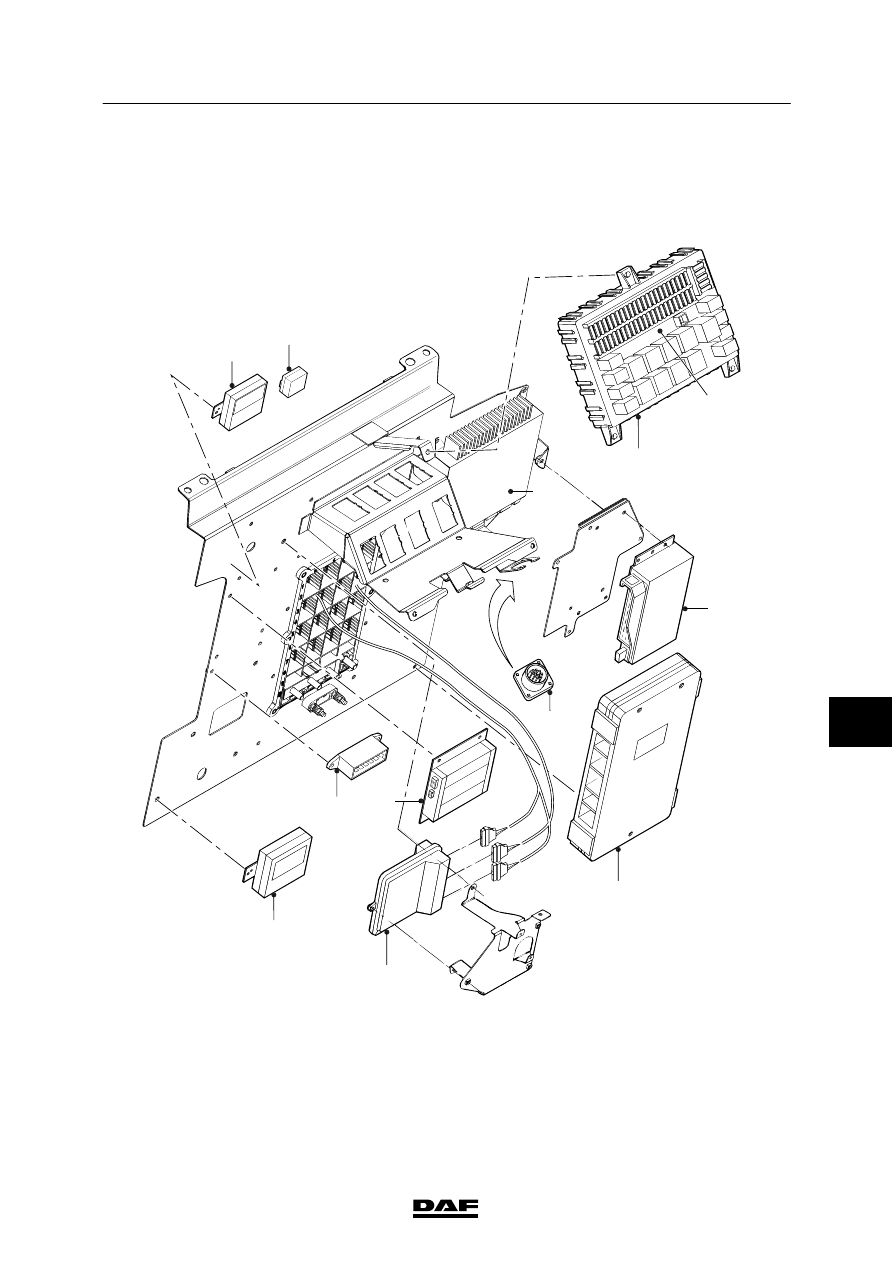

General location of components
LOCATION OF COMPONENTS
1-7
1
2
3
4
E581
Cab heater timer unit
In rear wall, driver’s side
2
E584
Proximity switch for axle-load
protection lifting gear (7.5 tons)
Next to distribution box, inside of
chassis on co-driver’s side, front of
driven axle
9
E592
Reversing light operating switch
Gearbox, driver’s side
3
E593
Neutral position switch
Gearbox, driver’s side
3
E595
Low-range switch
Gearbox, driver’s side
3
F000
Parking brake switch
Behind radio panel cover
4
F006
Control switch for differential lock,
1st differential
In chassis side member, above rear
axle, co-driver’s side
3
F087
Control switch, gearbox PTO
Gearbox, driver’s side
3
F097
Proximity switch for trailing axle
mechanical lifting gear
Next to distribution box, inside of
chassis on co-driver’s side, front of
driven axle
9
F120
Gearbox switch for gate 3-4
Gearbox, driver’s side
3
F533
Speed sensor
Gearbox, driver’s side
3
F603
Ultrasonic transmitter
Under roof console, driver’s side
2
F604
Ultrasonic receiver
Under roof console, co-driver’s side
2
F651
Ambient temperature sensor
Behind bumper, driver’s side
3
F652
Air pressure sensor
On APU unit, under cab, co-driver’s
side
6
F656
Coolant level sensor
Rear of expansion tank
3
F673
Engine oil level and temperature
sensor
In engine oil sump, driver’s side
8
F676
Lifting cylinder sensor, cab
Along cab tilting cylinder in side
member, co-driver’s side
8
F686
Alarm system radar sensor
In roof console, driver’s side
2
G014
Glow plug relay
Against engine block, driver’s side
7
G052
Motor relay, mechanical lifting gear
In distribution box, inside of chassis
on co-driver’s side, front of driven
axle
9
G066
Takeover relay, mechanical lifting
gear
In distribution box, inside of chassis
on co-driver’s side, front of driven
axle
9
G257
Recirculation valve relay
Right-hand side of heater unit
6
G258
Recirculation valve relay
Right-hand side of heater unit
6
G267
Air conditioning relay
Right-hand side of heater unit
6
8
