Inspection and adjustment

PE ENGINE FUEL SYSTEM

CF65/75/85 series

4

5

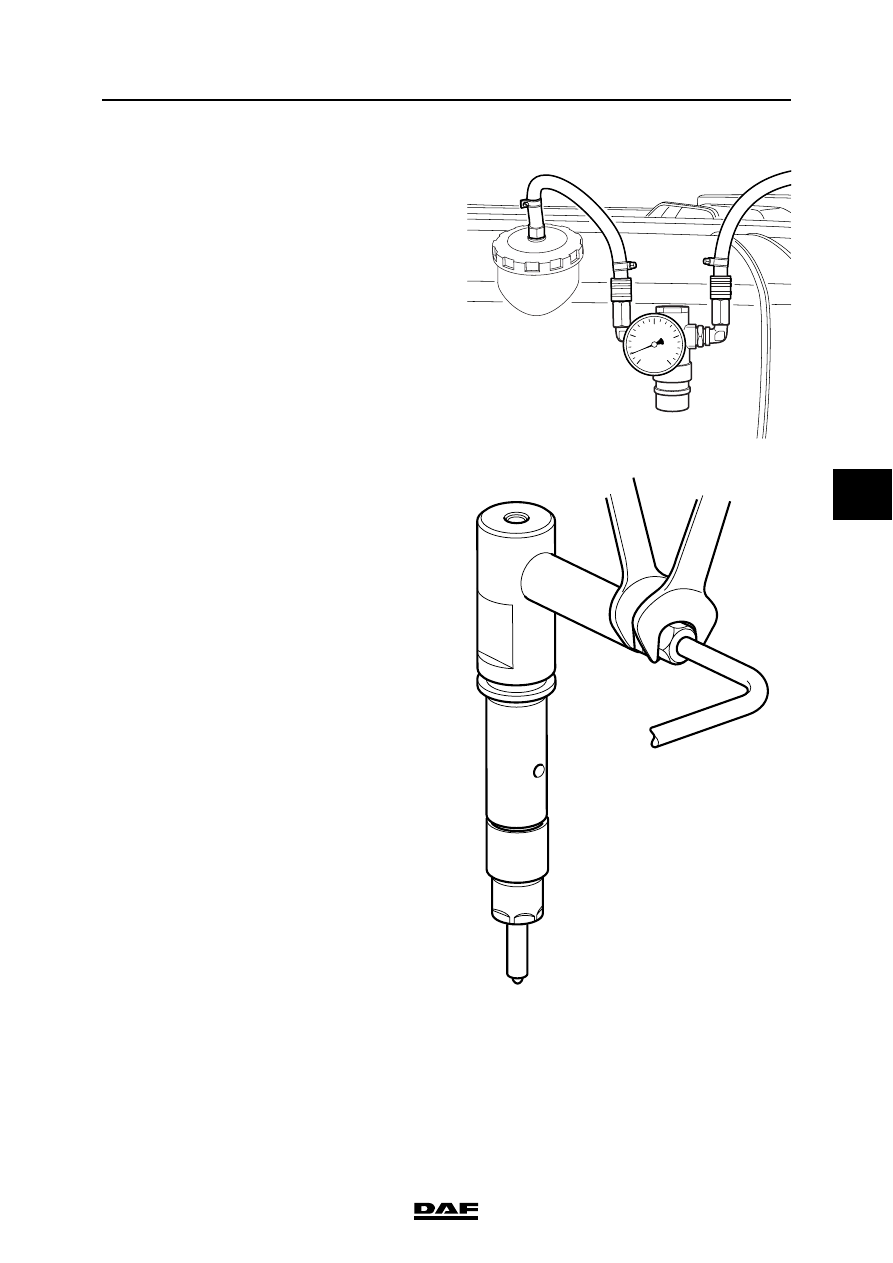

Bleeding by pressurising the fuel tank

}

To prevent deformation of the fuel

tank, the delivery pressure in the fuel

tank must not exceed 0.4 bar.

1.

Remove the fuel tank cap and replace it by a

cap with an adjustable air connection.

Note:

Use a cap (without a vent) that has a

connection for a pressure reducer valve.

2.

Pressurise the tank to a maximum of 0.2 bar.

3.

Loosen the union nut on the injector.

4.

Tighten the union nut to the specified torque,

see "Technical data".

5.

Repeat points 1, 2 and 3 for the other

injectors.

i400600

1

3

0

4

2

i 400237

PE ENGINE FUEL SYSTEM

3-10

©

 200324

Inspection and adjustment

5

CF65/75/85 series

4

3.6 INSPECTION, GALLERY PRESSURE

}

When inspecting the gallery

pressure, fuel will escape. Collect

this fuel, bearing in mind the risk of

fire.

}

Dirt in the fuel system can lead to

significant damage to pump units

and housing.

1.

Remove the plug (1) from the fuel fine filter or

from the pump housing.

2.

Connect an attenuated liquid pressure

gauge with a range of 0 - 10 bar to the free

connection point.

Note:

Before inspecting the gallery pressure at the

starting speed, the fuses of the UPEC engine

management system must be removed from

the central box before and after ignition to

stop the engine running and avoid fault

messages.

3.

Then check the gallery pressure at idling

speed, full load and starting speed and

compare the measured values to the

specified values. See "Technical data".

4.

Remove the pressure gauge and fit the

plug (1).

5.

Bleed the fuel system.

i400528

1

1

I4 00 672

©

 200324

3-11

Inspection and adjustment

PE ENGINE FUEL SYSTEM

CF65/75/85 series

4

5

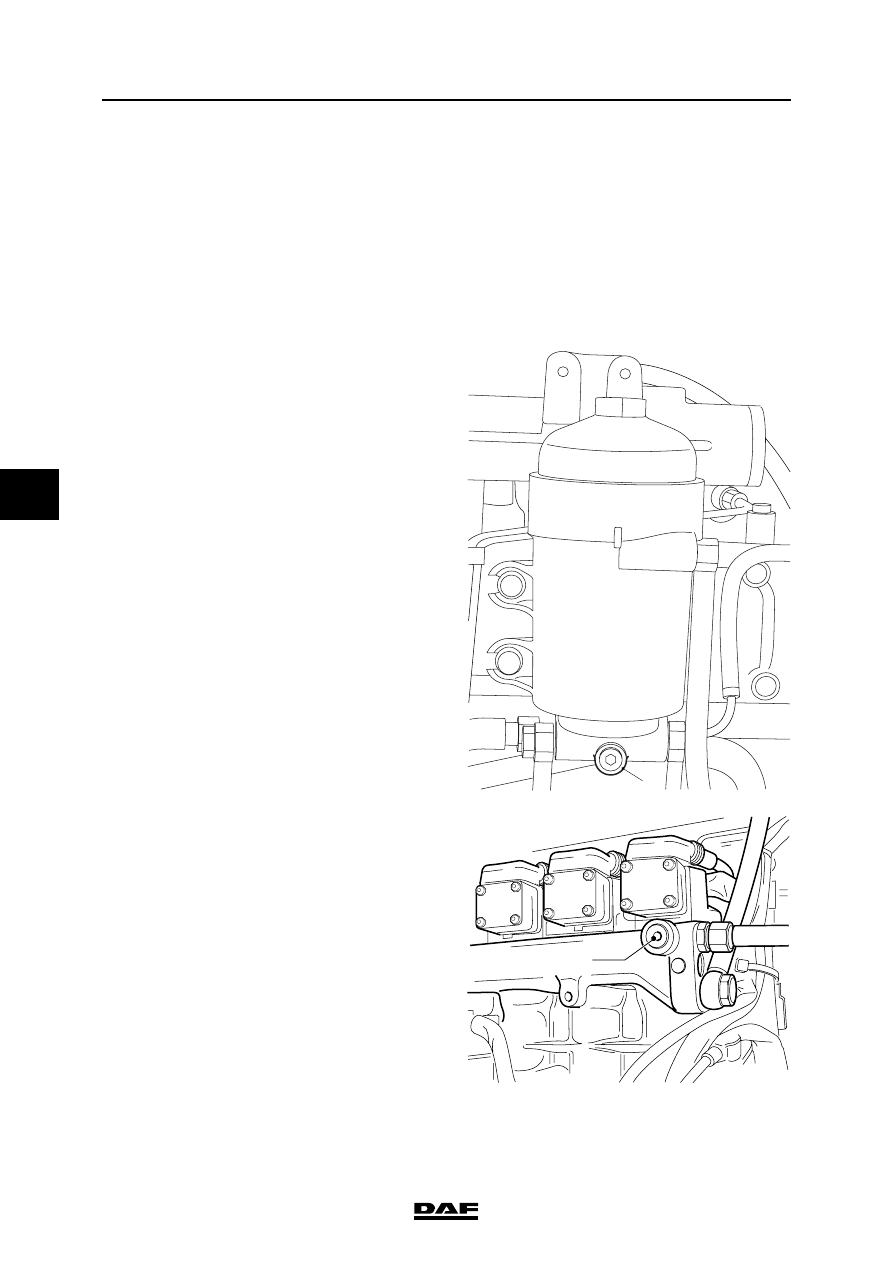

3.7 CHECKING THE FUEL PREFILTER/WATER SEPARATOR

Note:

If a fuel prefilter/water separator is fitted, there

are two further versions.

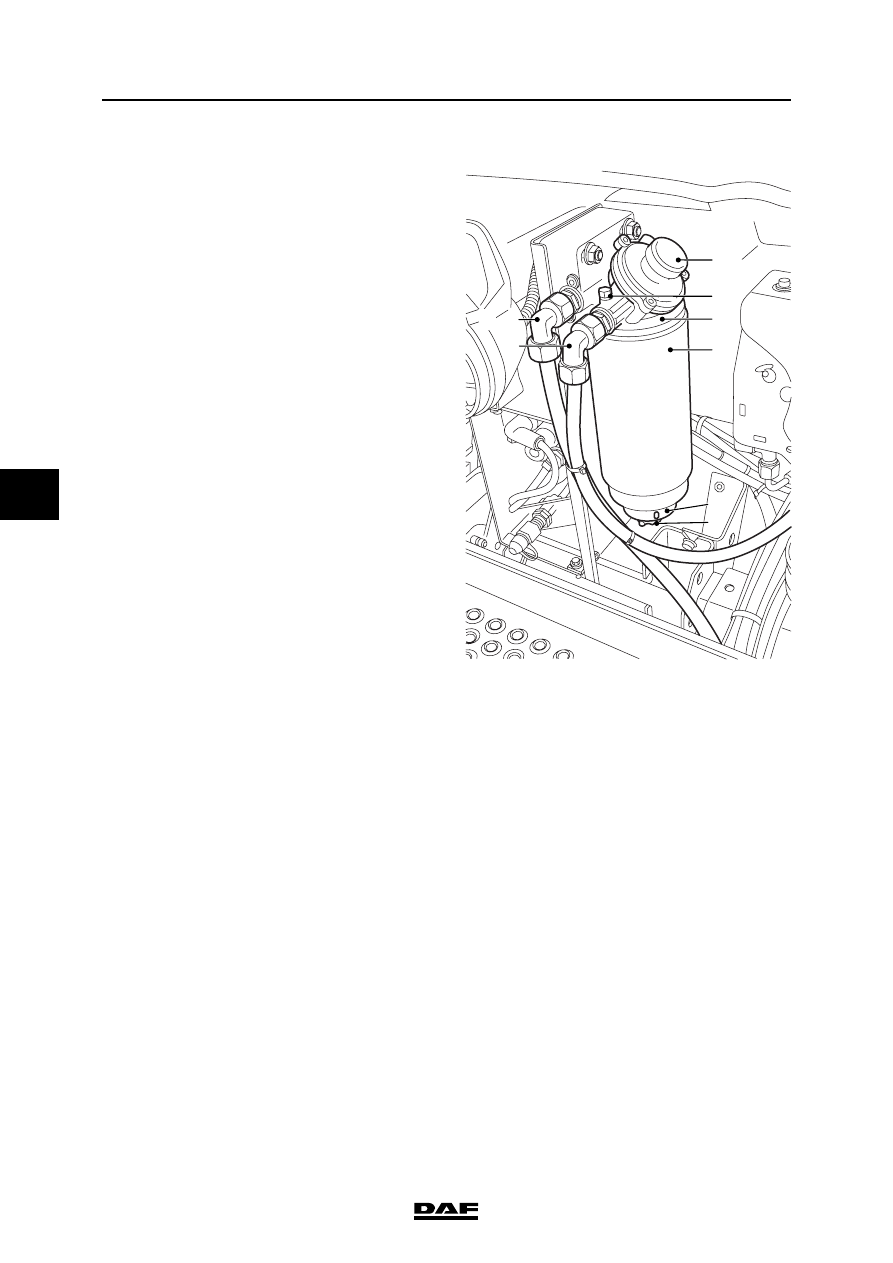

"Racor" version
1.

Check the reservoir (5) for water.

2.

If necessary, drain the water off through the

drain plug (8) using the fuel lift pump (1) and

collect the water and fuel in a container.

1

2

3

4

7

6

8

i400356

PE ENGINE FUEL SYSTEM

3-12

©

 200324

Inspection and adjustment

5

CF65/75/85 series

4

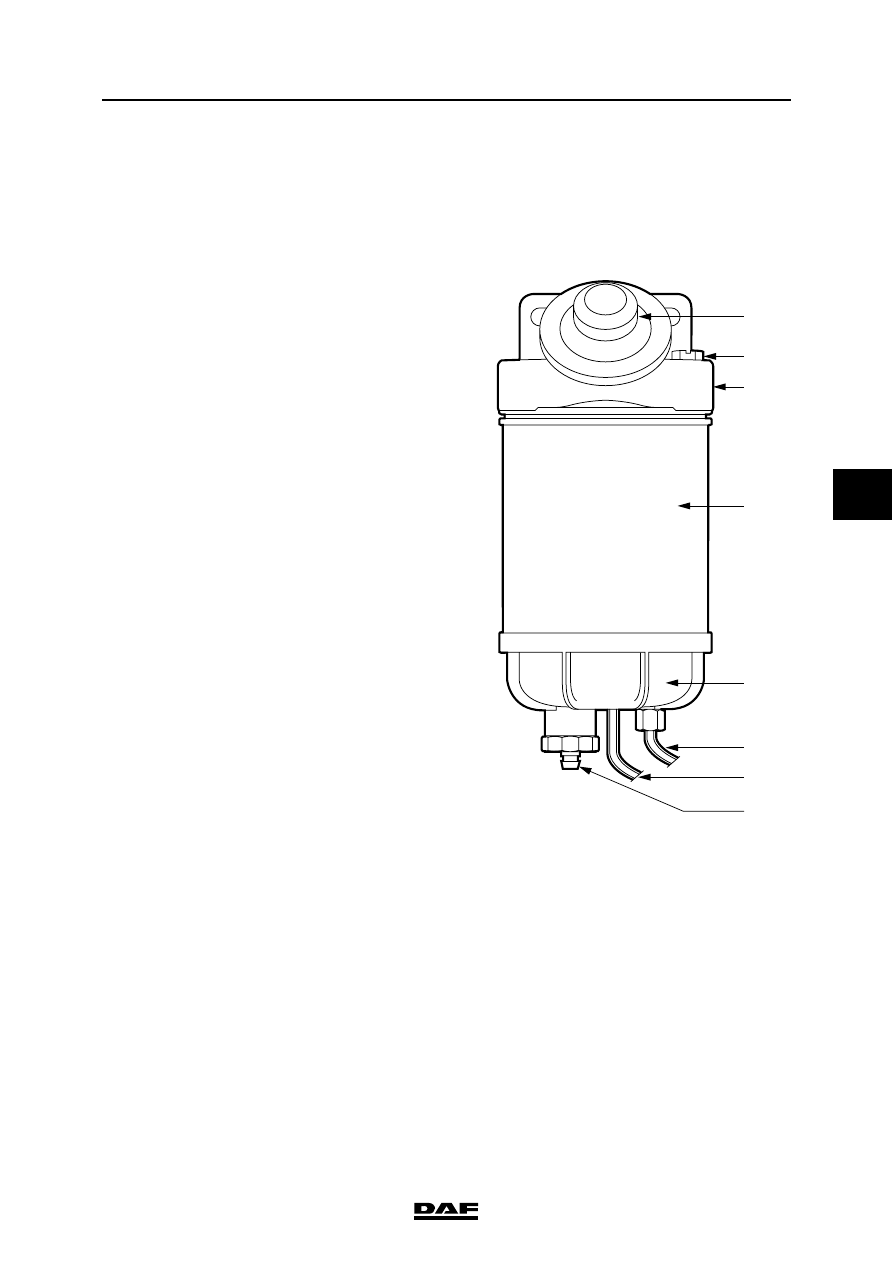

"Mann & Hummel" version
1.

Check the reservoir (5) for water.

2.

If necessary, drain the water off through the

drain plug (6) using the fuel lift pump (1) and

collect the water and fuel in a container.

1305803

1305803

G000252

6

8

1

2
3

4

7

5
