DAF CF65, CF75, CF85 Series . Manual - part 302





3

CF65/75/85 series

Description of components

PNEUMATICALLY ASSISTED GEARBOX CONTROL

(SERVOSHIFT)

2-3

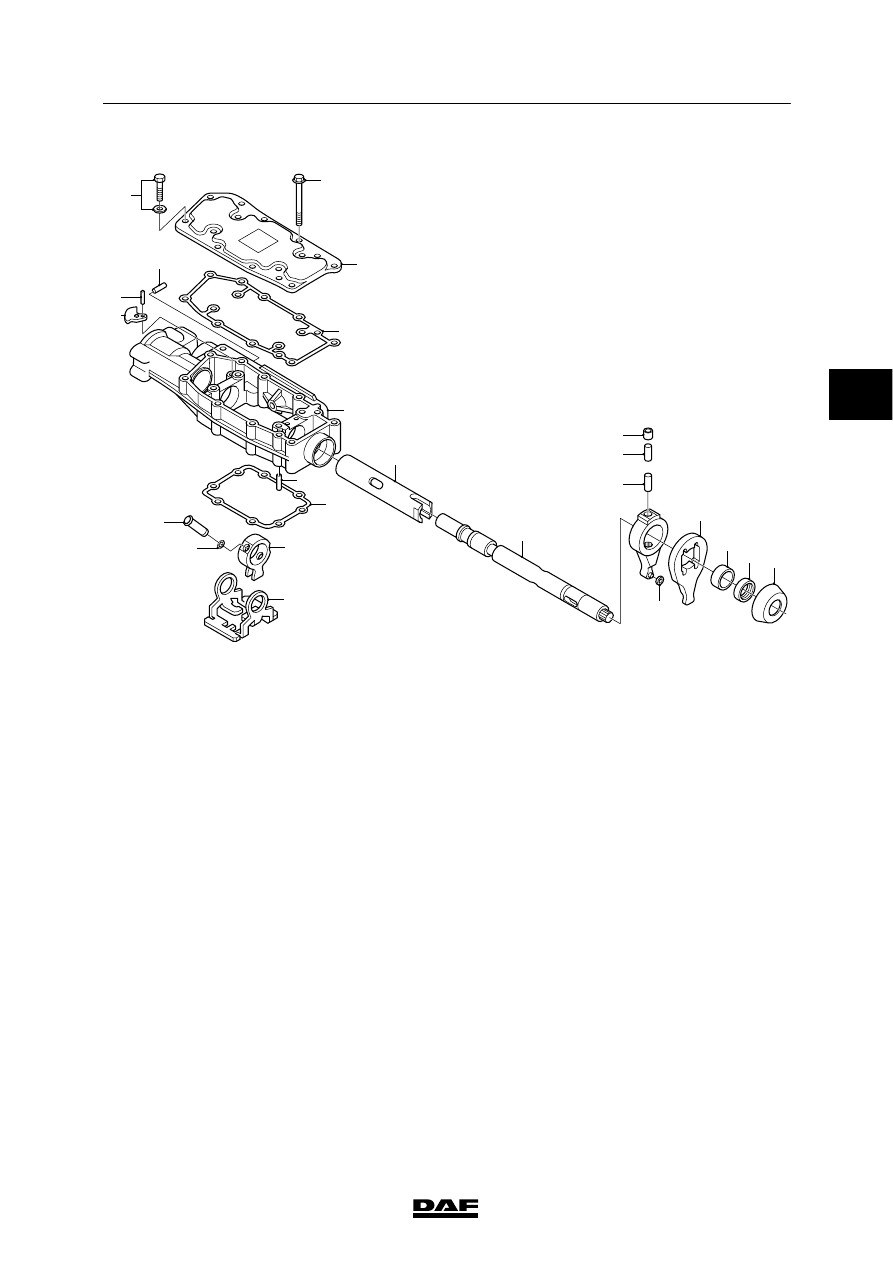

Situation with integrated air distribution block:

V300870

52

36
35

34

31

30

23

24

25

50

39

40

32

41

42

43 48

46

49

44

45

23

53

51

23. Attachment bolt
24. Selector housing cover
25. Selector housing cover gasket
26. Sealing plug
27. Sealing plug
28. Locking plate
29. Locking plate
30. Circlip
31. Attachment pin
32. Circlip
33. Needle bush
34. Pin
35. Pin
36. Needle bush
37. Selector valve lever
38. Pin

39. Hollow shaft (selector valve lever)
40. Selector shaft
41. Servo-lever
42. Bush
43. Selector shaft oil seal
44. Selector finger
45. Locking piece
46. Pin
47. Fixing pin
48. Dust cover
49. Gasket
50. Selector housing
51. Locking cylinder lever
52. Attachment pin
53. Neutral switch attachment pin

3

ᓻ 200337

3

PNEUMATICALLY ASSISTED GEARBOX CONTROL

(SERVOSHIFT)

Description of components

CF65/75/85 series

2-4

General

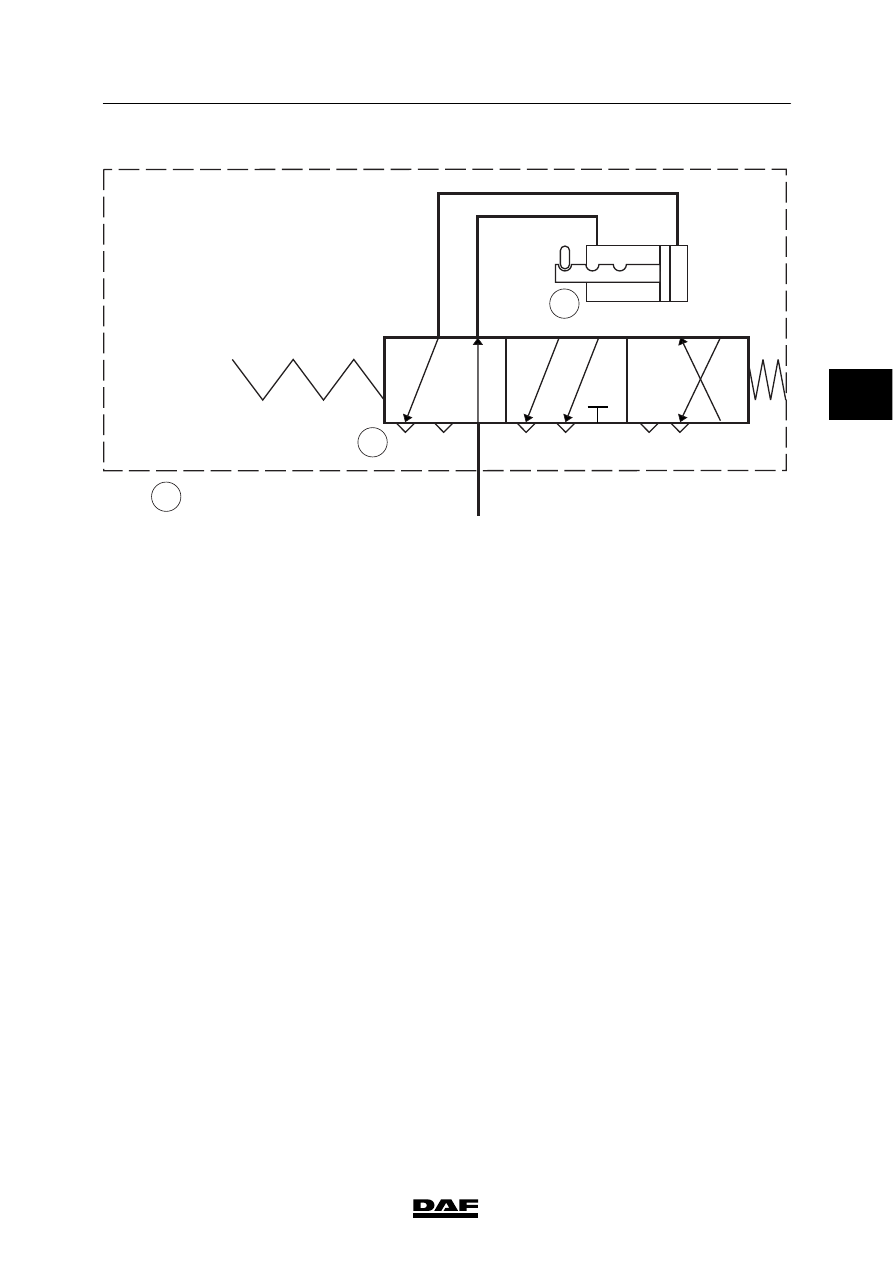

The Servoshift unit consists of a selector valve
and a double-action cylinder.
When the control rod is moved forwards or
backwards, the selector valve lever (2) is
operated first. This operates the selector valve
in the Servoshift unit, so that air acts on the
piston and the piston will operate the servo lever
(1). The gear is now selected.
When the gears are activated and the gear lever
is no longer operated, the selector valve is
pressed back into the neutral position by the
spring and the piston is bled on both sides.

V300327

1

2

3

Neutral position

2/6
4/8

1/5
3/7

N

3

2

1

1

V300330

1.

Servoshift unit

2.

Selector valve

3.

Operating cylinder

When the selector valve is in the centre position,
bleeding will take place on both sides of the
cylinder. Only when the gear lever is operated
will the selector valve be operated. The selector
valve will then apply pressure on one side of the
cylinder, so that a gear is engaged.

3

ᓻ 200337

3

CF65/75/85 series

Description of components

PNEUMATICALLY ASSISTED GEARBOX CONTROL

(SERVOSHIFT)

2-5

1

st

/5

th

or 3

rd

/7

th

gear engaged

2/6
4/8

1/5
3/7

N

3

2

1

1

V300331

1.

Servoshift unit

2.

Selector valve

3.

Operating cylinder

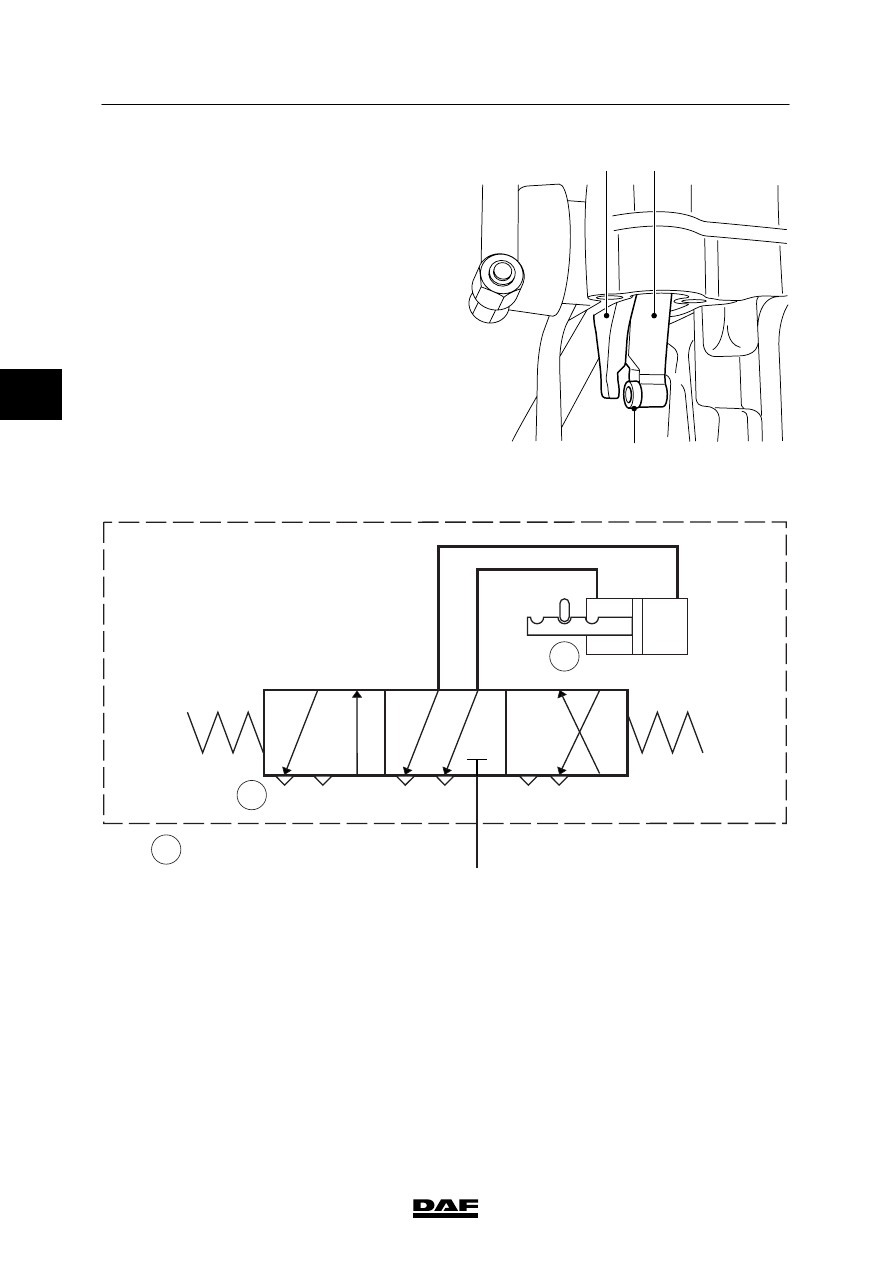

When the gear lever is moved forwards, the
selector valve moves to the right. Supply
pressure is thereby applied to the left side of the
cylinder, and the cylinder moves to the right. The
right side is bled when this happens. When the
cylinder reaches the end position, it switches off
the air supply. Supply pressure will only be
applied to the cylinder if the gear lever is in
operation. When the gear lever is released, the
selector valve goes back to the centre position,
and the cylinder is bled on both sides. The
cylinder remains in position due to the
double-retaining arrangement.
If it is desired to change to the 2

nd

/6

th

or

4

th

/8

th

position, the selector valve must be

moved to the left until the cylinder moves to the
2nd/6th or 4th/8th position passing through the
neutral position.

3

ᓻ 200337

3

PNEUMATICALLY ASSISTED GEARBOX CONTROL

(SERVOSHIFT)

Description of components

CF65/75/85 series

2-6

2

st

/6

th

or 4

rd

/8

th

gear engaged

2/6
4/8

1/5
3/7

N

3

2

1

1

 V300332

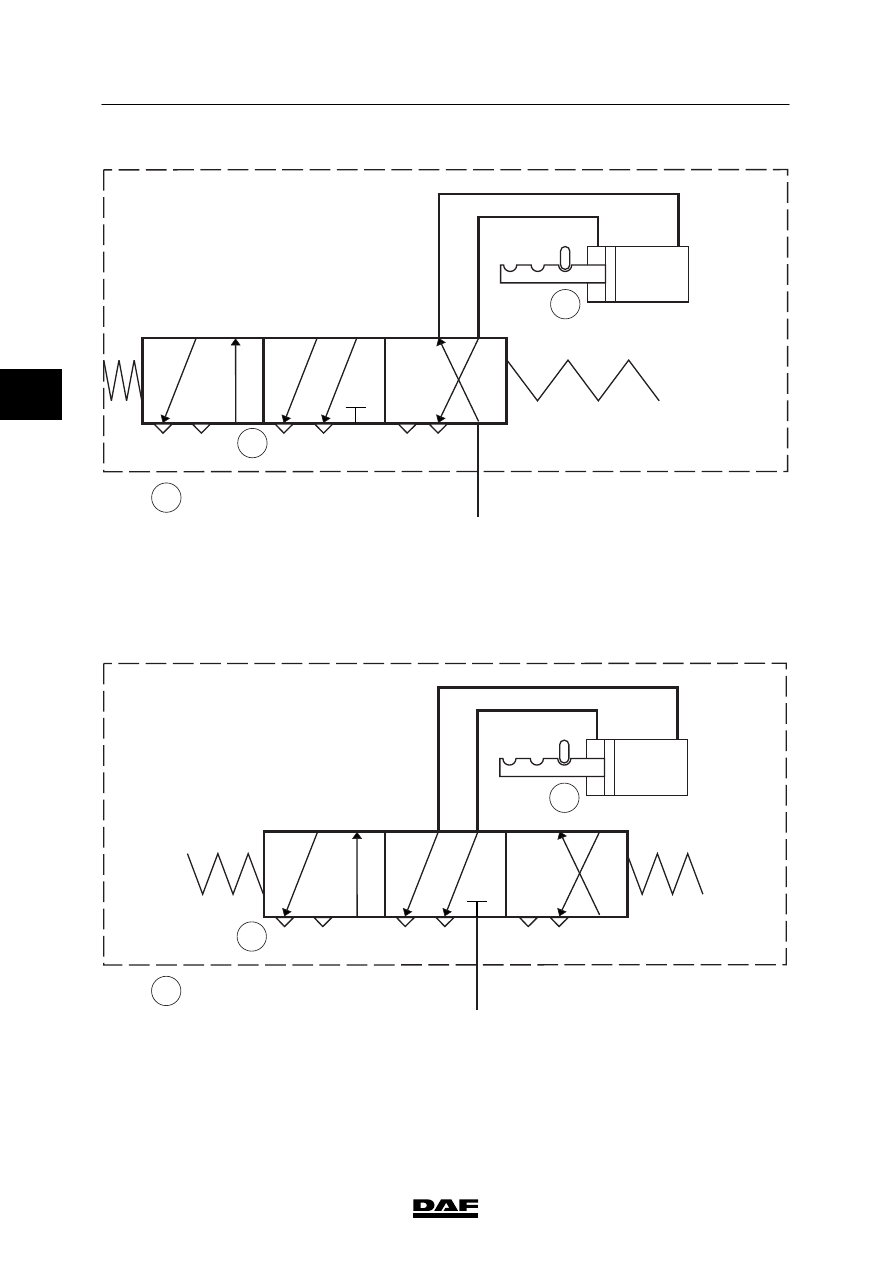

When the cylinder is in the 2

nd

/6

th

or 4

th

/8

th

position and the gear lever is again released,
the selector valve will again spring back to the
middle position while the cylinder remains in the
switched position due to the double-retaining
arrangement.

2/6
4/8

1/5
3/7

N

3

2

1

1

V300333

3

ᓻ 200337
