Removal and installation

CE-ENGINE COOLING SYSTEM

ΧΦ65/75/85 series

2

3

6.

Fit the wind tunnel collar (C) and turn it
outwards and fit the locking screws.

7.

Fit the air inlet hoses (B) between the engine
and the air cooler.

8.

Fit the torque rods (A).

9.

Fill the cooling system.

Installing the radiator
1.

Fit the radiator in the chassis. Tighten the
attachment nuts to the specified tightening
torque. See "Technical data".

2.

Fit the air cooler to the radiator.

3.

Fit the guide ring in the vehicle.

4.

Fit the wind tunnel (C).

5.

Install the fan clutch and the fan.

6.

Fit the guide ring.

7.

Fit the oil filler hose.

8.

Suspend the condenser at the bottom to the
brackets and fit the retainer clips.

9.

Fit the bracket of the heater hose to the
radiator.

10. Fit the water hoses to the radiator.

11. Install the air inlet hoses (B) of the air cooler.

12. Fit the bracket of the air-conditioning pipes

on the radiator.

13. Fit the front engine encapsulation on the left-

hand side.

14. Fit the earth lead to the battery terminal.

15. Fill the cooling system. See "Draining and

filling".

16. Run the engine and check that all

connections are sealed properly.

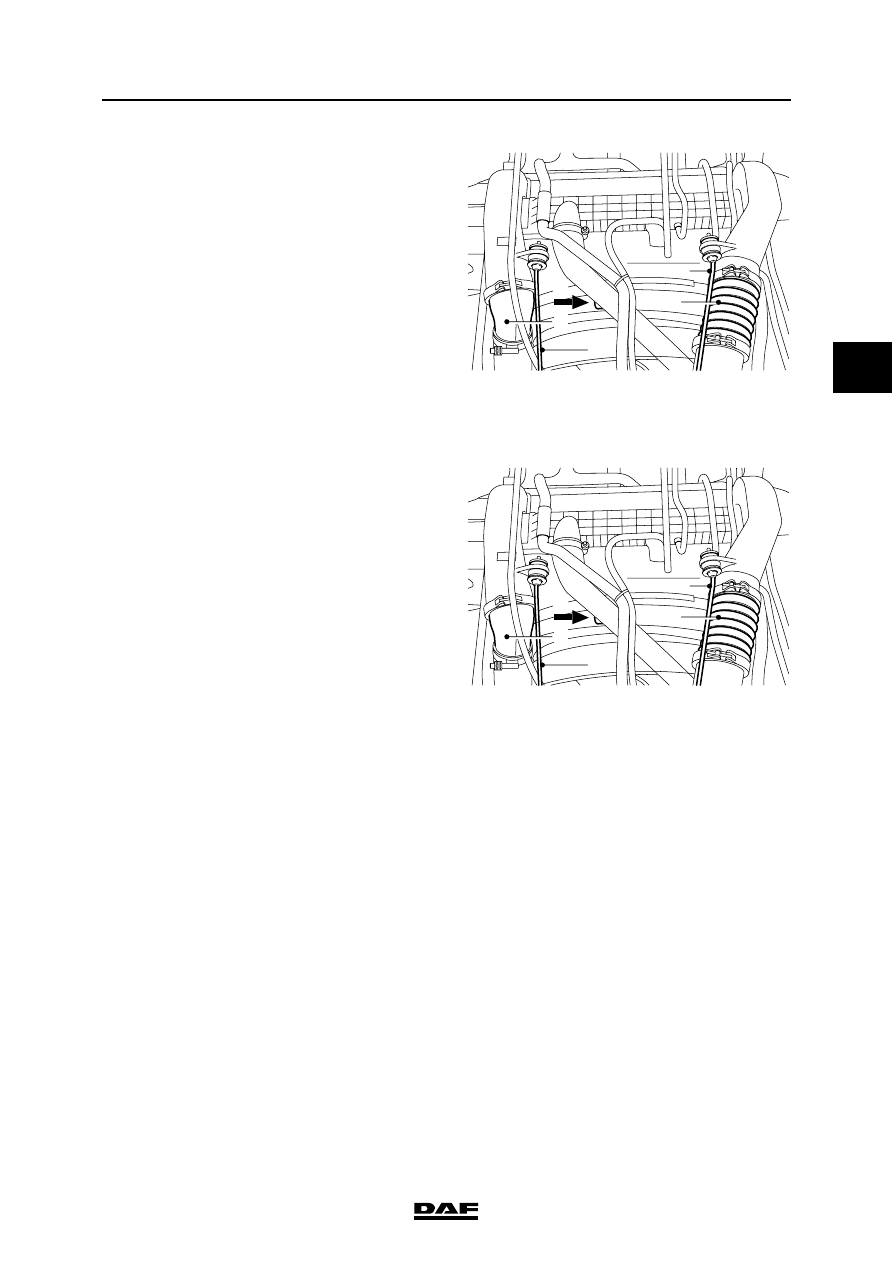

M201193

B

A

B

A

C

M201193

B

A

B

A

C

CE-ENGINE COOLING SYSTEM

5-6

©

 200351

Removal and installation

3

ΧΦ65/75/85 series

2

©

 200351

6-1

Draining and filling

CE-ENGINE COOLING SYSTEM

ΧΦ65/75/85 series

2

3

6. DRAINING AND FILLING

6.1 DRAINING AND FILLING COOLANT

}

In order to avoid damaging the
cylinder block, do not top up a warm
engine with cold coolant.
Coolant is a toxic fluid and must be
handled with care.
Protect skin and eyes.
Coolant is harmful to the
environment; after use, it should be
processed as industrial chemical
waste.
When the coolant is hot, there is
overpressure in the cooling system.
When removing the filler cap, allow
the overpressure to escape by first
loosening the filler cap one turn.

Draining the cooling system
1.

Turn the heater control knob to the maximum
"hot" temperature setting.

2.

Remove the cooling system filler cap.

3.

Collect the coolant. To do this, place a
suitable container under the drain point.

4.

Drain the cooling system at the radiator via
drain plug B.

5.

Flush the cooling system.

6.

Fit drain plug B.

Filling/venting the cooling system
1.

Turn the heater temperature control knob in
the cab to the maximum "hot" setting.

2.

Fill the cooling system with the specified
coolant up to the fill opening of the expansion
tank.

3.

Start the engine and continue to top up the
cooling system.

4.

The cooling system is auto-venting. Venting
will be audible during topping up. Continue
topping up until venting is no longer audible.

5.

Close the cooling system and allow the
engine to warm up until the thermostat has
opened.

6.

Stop the engine and check the coolant level
on the transparent rear side of the expansion
tank; add more coolant if necessary.

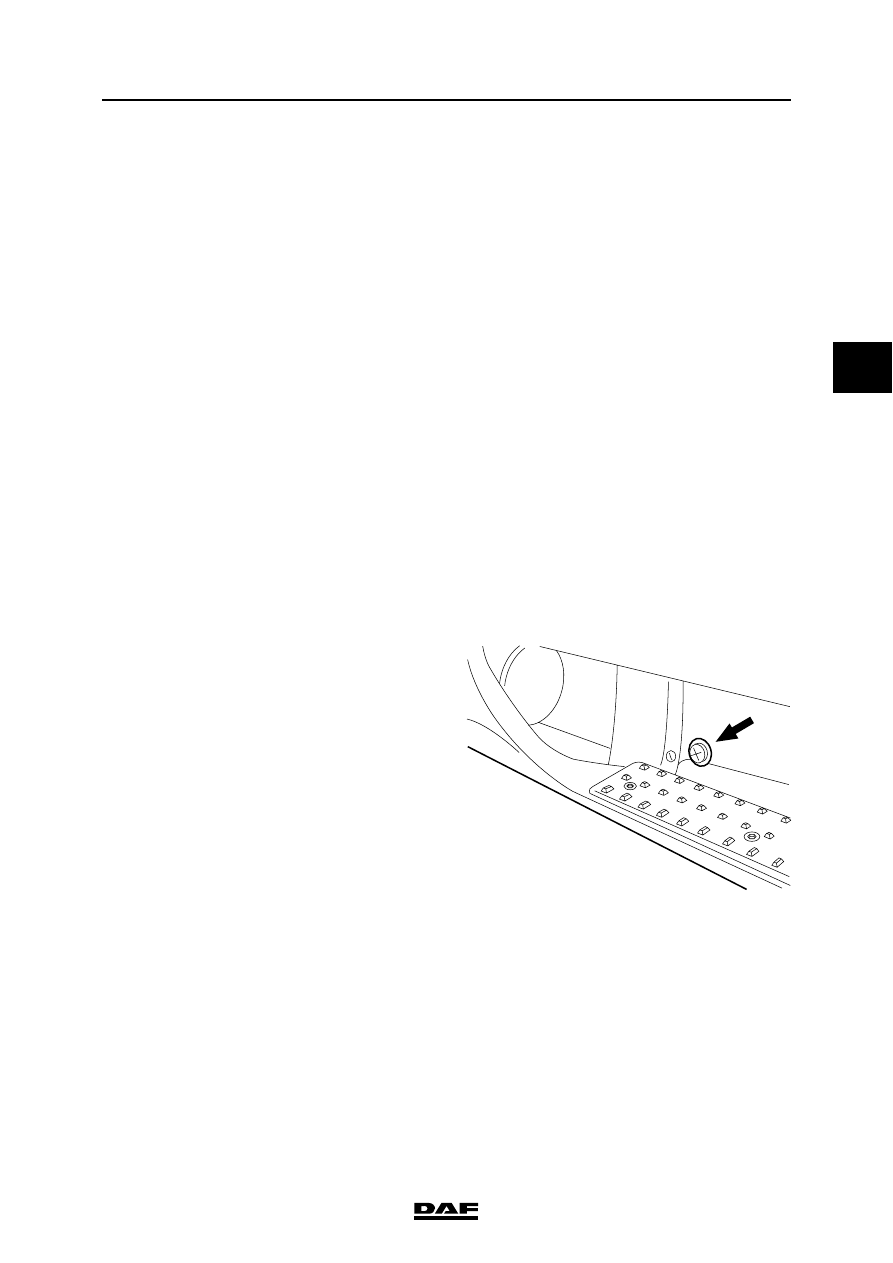

G000182

B

CE-ENGINE COOLING SYSTEM

6-2

©

 200351

Draining and filling

3

ΧΦ65/75/85 series

2

If the vehicle is fitted with water cab heater
1.

Run the engine at idling speed.

2.

Switch on the cab heater using the rocker
switch on the dashboard.

3.

Turn the heater temperature control knob in
the cab to the maximum "hot" setting.

4.

Switch on the heater fan.

5.

Set the rocker switch on the thermostat in the
cab to position 1.

Note:
Combustion will start after approximately
one minute.

6.

Allow the cab heater to operate for
approximately 15 minutes.

7.

Check the coolant level again; top up with
coolant if necessary.
