DAF CF65, CF75, CF85 Series . Manual - part 192





©

 200351

1-1

Safety instructions

CE ENGINE

ΧΦ65/75/85 series

2

2

1. SAFETY INSTRUCTIONS

1.1 SAFETY INSTRUCTIONS

Fuel

}

Diesel fuel is an extremely
flammable liquid, and must not be
exposed to naked flames or come
into contact with hot surfaces. The
diesel fuel fumes remaining in an
empty fuel tank form an extremely
explosive mixture.

When fuel system components are being
removed, some fuel will escape.
To keep this spillage to a minimum, unscrew the
tank cap to release any overpressure.

Any spilled fuel must be collected, bearing in
mind the risk of fire.

Exhaust gases
Do not run the engine in an enclosed or
unventilated area.
Make sure exhaust fumes are properly extracted.

}

Exhaust gases contain carbon
monoxide.
Carbon monoxide is a deadly
colourless and odourless gas,
which, when inhaled, deprives the
body of oxygen, leading to
asphyxiation. Serious carbon
monoxide poisoning may result in
brain damage or death.

Moving parts
Remain at a safe distance from rotating and/or
moving components.

Various fluids
Various oils and lubricants used on the vehicle
may constitute a health hazard.
This also applies to engine coolant, windscreen
washer fluid, refrigerant in air-conditioning
systems, battery acid and clutch fluid.
So avoid inhaling and direct contact.

Electrical short-circuit
Always disconnect the battery's earth connection
during repair or maintenance operations for
which the electric power supply is not required.

CE ENGINE

1-2

©

 200351

Safety instructions

2

ΧΦ65/75/85 series

2

©

 200351

2-1

General

CE ENGINE

ΧΦ65/75/85 series

2

2

2. GENERAL

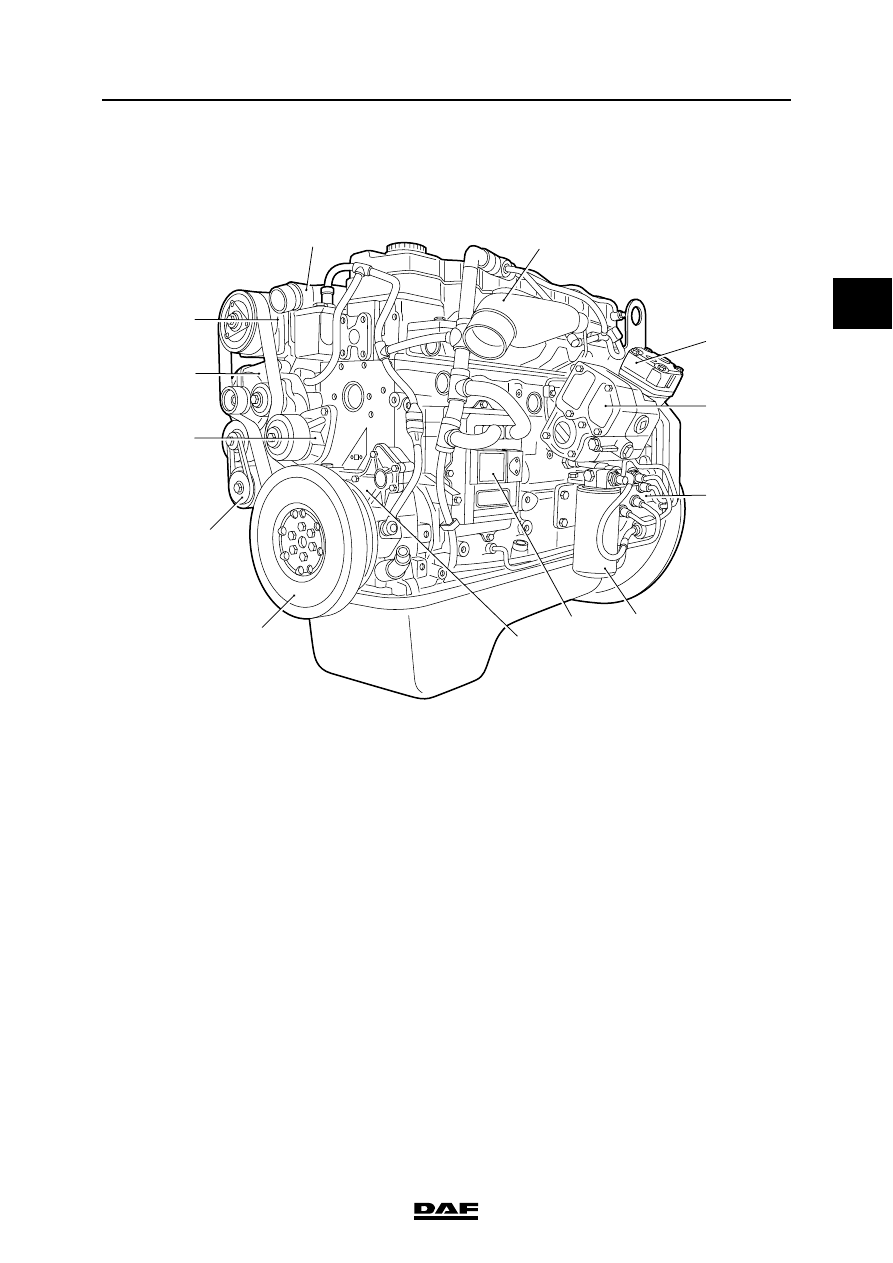

2.1 LOCATION OF COMPONENTS

1.

Thermostat housing

2.

Inlet manifold

3.

Air compressor

4.

Steering pump with reservoir

5.

High-pressure pump

6.

Fuel filter

7.

ECS-DC3 electronic unit

8.

Front engine panel

9.

Vibration damper

10. Automatic tensioner
11. Coolant pump
12. Alternator
13. Air-conditioning compressor

M201141

6

10

11

12

13

7

8

9

1

2

3

4

5

CE ENGINE

2-2

©

 200351

General

2

ΧΦ65/75/85 series

2

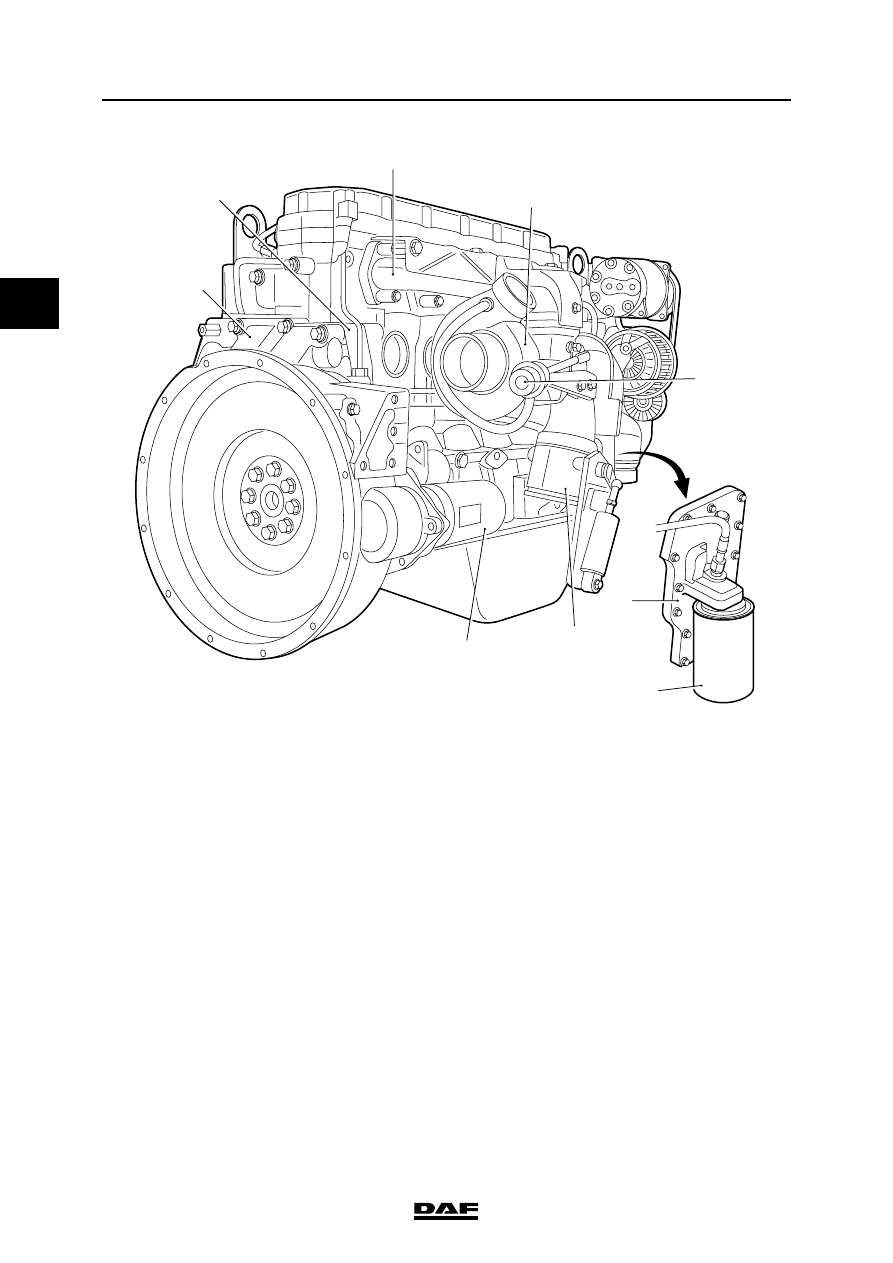

1.

Flywheel housing

2.

Timing gear case

3.

Exhaust manifold

4.

Turbocharger

5.

Oil cooler

6.

Oil filter

7.

Wastegate diaphragm

8.

Exhaust brake

9.

Starter motor

M201140

7

5

8

6

1

2

3

4

9
