1-1

CE engine

TECHNICAL DATA

ΧΦ65/75/85 series

2

0

1. CE ENGINE

1.1 GENERAL

Engine types

General specifications

Exhaust manifold

Cylinder block

Cold engine

A cold engine is an engine which, having reached
operating temperature, has been allowed to cool
down for at least six hours.

Warm engine

A warm engine is an engine which, having
reached operating temperature, has been
allowed to cool down for not more than thirty
minutes.

Direction of rotation of the engine

The direction of rotation of the engine is
clockwise, as seen from the vibration damper
end.

First cylinder of the engine

The first cylinder of the engine is the cylinder at
the vibration damper end of the engine.

Left-hand and right-hand side of the engine

The left-hand side of the engine is the side where
the air compressor and electronic unit are
mounted. The right-hand side of the engine is the
side where the turbocharger and oil filter are
mounted.

Coding

CE 136 C
CE 162 C
CE 184 C

Environmental standard

Euro 3 (C)

Number of cylinders

6 cylinders in line

Valves

4 per cylinder

Bore x stroke

102 x 120 mm

Cubic capacity

5.9 litres

Compression ratio

17,3:1

Fuel injection

direct

Injection sequence

1-5-3-6-2-4

Air inlet system

Turbocharger intercooling

Cooling

fluid

Weight

approx. 498 kg

ENGINE TYPE

P (kW) at rpm

M (Nm) at rpm

CE 136 C

136 at 2500

700 at 1200 - 1600

CE 162 C

162 at 2500

820 at 1250 - 1600

CE 184 C

184 at 2500

950 at 1200 - 1600

Maximum flatness deviation

0.20 mm

Flatness deviation in the longitudinal direction

max. 0.076 mm

Flatness deviation in the lateral direction

max. 0.051 mm

TECHNICAL DATA

1-2

©

 200351

CE engine

0

ΧΦ65/75/85 series

2

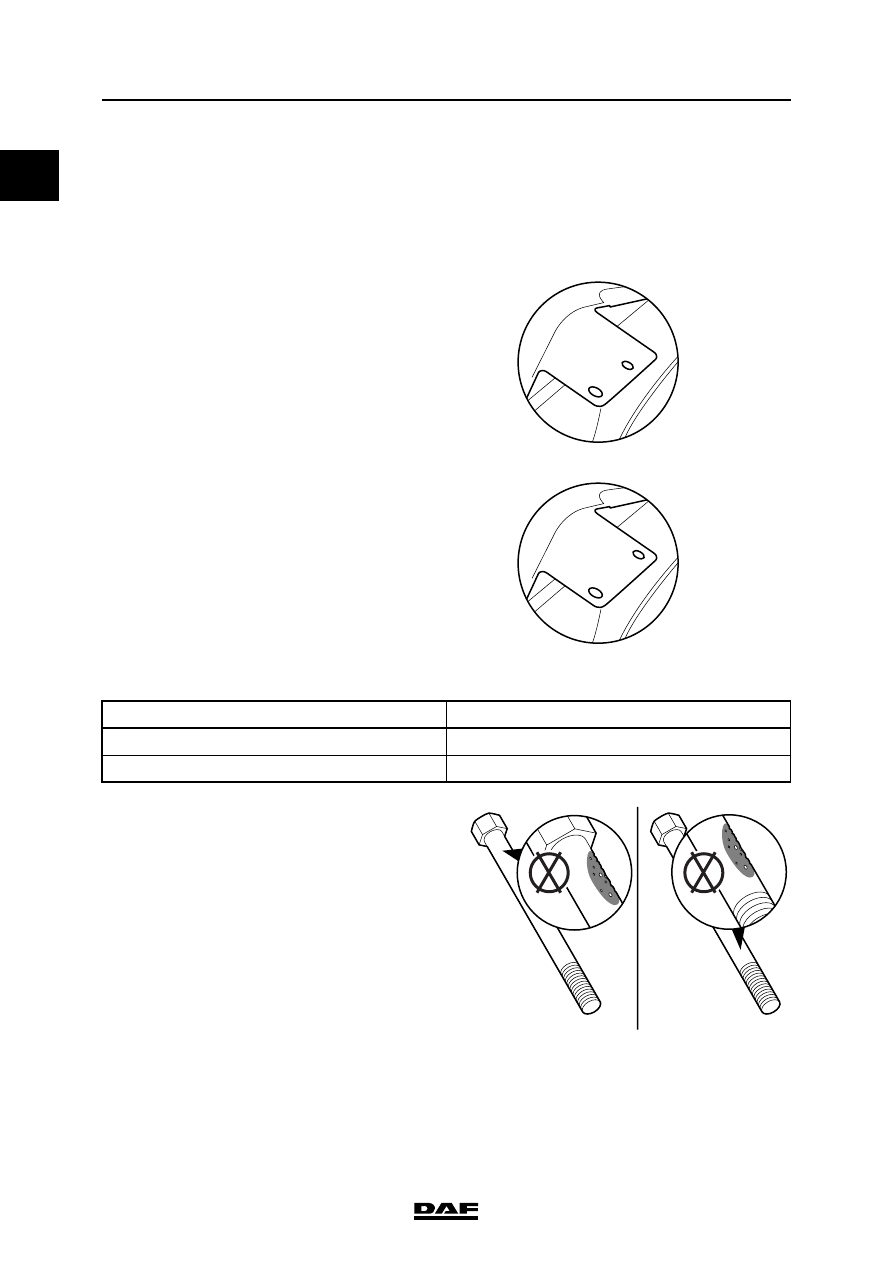

Cylinder head

Cylinder head gasket

Type cylinder head gasket to be used:

Cylinder head bolts

Rough value

0.4 - 1.6 mm

Flatness deviation in the longitudinal direction

max. 0.305 mm

Flatness deviation in the lateral direction

max. 0.076 mm

Test pressure using air

max. 2.75 bar

Water pressure temperature

approx. 60

C

M201231

Thickness:

1.15 mm

M201232

Thickness:

1.25 mm

Average piston projection

Thickness of cylinder head gasket

< 0.301 mm

1.15 mm

 0.301 mm

1.25 mm

M201249

OK

OK

Maximum
dimensions of visible
corrosion or pitting

1 cm

2

Maximum depth of
pitting

0.12 mm
