ENGINE



2

2

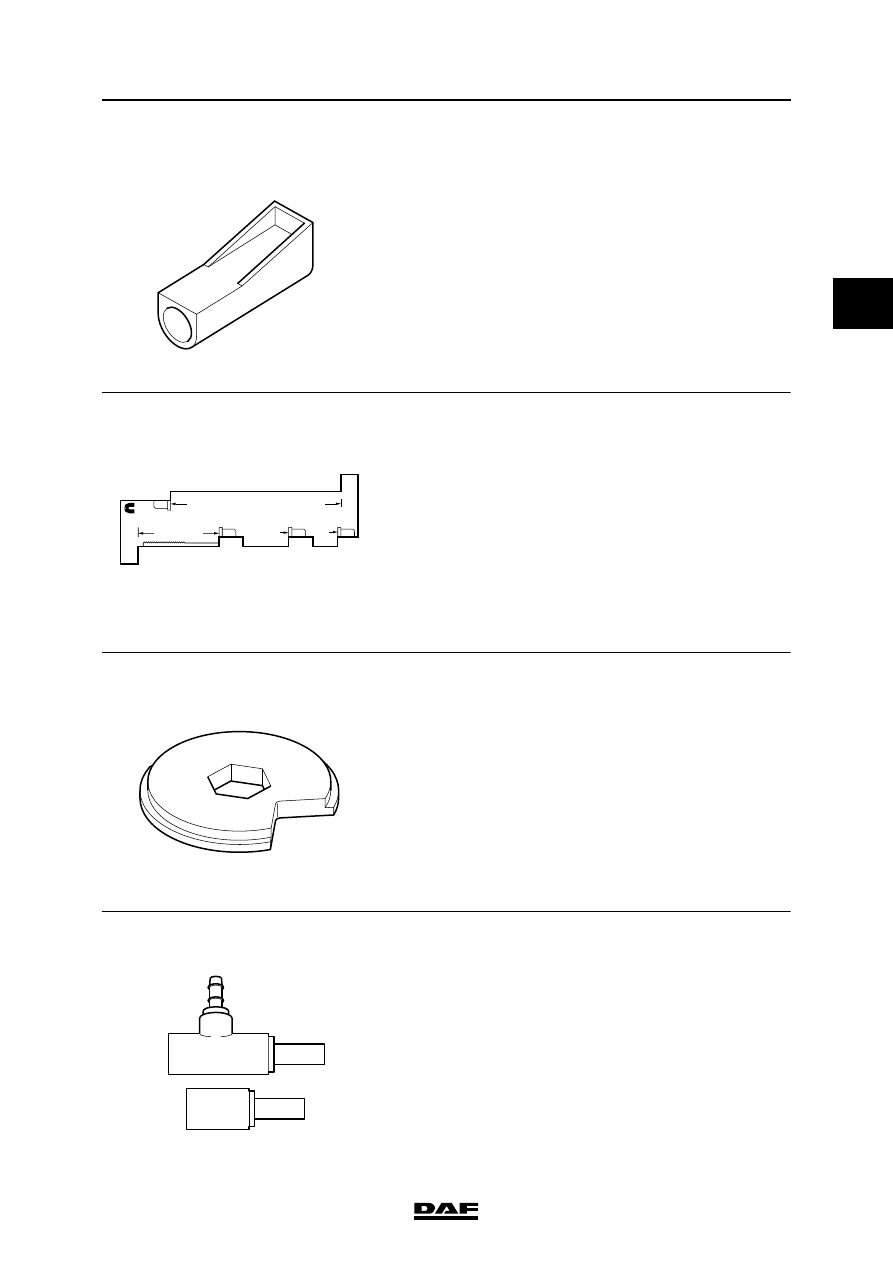

0694923

Bracket for removing expansion tank

0694942

Press for fitting front crankshaft seal

0694952

Socket for connecting rod bearing cap bolts

0694972

Compression tester adapter (i.c.w. 1329301)

0694923

0694942

;;

;;

;;

;;

0694952

0694972

ENGINE

60

©

 200419

2

2

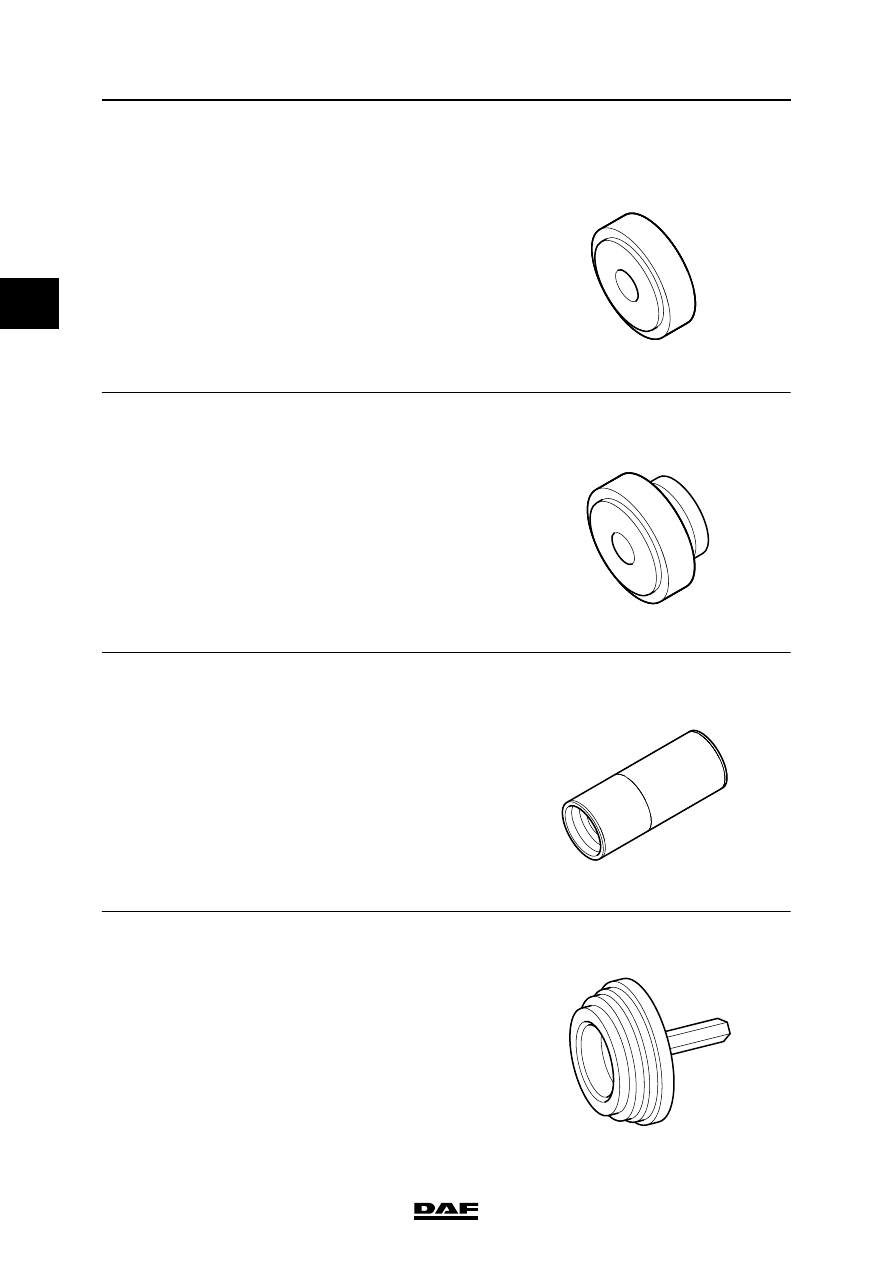

0694982

Water pump bearing driving tool

0694983

Water pump bearing driving tool

0694984

Water pump seal driving tool

1240050

Cylinder lining installer

;;

;;;

;;;

;;;

;;;

;

0694982

;

;;

;;

;;

;;

;;

0694983

;;;

;;

;

;;

;;

0694984

1240050

©

 200419

61

ENGINE



2

2

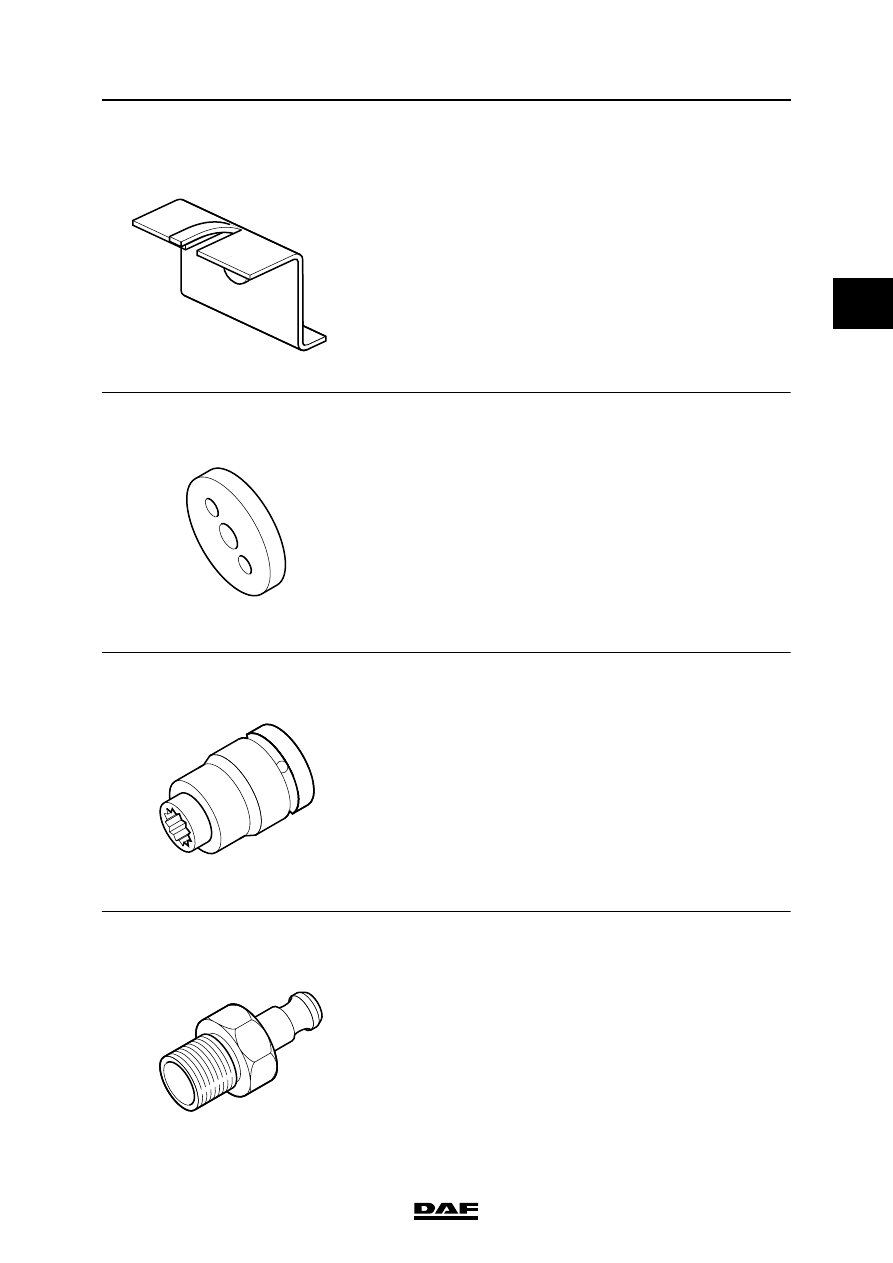

1240052

Cylinder lining clamping piece

1240054

Cylinder head bolt length gauge

1240073

Plate (part of 0535625)

1240080

Oil sump pressure inspection tool (i.c.w. 1240081)

1240052

NT

L10

L10

NT

um

m

in

s

Cylinder Head Capecrew Length Gauge

To determine if capscrew has been stretched beyond reuse limit when used in TORQUE PLUS ANGLE lightening
method, place in appropriate slot and align with edge of gauge. Discard capscrew if threaded end extends beyond
maximum allowable length. Do not shorten capscrew. Flenged head capscrews only.

(6.310 in.)

160.3 mm

3823546

(2.933 in.)

74.5 mm max.

(5.492 in.)

139.5 mm

(7.310 in.)

185.6 mm

1240054

1240073

1240080

ENGINE

62

©

 200419

2

2

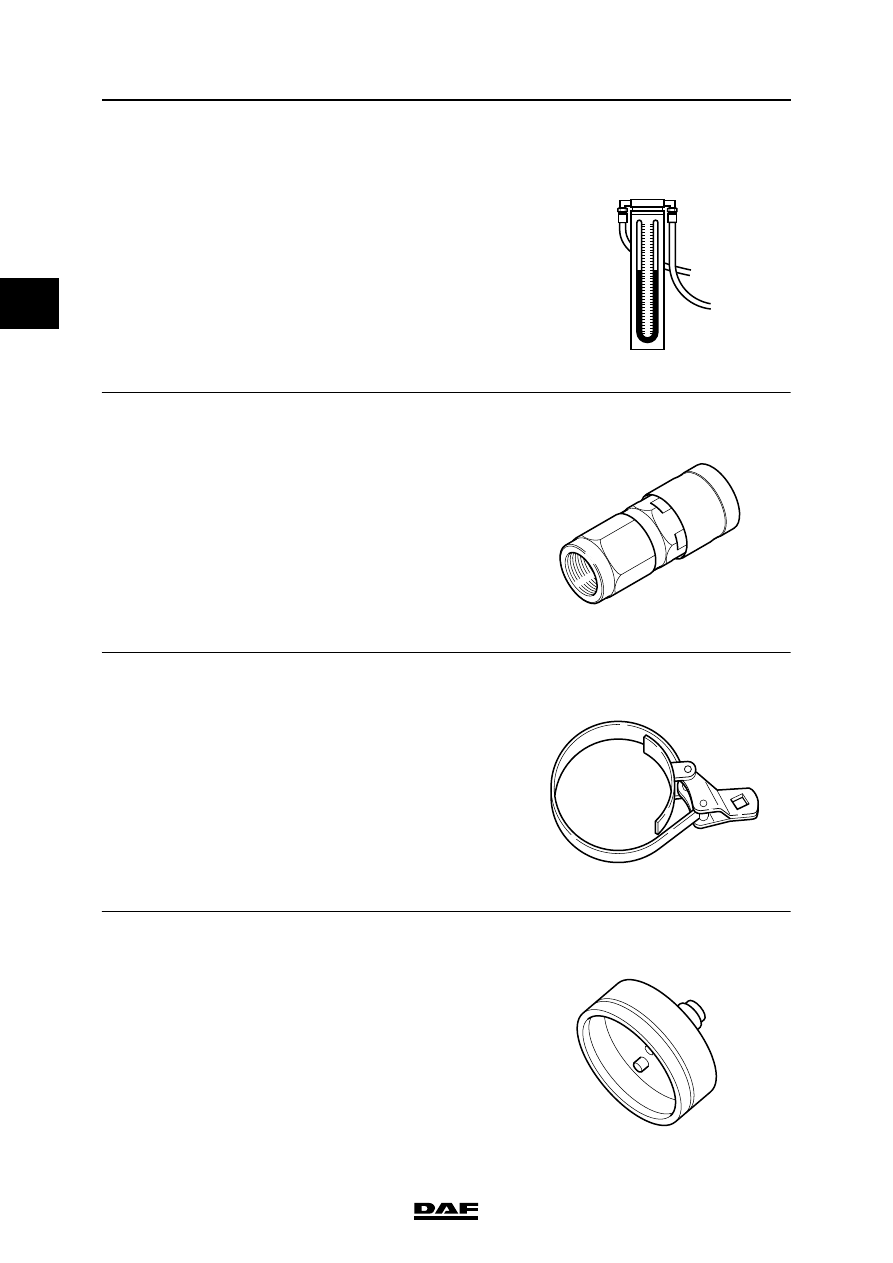

1240081

Oil sump pressure gauge (i.c.w. 1240080)

1240090

Quick-release coupling for measuring fuel
overpressure/fuel supply underpressure/engine oil
pressure

1240115

Oil filter wrench

1240121

Press for fitting rear crankshaft seal

1240081

;;

;;

;;

;;

1240090

1240115

1240121
