DAF CF65, CF75, CF85 Series . Manual - part 118

©

 200346

4-15

Removal and installation

CAB HEATING

ΧΦ65/75/85 series

1

3

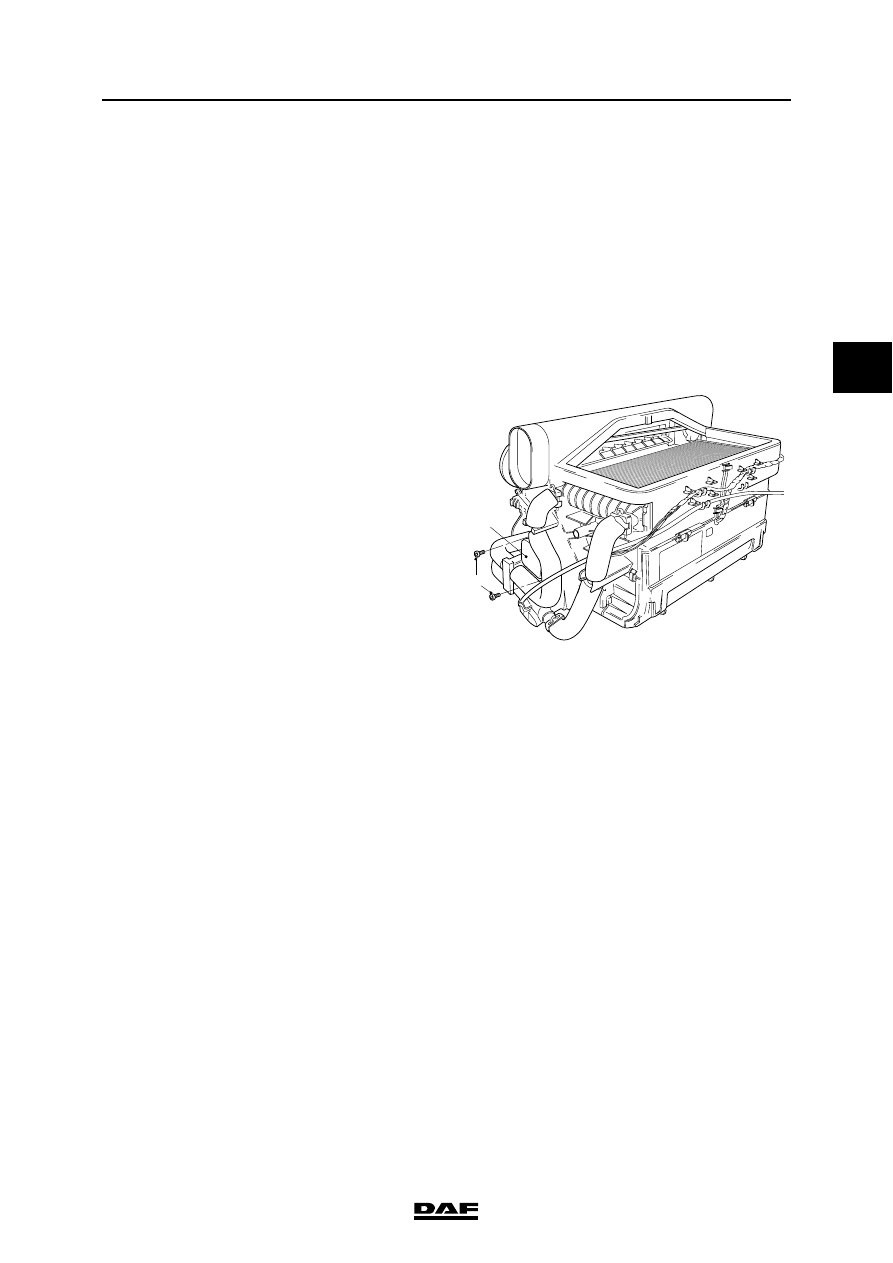

4.6 REMOVAL AND INSTALLATION, RECIRCULATION VALVE CONTROL

Removing recirculation valve control
1.

Remove the radio panel.

Note:
In a RHD vehicle remove the dashboard
panels on co-driver side.

2.

Remove the foot air duct on driver side.

3.

Remove the connector to the recirculation
valve control.

4.

Remove the attachment bolts (1) from the
recirculation valve control.

5.

Remove the recirculation valve control (2).

Installing recirculation valve control
1.

Install the recirculation valve control (2) and
secure it using attachment bolts (1).

2.

Fit the connector.

3.

Fit the foot air duct.

4.

Fit the steering column panels underneath
the steering column (left and right).

5.

Fit the radio panel.

K1 01 141

1

2

CAB HEATING

4-16

©

 200346

Removal and installation

3

ΧΦ65/75/85 series

1

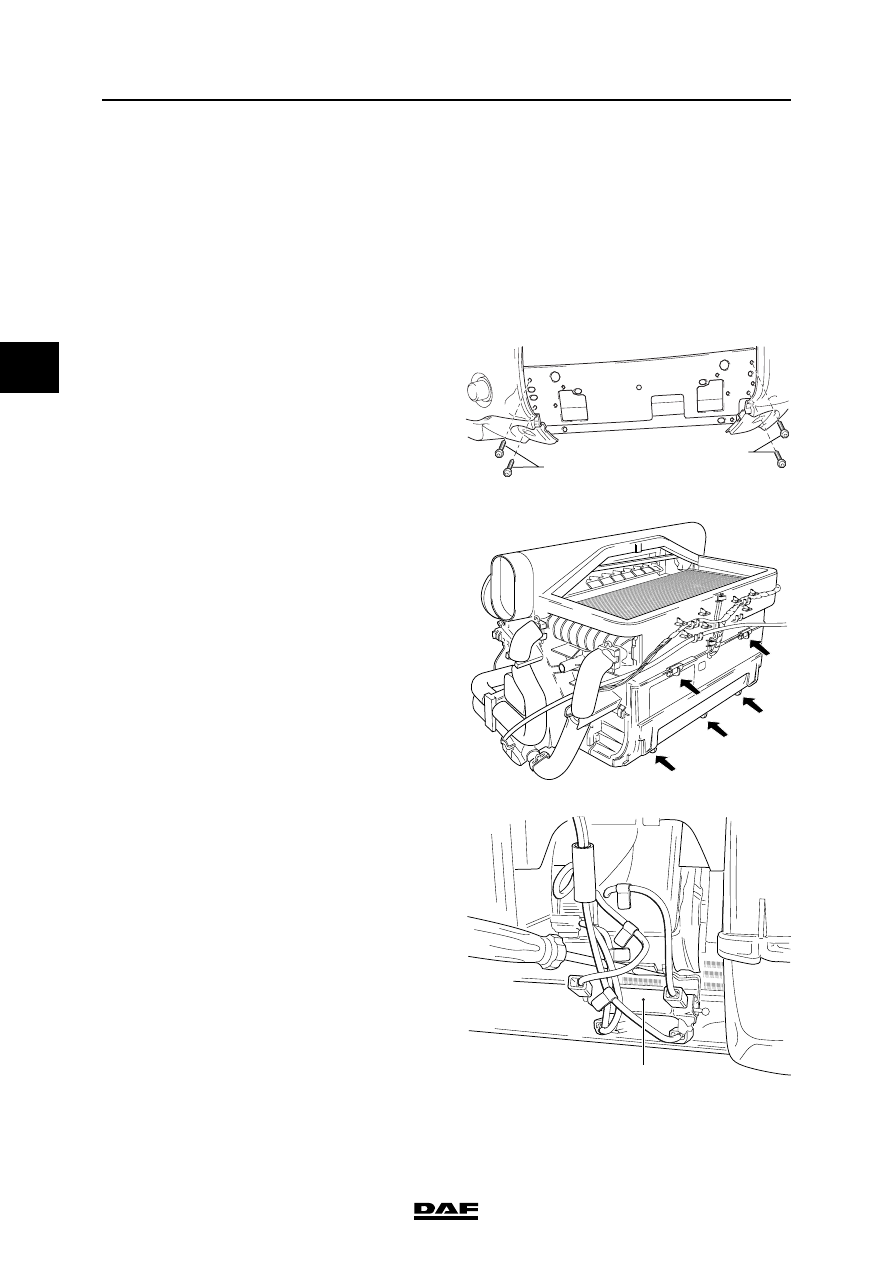

4.7 REMOVAL AND INSTALLATION, SERIES RESISTOR

Removing series resistor
1.

Remove the storage tray from the engine
tunnel.

2.

Remove the panel underneath the ashtray,
the ashtray and the ashtray holder.

3.

Remove the central console control panel.

4.

Remove the attachment bolts (1) from the
steel connecting piece of both dashboard
frames

5.

Slide the sliding sections to the right and
remove the lid.

6.

Remove the connectors from the series
resistor (1).

7.

Using a screwdriver push the lock to one side
and remove the series resistor (1) including
its support.

1

1

K1 01 099

K1 01 130

4

1

2

3

K1 01 096

1

©

 200346

4-17

Removal and installation

CAB HEATING

ΧΦ65/75/85 series

1

3

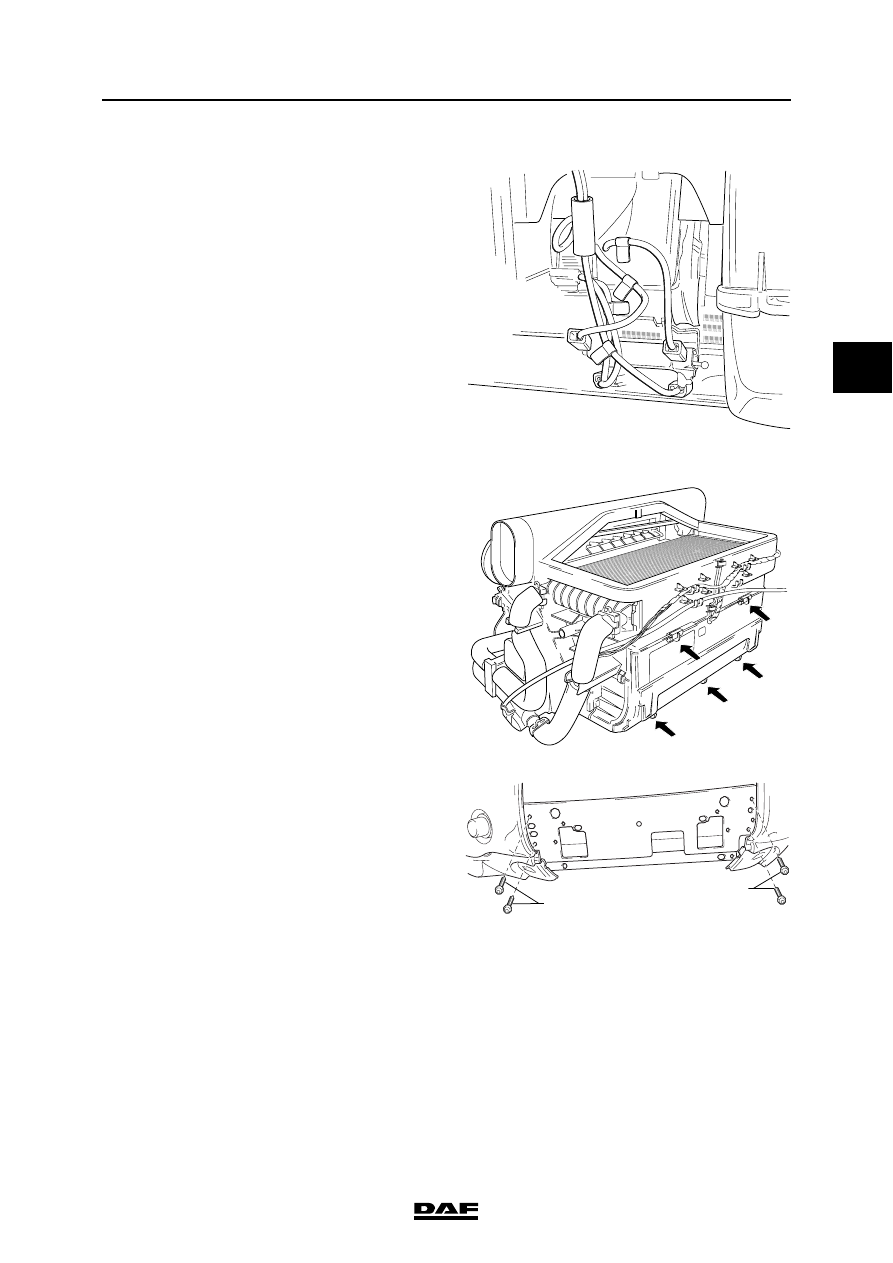

Installing series resistor
1.

Push the series resistor into place, including
its support.

2.

Fit the connectors. Note the markings or the
wire numbers.

3.

Slide the sliding sections to the left.

4.

Fit the steel connecting piece of both
dashboard frames and fasten it with the
attachment bolts (1)

5.

Fit the panel underneath the ashtray, the
ashtray and the ashtray holder.

6.

Fit the control panel on the central console.

7.

Fit the storage tray on the engine tunnel.

4

1

2

3

K1 01 142

K1 01 130

1

1

K1 01 099

CAB HEATING

4-18

©

 200346

Removal and installation

3

ΧΦ65/75/85 series

1
