2. GEARBOX

2.1 GENERAL

Allison gearbox
The oil level when cold must be on the "Cold full"

mark.

Dipstick readings:

HOT

FULL

COLD

FULL

HOT

ADD

COLD

ADD

W 3 03 099

"Cold add"

add when cold

"Cold full"

full when cold

"Hot add"

add when hot

"Hot full"

full when hot

TECHNICAL DATA

2-2

©

 200423

Gearbox

0

ΧΦ75 series

2.2 TIGHTENING TORQUES

The tightening torques specified in this paragraph

are different from the standard tightening torques

cited in the overview of the standard tightening

torques. The other threaded connections not

specified must therefore be tightened to the

torque cited in the overview of standard

tightening torques.

When attachment bolts and nuts are replaced, it

is important - unless stated otherwise - that these

bolts and nuts are of exactly the same length and

property class as those removed.

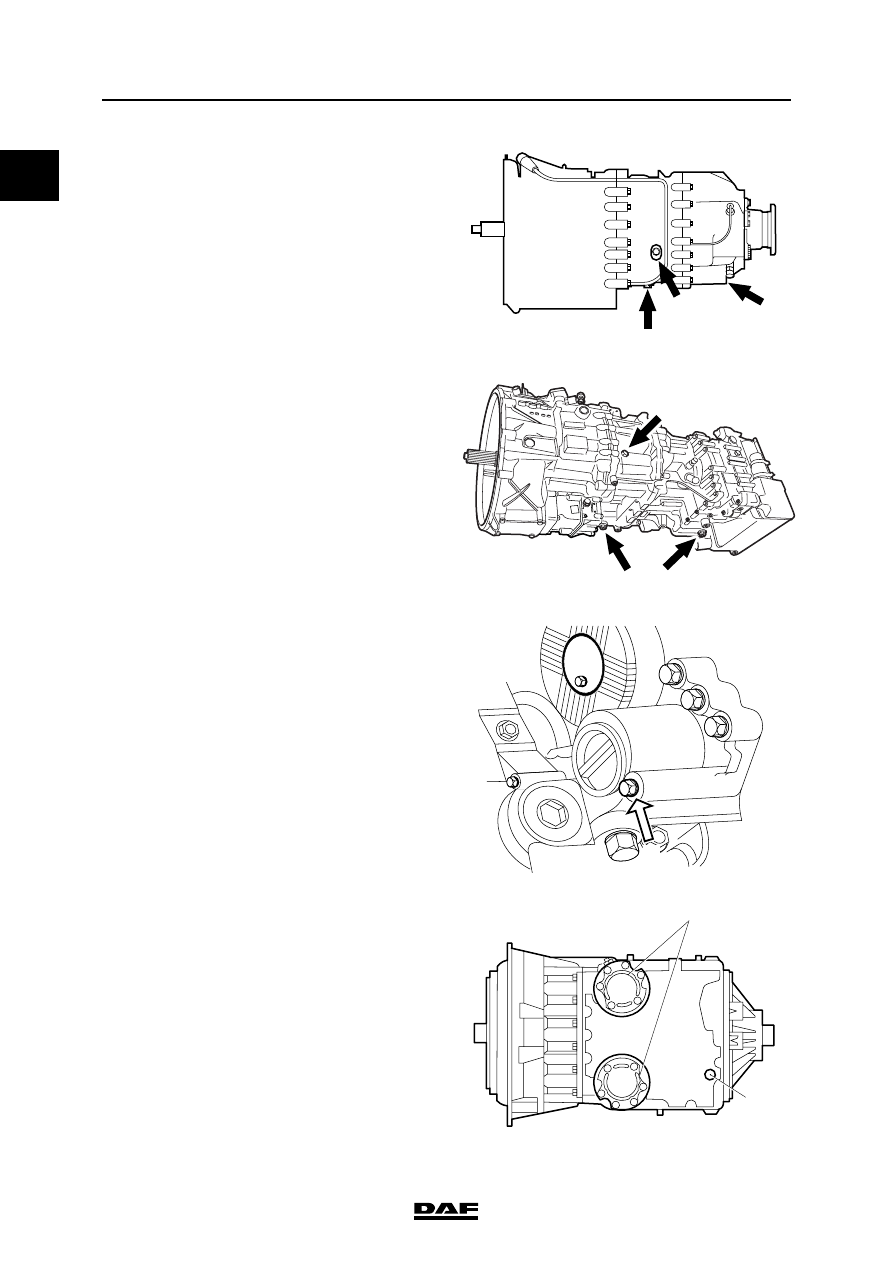

ZF 8/16S-151 gearbox

Gearbox ZF 8/16S-151 with integrated retarder

M3023

D

A

B

C

Level check/filler plug (A)

60 Nm

Drain plug (B)

60 Nm

Drain plug (C/D)

60 Nm

B

C

V300186

D

Drain plug (D)

60 Nm

©

 200423

2-3

Gearbox

TECHNICAL DATA

ΧΦ75 series

0

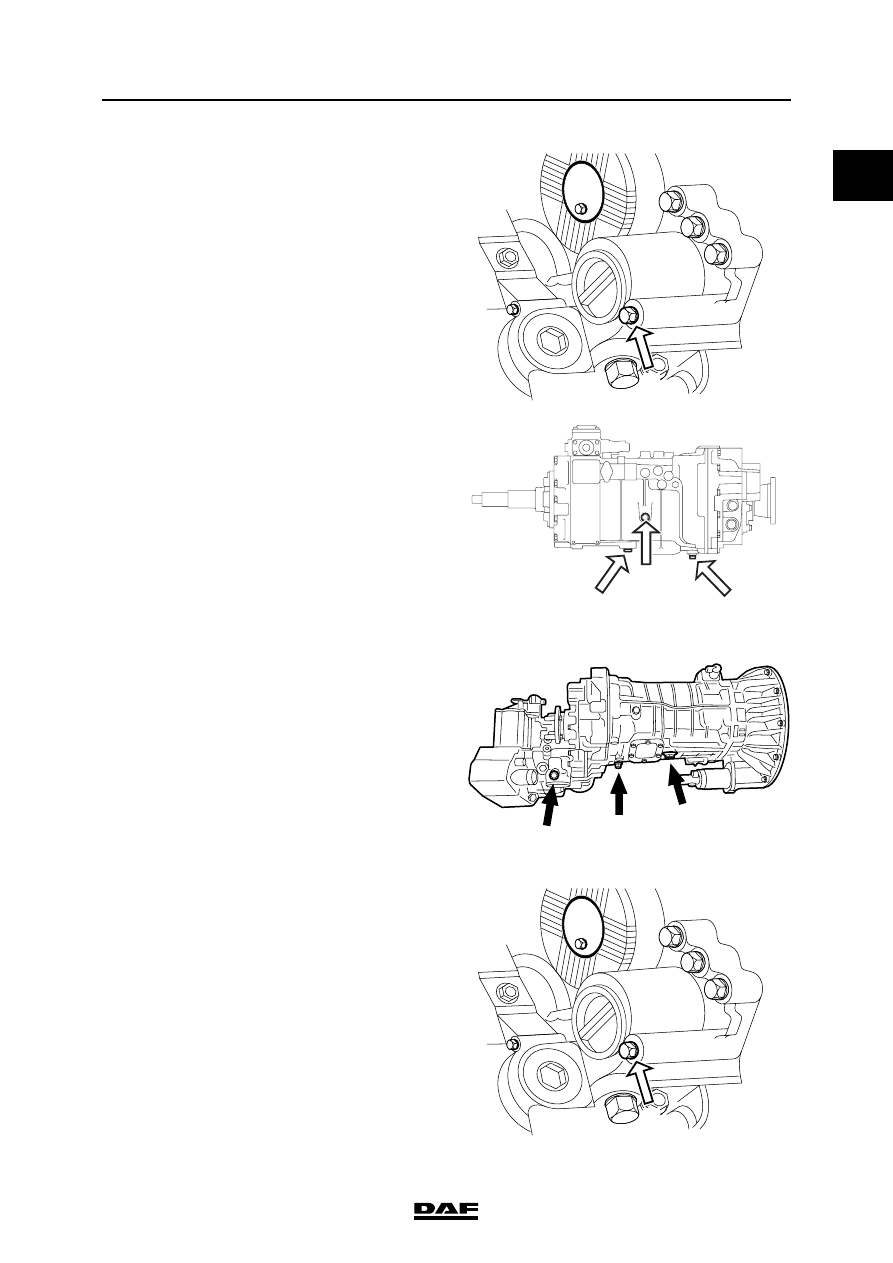

ZF 8/9/16S-109 gearbox

Gearbox ZF 8/9/16S-109 with integrated

retarder

M3052

1

Oil filter attachment bolt (1)

23 Nm

M3017

B

B

A

Level check/filler plug (A)

60 Nm

M24 drain plug (B)

60 Nm

M38 drain plug (B)

120 Nm

V300373

B

B

C

Drain plug (C)

60 Nm

M3052

1

Oil filter attachment bolt (1)

23 Nm

TECHNICAL DATA

2-4

©

 200423

Gearbox

0

ΧΦ75 series

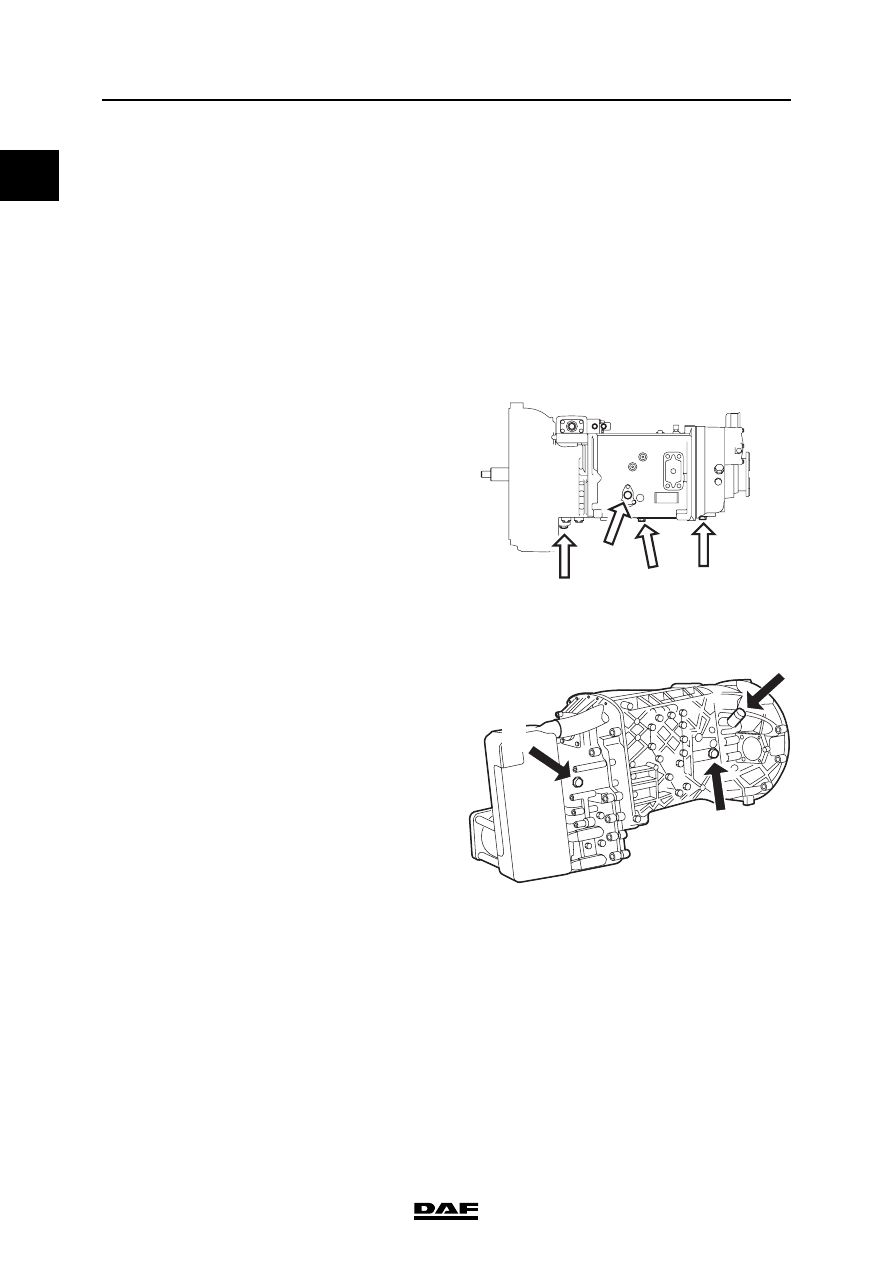

ZF AS Tronic

ZF AS Tronic with integrated retarder

Allison gearbox

B

A

C

G000243

Level check/filler plug (A)

60 Nm

Drain plug (B/C)

60 Nm

A

B C

G000250

Drain plug (C)

60 Nm

M3052

1

Oil filter attachment bolt (1)

23 Nm

V300371

2

1

Drain plug (1)

28 Nm

Attachment bolts of oil

filters (2)

55 Nm
