DAF CF65, CF75, CF85 Series . Manual - part 1071

©

 200424

5-9

Disassembly and assembly

HYDRAULIC LIFTING GEAR

ΧΦ65/75/85 series

8

9

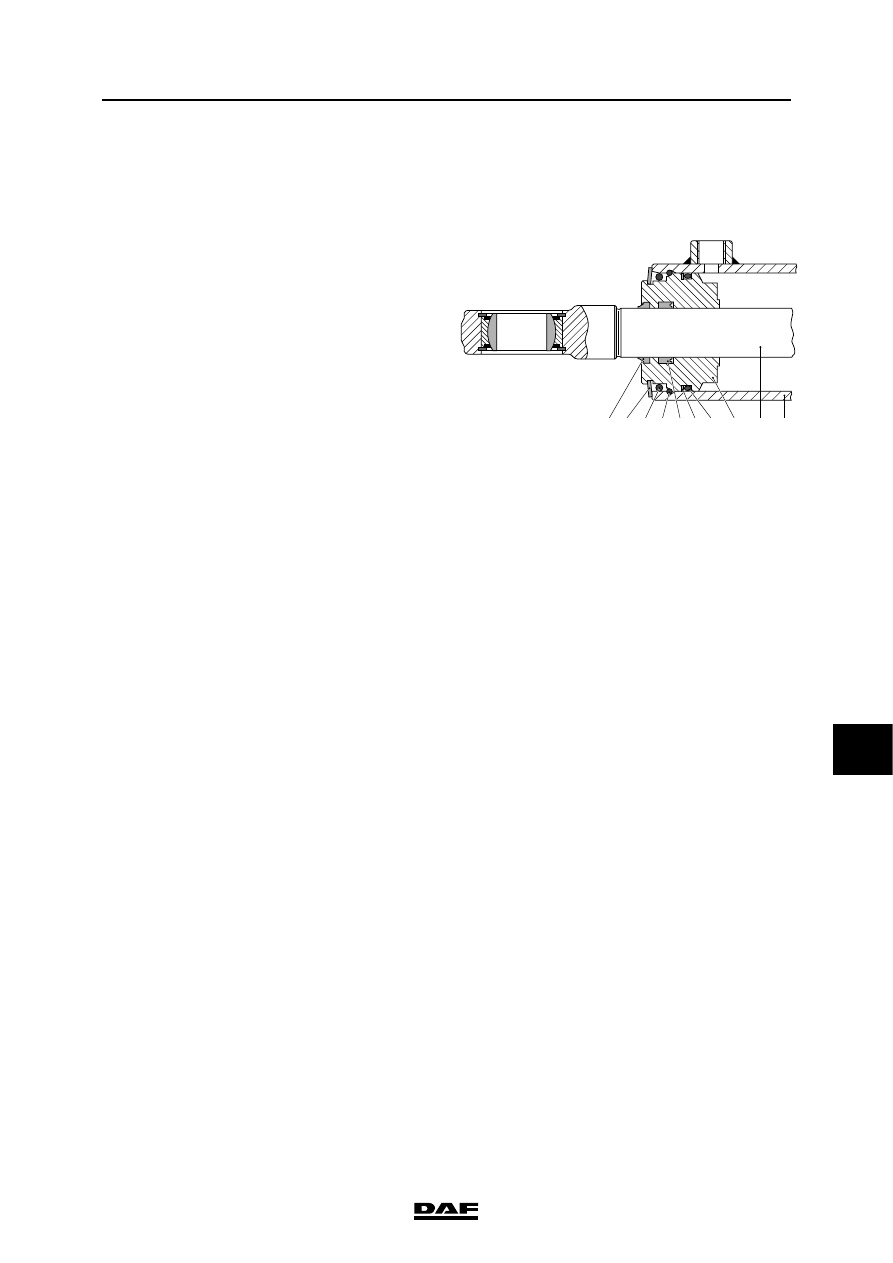

19. Fit the spring clip (6) into the cylinder. Make

sure that the entire circlip is positioned

correctly in the groove.

20. Pull back the piston-rod guide (10) using the

piston rod, until the piston-rod guide is in

contact with the spring clip (6).

21. Install the O-ring (5).

22. Install the circlip (4). Make sure that the

entire circlip is positioned correctly in the

groove.

23. Install one of the circlips (1) and press a new

bearing (2) into the eye.

24. Install the second circlip (1).

25. Check the cylinder for internal and external

leakage, see chapter "Inspection and

adjusting".

11 12

3 4 5 6

8 9

A

10

7

A8 00 285

HYDRAULIC LIFTING GEAR

5-10

©

 200424

Disassembly and assembly

9

ΧΦ65/75/85 series

8

©

 200424

6-1

Draining and filling

HYDRAULIC LIFTING GEAR

ΧΦ65/75/85 series

8

9

6. DRAINING AND FILLING

6.1 FILLING THE HYDRAULIC LIFTING GEAR

1.

Make sure that the trailing axle wheels are

fully lowered and on the ground.

2.

Fill the reservoir with the specified oil up to

the "max." level mark.

3.

Lift the trailing axle and top up oil to the

"min." level mark, if necessary.

4.

Lower the trailing axle and, once again,

check the level. Top up oil to the "max." level

mark, if necessary.
