 200424

3-3

Removal and installation

SINGLE REAR AXLE 1347

ΧΦ65/75/85 series

8

4

Installing axle shafts
1.

Clean the mating surfaces of the axle shaft

flange and wheel hub unit.

2.

Apply sealant to the mating surface of the

axle shaft flange. See "Technical data".

3.

Fit the axle shaft. Tighten the axle shaft

attachment bolts to the specified tightening

torque, see "Technical data".

4.

Activate the differential lock and remove the

special tool from the differential lock. Install

the switch.

SINGLE REAR AXLE 1347

3-4

©

 200424

Removal and installation

4

ΧΦ65/75/85 series

8

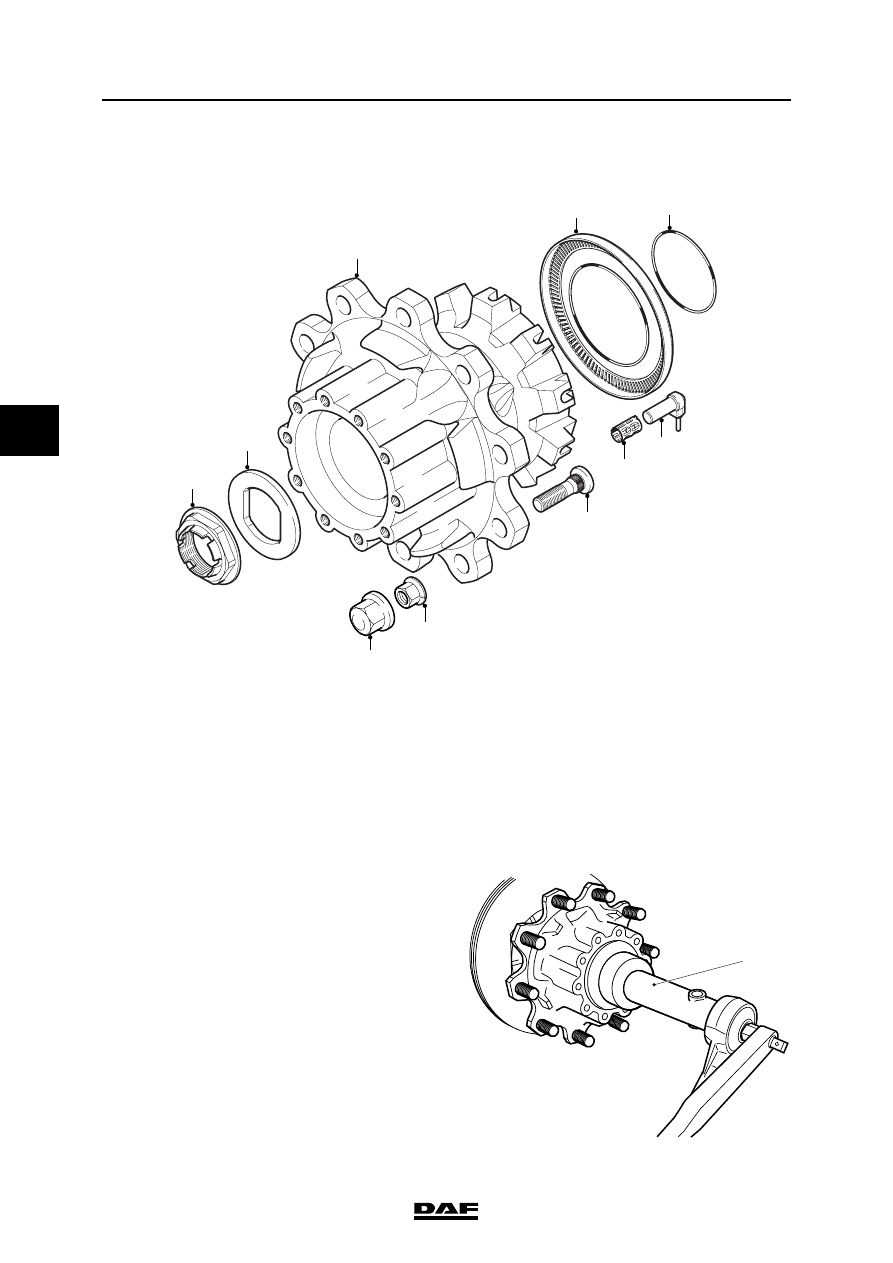

3.3 REMOVAL AND INSTALLATION, WHEEL HUB UNIT

Removing the wheel hub unit
1.

Jack up the rear axle and support the axle on

stands.

2.

Remove the wheels.

3.

Remove the brake calliper.

4.

Remove the axle shaft.

5.

Remove the hub nut (1) using the hub nut

wrench (A), which is part of the special tool

set (DAF no. 1329496). Loosen the hub nut

(1), using a torque amplifier to do so.

6.

Remove the thrust washer (2).

1

2

3

4

5

8

6

7

9

10

A8 00 348

A

A8 00 405

©

 200424

3-5

Removal and installation

SINGLE REAR AXLE 1347

ΧΦ65/75/85 series

8

4

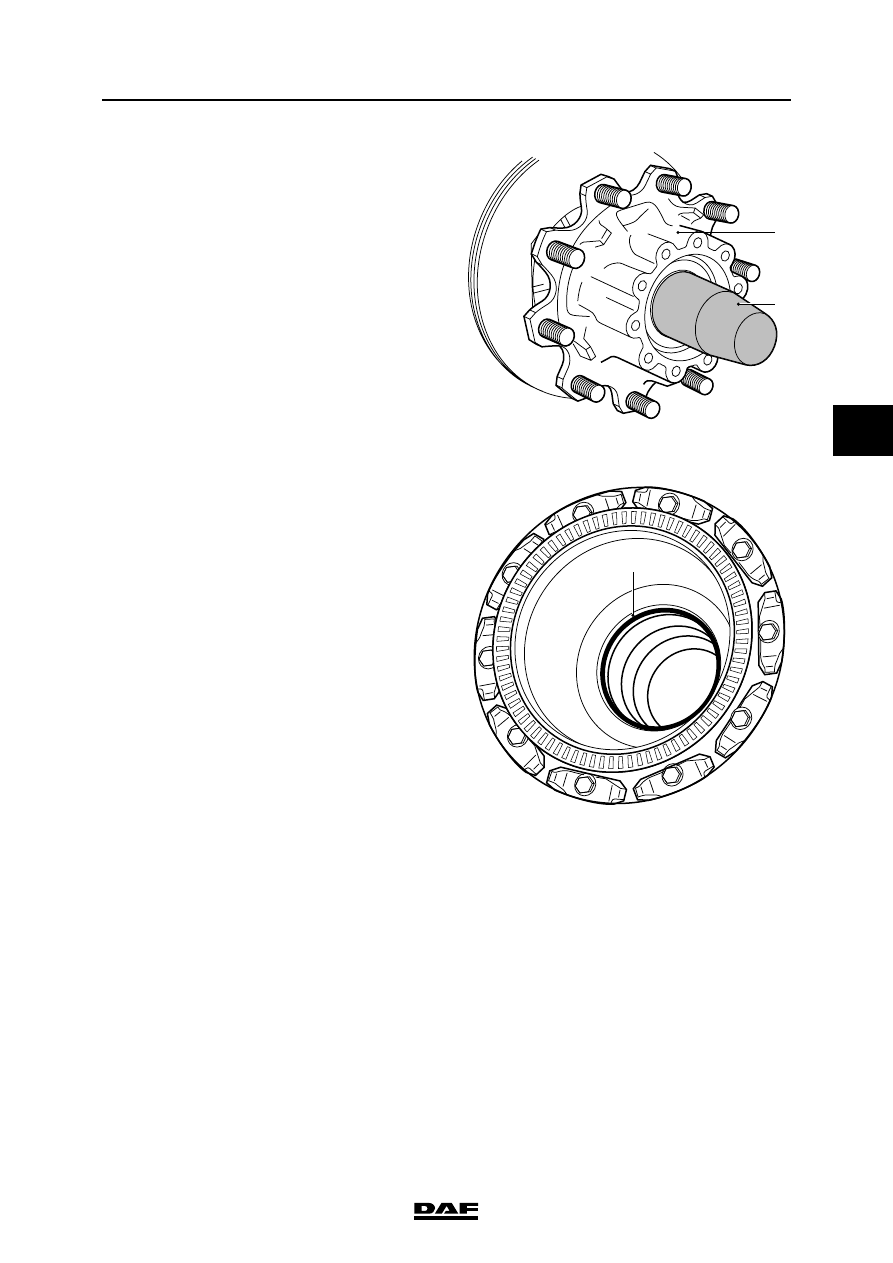

7.

Install the guide sleeve (A), which is part of

the special tool set (DAF no. 1329496), on

the axle journal.

8.

Attach the wheel hub unit (3) securely to a

movable lifting device.

9.

Slide the wheel hub unit (3) from the axle

journal using the lifting device.

10. Take care that the wheel hub unit (3) does

not rest on the guide bush (A) as the latter is

not strong enough to take the weight of the

wheel hub unit (3).

Installing the wheel hub
1.

Check the wheel speed sensor and the oil

seals in the wheel hub unit (3) for damage.

2.

Check the axle journal thread carefully for

damage.

You must never fit a wheel hub on an

axle journal with a damaged thread.

3.

Fit the O-ring (5) into the wheel hub unit.

3

A

A8 00 345

5

A8 00 350

}

SINGLE REAR AXLE 1347

3-6

©

 200424

Removal and installation

4

ΧΦ65/75/85 series

8

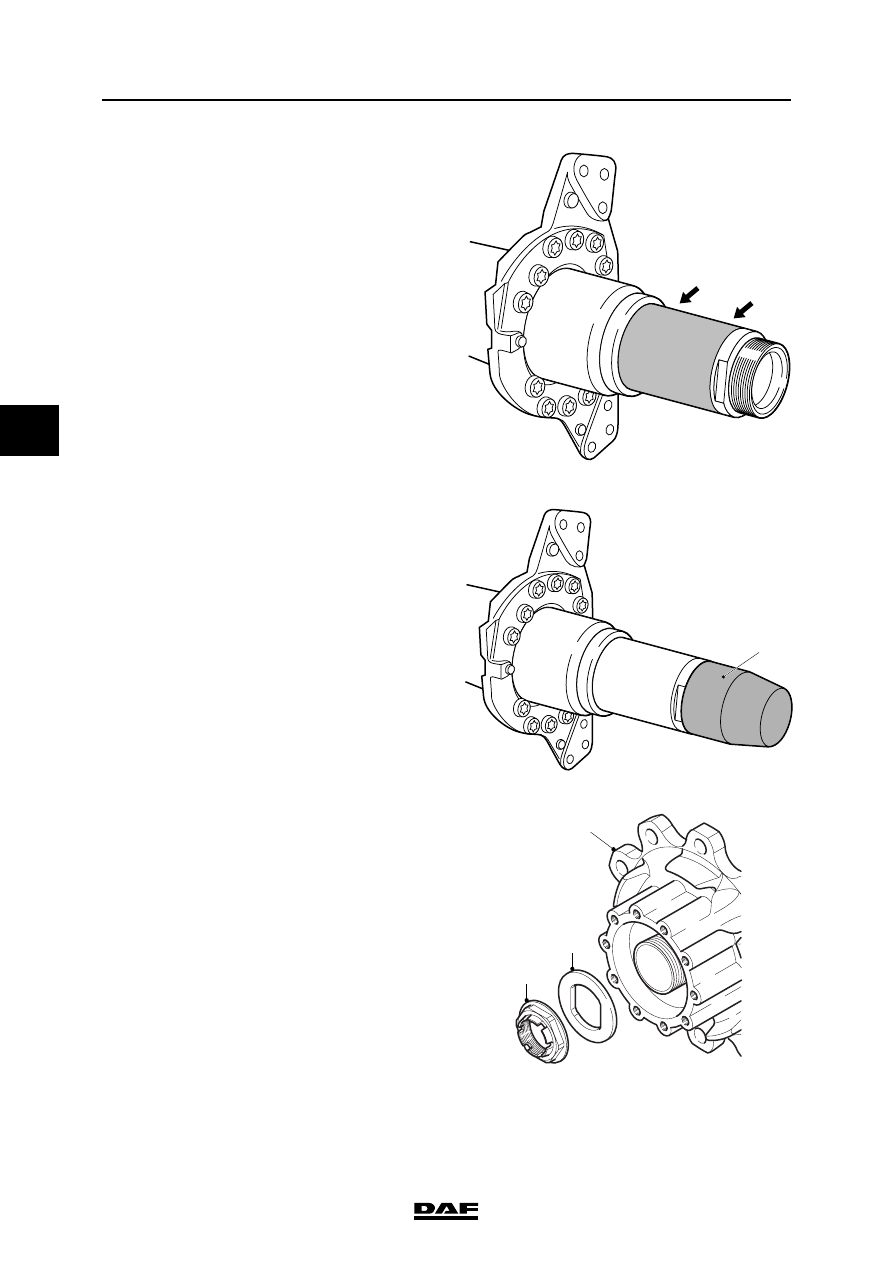

4.

Apply a thin and even layer of the prescribed

lubricant to the axle journal, see "Technical

data".

Note:

Do not overlubricate the axle journal. While

fitting the wheel hub unit, the excess grease

will collect at the backside of the wheel hub.

When the vehicle is used in daily operation,

this anti-corrosion agent can leak out so that

it looks as if the oil seal leaks.

5.

Install the guide sleeve (A), which is part of

the special tool set (DAF no. 1329496), on

the axle journal.

6.

Attach the wheel hub unit (3) securely to a

movable lifting device.

7.

Position the wheel hub unit (3) exactly in

front of the axle journal using the movable

lifting device. Slide the wheel hub unit (3) on

the axle journal.

Take care that the wheel hub unit (3) does

not rest on the guide bush as the latter is not

strong enough to take the weight of the

wheel hub unit (3).

8.

Fit the thrust washer (2).

9.

Replace the hub nut (1). Apply a few drops of

oil to the abutting surface of the hub nut (1).

Fit the hub nut (1).

A8 00 344

A

A8 00 343

1

2

3

A8 00 356
