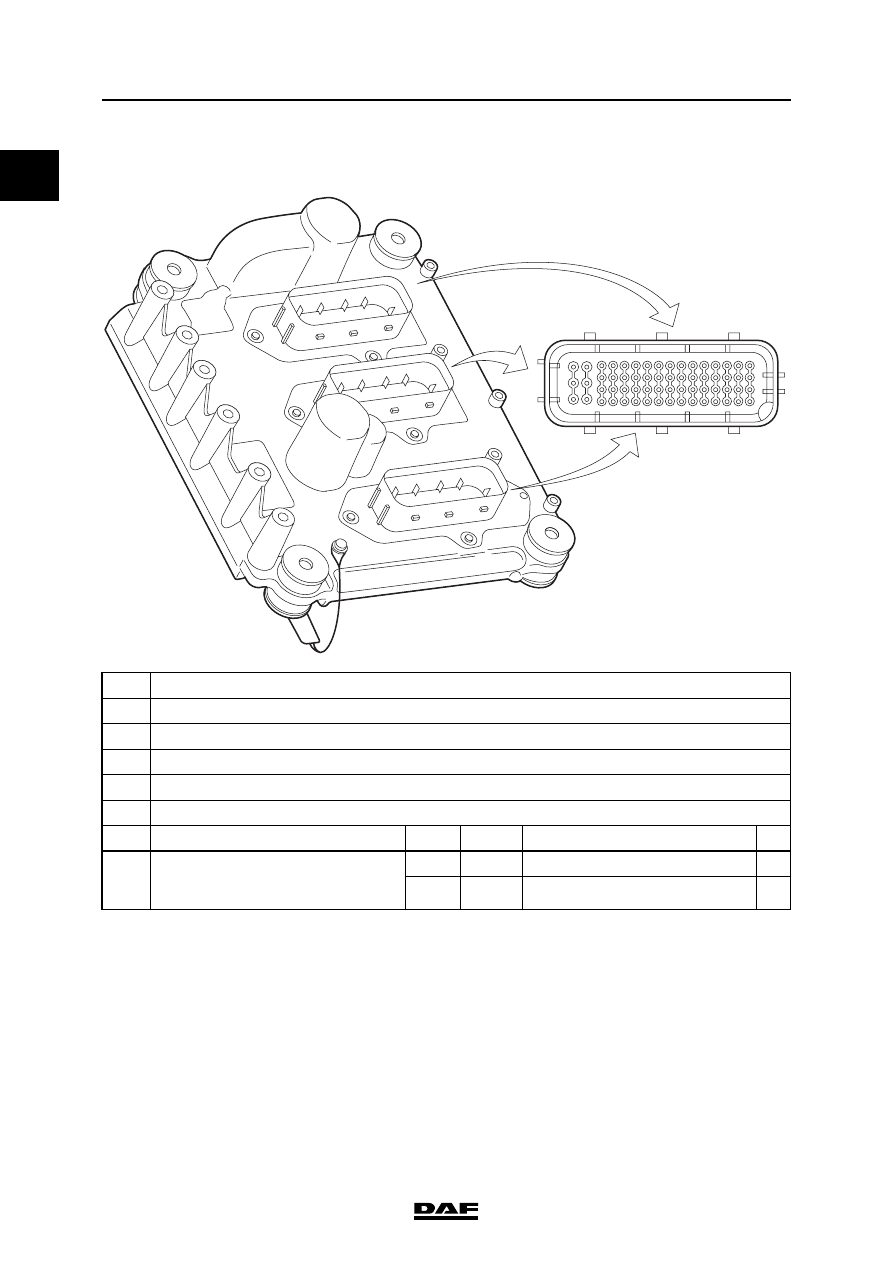

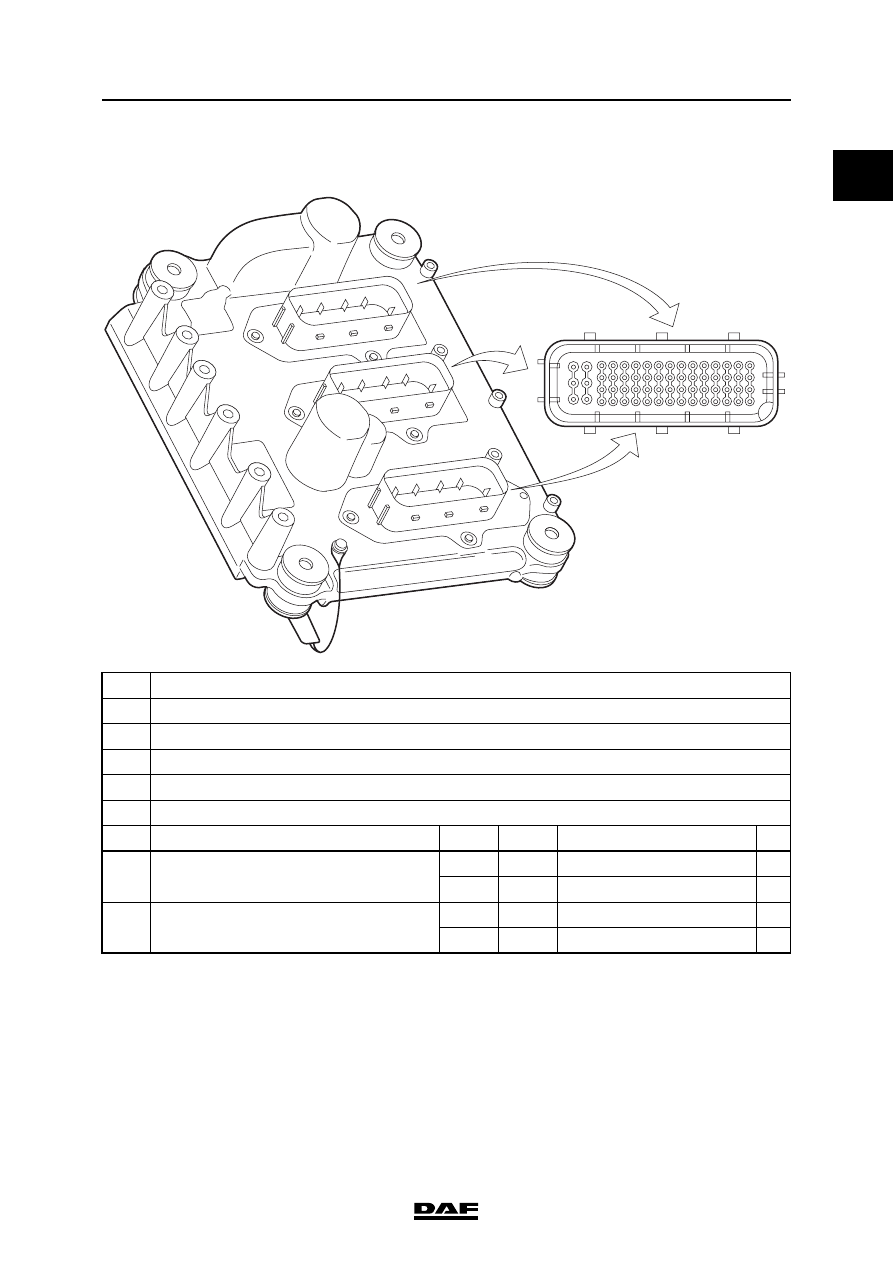

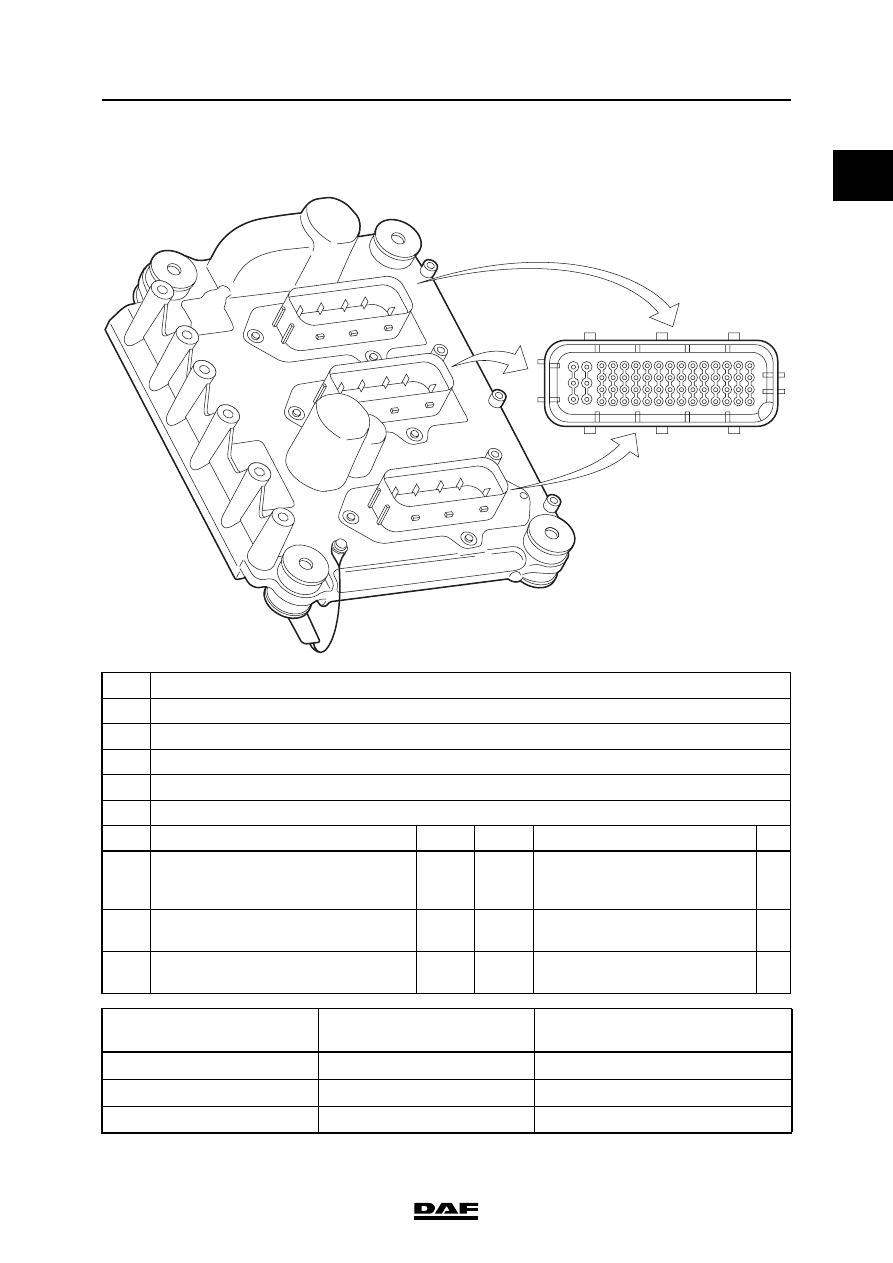

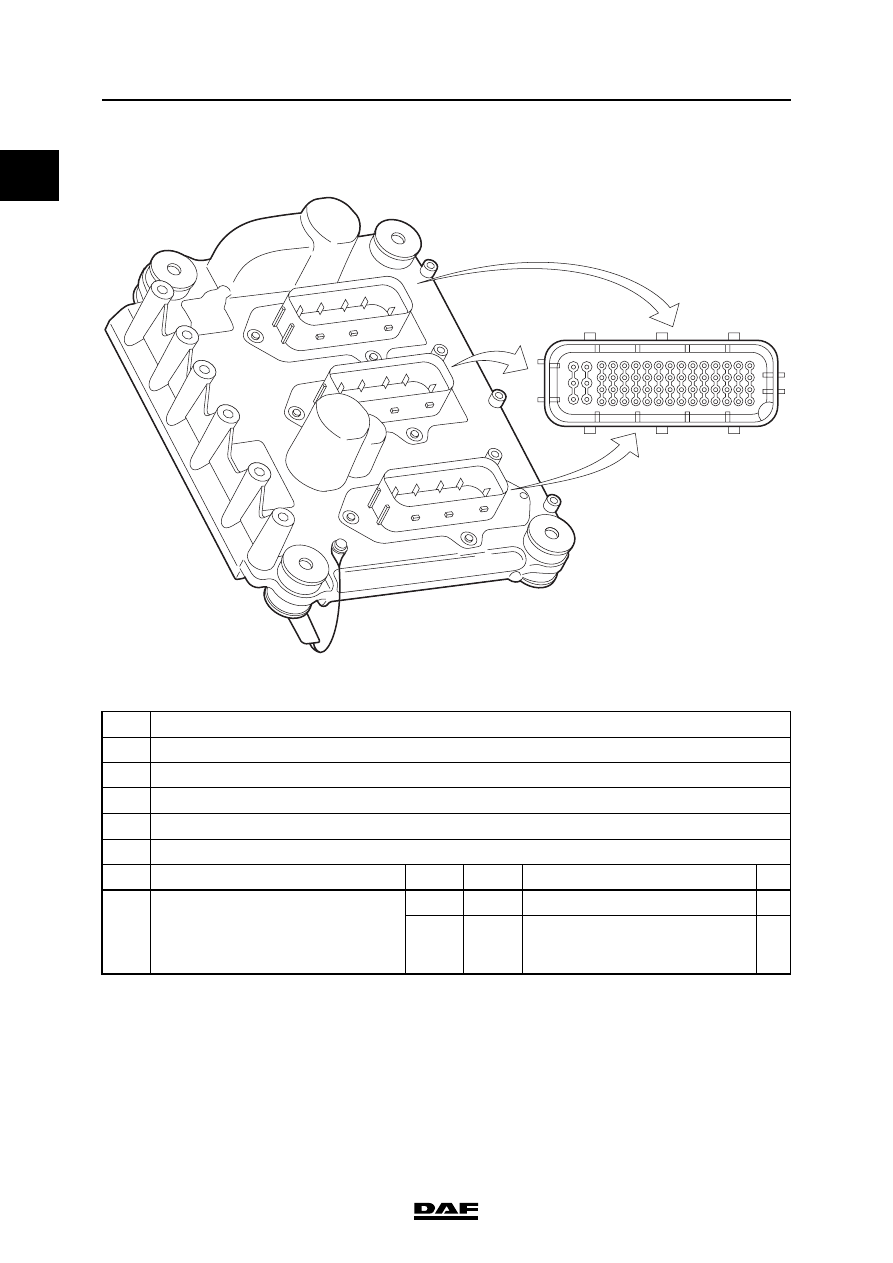

0 © 200528 1-25 DMCI engine management system TECHNICAL DATA XF105 series 1.13 SWITCHES (MANUAL GEARBOX) Clutch switch Neutral position switch A C B i400726 1 4 5 9 13 17 21 25 29 33 37 41 45 49 53 57 60 62 A Electronic unit connection point B Description of connection point C Reading at connection point (Ubat = battery voltage) D Measuring unit E Explanatory notes (if applicable) F Additional information available in Technical Data at "X" mark A B C D E F B36 Input signal clutch switch (E575) 0 V DC Clutch pedal not depressed Ubat V DC Clutch pedal fully depressed B40 Input signal neutral position switch (E593) Ubat V DC Gearbox in neutral: 0 V DC Gear box in gear Model Hall proximity switch Model Normally Open |
