DAF 95XF. Manual - part 419

4

XE ENGINE FUEL SYSTEM

Removal and installation

95

XF series

4-10

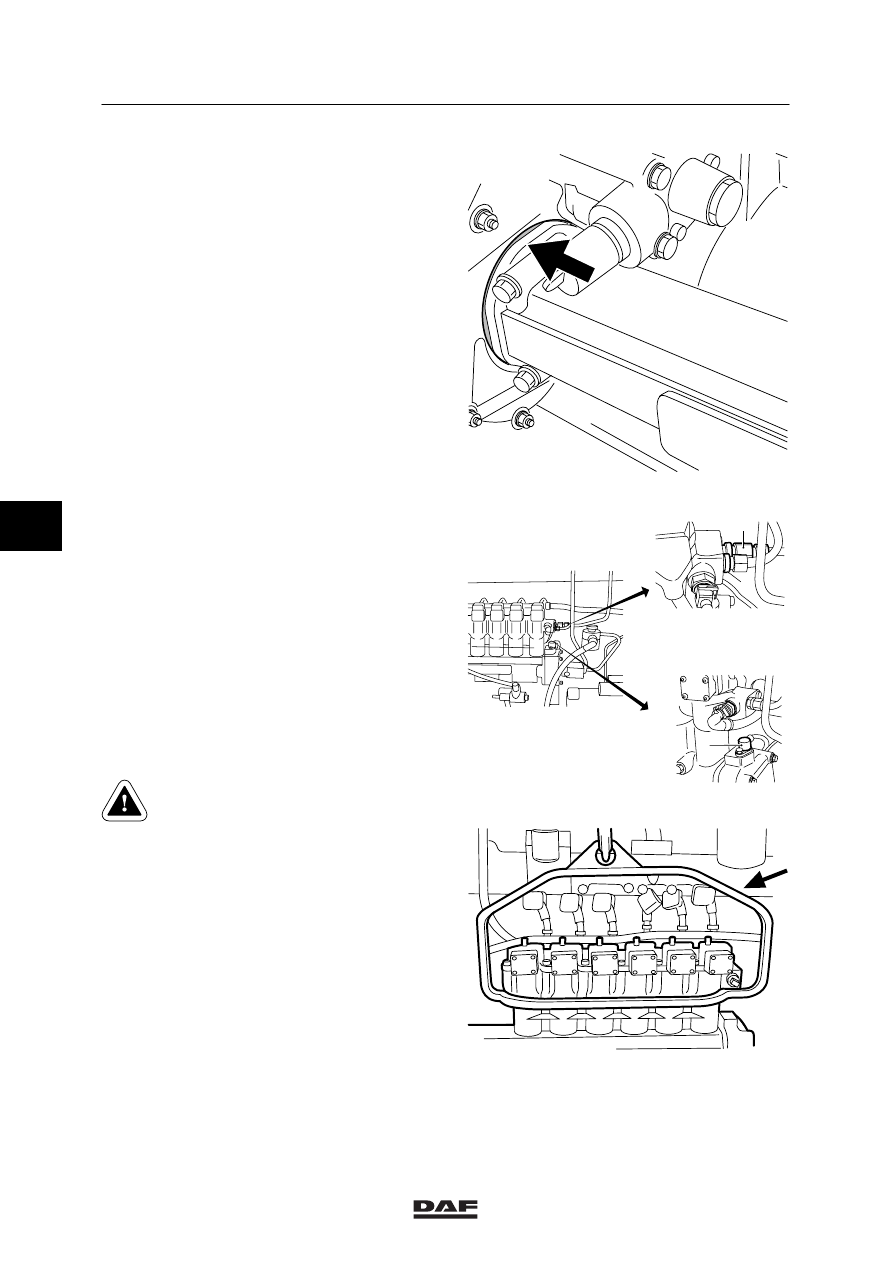

6.

Remove the timing-gear case sealing ring
by tapping it from the timing-gear case in
the driving direction.

7.

Remove the electrical connections on the
pump units.

8.

Remove the fuel pipes on the pump
housing.

9.

Remove the pressure-reducing valve (3)
from the pump housing.

10. Allow the fuel to escape from the pump

housing.

11. Remove the fuel pipes on the fuel lift pump.

12. Remove the injection lines and plug the

pump units and injectors to prevent the
penetration of dirt.

13. Remove the connector of the fuel

temperature sensor (1).

14. Remove the camshaft position sensor (2).

Considering the weight of the pump
housing, use the special tool.

15. Install the lifting gear (DAF no. 1329391) on

the pump housing.

16. Remove the attachment bolts from the

pump housing and, using the lifting gear,
remove the pump housing from the dowel
pins on the engine block.

M200728

i 400253

3

4

2

1

i 400255

5

©

 0008

4

95

XF series

Removal and installation

XE ENGINE FUEL SYSTEM

4-11

Installing the pump housing
1.

Install the pump housing fitted with new
sealing rings, using the lifting gear
(DAF no. 1329391). Tighten the attachment
bolts to the specified tightening torque, see
main group “Technical data”.

2.

Fit the camshaft position sensor.

3.

Install the connector of the fuel temperature
sensor.

4.

Install the electrical connections on the
pump units.

5.

Fit the injection lines.

6.

Install the fuel pipes of the fuel lift pump.

7.

Install the pressure-relief valve on the pump
housing.

8.

Install the fuel pipes on the pump housing.

9.

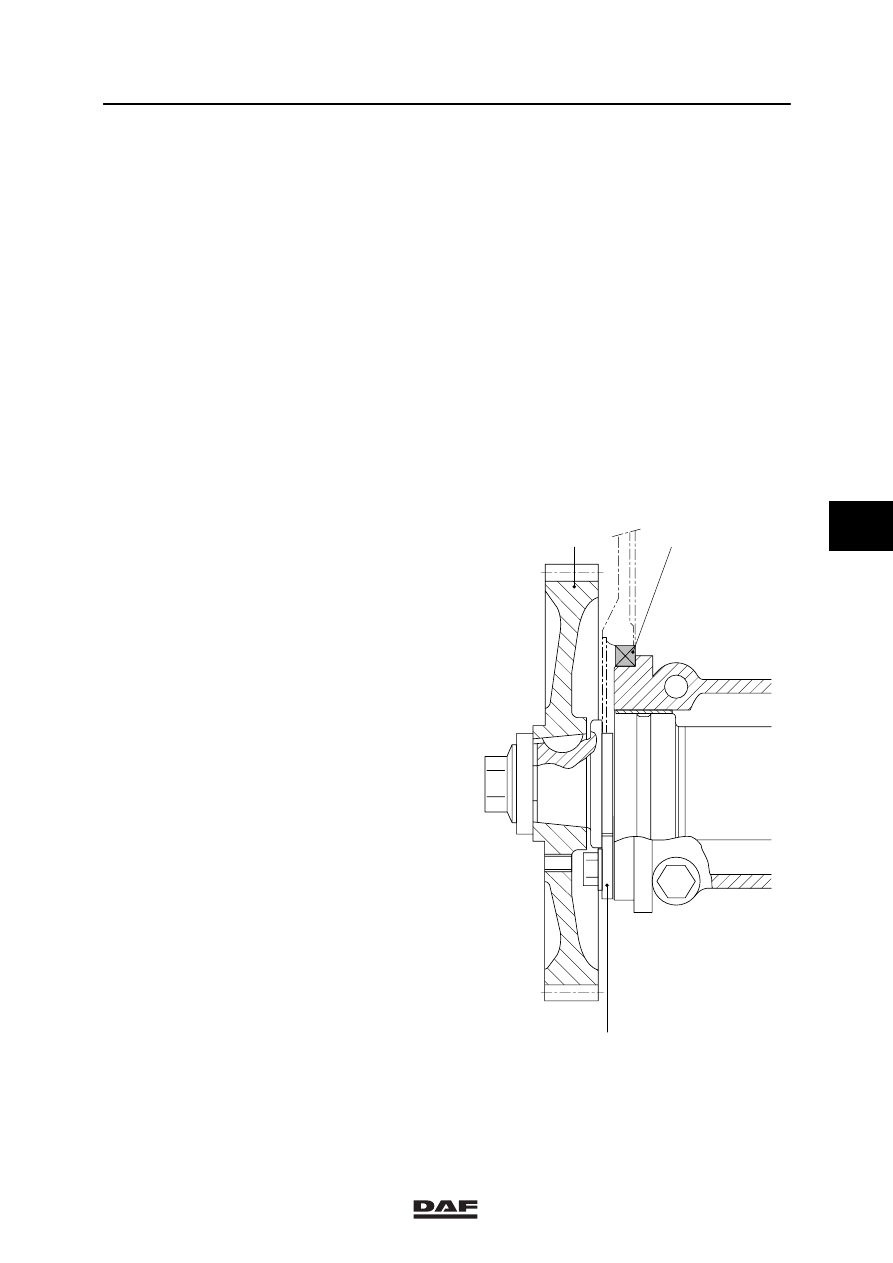

Install a dry new timing-gear case sealing
ring (6) using special tool
(DAF no. 1329318).

4

6

7

M200841

5

©

 0008

4

XE ENGINE FUEL SYSTEM

Removal and installation

95

XF series

4-12

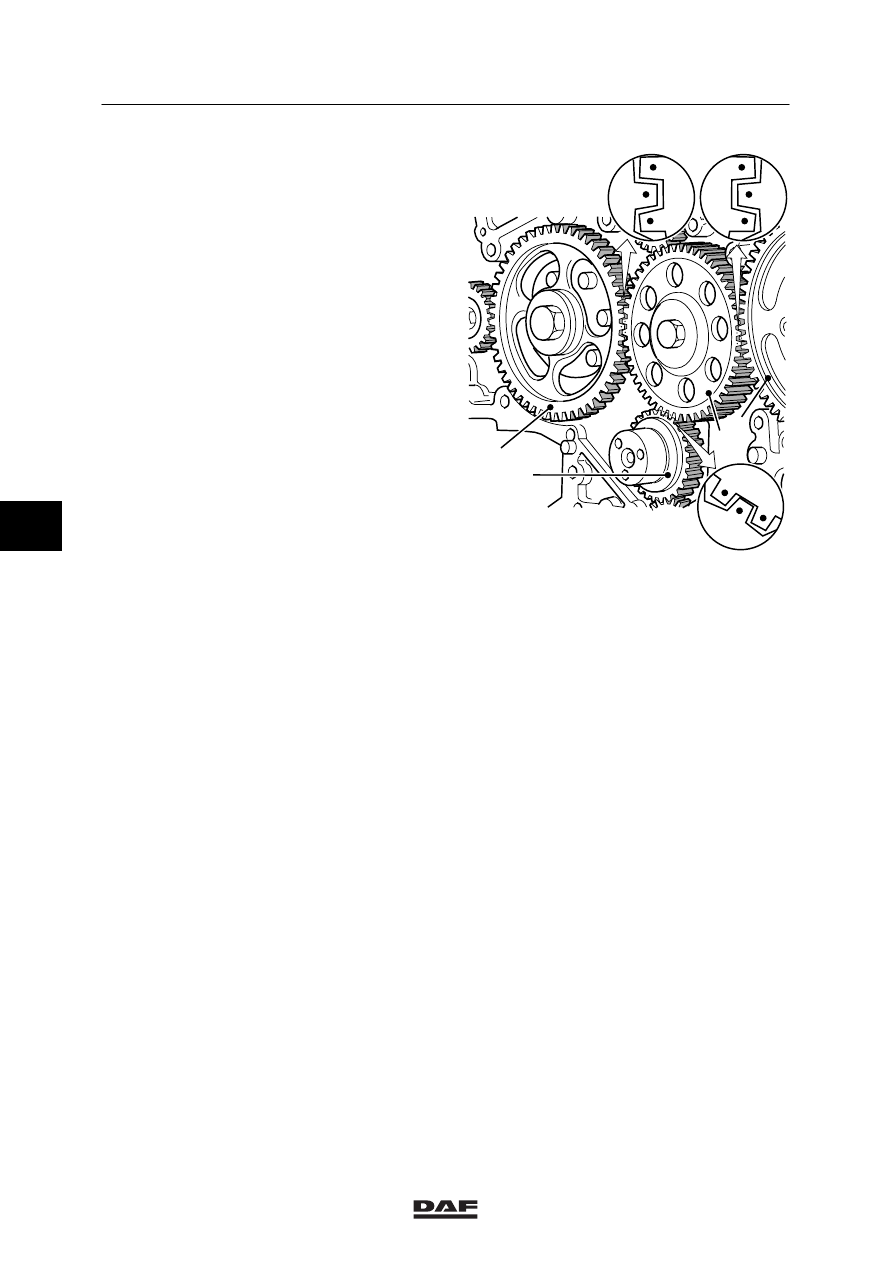

10. Check that cylinder 1 is in the top dead

centre (TDC on the flywheel, cylinder 6 in
rocking position).

11. Install the camshaft gear wheel (4) so that

the intermediate gear wheel (3) can be
installed in accordance with the marks.

12. Install the attachment bolts of the pump

housing camshaft gear wheel (4) and the
intermediate gear wheel (3) and tighten
them to the specified tightening torque, see
main group “Technical data”.

13. Install the timing-gear cover.

14. Bleed the fuel system, see chapter

“Inspection and adjustment”.

M200904

2

1

3

4

5

©

 0008

4

95

XF series

Removal and installation

XE ENGINE FUEL SYSTEM

4-13

4.7

REMOVAL AND INSTALLATION OF FUEL PIPES

1.

Cut off the pipe behind the nipple or banjo
union. Remove the section of pipe from the
nipple or banjo union, by heating. Never
remove the nipple or banjo union by making
an incision in the longitudinal direction of
the pipe. This could easily result in damage
to the hose adapter. Even minor damage to
the hose adapter will cause leakage.

2.

It is not permitted to fit a nipple or banjo
union to the same pipe end more than once.
If a nipple or banjo union were fitted to the
same pipe end more than once, this could
result in bad sealing.

3.

Cut off the pipe end if it has been used
before. If shortening the pipe results in a
sharp curve in the pipe or if it makes the
pipe too short, the pipe will have to be
extended or a new pipe will have to be
fitted.

4.

Always install nipples and banjo unions in
plastic pipes with the special tool
(DAF no. 0694829).

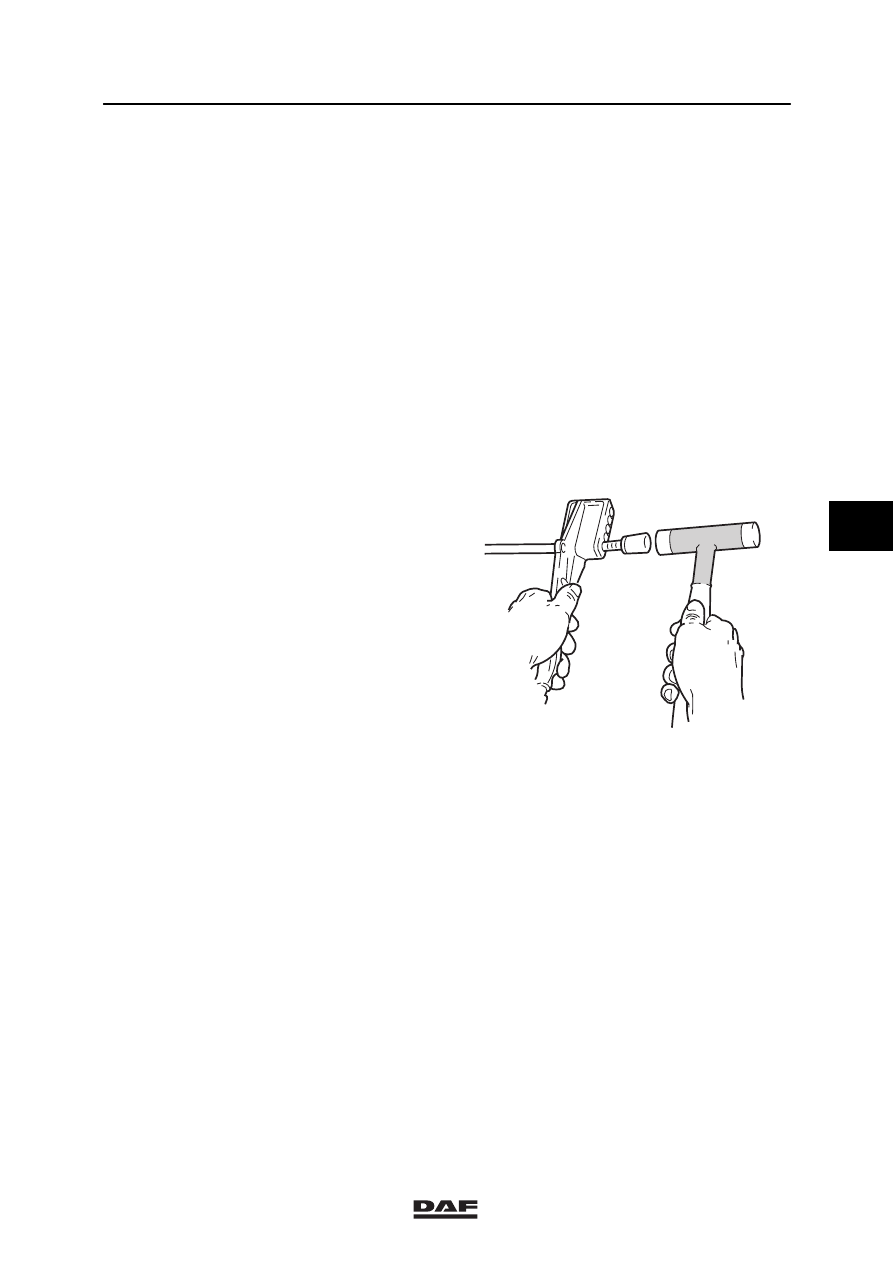

5.

Clamp the plastic pipe in the special tool.

6.

Note:
Never heat a plastic pipe when fitting
nipples or banjo unions.

Use a plastic mallet to tap the nipple or
banjo union into the pipe.

W602009

5

©
