DAF 95XF. Manual - part 404

4

XF ENGINE BRAKE

Safety instructions

95

XF series

1-2

4

©

 0008

4

95

XF series

General

XF ENGINE BRAKE

2-1

2.  GENERAL

2.1

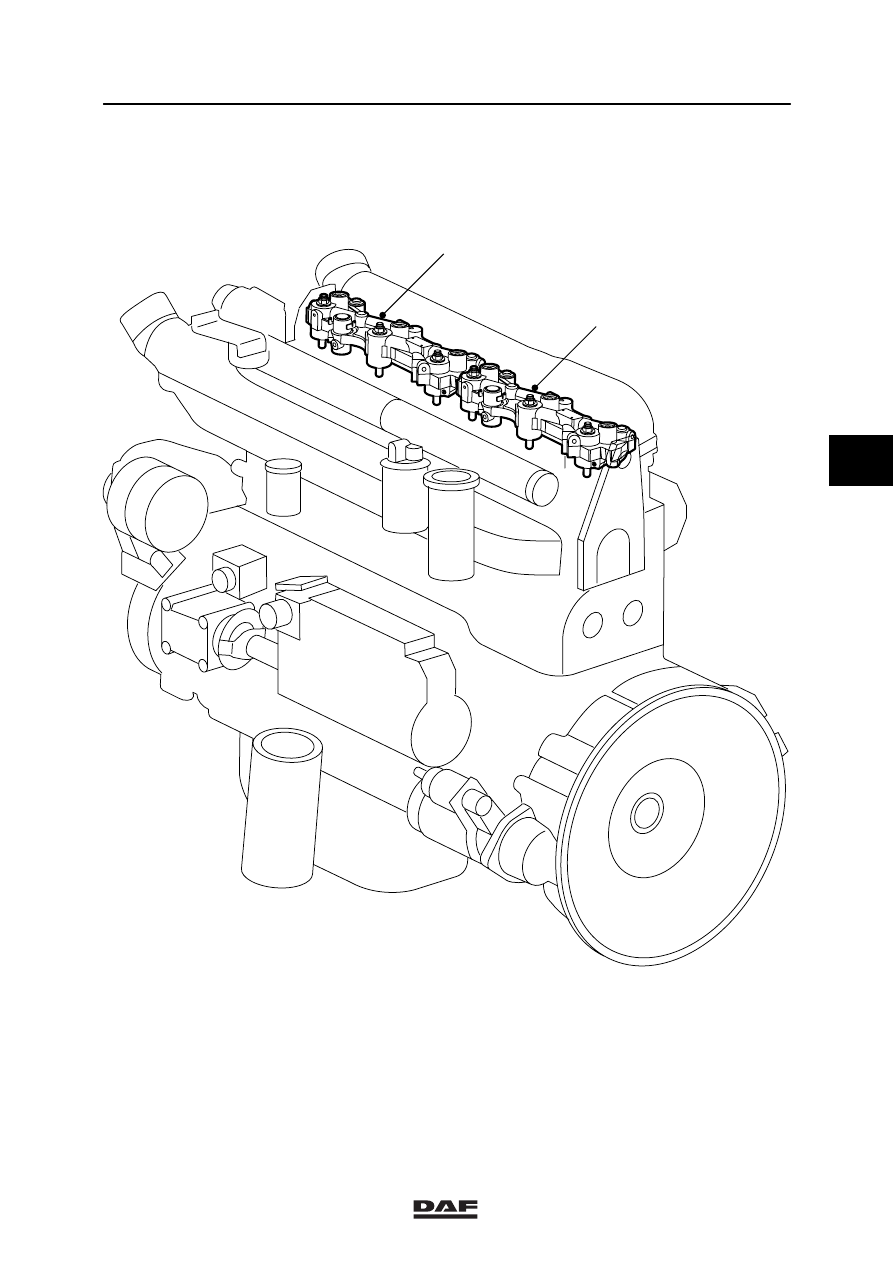

LOCATION OF DEB COMPONENTS

i 400205

1

2

1.

DEB housing, cylinders 1 - 2 - 3

2.

DEB housing, cylinders 4 - 5 - 6

4

©

 0008

4

XF ENGINE BRAKE

General

95

XF series

2-2

2.2

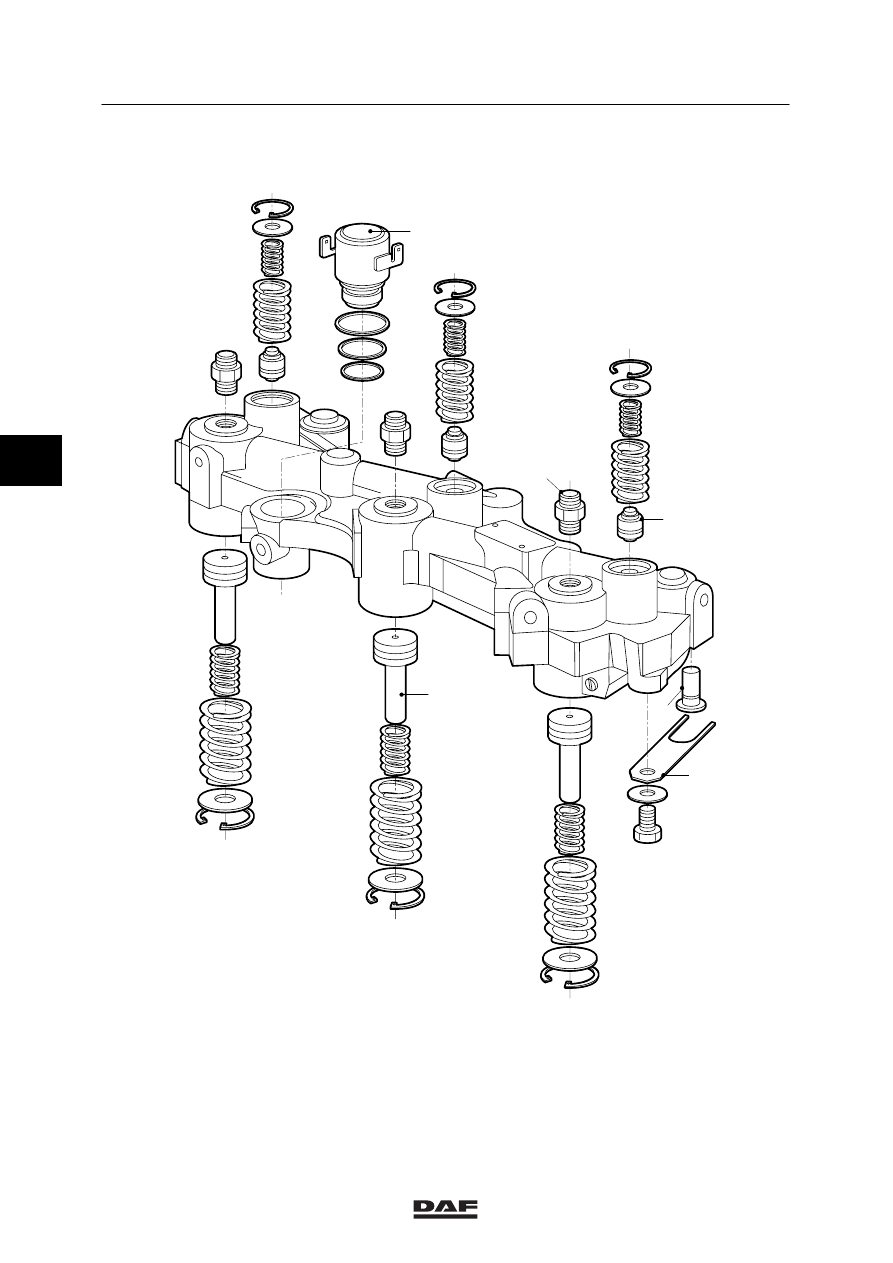

OVERVIEW DRAWING DEB

1

2

4

5

3

6

i 400167

1.

Magnetic valve

2.

Control valve

3.

Operating piston

4.

Main piston

5.

Spring plate

6.

Set screw

4

©

 0008

4

95

XF series

General

XF ENGINE BRAKE

2-3

2.3

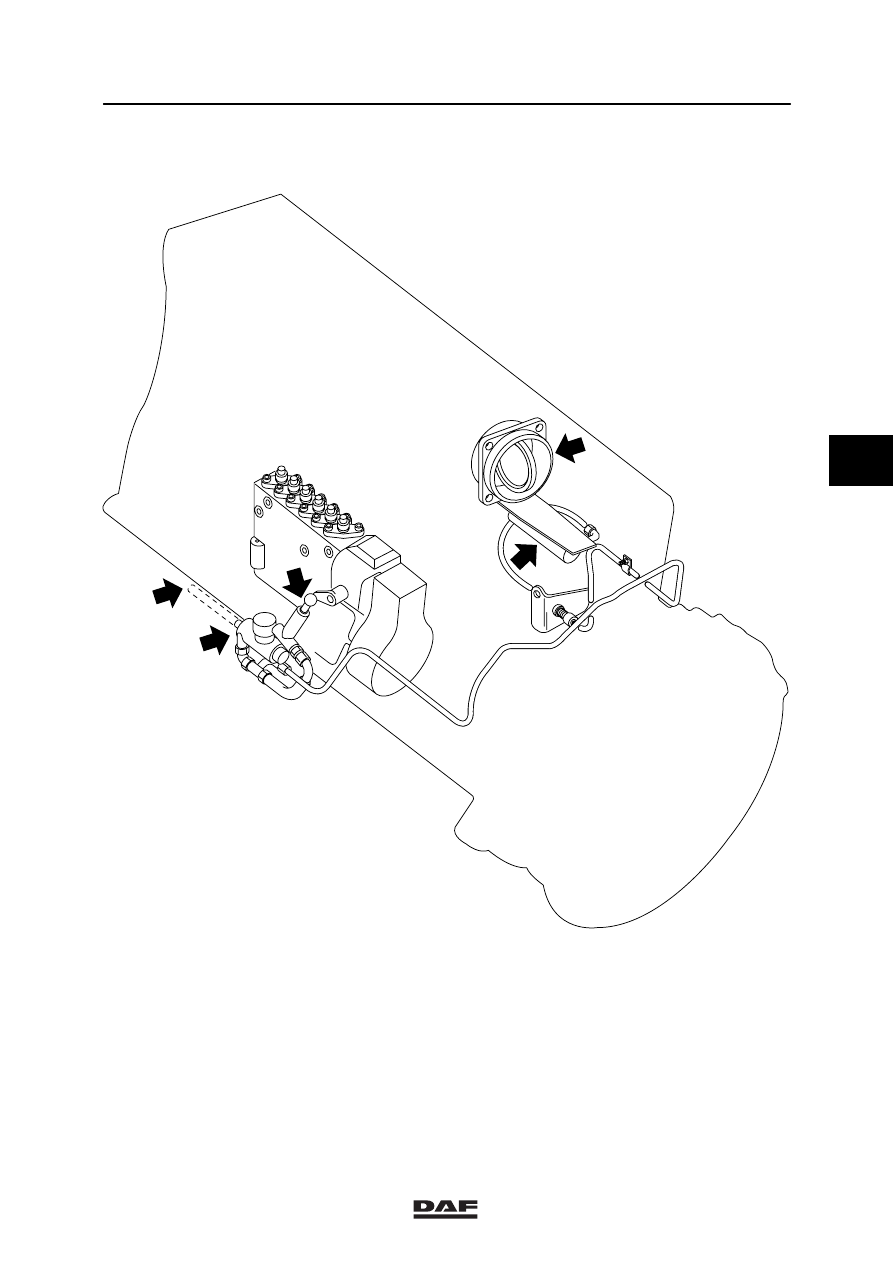

LOCATION OF EXHAUST BRAKE COMPONENTS

i 400185

4

3

1

5

2

1.

Engine stop operating cylinder

2.

Butterfly valve operating cylinder

3.

Engine stop valve

4.

Supply pressure

5.

Butterfly valve housing

4

©
