Removal and installation

BRAKE COMPONENTS

2-27

2.11 REMOVAL AND INSTALLATION, BRAKE-CAMSHAFT BEARING

Removal of the brake-camshaft bearing
1.

Remove the brake camshaft.

2.

Remove the oil seals from the spring-brake
cylinder bracket. These must always be
replaced.

3.

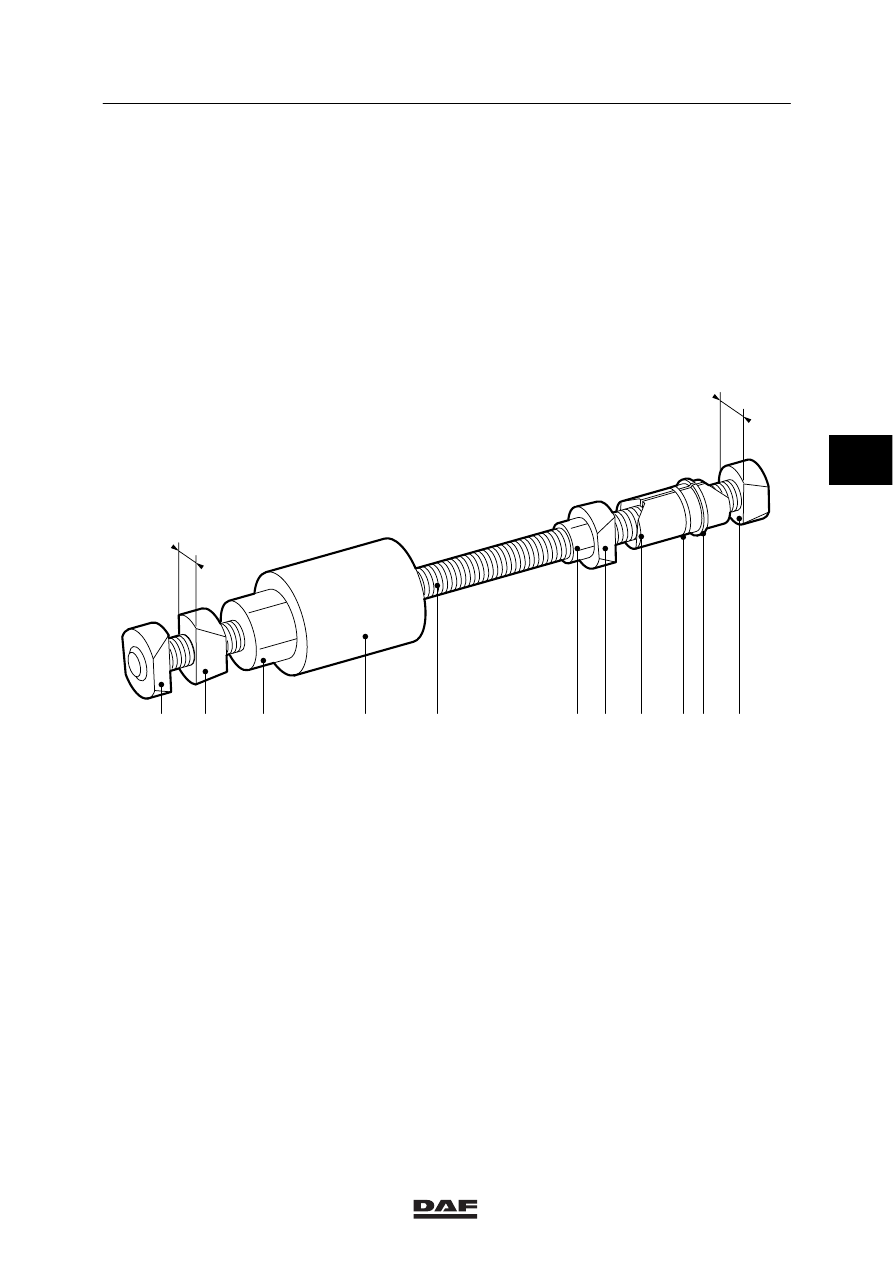

To remove the brake camshaft use the
special tool (DAF no. 0694794). Determine
the correct set of wedges for each bearing
bush, and fit them on the puller.

R600153

7

A1

7

6

5

8

4

1

2

3 a

1

A2

A1<A2

4.

Move loose wedge (1) back so that the
halves of pulling piece (2), which are kept
together by the O-ring, are joined.

4

ǹ 0006

6

BRAKE COMPONENTS

Removal and installation

2-28

5.

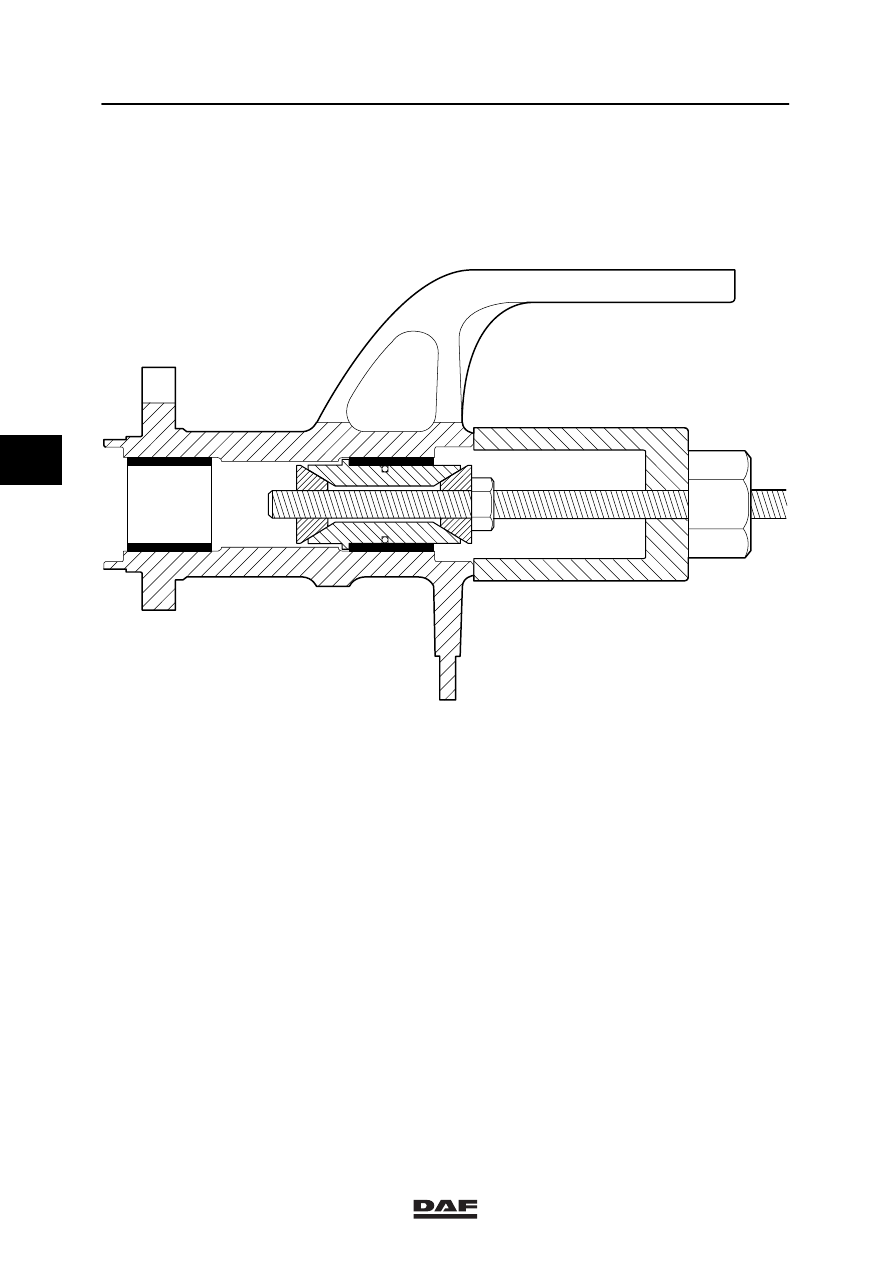

Place the puller in the spring-brake cylinder
bracket, so that shoulder (a) is behind the
bearing bush. When working on the front
axle, ensure that the shoulder engages with
the recess between the bearing bush and
the spring-brake cylinder bracket.

R600154

6.

Using nut (4), screw the wedges as far as
possible inwards. Tighten the nut
fingertight.

7.

Place spacer sleeve (5) against the
spring-brake cylinder bracket and screw nut
(6) until the bearing bush is pulled out of the
bracket. Ensure that the contact faces of
nut (6) and spacer sleeve (5) and threaded
spindle (8) are sufficiently lubricated.

Installation of the brake-camshaft bearing
1.

Check the spring-brake cylinder bracket for
damage. If necessary, replace.

2.

Check whether the lubricating nipple is
open, so that the bearings can be lubricated
with grease from the automatic greasing
system.

4

ǹ 0006

6

Removal and installation

BRAKE COMPONENTS

2-29

3.

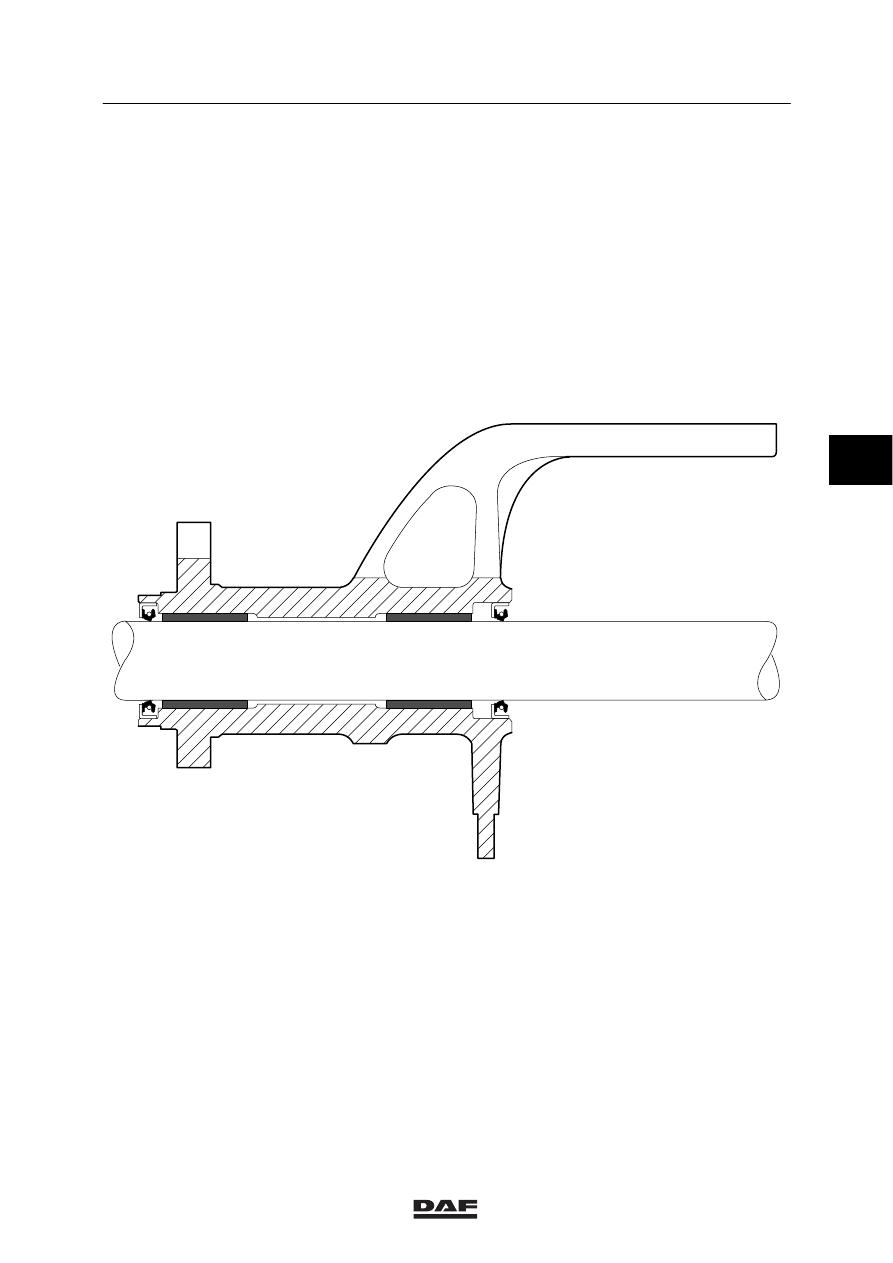

Use the special tool (DAF no. 1310421) to
fit the bearing bushes.

4.

Check the brake camshaft for smooth
operation. If necessary, ream the bushes.
Play between spindle and bush 0.1 to
0.2 mm.

5.

Fit the oil seals.
Note:
The oil seal on the wheel brake end should
form a seal, whilst the oil seal on the slack
adjuster end should be able to discharge
grease from the bracket.

6.

Fit the brake camshaft.

R600185

4

ǹ 0006

6

BRAKE COMPONENTS

Removal and installation

2-30

2.12 REMOVAL AND INSTALLATION, BRAKE BACK PLATE

Removal of the brake back plate
1.

Remove the brake drum.

2.

Remove the brake shoes.

3.

Remove the automatic slack adjuster.

4.

Remove the brake camshaft.

5.

Remove the hub (see group 7 and/or group
8 of the workshop manual).

6.

Remove the brake back plate.

Installation of the brake back plate
1.

Clean the contact surfaces of the brake
back plate and the spindle. Be sure to let
these surfaces dry for approx. 20 minutes
before installing the back plate. Thoroughly
clean all other parts.

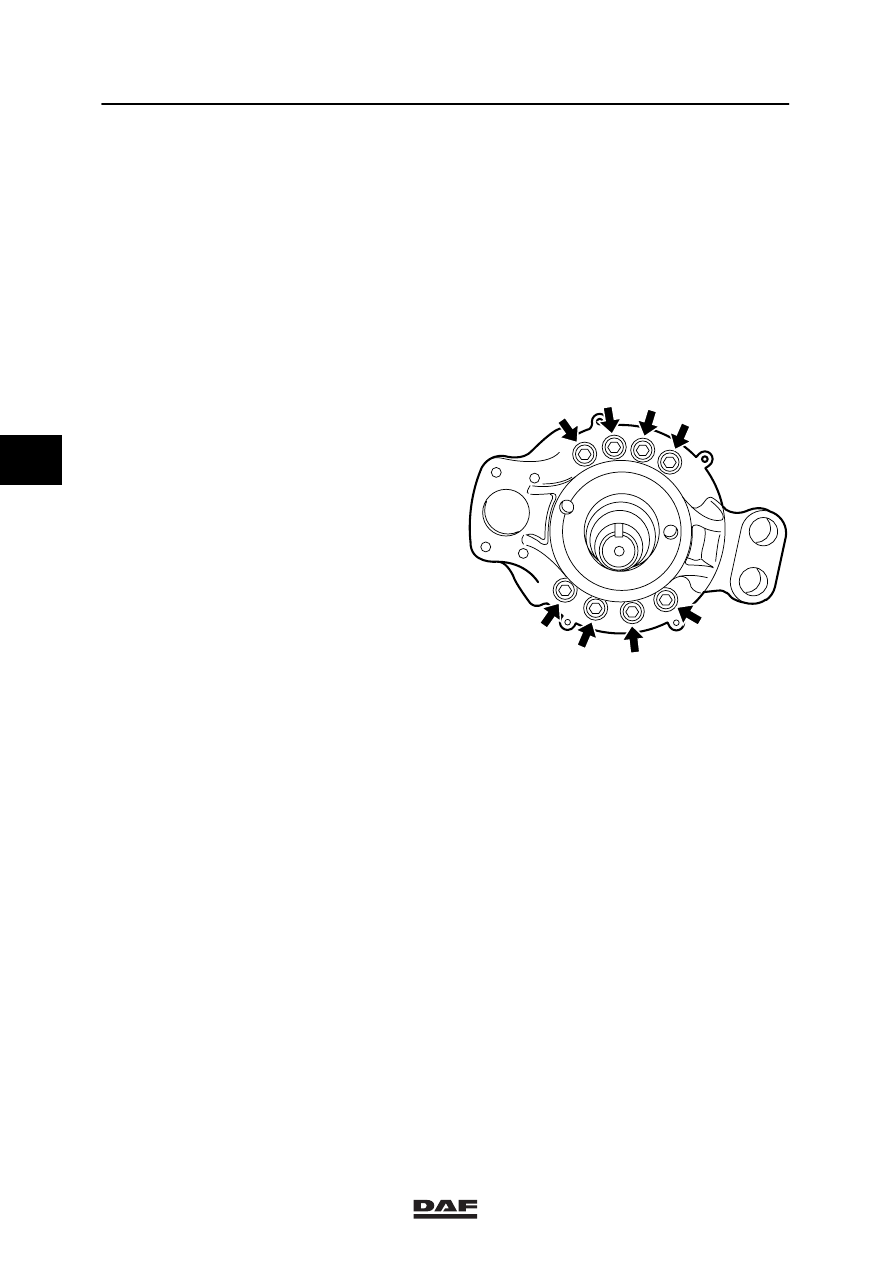

2.

Install the back plate and tighten the
attachment bolts to the specified torque,
see main group “Technical data”.

3.

Fit the hub (see group 7 and/or group 8 of
the workshop manual).

4.

Fit the brake camshaft.

5.

Fit the brake shoes.

6.

Fit the brake drum.

7.

Fit the automatic slack adjuster.

R600156

4
