Inspection and adjustment
BRAKE COMPONENTS
1-35

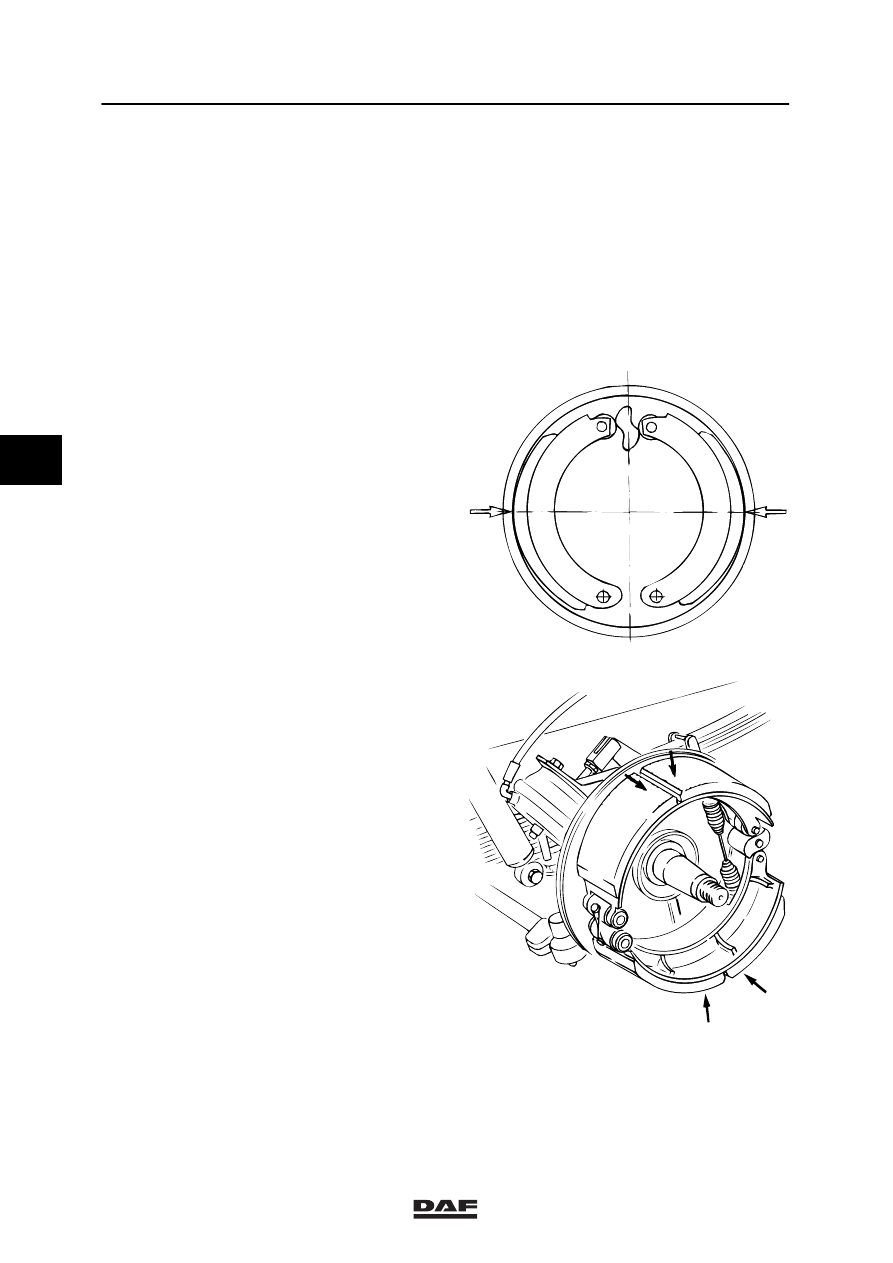

1.19 INSPECTION BRAKE LININGS
In the case of separated brake linings, the
words “remnokzijde” (brake cam side) and
“draaipuntzijde” (pivot side) are marked on the
side of the lining.
The brake lining with the words “remnokzijde”
should be attached to the brake camshaft. The
brake lining with the words “draaipuntzijde”
should be attached to the pivoting end.
Note:
If these markings are not applied, fit the thin
side of the lining to the pivoting end, and the
thick side of the lining to the camshaft end.
Note:
Always fit the same type of brake linings to a
vehicle.
-
When the brakes are applied, kinetic energy
is converted into heat.
-
The temperatures of the brake lining may
become very high.
-
A brake lining must be effective in a wide
temperature range. This means that the
friction coefficient should be independent of
temperature as much as possible.
-
The brake lining must also have a long
service life.
-
The brake lining must be unaffected by
weather conditions, and should produce as
little noise as possible.
-
Excessive heat may cause changes to the
wearing surface of the brake drum.

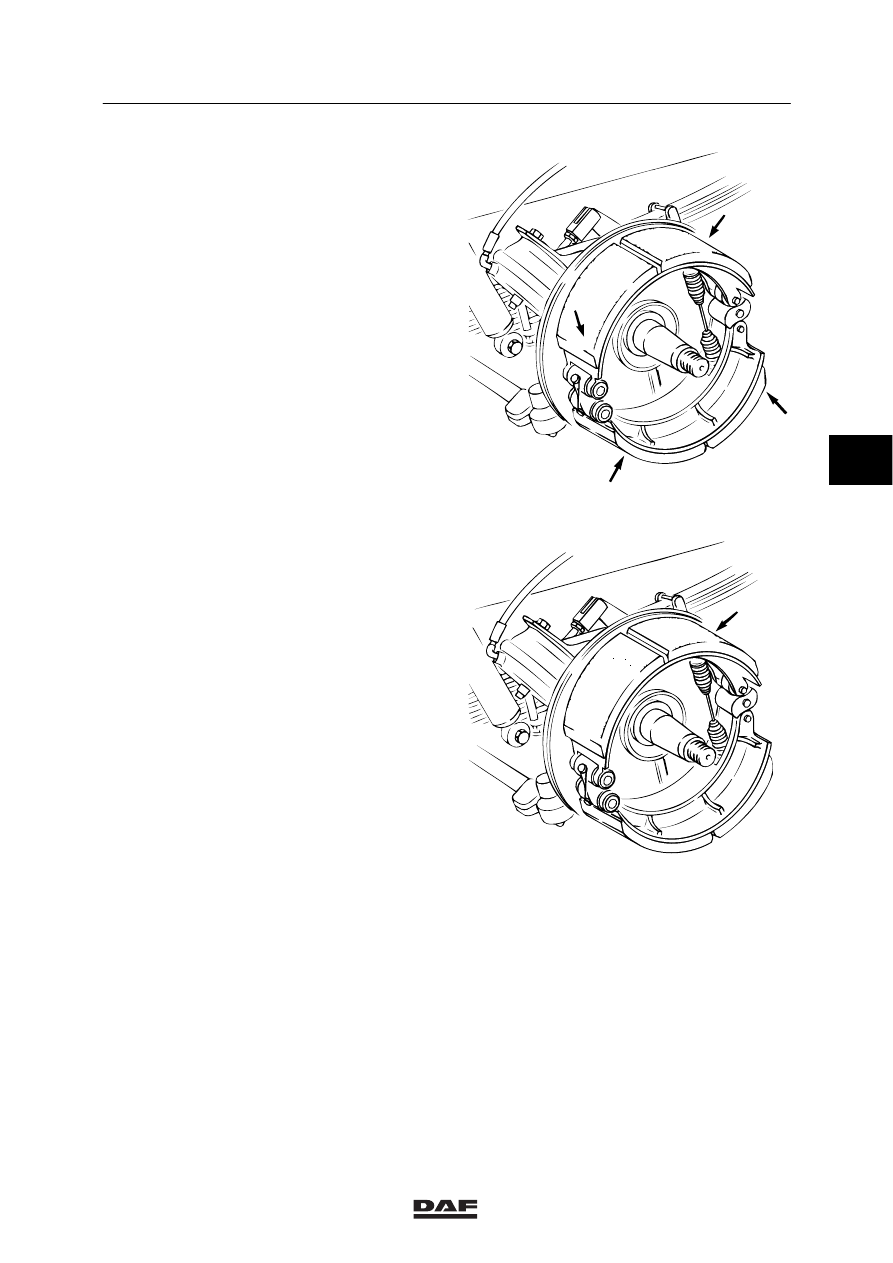

Aspects of the brake lining (including the
brake shoe) to be checked:
-
braking performance after running in
-
glazing
-
moisture absorption (oil absorption)
-
lining wear
-
heat cracks
-
corrosion
-
zwel
Corrosion
Brake shoes may exhibit considerable corrosion,
as a result of excessive ageing and the action of
moisture on the assembly face.
