Safety instructions

XE ENGINE

1-1

1. SAFETY INSTRUCTIONS

Do not run the engine in an enclosed or
unventilated area.
Make sure exhaust fumes are properly
extracted.

Maintain a safe distance from rotating and/or
moving components.

Various sorts of oil and other lubricants used on
the vehicle may constitute a health hazard.
This also applies to engine coolant, windscreen
washer fluid, refrigerant in air-conditioning
systems, battery acid and diesel fuel.
So avoid inhaling and direct contact.

Exhaust gases contain carbon monoxide.
Carbon monoxide is a deadly, colourless and
odourless gas, which, when inhaled, deprives
the body of oxygen, leading to asphyxiation.
Serious carbon monoxide poisoning may result
in brain damage or death.

It is recommended to always disconnect the
battery’s earth connection during repair or
maintenance activities for which the power
supply is not required.

ǹ 0008

5

2

XE ENGINE

Safety instructions

1-2

5

ǹ 0008

2

General

XE ENGINE

2-1

2. GENERAL

2.1 LOCATION OF COMPONENTS

M200923

1

2

4

5

6

10

7

3

9

8

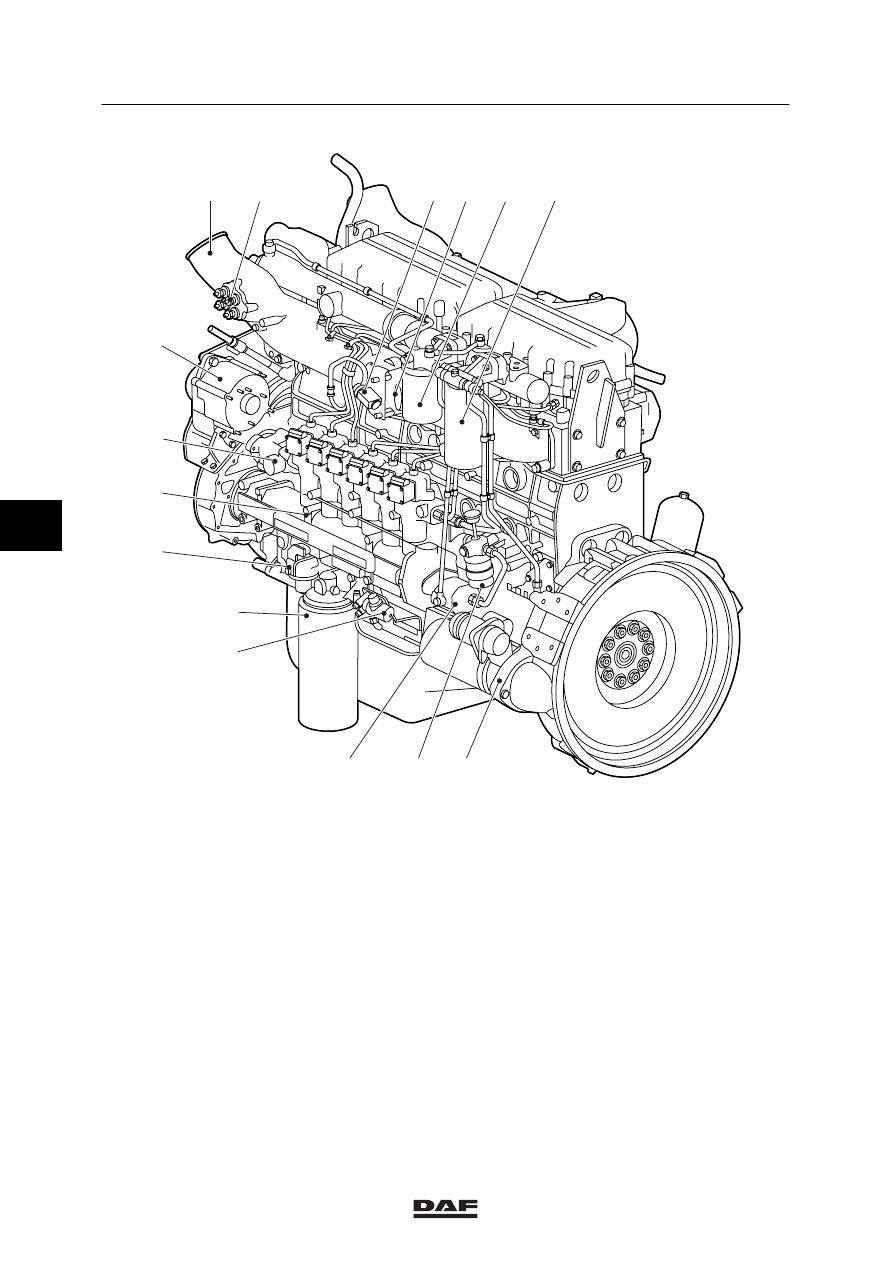

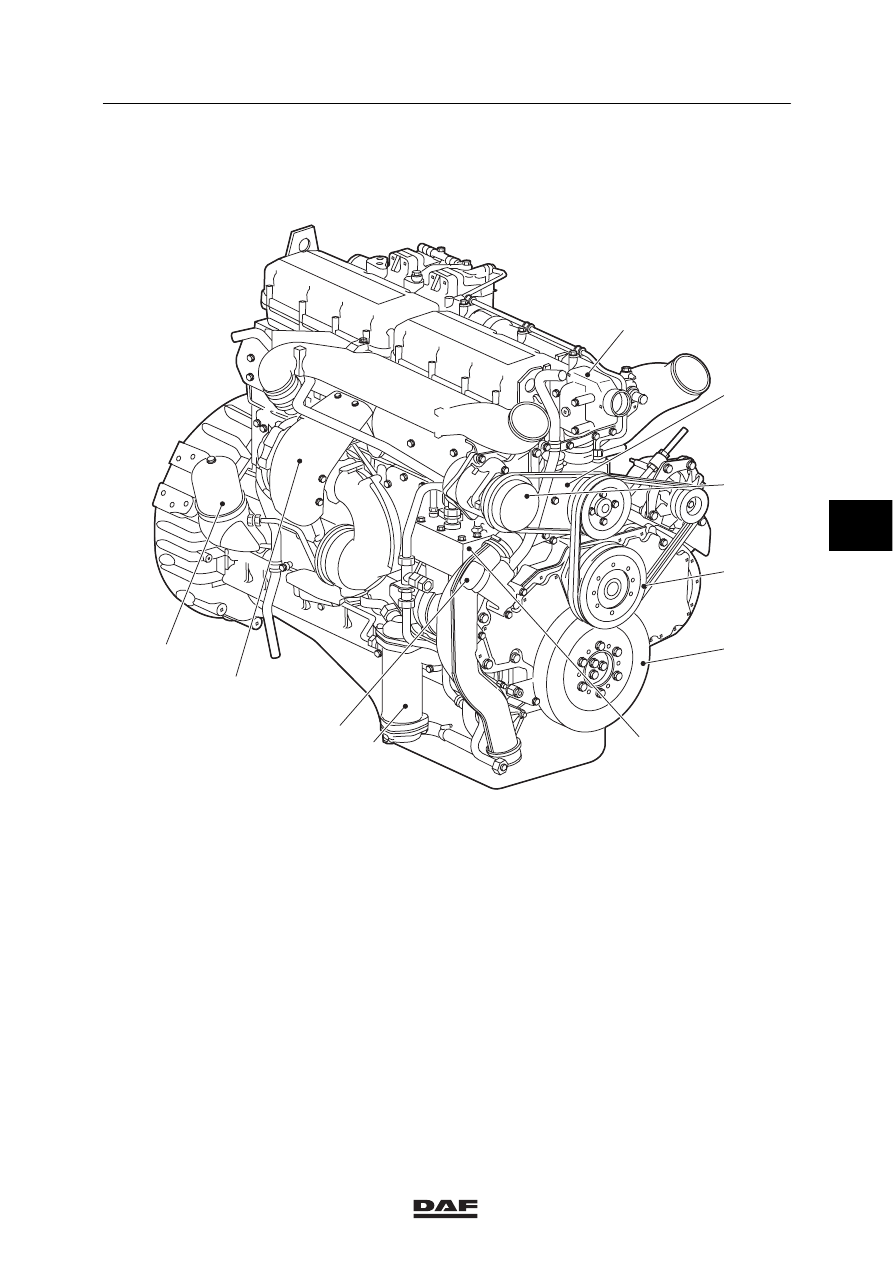

Legend
1.

Thermostat housing

2.

Water pump

3.

Air-conditioning compressor

4.

Fan drive

5.

Vibration damper

6.

Air compressor

7.

Oil cooler

8.

Turbocharger

9.

Centrifugal filter

10. Oil-filling pipe

5

ǹ 0008

2

XE ENGINE

General

2-2

M200924

6

4

3

5

2

1

9

15

10

11 12 13

14

7

8

Legend
1.

Steering pump

2.

Pump housing

3.

Oil filter

4.

Engine brake valve

5.

Pressure-reducing valve

6.

Fuel lift pump

7.

Hand pump

8.

Starting motor

9.

Alternator

10. Glow filaments
11.

Electro-pneumatic boost pressure valve

12. Engine information-code plate
13. Coolant filter
14. Fuel filter
15. Inlet manifold

5

ǹ 0008
